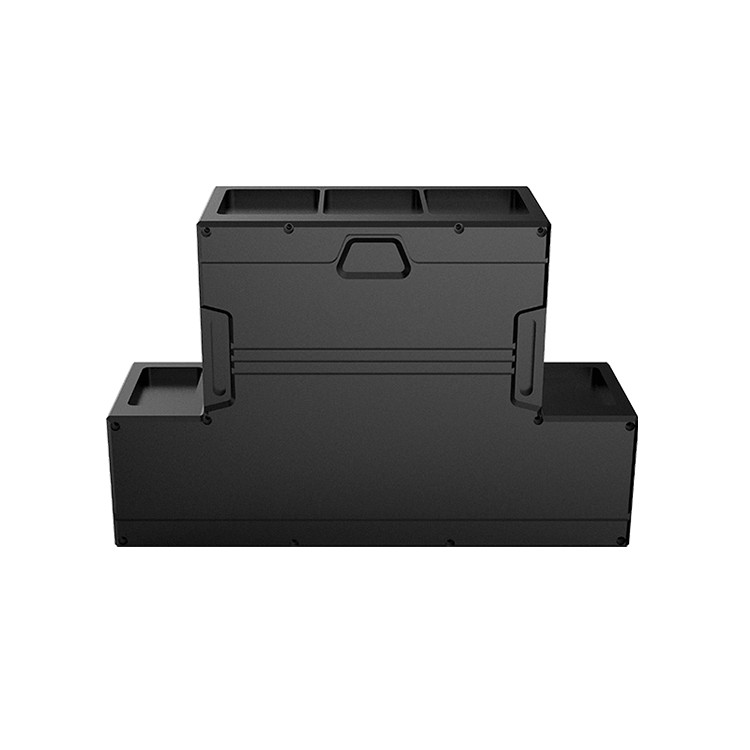

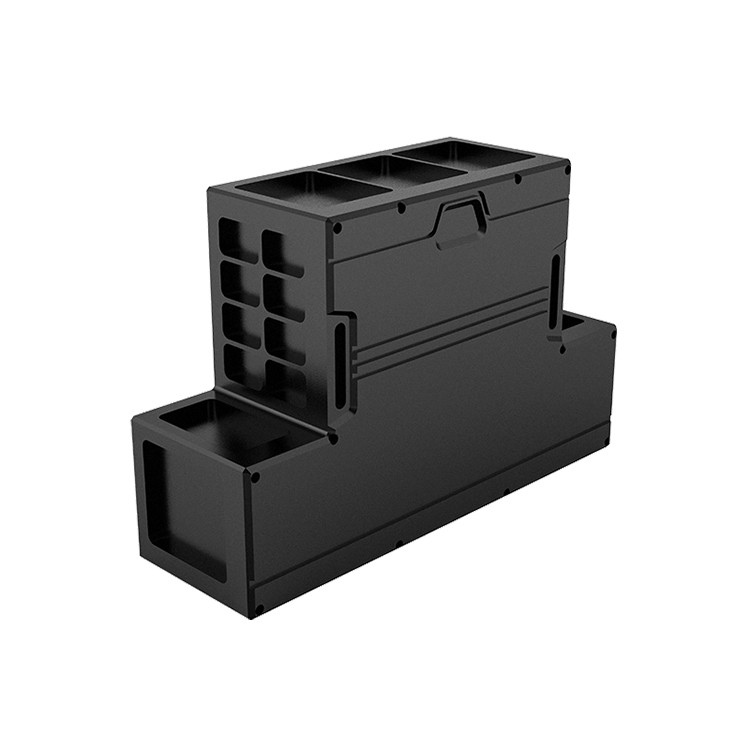

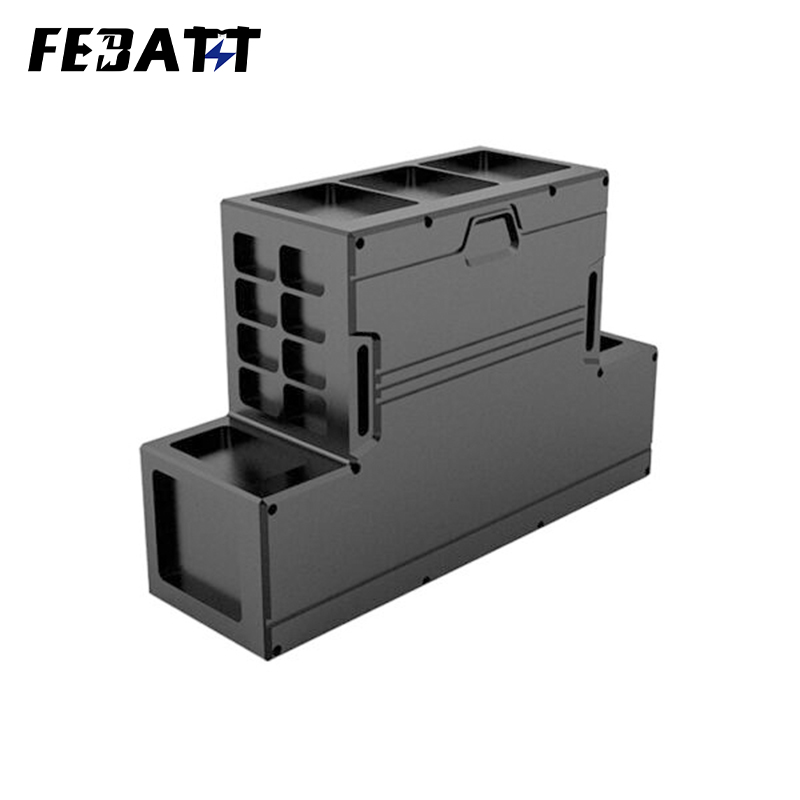

Engineered for industrial automation, the 18650 48V 20Ah Energy Storage Battery for Industrial Robot redefines power for robotic systems. With 18650 cells, 48V output, and 20Ah capacity, this Energy Storage Battery for Industrial Robot integrates CAN communication, multi – layer safety, and rugged durability—ideal for material – handling robots, factory automation, and heavy – duty industrial bots.
Nominal Voltage：48V
Rated Capacity：20Ah

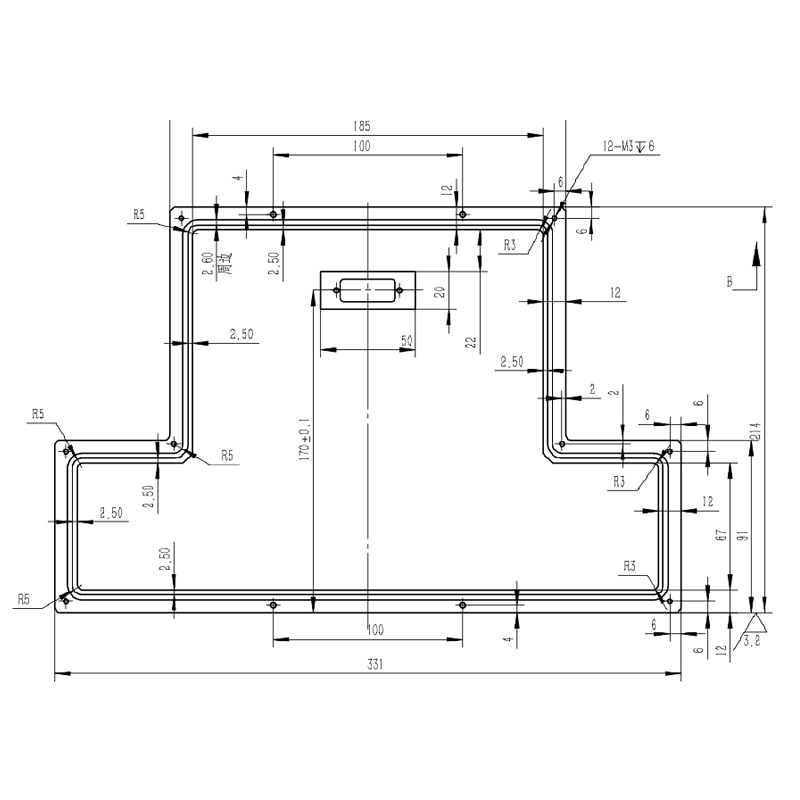

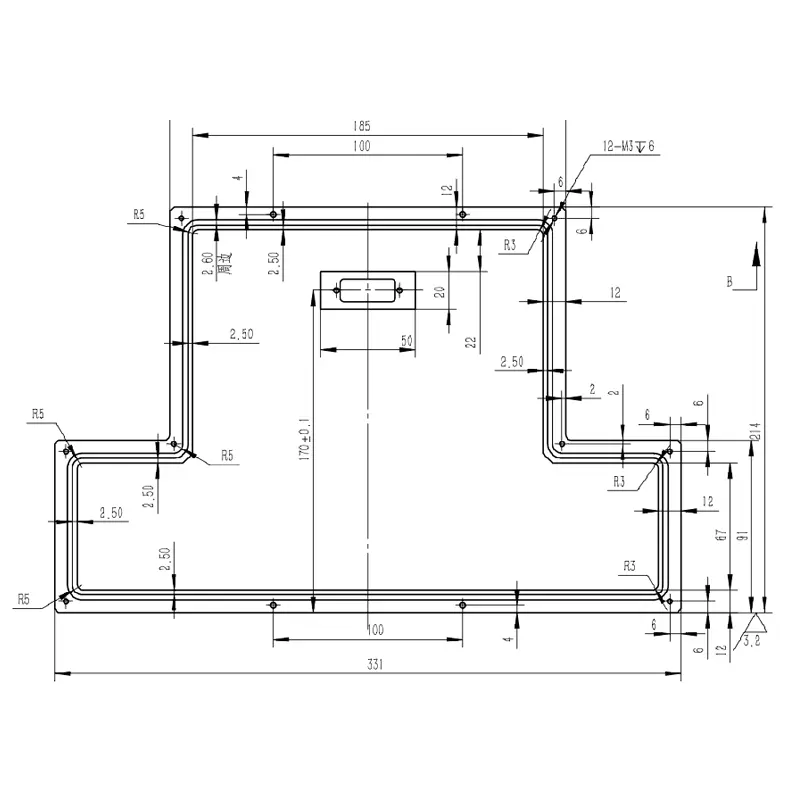

Dimension：214*180*149mm
Charge Voltage：54.6V
Charge Current：≤10A
Discharge Current：20A
Discharge Cut-off Voltage：32.5V
Weight：4Kg
Operating Temperature：-20～55℃
Application：industrial robot
The 48V 20Ah Energy Storage Battery for Industrial Robot ensures:
- “20Ah Long Runtime: Powers material – handling robots through 12 + hours of continuous factory operations.”
- “48V Stable Output: Drives precise motor functions in welding robots, CNC tenders, and assembly bots.”
Integrated CAN communication provides:
- “Real – Time Fleet Tracking: Monitors battery health, voltage, and capacity—prevents robotic downtime in 24/7 factories.”
- “Custom Alerts: Overcurrent, overheating warnings—critical for automated industrial fleets.”
With 18650 cells and – 20~55℃ operation:
- “Shock – Resistant Casing: Survives drops, vibrations in factory settings—protects battery and robotic systems.”
- “Wide Temp Adaptation: Works in cold warehouses (- 20℃), hot foundries (55℃), and outdoor logistics.”
The Energy Storage Battery for Industrial Robot powers:
- “Welding Robots: 48V output supports high – precision arc welding, ensuring consistent weld quality.”
- “Assembly Line Bots: 20Ah capacity enables 8 + hours of component picking, placing, and sorting.”
For logistics and warehousing:
- “Pallet – Moving Robots: Stable 48V power ensures safe, efficient transport of 1000 + kg loads.”
- “Outdoor Logistics Bots: Operates at – 20℃ in cold storage, 55℃ in open – air yards—no climate – related failures.”
