Q1: What applications are industrial robot and machinery batteries designed for?

A: Industrial robot and machinery batteries are used in automated equipment and electrically powered industrial systems that require stable DC power, repeated charge-discharge operation, and reliable performance under demanding duty cycles. Typical applications can include industrial robots, mobile automation equipment, material-handling systems, inspection equipment, and other specialized machinery. The battery should always be selected around the equipment’s actual voltage, load profile, installation space, charging method, and operating environment.

Q2: How do I choose the right battery for an industrial robot or machine?

A: Start with the machine’s nominal voltage, required operating time, continuous current, peak current, available installation space, and charging strategy. For intelligent equipment, also confirm the connector and communication requirements. A suitable industrial battery should match both the electrical load and the mechanical integration requirements rather than being selected by capacity alone.

Q3: What is the typical cycle life of an industrial lithium battery?

A: Cycle life depends on cell chemistry, depth of discharge (DoD), charge and discharge rate, temperature, and the machine’s duty cycle. As a published reference, selected FEBATT robot battery configurations are specified for 2,000+ cycles at 80% DoD. Actual cycle-life ratings vary by battery model and test conditions, so the specification of the selected pack should be used for project evaluation.

Q4: How does the BMS protect an industrial robot or machinery battery?

A: The Battery Management System (BMS) monitors key operating parameters such as voltage, current, and temperature and helps protect the battery against abnormal operating conditions. Depending on the battery configuration, protection functions can include overcharge, over-discharge, overcurrent, short-circuit, and abnormal-temperature protection. Additional functions such as cell balancing, SOC estimation, fault logging, and communication may be integrated according to the project.

Q5: Can industrial lithium batteries handle high continuous and peak loads?

A: Yes, when the battery system is engineered for the machine’s actual load profile. Industrial equipment may experience short power peaks during startup, acceleration, lifting, actuation, or other high-load events. The required continuous current and peak current should therefore be defined during battery selection so the cells, BMS, busbars, connectors, and protection settings can be matched to the application.

Q6: How do voltage and capacity affect industrial battery selection?

A: Voltage must match the machine’s electrical architecture, while capacity primarily determines available energy and operating time. A higher Ah rating does not automatically make a battery suitable if its voltage, discharge capability, dimensions, or communication interface do not match the equipment. FEBATT industrial battery solutions cover multiple voltage and capacity classes, so system selection should be based on the complete operating requirement rather than voltage or capacity alone.

Q7: Can industrial batteries operate in low- or high-temperature environments?

A: Industrial batteries can be configured for different operating environments, but temperature limits are model-specific. Selected FEBATT robot battery configurations publish operating-temperature references down to -20°C and up to 60°C. Actual charge and discharge temperature limits can differ by pack, and applications outside standard conditions may require a dedicated cell selection or thermal-control solution.

Q8: What communication interfaces are available for industrial battery integration?

A: Communication requirements depend on the machine controller and project architecture. Selected FEBATT robot battery solutions support interfaces such as CAN and RS485, enabling the battery system to exchange information such as SOC, voltage, current, temperature, status, and fault data with the host controller. Interface type, message definitions, and communication logic should be confirmed during system integration.

Q9: How does charging strategy affect battery performance and equipment uptime?

A: Charging strategy affects both machine availability and long-term battery performance. The charger voltage, charge current, BMS limits, operating schedule, and available charging windows should be matched to the battery configuration. For multi-shift or high-utilization equipment, charging can be planned around actual operating cycles to reduce unnecessary downtime without exceeding the battery’s specified charging limits.

Q10: Can FEBATT customize batteries for industrial robots and machinery?

A: Yes. FEBATT can develop battery solutions around project-specific electrical and mechanical requirements. Customization may include voltage, capacity, dimensions, enclosure, continuous and peak current capability, connector and wiring configuration, BMS functions, CAN or RS485 communication, charging requirements, and installation constraints. Final specifications are determined according to the target machine and operating conditions.

Powerful OEM 25.6V 300AH LFP battery

Name: Powerful OEM 25.6V 300AH LFP battery
Availability: InStock

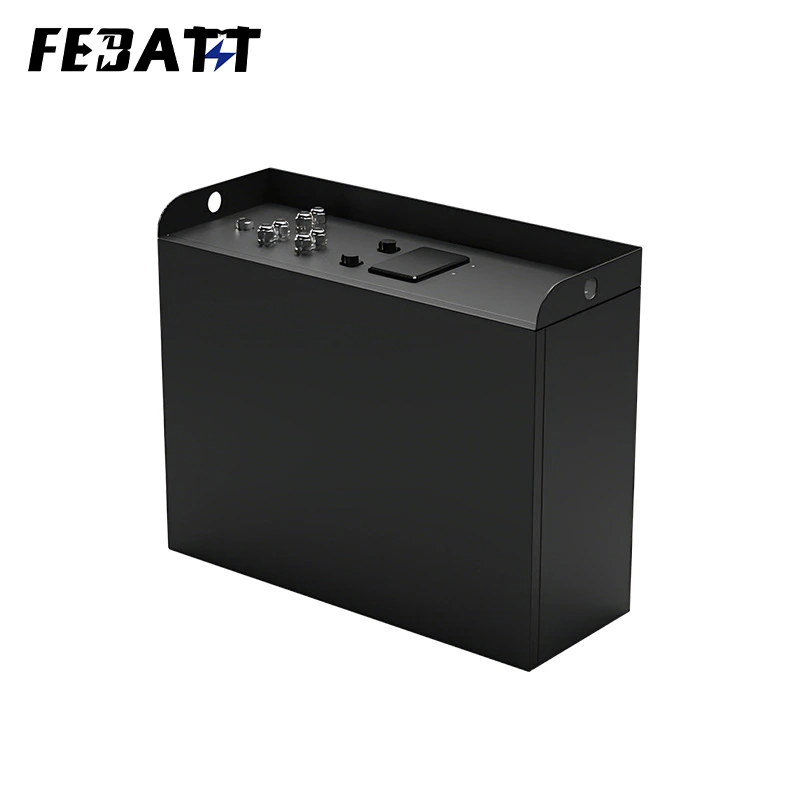

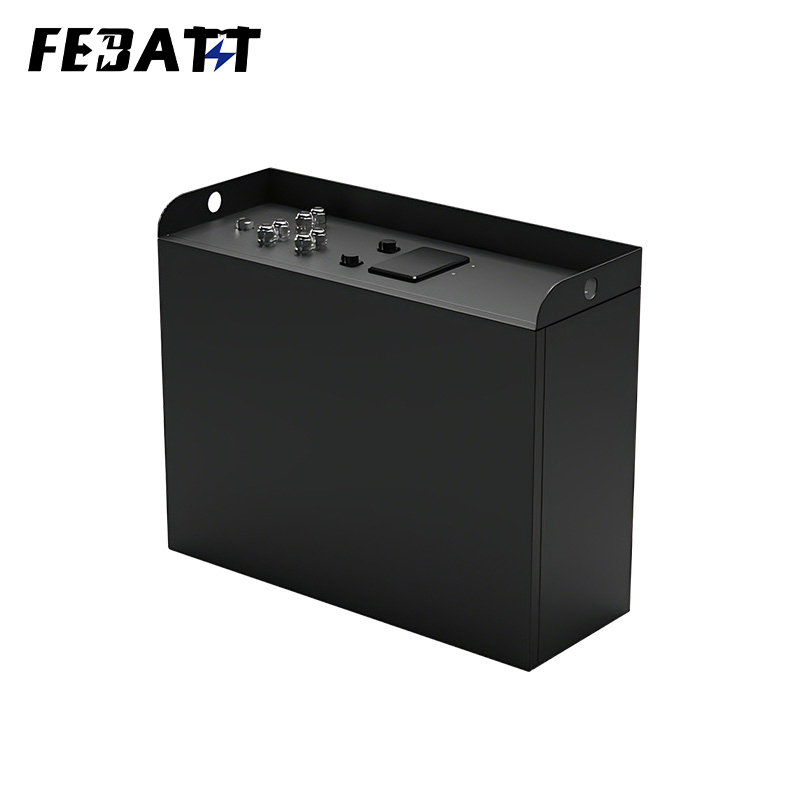

25.6V 300AH LFP Battery: Heavy-Duty Power Core for Industrial Machinery

Product Introduction

Engineered as a 25.6V 300AH LFP Battery, this lithium iron phosphate solution is built for high-demand heavy industrial machinery that handles continuous operation, high-load tasks, and harsh industrial environments. Featuring 25.6V nominal voltage, 300AH high capacity, and a rugged Q235 steel casing, this 25.6V 300AH LFP Battery stands out with 7.68kWh total energy and 200A peak discharge — enabling industrial machinery to tackle 1000+ kg load tasks and operate continuously for 16+ hours. Unlike standard industrial batteries, its robust structural design and IP67 protection meet the rigorous needs of heavy industrial workspaces, making it a reliable power core for high-intensity industrial operations.

Technical Specifications

25.6V 300AH LFP Battery Core Parameters (Tailored for Heavy Industrial Machinery)

Parameter	Details (Tailored for Industrial Machinery)
Cell Type	LFP 300Ah
Cell Cycle Life	≥1500 cycles (100% DOD) – cuts industrial machinery battery replacement costs
System Cycle Life	≥1200+ cycles (100% DOD)
Cell Certification	UN38.3
Nominal Capacity	300AH (10P) – supports long-duration industrial machinery runs
Nominal Voltage	25.6V (8S)
Working Voltage Range	20V-29.25V
Total Energy	7.68kWh – powers 16+ hours of industrial machinery operation
Weight	≈136kg
Normal Charging Current	≤120A
Peak Charging Current	≤150A – fast recharging for industrial shift turnover
Continuous Discharge Current	≤180A – sustains heavy-load industrial machinery operations
Peak Discharge Current	≤200A – handles 1000+ kg load tasks via industrial machinery
Operating Temperature	Charge: -20℃-50℃; Discharge: -40℃-55℃ – adapts to outdoor/indoor industrial environments
Communication	RS485 – syncs with industrial machinery control systems
Casing Material	Q235 steel – resists impacts in heavy industrial workflows
Protection Grade	IP67 – dust/waterproof for harsh industrial workspaces
Plug Type	Rema 180A – stable connection for high-power industrial machinery
Dimensions (L×W×H)	770mm×289mm×620mm – fits standard heavy industrial machinery power compartments
Application	Heavy Industrial Machinery, Construction Equipment, Factory Heavy-Load Production Lines

Core Advantages of 25.6V 300AH LFP Battery

1. .68kWh High Energy for 16+ Hour Industrial Machinery Runtime
25.6V 300AH LFP Battery delivers 7.68kWh total energy:It supports 16+ hours of continuous operation for factory heavy-load production lines — enough to cover full daily shift tasks (e.g., 800+ material handling cycles) without recharging.For outdoor construction equipment, this capacity powers 12+ hours of on-site heavy-duty work.

2. 200A Peak Discharge for Heavy-Load Industrial Tasks
Tailored for industrial machinery load needs:200A peak discharge enables heavy industrial machinery to handle 1000+ kg bulk material transfers — critical for construction site and factory production line operations.
180A continuous discharge sustains stable performance through frequent high-load cycles (common in heavy industrial workflows).

3. IP67 Protection for Industrial Harsh Environments
Built for industrial scenarios:IP67 dust/waterproof rating shields the battery from construction site debris, factory dust accumulation, and light liquid splashes — no performance loss in typical heavy industrial work environments.

4. ≥1500 Cell Cycles for Low-Cost Industrial Operations
Optimized for high-frequency industrial use:≥1500 cell cycles mean this 25.6V 300AH LFP Battery lasts 1.5x longer than standard alternatives. For a 5-unit heavy industrial machinery fleet, this cuts replacement costs by 60% over 2 years.

5. RS485 Communication for Industrial Machinery Coordination
Syncs with industrial operations:RS485 communication transmits real-time battery data (state of charge, temperature) to industrial machinery control systems. Managers can schedule maintenance to align with off-peak production hours, minimizing workflow downtime.

Application Scenarios

1. Heavy Industrial Machinery
25.6V 300AH LFP Battery powers 1000+ kg material handling tasks. 200A peak discharge handles bulk load transfers, and Q235 steel casing resists industrial site impacts.

2. Construction Equipment
It suits 12+ hours of on-site heavy-duty work. Wide temperature adaptability (down to -40℃) works in cold outdoor construction environments, and IP67 protection resists site debris.

3. Factory Heavy-Load Production Lines
It energizes 16+ hours of continuous production tasks. 7.68kWh energy covers full-shift operations, and long cycle life reduces maintenance frequency for high-volume industrial production.
