Q1: What applications are industrial robot and machinery batteries designed for?

A: Industrial robot and machinery batteries are used in automated equipment and electrically powered industrial systems that require stable DC power, repeated charge-discharge operation, and reliable performance under demanding duty cycles. Typical applications can include industrial robots, mobile automation equipment, material-handling systems, inspection equipment, and other specialized machinery. The battery should always be selected around the equipment’s actual voltage, load profile, installation space, charging method, and operating environment.

Q2: How do I choose the right battery for an industrial robot or machine?

A: Start with the machine’s nominal voltage, required operating time, continuous current, peak current, available installation space, and charging strategy. For intelligent equipment, also confirm the connector and communication requirements. A suitable industrial battery should match both the electrical load and the mechanical integration requirements rather than being selected by capacity alone.

Q3: What is the typical cycle life of an industrial lithium battery?

A: Cycle life depends on cell chemistry, depth of discharge (DoD), charge and discharge rate, temperature, and the machine’s duty cycle. As a published reference, selected FEBATT robot battery configurations are specified for 2,000+ cycles at 80% DoD. Actual cycle-life ratings vary by battery model and test conditions, so the specification of the selected pack should be used for project evaluation.

Q4: How does the BMS protect an industrial robot or machinery battery?

A: The Battery Management System (BMS) monitors key operating parameters such as voltage, current, and temperature and helps protect the battery against abnormal operating conditions. Depending on the battery configuration, protection functions can include overcharge, over-discharge, overcurrent, short-circuit, and abnormal-temperature protection. Additional functions such as cell balancing, SOC estimation, fault logging, and communication may be integrated according to the project.

Q5: Can industrial lithium batteries handle high continuous and peak loads?

A: Yes, when the battery system is engineered for the machine’s actual load profile. Industrial equipment may experience short power peaks during startup, acceleration, lifting, actuation, or other high-load events. The required continuous current and peak current should therefore be defined during battery selection so the cells, BMS, busbars, connectors, and protection settings can be matched to the application.

Q6: How do voltage and capacity affect industrial battery selection?

A: Voltage must match the machine’s electrical architecture, while capacity primarily determines available energy and operating time. A higher Ah rating does not automatically make a battery suitable if its voltage, discharge capability, dimensions, or communication interface do not match the equipment. FEBATT industrial battery solutions cover multiple voltage and capacity classes, so system selection should be based on the complete operating requirement rather than voltage or capacity alone.

Q7: Can industrial batteries operate in low- or high-temperature environments?

A: Industrial batteries can be configured for different operating environments, but temperature limits are model-specific. Selected FEBATT robot battery configurations publish operating-temperature references down to -20°C and up to 60°C. Actual charge and discharge temperature limits can differ by pack, and applications outside standard conditions may require a dedicated cell selection or thermal-control solution.

Q8: What communication interfaces are available for industrial battery integration?

A: Communication requirements depend on the machine controller and project architecture. Selected FEBATT robot battery solutions support interfaces such as CAN and RS485, enabling the battery system to exchange information such as SOC, voltage, current, temperature, status, and fault data with the host controller. Interface type, message definitions, and communication logic should be confirmed during system integration.

Q9: How does charging strategy affect battery performance and equipment uptime?

A: Charging strategy affects both machine availability and long-term battery performance. The charger voltage, charge current, BMS limits, operating schedule, and available charging windows should be matched to the battery configuration. For multi-shift or high-utilization equipment, charging can be planned around actual operating cycles to reduce unnecessary downtime without exceeding the battery’s specified charging limits.

Q10: Can FEBATT customize batteries for industrial robots and machinery?

A: Yes. FEBATT can develop battery solutions around project-specific electrical and mechanical requirements. Customization may include voltage, capacity, dimensions, enclosure, continuous and peak current capability, connector and wiring configuration, BMS functions, CAN or RS485 communication, charging requirements, and installation constraints. Final specifications are determined according to the target machine and operating conditions.

Custom Reliable 18650 Li-ion Battery Pack for Robot with SMBUS

Name: Custom Reliable 18650 Li-ion Battery Pack for Robot with SMBUS
Availability: InStock

14.8V 5700mAh 18650 Li – ion Battery Pack for Robot with SMBUS BMS：Powering Special Robots

Introduction

Engineered for precision in special robotics, the 14.8V 5700mAh 18650 Li – ion Battery Pack for Robot with SMBUS BMS delivers smart power management, robust safety, and reliable performance. Built with SMBUS communication, it integrates seamlessly with robot systems—ideal for applications demanding real – time battery data and long – lasting operation. Whether it is in automated guided vehicles (AGVs) navigating complex factory floors, collaborative robots (cobots) working alongside humans in smart manufacturing setups, or inspection robots operating in harsh industrial environments, this battery pack ensures consistent power supply.

Core Specifications

Parameter	Value	SMBUS BMS Impact
Nominal Voltage	14.6V (14.8V nominal)	Matches special robot power requirements
Rated Capacity	5700mAh	Supports extended robot runtime
Communication	SMBUS	Enables real – time battery health tracking
Charge Voltage	16.8V	Safe, full charging via SMBUS protocols
Discharge Current	10A	Powers heavy – duty robot tasks
Application	Special Robot Battery	Tailored for robotics with SMBUS needs

Why This Battery Pack with SMBUS Dominates Special Robots

1. SMBUS Smart Communication: The Robotics Advantage

The Battery Pack for Robot with SMBUS syncs with your robot’s system:

“Real – time Data: Voltage, current, temperature—all monitored via SMBUS BMS. In AGV applications, this allows for precise control of power distribution during long – haul material transport, ensuring uninterrupted operation.”
“Predictive Alerts: SMBUS detects issues before they disrupt operations. For inspection robots working in remote or dangerous areas, this predictive capability prevents unexpected shutdowns that could compromise mission – critical tasks.”

2. Robust Safety for Special Robots

Built for harsh environments, the 14.8V 5700mAh 18650 Li – ion Battery Pack for Robot with SMBUS BMS includes:

“6 – Layer Protection: Short circuit, overcharge, over – discharge, and more—critical for special robot safety. In cobot applications where human – robot interaction is frequent, this multi – layer protection safeguards both the robot and the human operators.”

3. Compact Design, High Performance

With dimensions 96.2×72.2×44.2mm and 0.5Kg weight:

“Fits seamlessly in special robots—no bulk, no interference. For small – form – factor inspection robots used in tight spaces such as pipeline inspection or aircraft maintenance, this compact design is essential for maneuverability.”

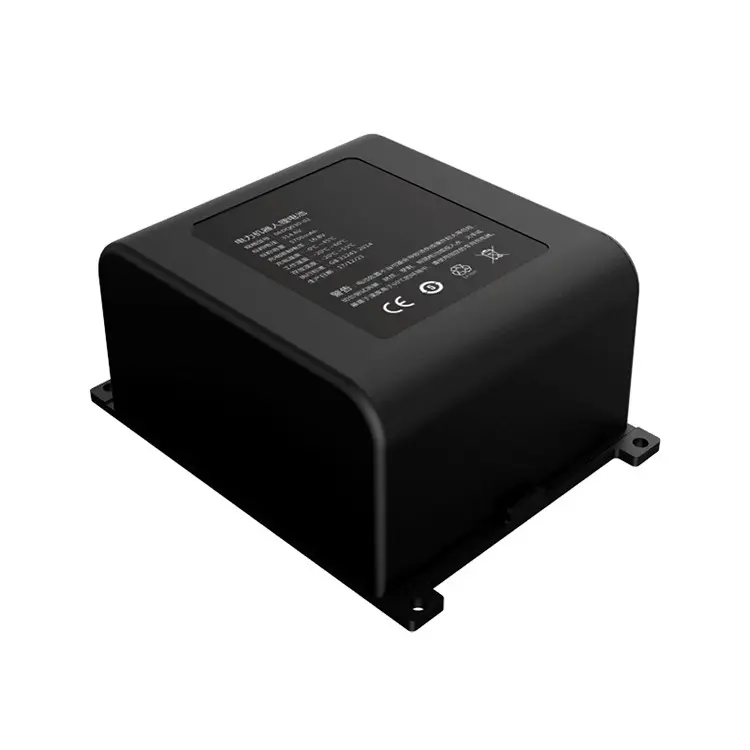

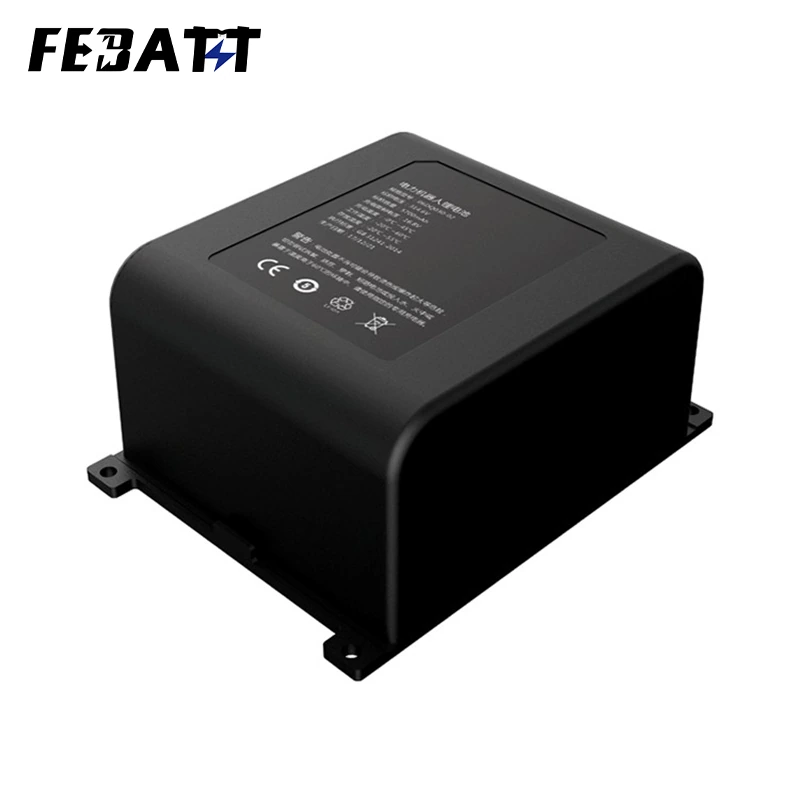

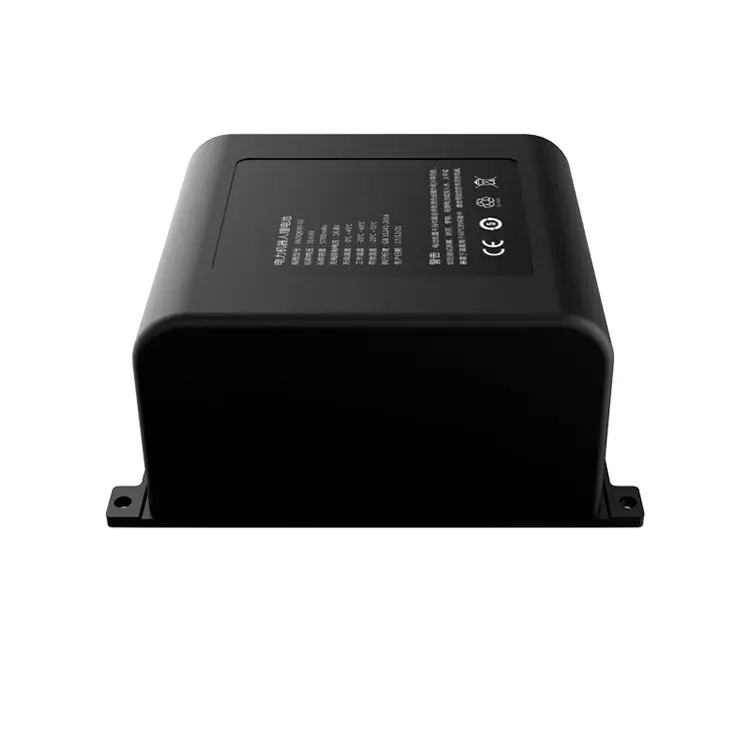

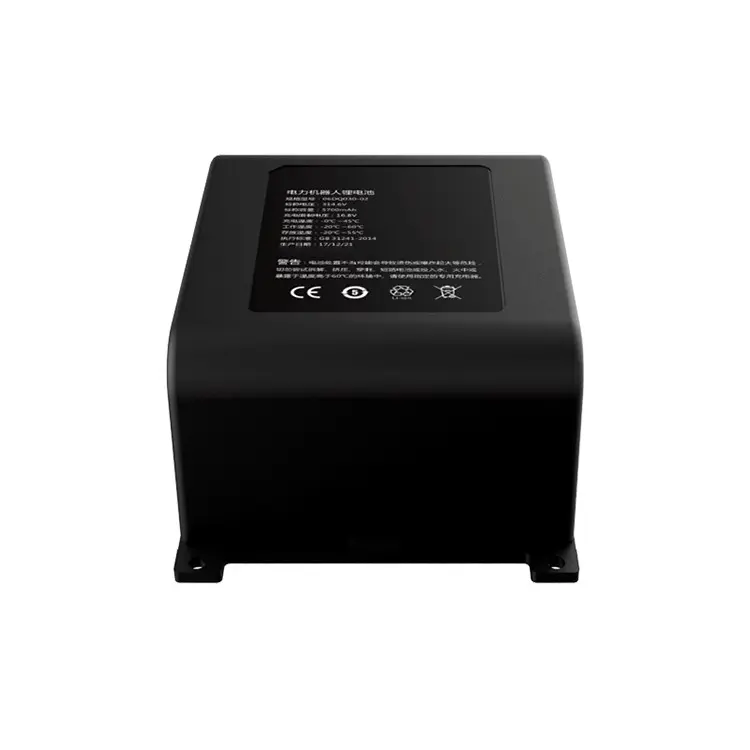

14.8V 5700mAh 18650 Li-ion Battery Pack for Robot with SMBUS BMS
