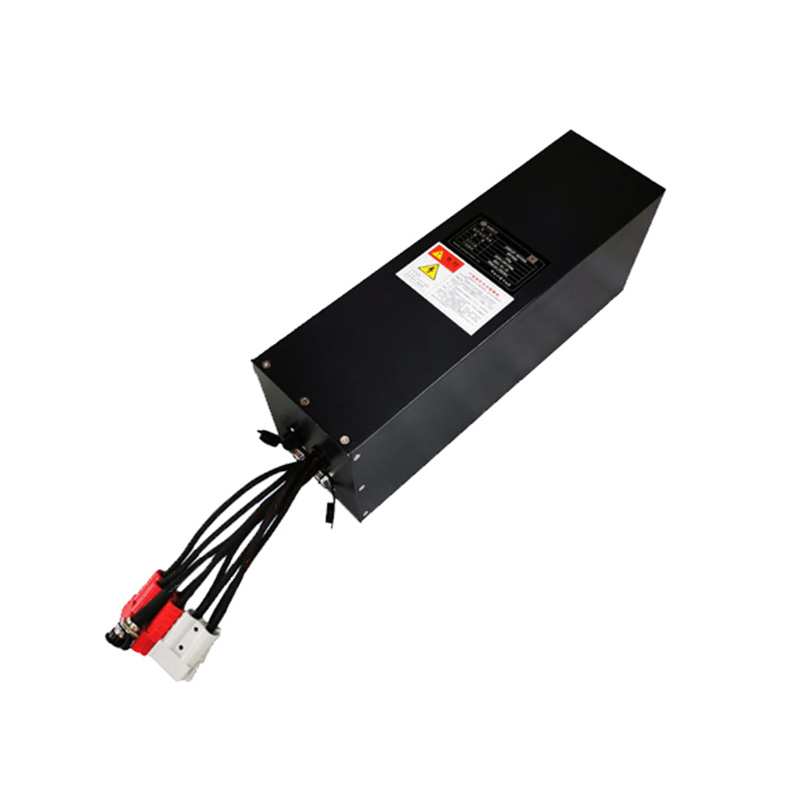

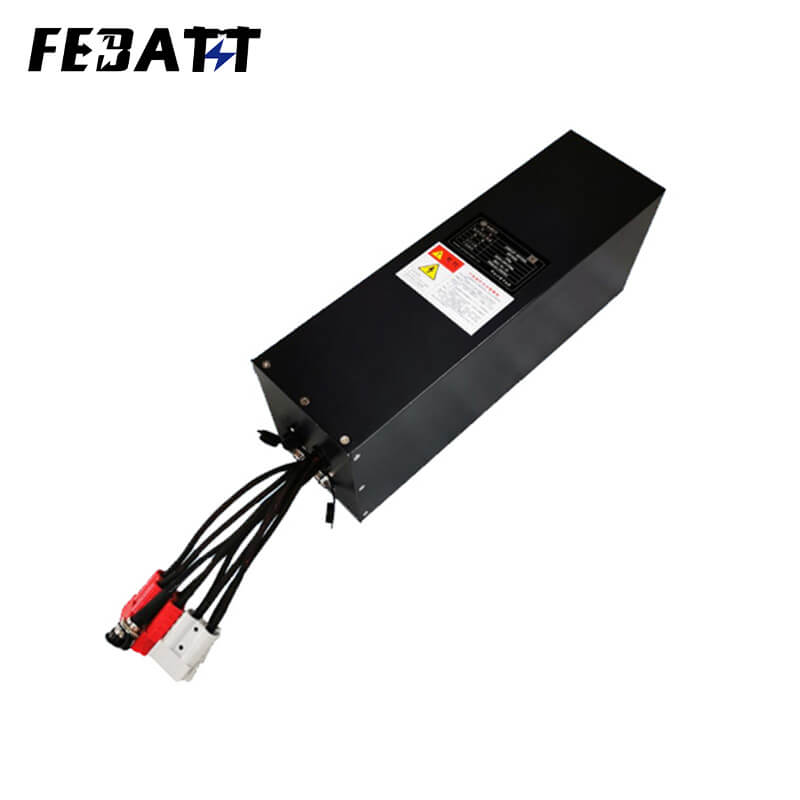

48V 30Ah LFP Battery for AGV Robots
is 48V-class, 30Ah LiFePO4 pack supplies warehouse AGVs and inspection platforms. Its customizable enclosure helps OEM teams assess available chassis space, wiring clearance and installation layout before integration. Match the electrical load to the battery’s rated current limits.
Reduce Maintenance and Route Interruptions
Repeated recharging and battery servicing can disrupt dispatch schedules. The pack’s LiFePO4 chemistry eliminates routine electrolyte top-ups, while the rated ≥2,000 cycles offer a starting point for replacement planning. Actual route availability depends on load profiles, charge windows and maintenance procedures.
Manage Warehouse Routes with RS485 Data
The 48V 30Ah LFP Battery for AGV Robots includes RS485 communication for compatible controllers to retrieve battery status. For material transport, integrators can use available BMS data to coordinate charge decisions and investigate faults. Verify the message protocol before linking the pack to fleet software.
Power Industrial Inspection Robots
Inspection robots require stable traction and sensor supply within defined electrical limits. The pack lists 20A continuous and 30A instantaneous discharge, helping OEMs evaluate patrol loads, camera equipment and control systems. Confirm peak-current duration and runtime under the actual inspection duty cycle.
Electrical Limits and Operating Conditions
The 48V 30Ah LFP Battery for AGV Robots is rated for charging at 0–45°C and discharging at -10–55°C. A published 41.6–58.4V operating range supports controller compatibility checks. Review the BMS cutoffs, cable ratings and charger profile before approving a vehicle installation.
Custom Pack Design and BMS Integration
The component diagram illustrates potential pack customization, not a verified internal cutaway. FEBATT buyers should specify the enclosure envelope, connector pinout, RS485 data mapping and BMS safeguards. Request design drawings and test evidence to establish compatibility with the robot controller, motor drive and sensors.
Core Specifications
| Parameter | Details |
|---|---|
| Chemistry | Lithium Iron Phosphate (LFP) – Custom Soft-Pack Cells |
| Nominal Voltage | 48V |
| Nominal Capacity | 30Ah |
| Continuous Discharge Current | 20A |
| Instantaneous Discharge Current | 30A |
| Operating Temperature | Charging: 0~45℃; Discharging: -10~55℃ |
| Voltage Range | 41.6V~58.4V |
| Communication | RS485 (For AGV Fleet Management) |
| Cycle Life | ≥2000 cycles |
| Application | Warehouse AGVs, Industrial Inspection Robots, Service Automation Machines |
EM Validation Before Volume Orders
The 48V 30Ah LFP Battery for AGV Robots can be assessed through requirement review, pack design, communication matching and prototype testing. Agree on acceptance criteria for current, temperature, fault handling and mechanical fit. Confirm production documentation and support arrangements before committing to batch quantities.
AGV and Inspection Robot Applications
The 48V 30Ah LFP Battery for AGV Robots targets warehouse AGVs, industrial inspection robots and service automation machines. B2B buyers should validate energy demand, charge frequency and integration needs for each platform rather than assume a common runtime across applications.
