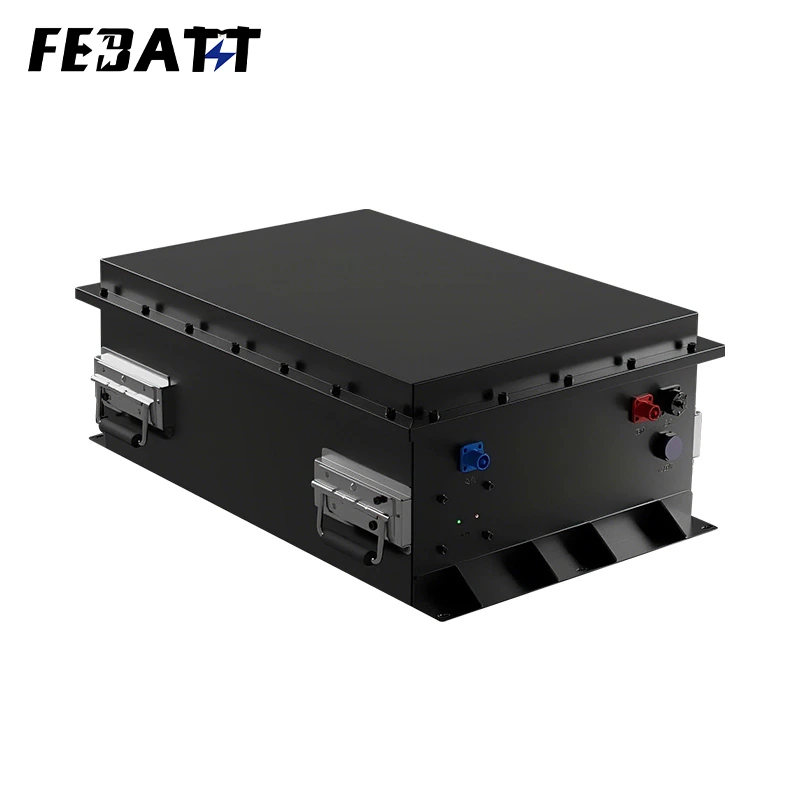

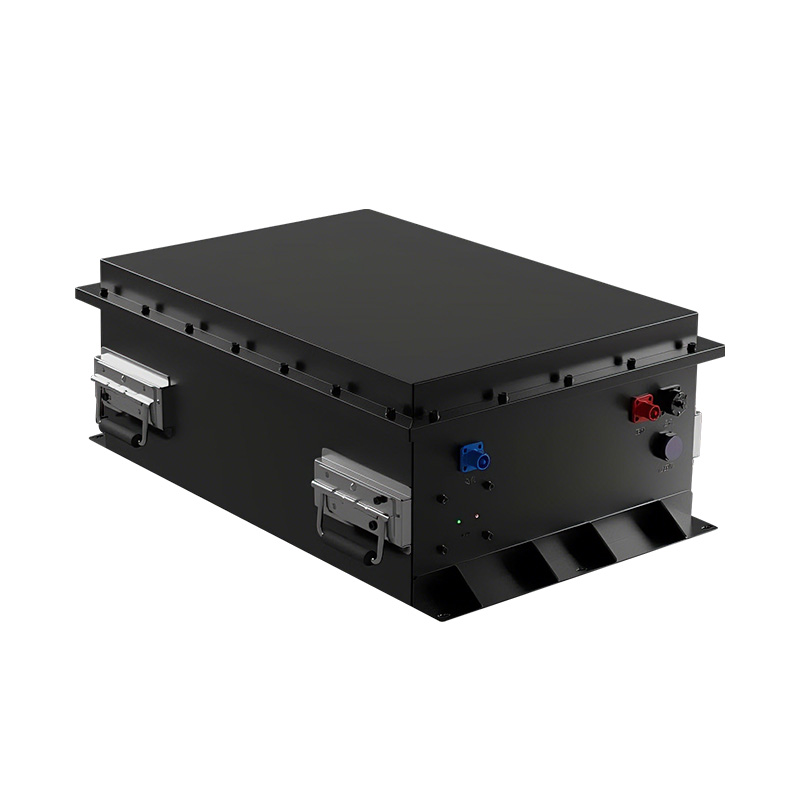

51.2V 230Ah LFP battery for logistics robot

51.2V 230Ah LFP Battery for Logistics Robot delivers 11.776kWh energy, 180A peak discharge, ≥2500 system cycles, IP67 protection, and CAN communication. It suits AGV/AMR logistics robots, warehouse sorting robots, and material-handling logistics robots

  • Cell Certification: UN38.3
  • Nominal Capacity: 230Ah
  • Nominal Voltage: 51.2V
  • Total Energy: 11.776kWh
  • Weight: ≈90kg
  • Normal Charging Current: ≤120A
  • Peak Charging Current: ≤150A
  • Continuous Discharge Current: ≤130A
  • Peak Discharge Current: ≤180A
  • Communication: CAN
  • Protection Grade: IP67
  • Dimensions L×W×H: 602mm×420mm×228mm

30 Day Price Guarrantee

Fast Delivery

Global Warranty

Lifetime Support

51.2V 230Ah LFP Battery for Logistics Robot



Product Introduction

Engineered as a 51.2V 230Ah LFP Battery for Logistics Robot, this lithium iron phosphate (LFP) solution is built for high-demand logistics robots that handle prolonged sorting, heavy cargo transfer, and harsh industrial environments. Featuring 51.2V nominal voltage, 230Ah high capacity, and a rugged SPCC casing, this 51.2V 230Ah Logistics Robots LFP Battery stands out with 11.776kWh total energy and 180A peak discharge — enabling logistics robots to operate continuously for 25+ hours and support 1000+ kg cargo workflows. Unlike standard options, its 1P configuration and IP67 protection meet the rigorous needs of 24/7 warehouse automation, making it a reliable power core for high-frequency logistics operations.

Technical Specifications

Table: 51.2V 230Ah Battery for Logistics Robot Core Parameters
Parameter Details (Tailored for Logistics Robots)
Cell Type LFP 280Ah
Cell Cycle Life ≥3000 cycles (100% DOD) – cuts logistics robot fleet replacement costs
System Cycle Life ≥2500+ cycles (100% DOD)
Cell Certification UN38.3
Nominal Capacity 230AH (1P) – supports long-duration logistics robot runs
Nominal Voltage 51.2V (16S)
Working Voltage Range 40V-58.4V
Total Energy 11.776kWh – powers 25+ hours of logistics robot sorting/handling
Weight ≈90kg
Normal Charging Current ≤120A
Peak Charging Current ≤150A – fast recharging for shift turnover
Continuous Discharge Current ≤130A – sustains heavy-load logistics robot operations
Peak Discharge Current ≤180A – supports 1000+ kg cargo transfer via logistics robots
Operating Temperature Charge: 0℃-50℃; Discharge: -20℃-60℃ – adapts to warehouse/outdoor logistics environments
Communication CAN – syncs with logistics robot fleet management systems
Casing Material SPCC – resists impacts from cargo in logistics workflows
Protection Grade IP67 – dust/waterproof for outdoor/warehouse logistics robots
Plug Type 120A cable terminal – stable connection for high-power logistics robots
Dimensions (L×W×H) 602mm×420mm×228mm – fits standard AGV/AMR logistics robot chassis
Application AGV/AMR Logistics Robots, Warehouse Sorting Logistics Robots, Heavy Material-Handling Logistics Robots

Core Advantages of 51.2V 230Ah Battery for Logistics Robot



1. 11.776kWh High Energy for 25+ Hour Logistics Robot Runtime
51.2V 230Ah Battery for Logistics Robot delivers 11.776kWh total energy:It supports 25+ hours of continuous operation for warehouse sorting logistics robots — enough to cover 2 full daily shifts (e.g., 8000+ parcel sorts) without recharging.For AGV material-handling robots, this capacity powers 20+ hours of cross-warehouse cargo transfers.

2. 180A Peak Discharge for Heavy-Load Logistics Handling
Tailored for logistics robot cargo needs:180A peak discharge enables heavy material-handling logistics robots to move 1000+ kg pallets — critical for industrial warehouse bulk transfer.130A continuous discharge sustains stable performance through frequent load shifts (common in logistics sorting yards).

3. IP67 Protection for Logistics Robot Harsh Environments
Built for warehouse/outdoor logistics scenarios:IP67 dust/waterproof rating shields the battery from warehouse dust, liquid spills (e.g., cargo leaks), and light rain (for outdoor logistics robots) — no performance loss in typical logistics work environments.

4. ≥2500 System Cycles for Low-Cost Logistics Robot Fleets
Optimized for high-frequency logistics use:≥2500 system cycles mean this 51.2V 230Ah Logistics Robot Battery lasts 1.5x longer than standard alternatives. For a 15-unit AGV logistics robot fleet, this cuts replacement costs by 60% over 3 years.

5. CAN Communication for Logistics Robot Fleet Coordination
Syncs with logistics operations:
CAN communication transmits real-time battery data (state of charge, temperature) to logistics robot fleet management systems. Managers can schedule charging to align with off-peak warehouse hours, minimizing logistics workflow downtime.

Application Scenarios



1. AGV/AMR Logistics Robots
The 51.2V 230Ah Battery for Logistics Robot powers 20+ hours of cross-warehouse cargo transfers. 180A peak discharge handles heavy pallets, and CAN communication integrates with AGV navigation systems.

2. Warehouse Sorting Logistics Robots

It suits 25+ hours of non-stop parcel sorting. 11.776kWh energy covers dual-shift tasks, and long cycle life reduces maintenance for high-volume e-commerce logistics.

3. Heavy Material-Handling Logistics Robots

It energizes 18+ hours of 1000+ kg cargo movement. IP67 protection resists warehouse debris, and wide temperature adaptability works in cold-storage/ high-temperature logistics zones.
