For forklifts, golf carts, electric motorcycles, electric tricycles, RVs, AGV/AMR equipment, and other power-driven vehicles, charging speed affects vehicle availability, shift planning, charger investment, energy cost, and spare-battery requirements. A well-matched LiFePO4 charge rate can shorten charging windows without sacrificing safety or service life, but only when the cell, BMS, charger, wiring, connectors, and thermal design are engineered as one system.
LiFePO4, also called lithium iron phosphate or LFP, is widely selected for commercial mobility because it combines strong thermal stability, long cycle-life potential, and reliable power delivery. However, no universal charging current is correct for every LFP battery. The safe limit depends on the cell specification, state of charge, battery temperature, pack architecture, aging condition, and cooling capability. This guide explains how to evaluate charging capability, how materials and pack engineering can improve LiFePO4 performance, and how B2B buyers can specify a heavy-duty lithium battery for real operating conditions.
The practical goal is controlled fast charging LiFePO4 batteries with predictable uptime, low resistance, balanced cells, and an appropriate total cost of ownership—not simply the highest advertised current.
What Does the LiFePO4 Charge Rate Mean?
The LiFePO4 charge rate describes how quickly charging current is applied relative to the battery’s rated capacity. This relationship is expressed as C-rate. For a 100 Ah battery, 0.2C equals 20 A, 0.5C equals 50 A, and 1C equals 100 A. In theory, 1C could replace the rated capacity in about one hour. In practice, charging takes longer because current usually tapers as the pack approaches its upper voltage limit, and because the BMS or charger may reduce current when temperature or cell balance requires it.
The same calculation applies to larger industrial packs. A 300 Ah forklift battery charged at 0.5C receives 150 A. A 60 Ah electric motorcycle battery charged at 0.5C receives 30 A. This is why the LFP battery C-rate must always be translated into amperes before selecting chargers, cables, fuses, connectors, contactors, and thermal components.
Charge C-rate and discharge C-rate are related but not interchangeable. A battery may support high discharge current for acceleration, lifting, climbing, or hydraulic loads while accepting a lower continuous charge current. A high discharge rate lithium system also needs sufficient busbar cross-section, low-resistance connections, suitable cells, and BMS protection. Buyers should therefore request separate values for continuous charging, peak charging, continuous discharge, peak discharge, and the permitted duration of each peak.
C-rate to charging-current examples
| Battery capacity | 0.2C | 0.5C | 1C |
|---|---|---|---|
| 60 Ah | 12 A | 30 A | 60 A |
| 100 Ah | 20 A | 50 A | 100 A |
| 200 Ah | 40 A | 100 A | 200 A |
| 300 Ah | 60 A | 150 A | 300 A |
Charging time is normally longer than the theoretical C-rate calculation because current tapers near full charge and may be reduced by the BMS.

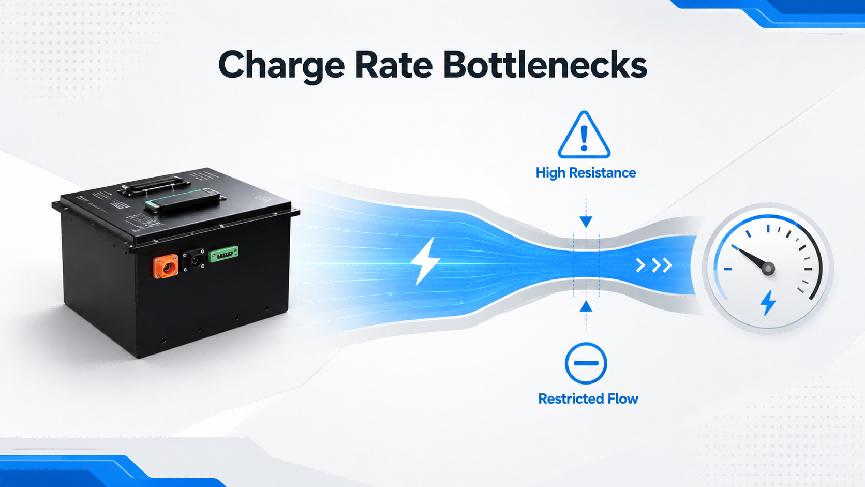

Why Is LiFePO4 Rate Performance Limited?
The main limitations begin at cell level. LiFePO4 has an olivine crystal structure with intrinsically low electronic conductivity; published research commonly reports conductivity on the order of 10^-9 S/cm for untreated material. Lithium ions also move through defined crystallographic channels, so particle size, defects, coating quality, and electrode design strongly influence rate capability.
At a moderate LiFePO4 charge rate, ions and electrons have enough time to move through the electrode with limited polarization. As current rises, voltage losses and heat increase, while usable capacity may fall. If the anode cannot accept lithium ions quickly enough, metallic lithium may deposit on its surface. This risk is greater at low temperature, high state of charge, excessive current, or after substantial aging.
The pack adds further constraints. Even a high-power cell cannot fast-charge safely if the charger has poor voltage control, cell temperatures are uneven, the BMS is incorrectly calibrated, or the connections create excessive resistance. A heavy-duty lithium battery must therefore be designed around the weakest part of the current path.
Rate performance also involves trade-offs. Small particles and high porosity shorten transport distances but may reduce compacted density or increase side reactions. Thicker electrodes store more energy in less volume but make ion transport harder. Engineering practical rate capability requires balancing energy density, power, thermal behavior, cycle life, cost, and manufacturability.
How Do Cell Materials Improve LiFePO4 Performance?
Material engineering is one route to a higher LiFePO4 charge rate. Commercial LFP cathodes use particle control, carbon coating, doping, and optimized thermal processing to create faster electron and ion pathways.
Nano-sizing shortens the distance lithium ions travel inside each particle and can improve LiFePO4 performance during rapid charging or high-power discharge. Extremely fine powders, however, have high surface area and may increase side reactions, binder demand, and processing difficulty. Commercial designs therefore balance small primary particles with larger secondary structures that support electrode density and manufacturability.
Carbon coating forms a conductive layer around LFP particles. Research has repeatedly shown that a thin, uniform carbon network improves electronic contact and rate capability. Carbon black provides short-range contact, carbon nanotubes bridge longer gaps, and graphene-like materials create sheet-based pathways. Excess inactive carbon lowers energy density, so coating thickness and dispersion must be controlled.
Ion doping and defect engineering can modify the lattice, stabilize the structure, or improve conductivity. Laboratory results can be valuable, but a research C-rate is not a commercial pack guarantee. Cell format, electrode loading, electrolyte quantity, temperature, voltage window, and cycle protocol all affect the result.
Sintering temperature and time also influence particle growth, crystal quality, carbon structure, and defect concentration. Excessive heat can coarsen particles, while insufficient processing can leave poor crystallinity. Rapid-heating methods may support fast charging LiFePO4 cells, but commercial value depends on repeatability, yield, and scale-up cost.
How Do Electrode and Electrolyte Designs Support Fast Charging?
The cathode powder is only one part of the cell. Electrode thickness, porosity, conductive-agent distribution, binder coverage, electrolyte composition, and anode design all shape the LFP battery C-rate. An energy-oriented cell may use thicker electrodes, while a power-oriented cell may accept lower energy density in exchange for shorter ion pathways and lower resistance.
Gradient-porosity and double-layer electrodes are designed to improve electrolyte access while preserving density and electronic contact. They can reduce local current concentration and keep more active material available during high-rate operation, but the coating process must remain uniform at production scale.
Electrolyte selection affects ionic conductivity, low-temperature response, interphase stability, gas generation, and safety. LiPF6 remains common, while LiFSI and other salts or additives are studied for conductivity and interphase control. Low-viscosity solvents can improve ion mobility, but every formula must also be evaluated for flammability, oxidation stability, compatibility, storage life, and manufacturing control.
The graphite anode is especially important during a high LiFePO4 charge rate. Lithium must enter the graphite structure without accumulating as metallic lithium. Proper electrode balance, electrolyte wetting, formation, and charging strategy help control this process. Fast charging LiFePO4 is therefore a full-cell problem, not only an LFP cathode problem.
For B2B evaluation, request cell- and pack-level charge curves, temperature rise, internal resistance, cell-voltage spread, retained capacity, and cycle results under the proposed current and temperature range.

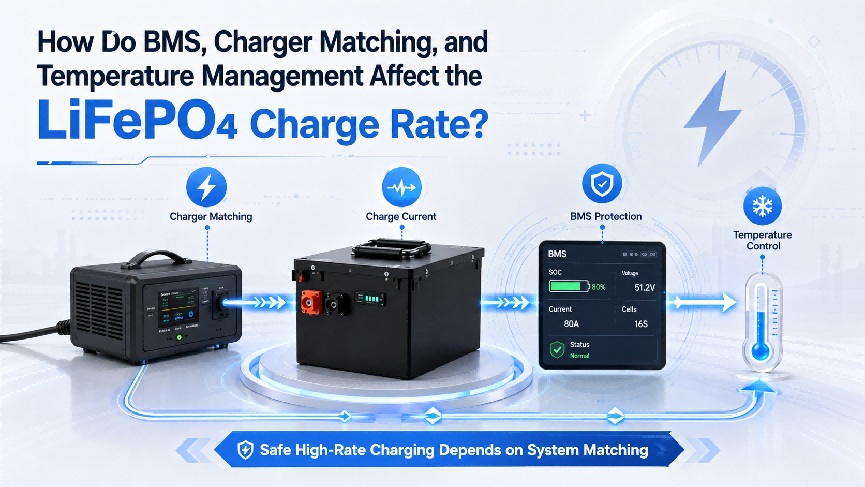

How Should the BMS and Charger Control the LiFePO4 Charge Rate?
The BMS and charger determine whether cell capability becomes safe pack-level performance. A properly engineered system normally uses constant-current/constant-voltage control. The charger supplies the permitted current during the main stage, then reduces current near the upper voltage limit. The BMS monitors individual cell voltage, pack voltage, current, and temperature, and it should limit or interrupt charging when a threshold is exceeded.
A practical LiFePO4 charge rate must remain below the ratings of the cells and every current-carrying component. Contactors, pre-charge circuits, busbars, cables, connectors, fuses, and service disconnects all need suitable continuous and peak ratings. A loose terminal or undersized connector can create localized heating even when the cells remain within specification.
Cell balance also matters. A higher-voltage cell may reach protection before the rest of the pack is full. Good cell sorting, consistent assembly, accurate sensing, and appropriate balancing reduce premature charge termination.
Intelligent current derating is preferable to a fixed limit. The BMS can reduce the LiFePO4 charge rate when cells are cold, hot, highly charged, imbalanced, or aged. CAN communication can allow the battery to request the correct charger current dynamically.
The charger must be validated for the exact battery. A lead-acid charger is not automatically compatible because the nominal voltage appears similar. Voltage limits, communication, termination logic, fault behavior, insulation, and connector pinout must all match.
Buyers translating these charging requirements into a vehicle-specific system can review FEBATT’s battery product range for application examples covering forklifts, golf carts, electric motorcycles, electric tricycles, RVs, and other motive-power equipment.
What LiFePO4 Charge Rate Is Practical for B2B Applications?
There is no single ideal value, but 0.2C to 0.5C is a common practical range for routine charging when long service life and moderate charger cost are priorities. Some cells and packs are designed for 1C or higher, but that capability must be confirmed in the cell specification and verified at pack level. The recommended LiFePO4 charge rate should be based on the required turnaround time rather than selected only for marketing appeal.
A fleet can calculate minimum current from usable capacity and charging time. If a 200 Ah pack must recover 120 Ah during a two-hour break, the average current must be at least 60 A, or 0.3C, before allowing for tapering and losses. Shorter recovery windows require more current, charger power, site capacity, and thermal control.
Opportunity charging often creates more value than the highest possible C-rate. Forklifts can charge during breaks, golf carts between operating windows, and delivery vehicles during loading or shift changes. Repeated partial charging can reduce deep discharge, while staggered charging can lower demand peaks. A slightly lower LiFePO4 charge rate with good scheduling may cost less than installing maximum-power chargers for every vehicle.
How Does Temperature Affect the LiFePO4 Charge Rate?
Temperature is one of the most important controls on the LiFePO4 charge rate. At low temperature, electrolyte viscosity rises, ion diffusion slows, and charge-transfer resistance increases. High current can then cause lithium plating on the graphite anode, leading to permanent capacity loss and potential safety concerns.
As a conservative general rule, do not charge a standard LFP battery below 0°C unless the cell manufacturer and pack design explicitly permit it. Some systems use internal heaters or allow only a small current until the cells reach a safer temperature. The BMS should measure representative cell temperatures rather than ambient temperature alone.
High temperature can make charging appear easier but accelerates side reactions and aging. The battery should have clear temperature limits, sensor placement that detects hot and cold zones, and current derating before protection thresholds are reached. During a high LiFePO4 charge rate, cells in the center of a dense module may heat differently from cells near the enclosure wall, so pack-level temperature mapping is essential.
How Can Different Vehicle Fleets Benefit from an Optimized Charge Rate?
For electric forklifts, a validated LiFePO4 charge rate supports opportunity charging and can reduce battery-change labor, spare-battery inventory, and charging-room requirements. The pack must also support high discharge current for lifting and acceleration, so testing should reproduce actual shifts rather than only a simple laboratory cycle.
Golf carts and utility vehicles often have concentrated operating windows. A suitable LiFePO4 charge rate helps recharge fleets between morning and afternoon use or overnight with fewer chargers. Route length, passenger load, slopes, auxiliary loads, and parking temperature should be included when sizing capacity. The battery should also provide high discharge rate lithium performance for hill climbing without excessive voltage sag.
Electric motorcycles and tricycles used for delivery benefit from shorter charging stops, but enclosure space and heat dissipation are constrained. Charger portability, grid quality, waterproof connectors, vibration resistance, and communication with the vehicle controller matter as much as C-rate.
RVs may recharge from shore power, alternators, solar systems, or generators. The correct LiFePO4 charge rate depends on the source, wiring, inverter/charger, alternator protection, and bank size. Charging too aggressively from an alternator can overload the vehicle system even if the battery could accept more current.
AGV/AMR systems may use short, frequent charging events. Communication among the vehicle, battery, charger, and fleet-management platform can schedule current according to route demand and temperature. Predictable availability is usually more valuable than the maximum possible LiFePO4 charge rate.
How Should B2B Buyers Specify a Heavy-Duty Lithium Battery?
A B2B battery specification should begin with the operating profile, not voltage and capacity alone. Provide average and peak power, regenerative current, daily energy use, charging windows, temperature range, dimensions, vibration exposure, ingress-protection needs, communication protocol, and expected annual throughput.
For the LiFePO4 charge rate, request continuous and peak values in both C-rate and amperes. Clarify whether the limit applies across the full state-of-charge and temperature range. The supplier should also explain current derating, balancing behavior, protection thresholds, charger requirements, and recovery logic.
To evaluate cycle-life claims, request the test temperature, depth of discharge, charge and discharge rates, rest periods, end-of-life definition, and whether the data come from cells or complete packs. A cycle number without test conditions is not meaningful.
FEBATT develops battery solutions for forklifts, golf carts, electric two- and three-wheelers, RVs, AGV/AMR equipment, and customized motive-power applications. The engineering discussion should begin with the required charging window, operating temperature, peak current, communication protocol, enclosure constraints, and service conditions so the charger, BMS, cells, and thermal design can be matched as one system.
Technical Relevant FAQ
1.What is a good LiFePO4 charge rate for daily use?
For many applications, 0.2C to 0.5C provides a practical balance among charging time, heat, charger cost, and cycle-life potential. A higher LiFePO4 charge rate, including 1C, may be appropriate when the cells and complete pack are designed and validated for it.
2.Can a LiFePO4 battery be charged safely at 1C?
Yes, some LiFePO4 batteries can be charged at 1C, but this is not universal. The cells, BMS, charger, busbars, cables, connectors, fuses, and thermal system must all support the current. Charging should be reduced or stopped outside the approved temperature or voltage range.
3.Does fast charging damage LiFePO4 batteries?
It can accelerate aging when current, temperature, state of charge, or cell design is unfavorable. A validated charging profile, accurate voltage control, temperature-based derating, and an appropriate state-of-charge window can reduce stress.
4.How does cold temperature affect the LiFePO4 charge rate?
Cold conditions increase resistance and slow lithium-ion transport. Charging too quickly can cause lithium plating. Unless the battery is approved for low-temperature charging, avoid charging below 0°C. Winter systems may require preheating and BMS-controlled current limits.
5.Why is an improved LiFePO4 charge rate important for electric forklifts?
A suitable LiFePO4 charge rate enables opportunity charging during breaks and shift changes, helping reduce downtime and spare-battery requirements. The charger, site supply, and battery should be tested under realistic operating conditions.
6.Is charge rate the same as discharge rate?
No. Charge rate measures how quickly energy enters the battery; discharge rate measures how quickly energy reaches the load. A pack may support a high discharge rate lithium duty for acceleration or lifting but require lower charging current.
7.Can an existing lead-acid charger be used with a LiFePO4 battery?
Only when its voltage profile, current limit, termination logic, connector, communication, and fault behavior are verified as compatible. Nominal voltage alone is not enough.
Conclusion
Improving the LiFePO4 charge rate requires more than increasing charger amperage. Cell chemistry, particle size, carbon coating, electrode porosity, electrolyte behavior, anode design, BMS control, thermal uniformity, wiring, connectors, and charger communication all affect how quickly a battery can charge without unacceptable heat or degradation.
For most B2B fleets, the best solution is not the highest advertised C-rate. It is a validated charging strategy matched to the duty cycle and available charging windows. Moderate opportunity charging may deliver greater uptime and lower infrastructure cost than extreme fast charging. Cold-weather protection, current derating, accurate balancing, and pack-level testing are essential.
When specifying a FEBATT battery solution, define the required energy, power, charging time, temperature range, and service conditions first. This allows the engineering team to select an appropriate LFP battery C-rate, charger, BMS, and thermal architecture. A properly matched LiFePO4 charge rate can improve LiFePO4 performance, support reliable high-current operation, and extend the practical value of a heavy-duty lithium battery across commercial vehicles and equipment.
