Q1: What applications are medical robot batteries designed for?

A: Medical robot batteries are used in applications such as rehabilitation robots, surgical robotic equipment, hospital logistics robots, and other mobile or electrically powered healthcare robotic systems. The battery must be matched to the robot’s voltage, runtime, load profile, available installation space, charging method, and control interface rather than selected by capacity alone.

Q2: How do I choose the right battery for a medical rehabilitation or surgical robot?

A: Start with the robot’s required voltage, usable capacity, continuous and peak current, target runtime, available battery space, weight limit, charging requirements, and communication interface. For medical rehabilitation and surgical robotic equipment, stable power delivery and predictable integration are especially important, so the battery should be engineered around the complete operating profile of the equipment.

Q3: Can FEBATT customize battery packs for medical robot manufacturers?

A: Yes. FEBATT can develop custom medical robot battery packs according to project requirements, including voltage, capacity, cell configuration, dimensions, housing, connector type, BMS settings, charging parameters, and communication interfaces. Customization is particularly useful when rehabilitation or surgical robots have restricted installation space or non-standard electrical requirements.

Q4: What battery chemistries are used for medical robot applications?

A: Rechargeable lithium-ion chemistries, including LiFePO4 and other lithium-ion configurations, can be used in medical robot applications. The appropriate chemistry depends on required energy density, cycle life, discharge performance, size, weight, and operating conditions. Chemistry should therefore be selected according to the specific medical robot design rather than treated as a one-size-fits-all choice.

Q5: How does the BMS protect a medical robot battery?

A: A Battery Management System (BMS) monitors key battery conditions such as voltage, current, and temperature and can provide protection against overcharge, over-discharge, overcurrent, short circuit, and abnormal temperature conditions. Depending on the battery configuration, the BMS may also support state-of-charge estimation, fault information, cell balancing, and communication with the robot controller.

Q6: What factors affect the service life of a medical robot battery?

A: Service life depends on battery chemistry, depth of discharge, charge and discharge rate, operating temperature, charging strategy, and the robot’s duty cycle. As a reference, selected FEBATT robot battery configurations are rated for 2,000+ cycles at 80% depth of discharge (DoD). The actual cycle-life rating for a medical robot battery should always be confirmed for the selected model and operating conditions.

Q7: How do continuous and peak current requirements affect battery selection?

A: Medical robots can have different power demands during movement, lifting, actuator operation, computing, or other peak-load events. The battery must provide sufficient continuous current for normal operation and adequate peak current for short-duration load increases without excessive voltage drop or protection shutdown. These current requirements should be defined during battery selection and matched to the BMS and cell configuration.

Q8: What communication interfaces can be integrated into medical robot batteries?

A: Depending on the project, medical robot battery systems can be configured with communication interfaces such as CAN or RS485 for data exchange with the robot controller. These interfaces can support information such as state of charge, voltage, current, temperature, and fault status. The required protocol, message format, and communication logic should be confirmed during system integration.

Q9: How do size and weight constraints affect medical robot battery design?

A: Size and weight can directly affect robot mobility, balance, enclosure design, and serviceability. FEBATT’s published medical robot battery examples include compact configurations such as 25.2V 2.9Ah as well as higher-capacity configurations such as 22.4V 50Ah, showing that battery architecture can vary substantially by application. A custom pack should be designed around the actual installation envelope and weight target of the robot.

Q10: What is the typical lead time for custom or bulk AGV robot battery orders?

A: Charging current, charger voltage, target runtime, duty cycle, allowable charging window, and whether the robot charges between operating periods should all be defined before the battery is finalized. For example, one published 48V 10Ah rehabilitation robot battery specifies a charge current of up to 5A and a 10A discharge current, illustrating why charging and load requirements must be matched to the individual battery model rather than assumed across the full product range.

Reliable OEM 22.4V Battery for Surgical Robotic Equipment

Name: Reliable OEM 22.4V Battery for Surgical Robotic Equipment
Availability: InStock

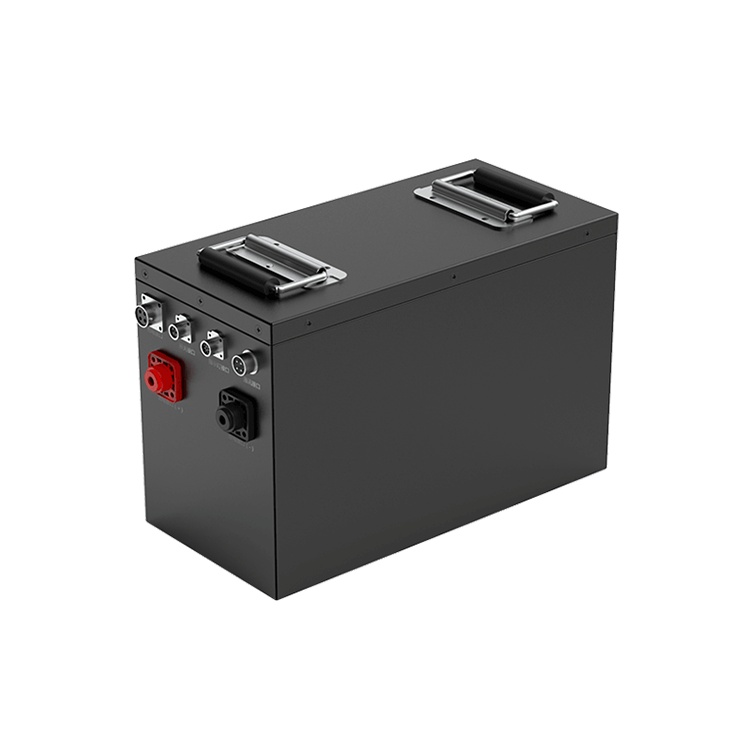

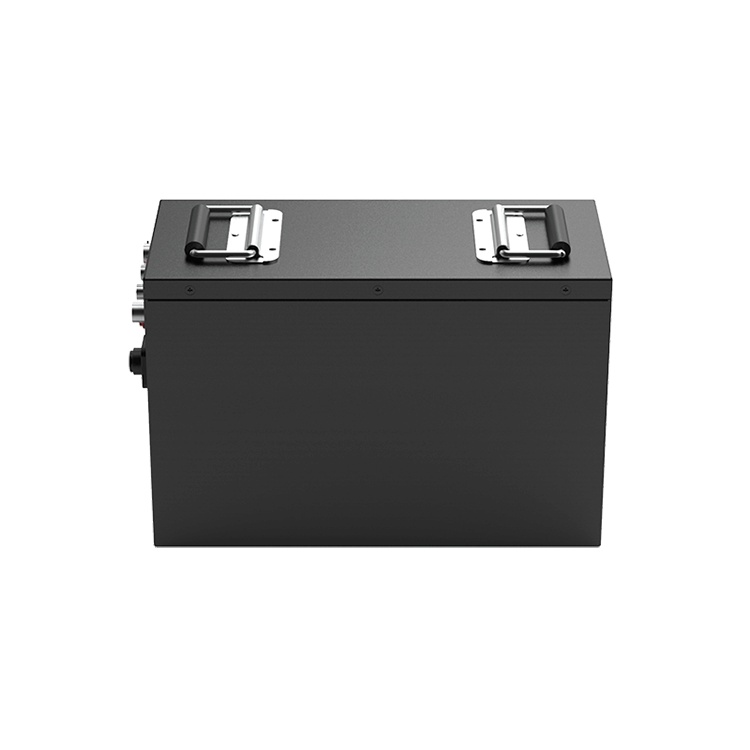

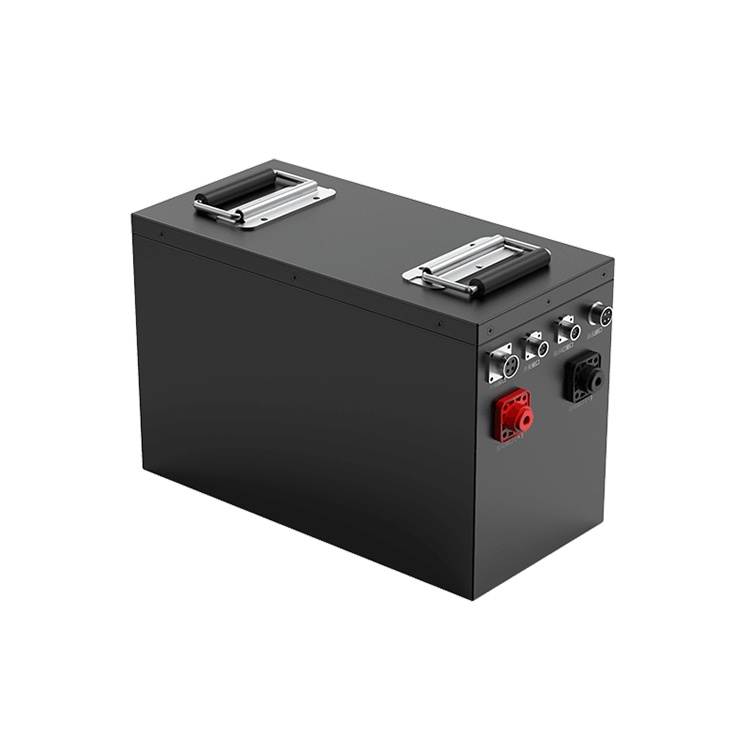

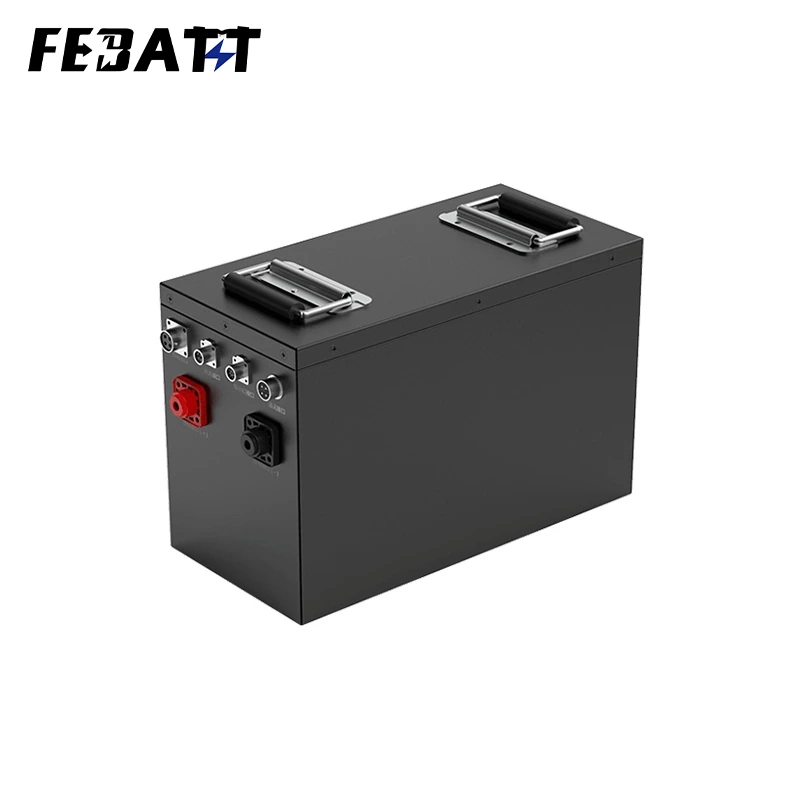

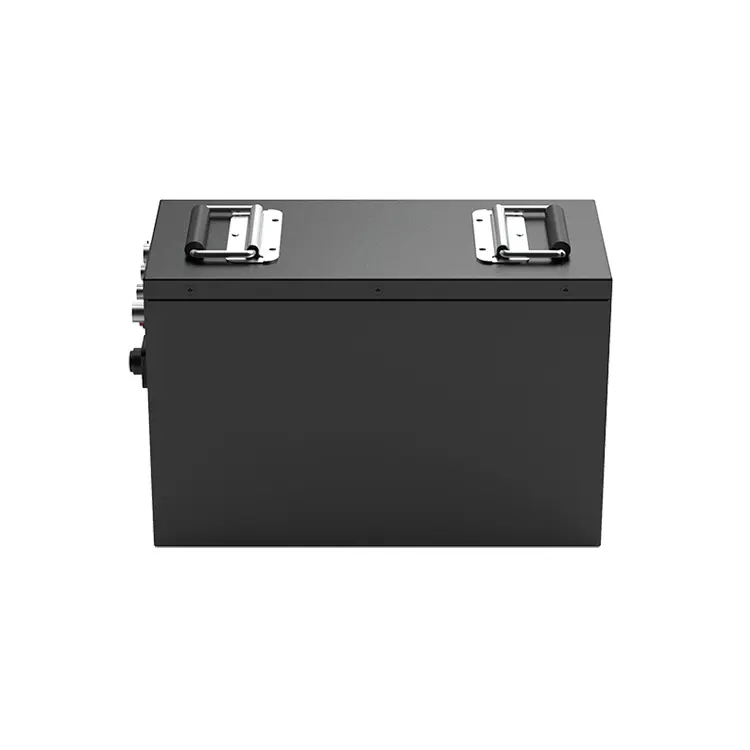

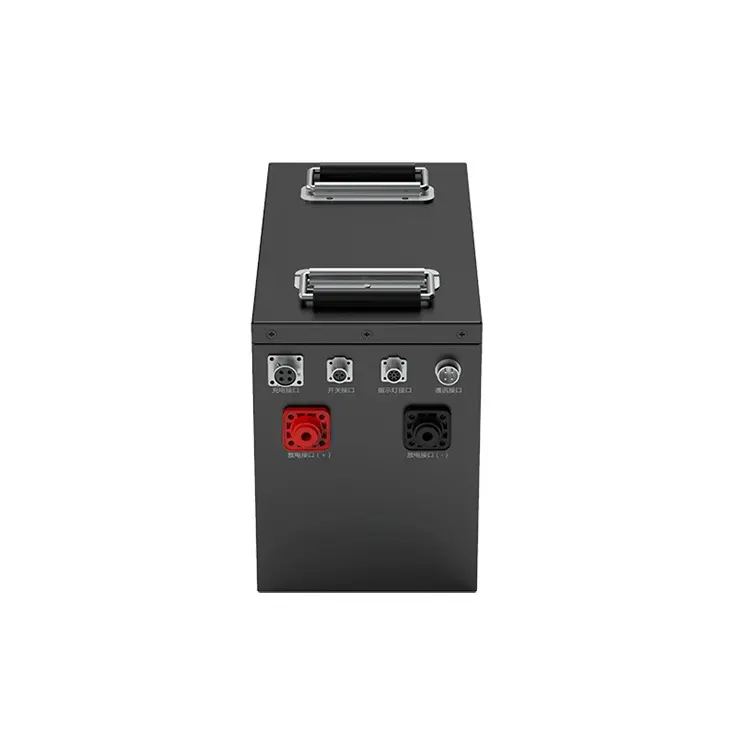

22.4V 50Ah Li – ion Battery for Surgical Robotic Equipment | Precision Power for Medical Robotics

Introduction

Engineered for surgical precision, the 22.4V 50Ah Li – ion Battery for Surgical Robotic Equipment delivers ultra – stable power, multi – layer safety, and 50000mAh endurance. As a critical Battery for Surgical Robotic Equipment, it integrates high – density Li – ion cells, 22.4V output, and wide temperature tolerance—ideal for minimally invasive surgery bots, autonomous surgical arms, and high – precision medical robotics.

Core Specifications

Parameter	22.4V 50Ah Li – ion Battery for Surgical Robotic Equipment	Lead – Acid	Surgical Robot Impact
Nominal Voltage	22.4V	24V	Matches Battery for Surgical Robotic Equipment power needs
Rated Capacity	50000mAh	30000mAh	Powers 8 + hours of continuous surgical ops
Battery Type	Li – ion	Lead – Acid	High – energy density for compact surgical bots
Operating Temperature	– 20~60℃	0~40℃	Withstands OR, sterile storage environments
Application	Surgical robotic equipment	General use	Specialized for Medical Robot Battery use

Why This Li – ion Battery Dominates Surgical Robotics

1. Ultra – Stable Power for Precision Surgery

The 22.4V 50Ah Li – ion Battery for Surgical Robotic Equipment ensures:

“22.4V Consistent Output: Drives millimeter – precise surgical arms, camera systems, and tool actuators.”
“50Ah Long Runtime: Supports 6 + hours of minimally invasive surgery—no mid – procedure interruptions.”

2. Sterile – Grade Design for OR Environments

With Li – ion cells and – 20~60℃ operation:

“Leak – Proof Casing: Survives sterilization cycles (autoclave, UV), protecting battery and surgical bots.”
“Wide Temp Adaptation: Works in OR warmth (25℃), cold storage (- 20℃) for pre – op prep.”

3. Multi – Layer Safety for Patient Care

Integrated protections (short – circuit, overcharge) provide:

“OR – Critical Safety: Prevents electrical faults during surgery—zero risk to patients/surgeons.”
“Reliable Cycle Life: Maintains 80% capacity after 500 + cycles—low maintenance for hospitals.”

Application Scenarios

1. Minimally Invasive Surgery Bots

The Li – ion Battery for Surgical Robotic Equipment powers:

“Laparoscopic Robots: 22.4V output supports 3D camera stabilization, robotic arm precision.”
“Orthopedic Surgery Arms: 50Ah capacity enables 4 + hours of bone – drilling, implant placement.”

2. Autonomous Surgical Systems

For high – precision procedures:

“Neurosurgery Robots: Stable 22.4V power ensures micron – level tool control in delicate brain ops.”
“Robotic Dental Units: Operates at 60℃ sterilization temps, 20℃ storage—no performance loss.”

22.4V 50Ah Li-ion Battery for Surgical Robotic Equipment

22.4V 50Ah Li – ion Battery for Surgical Robotic Equipment | Precision Power for Medical Robotics
