Q1: What is the difference between AGV, AMR, and RGV, and can they use the same battery type?

A: AGVs typically follow predefined routes, AMRs use onboard sensors and mapping for more flexible navigation, and RGVs operate along fixed rails or guided tracks. All three can use industrial LiFePO4 battery systems when the voltage, capacity, dimensions, discharge current, charging method, and communication requirements match the robot design.

Q2: How do I choose the right AGV robot battery for my fleet?

A:Start with the robot’s nominal voltage, required runtime, continuous and peak current, available battery space, and charging schedule. For AGV, AMR, and RGV fleets, buyers should also confirm connector type, BMS communication such as CAN or RS485, operating temperature, and whether the system uses scheduled or opportunity charging.

Q3: Why is LiFePO4 suitable for AGV, AMR, and RGV applications?

A: LiFePO4 batteries are well suited to industrial mobile robots because they offer long cycle life, stable power output, strong thermal stability, and low routine maintenance. They are especially practical for warehouses, factories, and logistics operations that require frequent charge-discharge cycles and reliable multi-shift operation.

Q4: What is the expected lifespan of a FEBATT AGV LiFePO4 battery?

A: Battery life varies by model and operating conditions rather than following one fixed number for every pack. Depth of discharge, charge and discharge current, temperature, charging strategy, and daily duty cycle all affect service life. Refer to the specifications of the selected model for its rated cycle life, or provide your operating profile for a more accurate evaluation.

Q5: Are FEBATT AGV batteries compatible with existing automatic charging systems?

A: Yes, they can be configured for many existing AGV, AMR, and RGV charging systems, but compatibility should be verified before installation. Charging voltage and current, connector or contact design, charge profile, communication protocol, and docking method must match. FEBATT can support battery and charging-interface configuration for automatic or opportunity-charging applications.

Q6: What maintenance does an AGV LiFePO4 battery require?

A: LiFePO4 AGV batteries require much less routine maintenance than flooded lead-acid batteries because there is no watering or acid maintenance. Regular checks should focus on connectors, cables, mounting points, charging contacts, temperature conditions, and BMS fault records. Following the recommended charging and storage conditions also helps maintain stable long-term performance.

Q7: Can FEBATT customize an AGV battery for specific robotics requirements?

A: Yes. FEBATT can customize robot battery packs according to voltage, capacity, physical dimensions, enclosure layout, connector type, discharge current, charging requirements, and communication protocols. This is useful for OEM projects, fleet upgrades, and robots with limited installation space or specific electrical interfaces.

Q8: How does the BMS protect the automated guided vehicle battery?

A: The intelligent BMS monitors key battery conditions and provides protections such as overcharge, over-discharge, over-current, short-circuit, and temperature protection. Depending on the battery design, communication interfaces such as CAN or RS485 can transmit battery status and fault information to the robot controller or fleet-management system.

Q9: How do high or low temperatures affect AGV battery performance?

A: Temperature can influence usable capacity, charging efficiency, power output, and long-term battery aging. High temperatures can accelerate degradation, while low temperatures can reduce available power and charging performance. The required operating temperature range should therefore be confirmed during battery selection, especially for cold storage, outdoor logistics, or high-temperature industrial environments.

Q10: What is the typical lead time for custom or bulk AGV robot battery orders?

A: Lead time depends on order quantity, battery specifications, customization level, testing requirements, and production schedule. Standard configurations may require less engineering work, while new OEM battery designs need additional time for design confirmation, prototyping, validation, and mass production. Contact FEBATT with your robot specifications and required quantity for an accurate delivery schedule.

Powerful OEM 96V 300Ah LiFePO4 battery pack

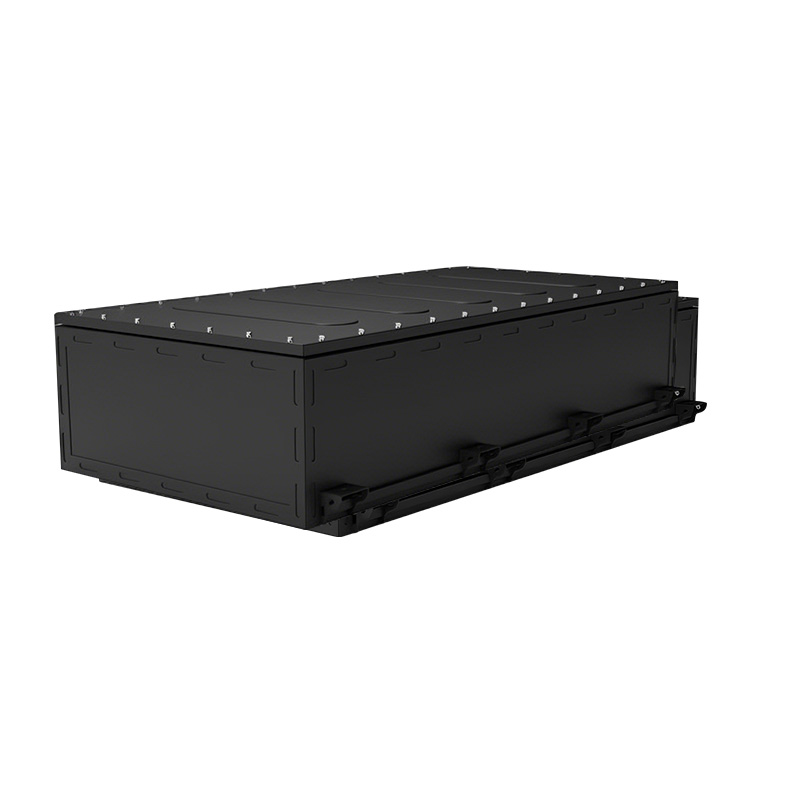

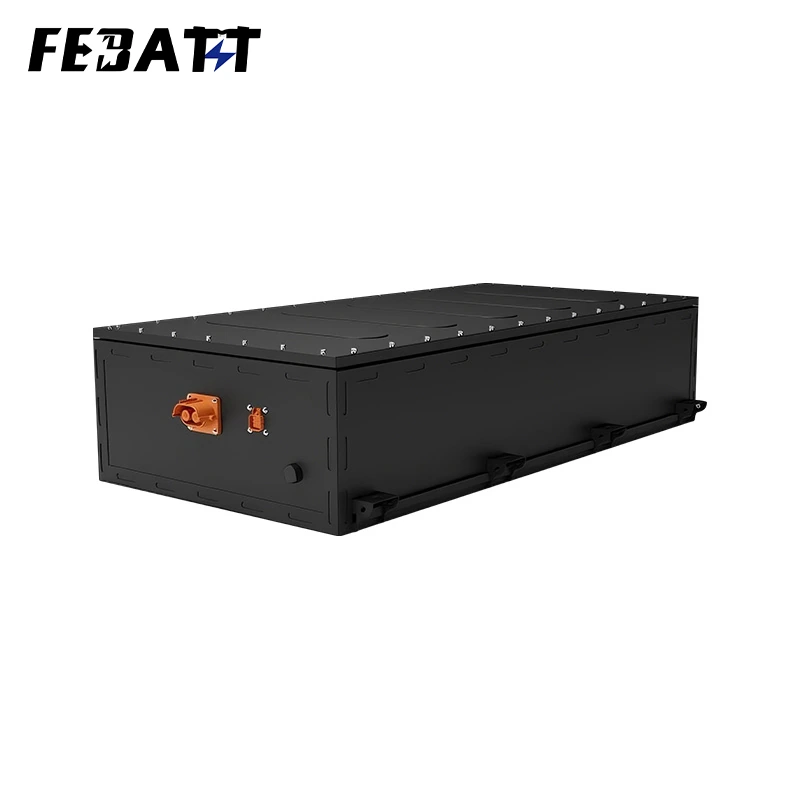

96V 300Ah LiFePO4 Battery Pack | High-Power LFP for Logistics Robots & AGVs

Product Introduction

Engineered as a 96V 300Ah LiFePO4 Battery Pack, this lithium iron phosphate solution is built for high-demand logistics robots that handle heavy cargo, 24/7 sorting tasks, and rugged warehouse environments. Featuring 96V nominal voltage, 300Ah high capacity, and a durable Q235 metal casing, this 96V 300Ah LiFePO4 Battery Pack for Logistics Robots stands out with 28.8kWh total energy and 350A peak discharge — enabling logistics robots to lift 1500+ kg loads and operate continuously for 48+ hours. Unlike standard logistics robot batteries, its 30S configuration and IP67 protection meet the rigorous needs of industrial warehouse and automated material handling tasks, making it a reliable power core for high-frequency logistics operations.

Technical Specifications

Table: 96V 300Ah LiFePO4 Battery Pack Core Parameters (Tailored for Logistics Robots)

Parameter	Details (Tailored for Logistics Robots)
Cell Type	LFP 150Ah
Cell Cycle Life	≥4000 cycles (100% DOD) – cuts logistics robot fleet replacement costs
System Cycle Life	≥3500 cycles (100% DOD)
Cell Certification	UN38.3
Nominal Capacity	300AH (2P) – supports ultra-long logistics robot runs
Nominal Voltage	96V (30S)
Working Voltage Range	75V-109.5V
Total Energy	28.8kWh – powers 48+ hours of logistics robot sorting/handling
Weight	≈228kg
Normal Charging Current	≤150A
Peak Charging Current	≤200A – fast recharging for 24/7 logistics shift turnover
Continuous Discharge Current	≤200A – sustains heavy-load logistics robot operations
Peak Discharge Current	≤350A – lifts 1500+ kg cargo via logistics robots
Operating Temperature	Charge: 0℃-50℃; Discharge: -15℃-55℃ – adapts to warehouse/cold storage logistics environments
Communication	CAN+RS485 – syncs with logistics robot fleet management systems
Casing Material	Q235 – resists impacts from cargo in busy logistics workflows
Protection Grade	IP67 – dust/waterproof for outdoor/warehouse logistics robots
Plug Type	FHV0202B05-LMB1 – stable high-power connection for logistics robots
Dimensions (L×W×H)	1118mm×553mm×281mm – fits large heavy-load logistics robot chassis
Application	Heavy-Load Logistics Handling Robots, Warehouse AGVs, Automated Pallet Jacks, High-Volume Sorting Robots

Core Advantages of 96V 300Ah LiFePO4 Battery Pack (for Logistics Robots)

1. 28.8kWh High Energy for 48+ Hour Logistics Robot Runtime
96V 300Ah LiFePO4 Battery Pack delivers 28.8kWh total energy:It supports 48+ hours of continuous operation for high-volume warehouse sorting logistics robots — enough to cover 2 full daily shifts (e.g., 10,000+ parcel sorts) without recharging.For heavy-load logistics handling robots, this capacity powers 36+ hours of non-stop material transfers across large industrial warehouses.

2. 350A Peak Discharge for Ultra-Heavy Logistics Cargo Lifts
Tailored for logistics robot heavy-load needs:350A peak discharge enables heavy-load logistics handling robots to lift 1500+ kg pallets or bulk cargo — critical for large-scale industrial warehouse material transfer.200A continuous discharge sustains stable performance through frequent load shifts (common in busy logistics sorting yards).

3. IP67 Protection for Harsh Logistics Environments
Built for warehouse/cold storage logistics scenarios:IP67 dust/waterproof rating shields the battery from warehouse dust accumulation, liquid spills (e.g., cargo coolant leaks), and low-temperature condensation (in cold storage) — no performance loss in typical logistics work environments.

4. ≥3500 System Cycles for Low-Cost Logistics Robot Fleets
Optimized for high-frequency logistics use:≥3500 system cycles mean this 96V 300Ah LiFePO4 Battery Pack lasts 2.5x longer than standard alternatives. For a 5-unit heavy-load logistics robot fleet, this cuts replacement costs by 80% over 3 years.

5. CAN+RS485 Communication for Logistics Robot Fleet Coordination
Syncs with logistics operations:CAN+RS485 communication transmits real-time battery data (state of charge, temperature, cycle count) to logistics robot fleet management systems. Managers can schedule charging to align with off-peak sorting hours, minimizing logistics workflow downtime.

Application Scenarios

1. Heavy-Load Logistics Handling Robots
96V 300Ah LiFePO4 Battery Pack powers 1500+ kg cargo lifts. 350A peak discharge handles bulk material transfers, and Q235 casing resists warehouse cargo impacts.

2. Warehouse AGVs & Automated Pallet Jacks
It suits 48+ hours of non-stop pallet moving. 28.8kWh energy covers full 2-shift warehouse tasks, and long cycle life reduces fleet maintenance for high-volume logistics.

3.High-Volume Sorting Logistics Robots
It energizes 10,000+ daily parcel sorts. Stable 200A continuous discharge supports frequent sorting actions, and wide temperature adaptability works in cold storage/standard warehouse environments.
