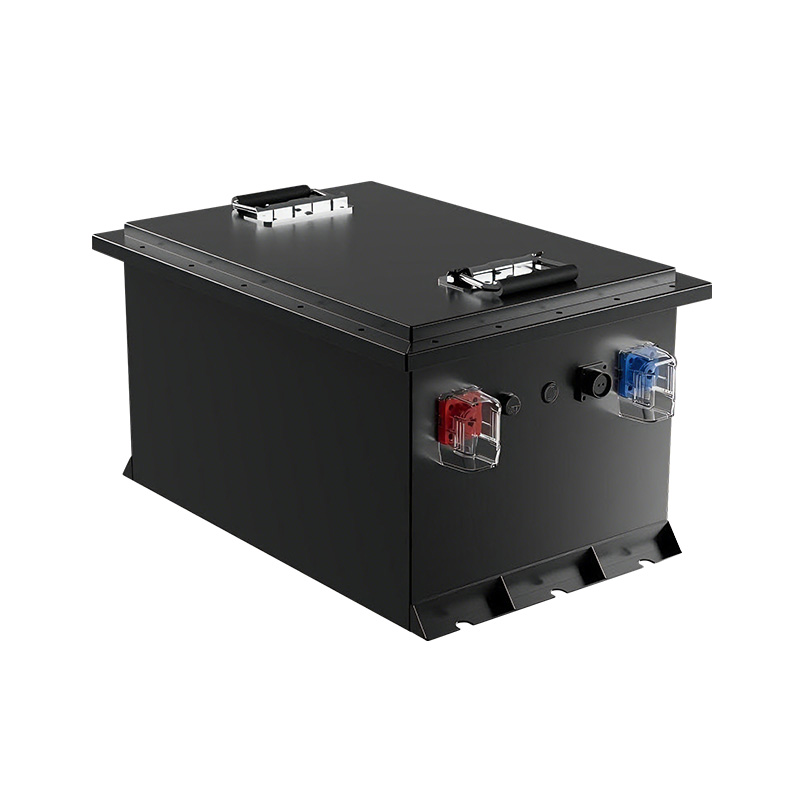

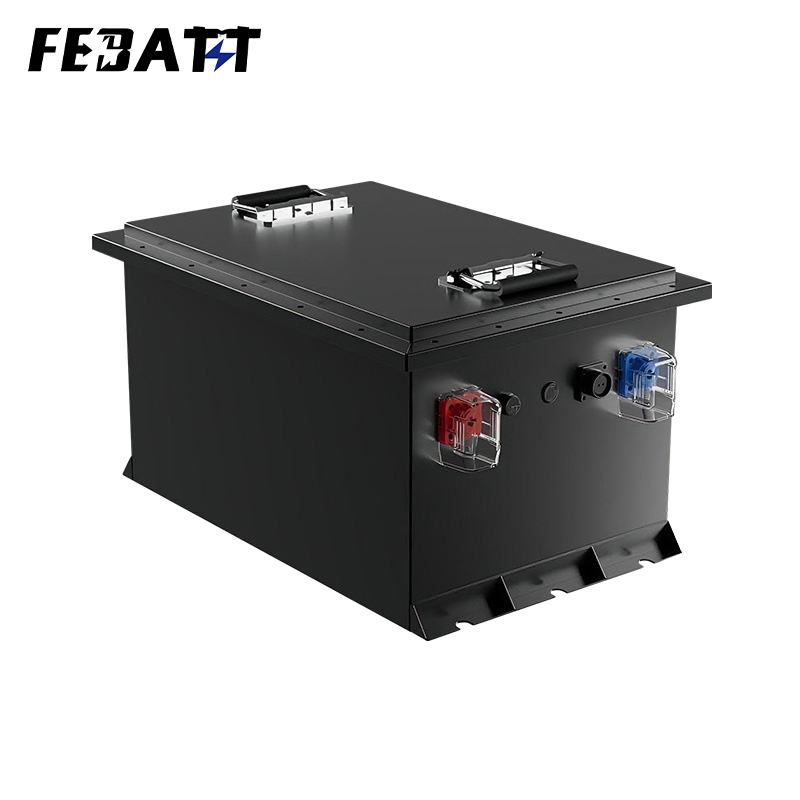

48V 100Ah Battery for Logistics Robot

48V 100Ah Battery for Logistics Robot delivers 4.8kWh energy, 300A peak discharge, ≥3000 cell cycles, IP67 protection, and RS485 communication. It suits heavy-load logistics handling robots, warehouse sorting logistics robots, and outdoor delivery logistics robots.

  • Cell Certification: UN38.3
  • Nominal Capacity: 100AH
  • Nominal Voltage: 48V
  • Total Energy: 4.8kWh
  • Weight: ≈40kg
  • Normal Charging Current: ≤50A
  • Peak Charging Current: ≤100A
  • Continuous Discharge Current: ≤200A
  • Peak Discharge Current: ≤300A
  • Communication: RS485
  • Protection Grade: IP67
  • Dimensions (L×W×H): 460×323×250mm

30 Day Price Guarrantee

Fast Delivery

Global Warranty

Lifetime Support

48V 100Ah Battery for Logistics Robot: High-Discharge LFP Power for Heavy-Duty Warehouse Operations

Product Introduction

Engineered as a 48V 100Ah Battery for Logistics Robot, this lithium iron phosphate solution is built for high-demand logistics robots that handle heavy cargo, continuous sorting tasks, and harsh warehouse/outdoor environments. Featuring 48V nominal voltage, 100Ah high capacity, and a rugged SPCC casing, this 48V 100Ah LFP Battery for Logistics Robots stands out with 4.8kWh total energy and 300A peak discharge — enabling logistics robots to lift 800+ kg loads and operate continuously for 20+ hours. Unlike standard logistics robot batteries, its 1P configuration and IP67 protection meet the rigorous needs of industrial warehouse and outdoor delivery tasks, making it a reliable power core for high-frequency logistics operations.

Technical Specifications

Table: 48V 100Ah Battery for Logistics Robot Core Parameters

Parameter Details (Tailored for Logistics Robots)
Cell Type LFP 100Ah
Cell Cycle Life ≥3000 cycles (100% DOD)
System Cycle Life ≥2500+ cycles (100% DOD)
Cell Certification UN38.3
Nominal Capacity 100AH (1P)
Nominal Voltage 48V (15S)
Working Voltage Range 37.5V-54.75V
Total Energy 4.8kWh
Weight ≈40kg
Normal Charging Current ≤50A
Peak Charging Current ≤100A
Continuous Discharge Current ≤200A
Peak Discharge Current ≤300A
Operating Temperature Charge: 0℃-55℃; Discharge: -20℃-60℃ – adapts to warehouse/outdoor logistics environments
Communication RS485
Casing Material SPCC
Protection Grade IP67
Plug Type TC250A terminal
Dimensions (L×W×H) 460mm×323mm×250mm
Application Heavy-Load Logistics Handling Robots, Warehouse Sorting Logistics Robots, Outdoor Delivery Logistics Robots

Core Advantages of 48V 100Ah Battery for Logistics Robot

1. 4.8kWh High Energy for 20+ Hour Logistics Robot Runtime

The 48V 100Ah Battery for Logistics Robot delivers 4.8kWh total energy:
  • It supports 20+ hours of continuous operation for warehouse sorting logistics robots — enough to cover full daily shift tasks (e.g., 5000+ parcel sorts) without recharging.
  • For outdoor delivery logistics robots, this capacity powers 15+ hours of cross-district package drops.

2. 300A Peak Discharge for Heavy-Load Logistics Handling

Tailored for logistics robot cargo needs:
  • 300A peak discharge enables heavy-load logistics handling robots to lift 800+ kg pallets or bulk cargo — critical for industrial warehouse material transfer.
  • 200A continuous discharge sustains stable performance through frequent load shifts (common in logistics sorting yards).

3. IP67 Protection for Logistics Robot Harsh Environments

Built for warehouse/outdoor logistics scenarios:
  • IP67 dust/waterproof rating shields the battery from warehouse dust accumulation, spillage (e.g., liquid cargo leaks), and light rain (for outdoor delivery logistics robots) — no performance loss in typical logistics work environments.

4. ≥3000 Cell Cycles for Low-Cost Logistics Robot Fleets

Optimized for high-frequency logistics use:
  • ≥3000 cell cycles mean this 48V 100Ah Logistics Robot Battery lasts 2x longer than standard alternatives. For a 10-unit heavy-load logistics robot fleet, this cuts replacement costs by 75% over 3 years.

5. RS485 Communication for Logistics Robot Fleet Coordination

Syncs with logistics operations:
  • RS485 communication transmits real-time battery data (state of charge, temperature) to logistics robot fleet management systems. Managers can schedule charging to align with off-peak sorting hours, minimizing logistics workflow downtime.

Application Scenarios

1. Heavy-Load Logistics Handling Robots

The 48V 100Ah Battery for Logistics Robot powers 800+ kg cargo lifts. 300A peak discharge handles bulk material transfers, and IP67 protection resists warehouse debris.

2. Warehouse Sorting Logistics Robots

It suits 20+ hours of non-stop parcel sorting. 4.8kWh energy covers full-shift tasks, and long cycle life reduces fleet maintenance for high-volume e-commerce logistics.

3. Outdoor Delivery Logistics Robots

It energizes 15+ hours of cross-district package delivery. IP67 protection withstands light rain, and wide temperature adaptability works in winter/summer outdoor conditions.
