Q1: What applications are lithium batteries for service robots designed for?

A: Lithium batteries for service robots are commonly used in hotel service robots, restaurant delivery robots, reception and guidance robots, retail service robots, and other mobile service automation platforms. Battery selection should be based on the robot’s voltage, required runtime, continuous and peak load, available installation space, charging method, and communication requirements.

Q2: How do I choose the right lithium battery for a service robot?

A: Start with the robot’s nominal voltage, required capacity, continuous and peak current, target runtime, battery compartment dimensions, weight limit, charging current, connector type, and communication interface. Output power and capacity should be matched to the robot’s real duty cycle rather than selected from voltage or ampere-hours alone.

Q3: Can FEBATT customize lithium battery packs for service robot manufacturers?

A: Yes. FEBATT can develop custom lithium battery packs for service robot projects, including voltage, capacity, dimensions, housing, connector type, BMS settings, charging parameters, and communication interfaces. This is useful when a robot has a proprietary battery compartment, non-standard power requirements, or specific integration requirements.

Q4: What is the typical cycle life of a service robot lithium battery?

A: Cycle life varies with cell chemistry, depth of discharge, charge and discharge rate, operating temperature, and duty cycle. As a published reference, one FEBATT 25.6V 60Ah service robot battery is rated for 2,000+ cycles. The cycle-life rating for each service robot battery should be confirmed from the specifications of the selected model and its test conditions.

Q5: How does the BMS protect a lithium battery for service robots?

A: The Battery Management System (BMS) monitors key battery conditions such as voltage, current, and temperature and can provide protection against overcharge, over-discharge, overcurrent, short circuit, and abnormal temperature conditions. Depending on the configuration, the BMS may also provide state-of-charge information, fault data, cell balancing, and communication with the robot controller.

Q6: Can service robot batteries support continuous and peak power demands?

A: Yes, when the battery is engineered for the robot’s load profile. Service robots can experience short power peaks during startup, acceleration, lifting, turning, or operation of actuators and accessories. The battery cells, BMS, wiring, and connectors must therefore be selected to support both the required continuous current and short-duration peak current without excessive voltage drop or unintended protection shutdown.

Q7: What communication interfaces are available for service robot batteries?

A: Service robot lithium batteries can be configured with communication interfaces such as CAN or RS485, depending on the project. These interfaces allow the robot controller to access battery information such as state of charge, voltage, current, temperature, and fault status. FEBATT’s published service robot battery configurations include CAN and RS485 examples, but the required protocol and message format should be confirmed during integration.

Q8: How does operating temperature affect a service robot lithium battery?

A: Temperature affects available capacity, charging behavior, internal resistance, and battery aging. FEBATT’s published service robot references include selected configurations with operating ranges down to -20°C and up to 60°C, while another 25.6V 60Ah service robot battery is specified at -15°C to 60°C. Actual charge and discharge temperature limits are model-specific and should be confirmed for the robot’s operating environment.

Q9: How do charging current and charging strategy affect service robot uptime?

A: Charging strategy should be matched to the battery design and the robot’s operating schedule. Charge current, charger voltage, allowable charging window, duty cycle, and whether the robot charges between tasks all affect practical uptime. For reference, FEBATT’s published 48V 45Ah service robot battery configuration specifies a 21A (0.5C) charge current. This is an example rather than a universal charging rate for all service robot batteries.

Q10: What lithium battery chemistry is suitable for service robots?

A: LiFePO4 and other rechargeable lithium-ion chemistries can both be used in service robots. LiFePO4 is often selected when long cycle life and thermal stability are priorities, while other lithium-ion chemistries can be useful when energy density, compact size, or lower weight is more important. The best chemistry depends on the robot’s runtime target, space and weight limits, load profile, charging strategy, and operating environment.

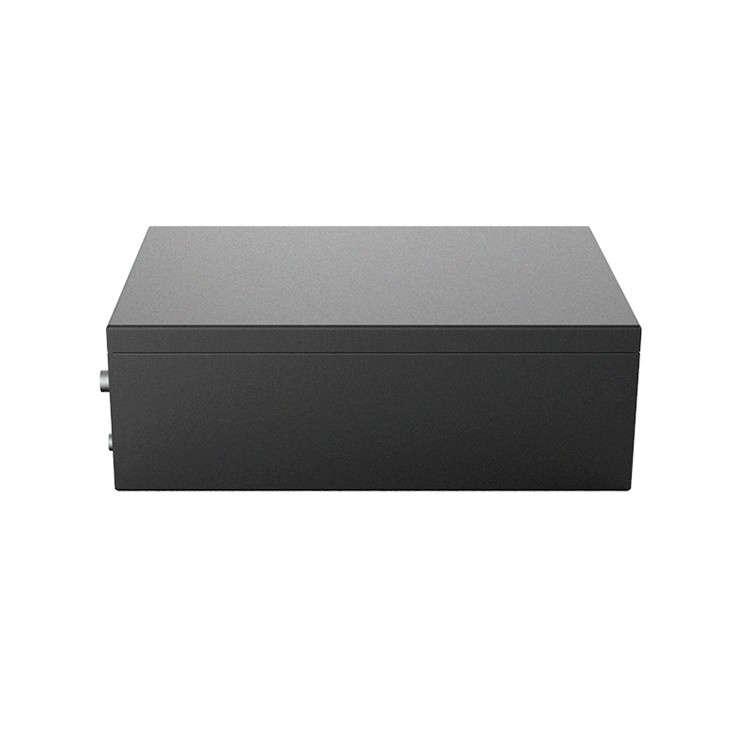

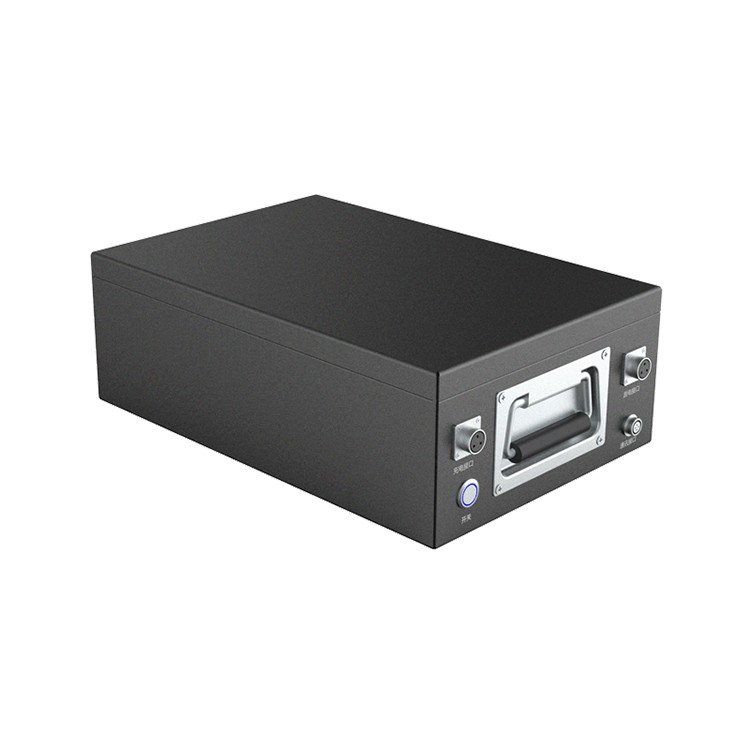

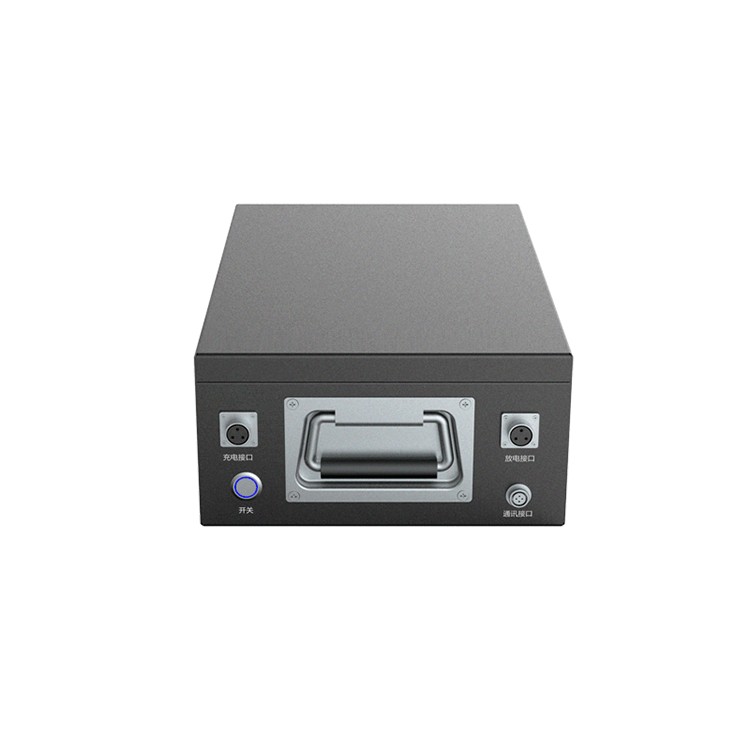

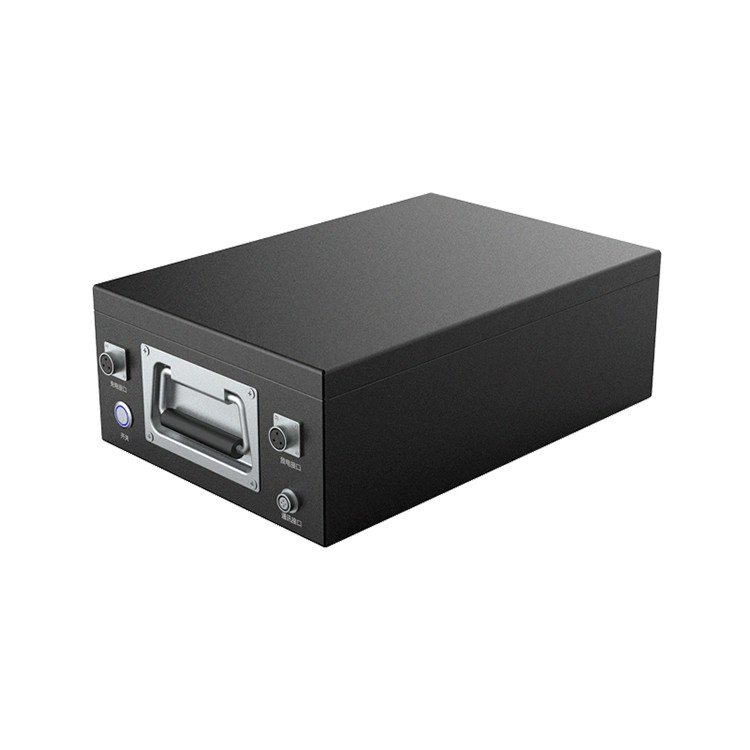

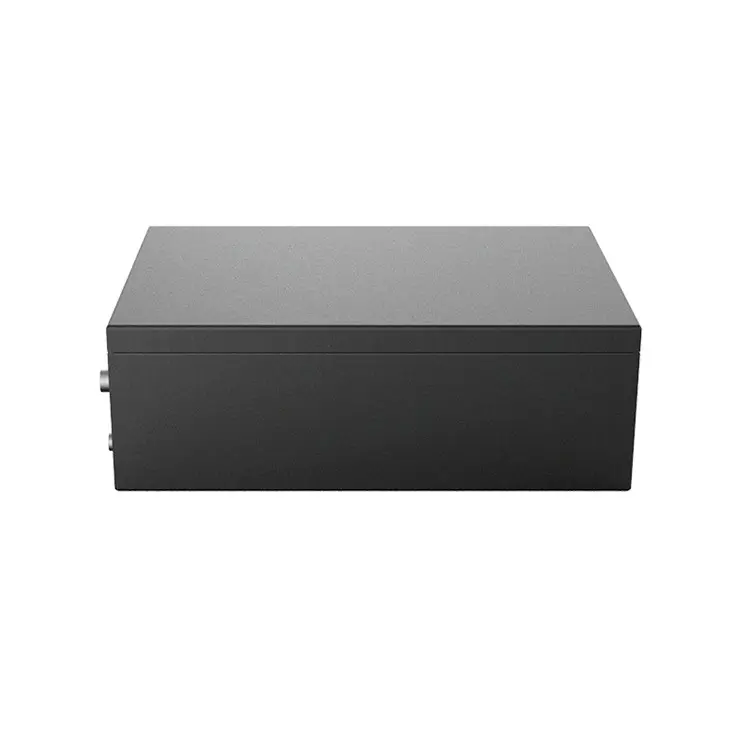

26650 48V 40Ah LiFePO₄ Battery with RS485 for Robots | Service Robot Power Solution

Introduction

Tailored for service robotics, the 26650 48V 40Ah LiFePO₄ Battery with RS485 for Robots delivers 40Ah endurance, RS485 smart monitoring, and 48V stable power. As a critical Battery with RS485 for Robots, it integrates 26650 LFP cells, wide temp tolerance (- 20~55℃), and multi – scenario adaptability—ideal for hotel, restaurant service robots, and logistics automation.

Service Robot Lithium Battery Model Comparison Table

Battery Model	Voltage	Capacity	Battery Type	Suitable Service Robot Types	Key Features
26650 48V 40Ah LiFePO4 Battery with RS485 for Robots	48V	40Ah	LiFePO₄	Hotel service robots, Restaurant service robots, Logistics AMRs	RS485 communication; -20~55℃ operation; 50A discharge current
24V 30Ah LiFePO4 Battery for AGV AMR with CAN RS485 BMS	24V	30Ah	LiFePO₄	Warehouse logistics robots, Sorting robots	Multi – protocol (CAN/UART/RS485); IP54 waterproof; ≥1500 cycles
48V 75Ah Battery with RS485 for Robots AGV AMR RGV	48V	75Ah	LiFePO₄	Heavy – duty handling robots, Large – scale logistics robots	75A continuous discharge; RS485 communication; ≥2000 cycles
Custom 24V 72Ah LiFePO4 Battery for AGV with RS485 CAN	24V	72Ah	LiFePO₄	Large warehouse logistics robots	30A max current; CE/KC/UN38.3 certified; Customizable dimensions
Custom 24V 12Ah NMC Battery for AGV with RS485 CAN	24V	12Ah	NMC	Small service robots (e.g., indoor guide robots)	High energy density; 5A charge current; CE/KC/UN38.3 certified

Why It Dominates Service Robot Fleets

1. RS485 – Enabled Smart Operations

The Battery with RS485 for Robots ensures:

“Real – Time Health Tracking: Monitors voltage, capacity, faults—prevents hotel/restaurant robot downtime.”
“40Ah Endurance: Runs service bots to complete 100 + guest interactions per charge.”

2. 26650 LFP Cell Advantages

With 26650 cells and 50A discharge:

“High Energy Density: Fits compact service robot chassis—no bulk, easy integration.”
“50A Peak Current: Powers cleaning, navigation systems in restaurant bots seamlessly.”

3. Extreme Temp Adaptability

Operating at – 20~55℃:

“Cold – Lobby Reliability: Works in – 20℃ hotel entrances—no power loss during winter.”
“Hot – Kitchen Stability: Endures 55℃ restaurant kitchens—no performance drop.”

Application Scenarios

1. Hotel Service Robotics

The Battery with RS485 for Robots powers:

“Room – Service Bots: 48V 40Ah capacity supports 8 + hours of luggage transport, guest assistance.”
“Lobby Guide Bots: RS485 integration enables remote battery health checks—no unexpected shutdowns.”

2. Restaurant Automation

For food – delivery, cleaning bots:

“Delivery Robot: 50A discharge drives thermal bags, navigation sensors for 6 + hours of service.”
“Kitchen Cleaning Bot: – 20~55℃ tolerance works in freezers, hot kitchens—no climate – related failures.”

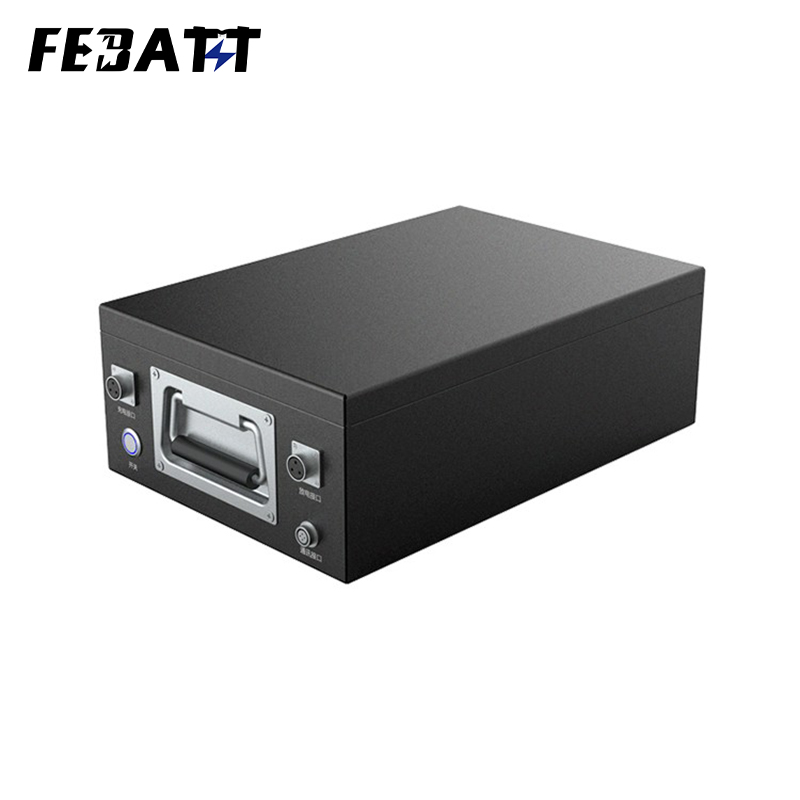

26650 48V 40Ah LiFePO4 Battery with RS485 for Robots
