26650 22.4V 17Ah LFP Battery

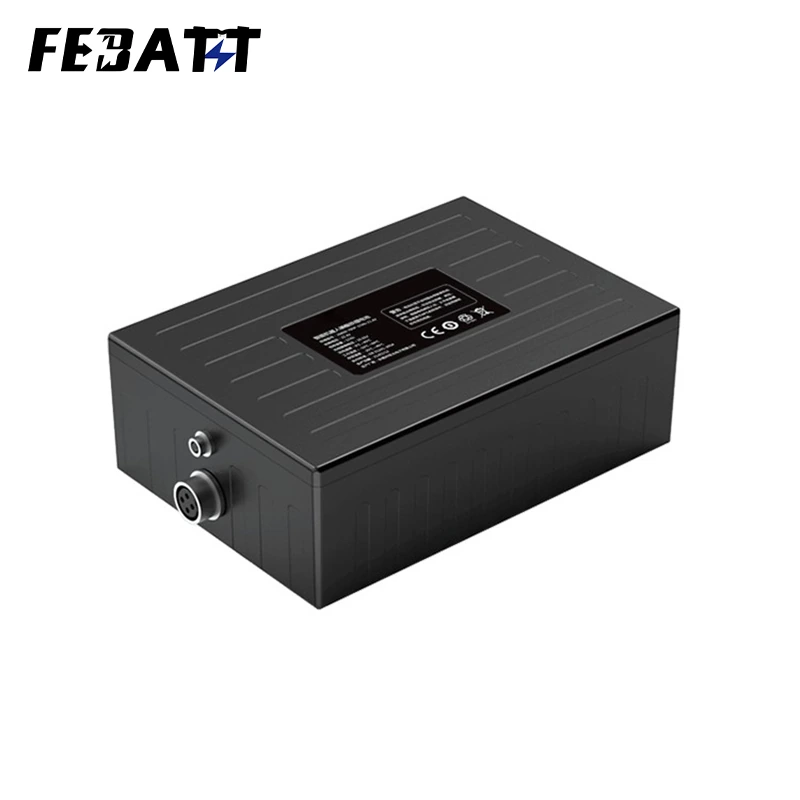

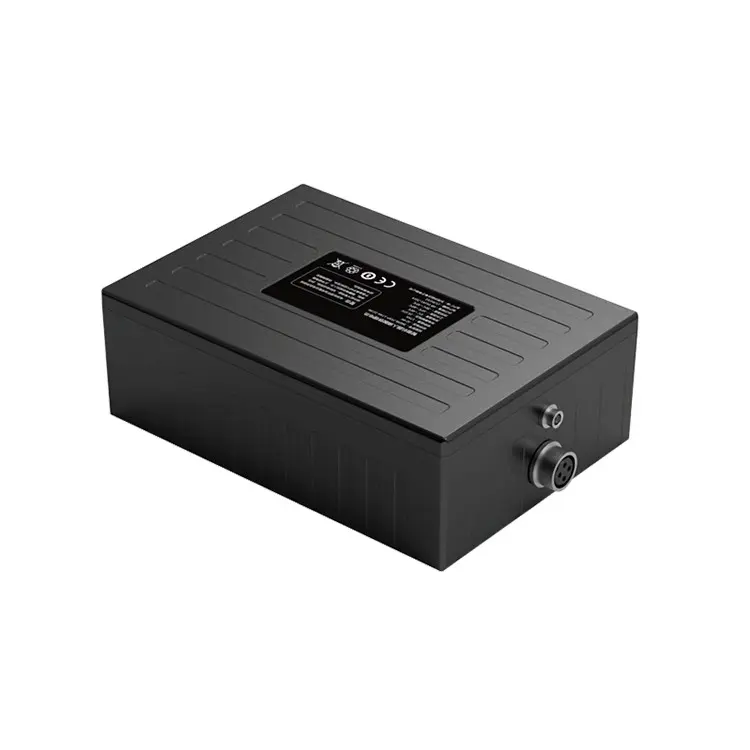

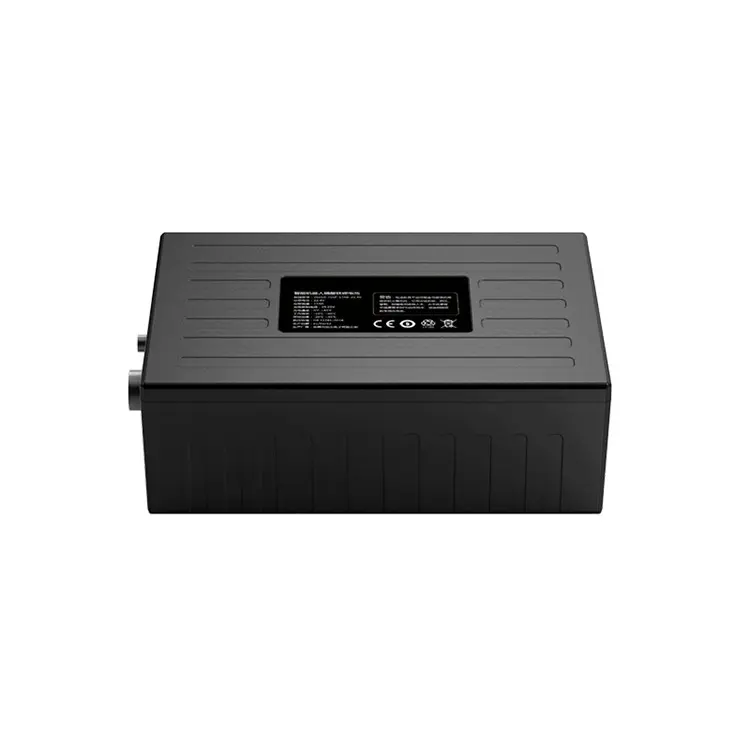

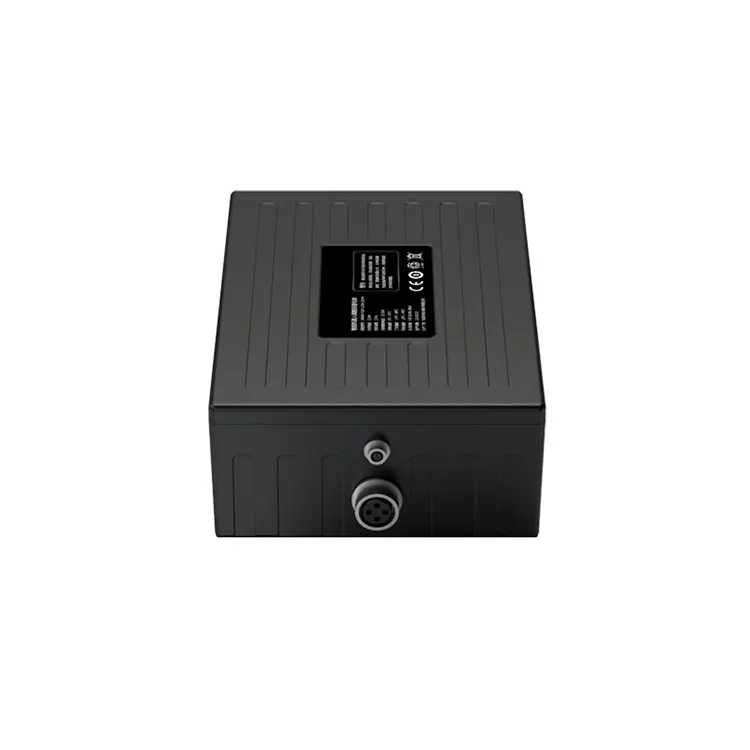

26650 22.4V 17Ah LFP Battery for Robots with RS485 Communication
26650 22.4V 17Ah LFP Battery for Robots with RS485 Communication
26650 22.4V 17Ah LFP Battery for Robots with RS485 Communication

26650 22.4V 17Ah LFP Battery for Robots with RS485 Communication

Category

Battery for Robots with RS485 Communication delivers 22.4V 17Ah power, LFP durability, and RS485 fleet monitoring—ideal for service robots, industrial inspection bots, and automation machines.

  • Nominal Voltage：22.4V
  • Rated Capacity：17Ah
  • Dimension：235*165*78mm
  • Charge Voltage：25.55V
  • Charge Current：≤10A
  • Discharge Current：≤15A
  • Discharge Cut-off Voltage：14V
  • Weight：4.2kg
  • Operating Temperature：-10～60℃
  • Application：Robotics

For More Robot Battery Solution Service, please Contact Us for details!

Quote Now
Send Email

26650 22.4V 17Ah LFP Battery for Robots with RS485 Communication: Smart Power for Automated Machines

Product Introduction

Engineered as a Battery for Robots with RS485 Communication, this 26650 lithium iron phosphate solution is purpose-built for automated robotic systems. Featuring 22.4V nominal voltage, 17Ah capacity, and integrated RS485 communication, this RS485-Enabled LFP Battery for Robots combines high energy density with smart fleet management capabilities. Unlike standard batteries, it leverages LFP’s inherent safety, supports -10~60℃ wide-temperature operation, and enables real-time data sync via RS485—making it the reliable power source for service robots, industrial inspection bots, and automation machines.

Technical Specifications

Table: Battery for Robots with RS485 Communication Core Parameters

Parameter Details
Cell Type 26650 Lithium Iron Phosphate
Nominal Voltage 22.4V
Rated Capacity 17Ah
Charge Voltage 25.55V
Charge Current ≤10A
Discharge Current ≤15A
Discharge Cut-off Voltage 14V
Weight 4.2Kg
Dimensions 235mm×165mm×78mm
Operating Temperature -10~60℃
Communication RS485 (For Robot Fleet Management)
Application Service Robots, Industrial Inspection Robots, Automation Machines

Core Advantages of Battery for Robots with RS485 Communication

1. RS485-Driven Smart Fleet Management

“The Battery for Robots with RS485 Communication enables real-time data transmission:
  • Syncs battery health, SOC, temperature, and discharge current with robot management systems, enabling predictive maintenance and optimized task scheduling.
  • Supports custom RS485 protocols, ensuring seamless compatibility with diverse robotic platforms—from service bots to industrial inspection machines.”

2. 26650 LFP Cell Durability & Safety

“Leveraging 26650 lithium iron phosphate cells:
  • Inherently Safe: Eliminates thermal runaway risks, critical for robots operating in public spaces or industrial environments.
  • Long Cycle Life: Endures thousands of charge-discharge cycles, reducing replacement costs for robotic fleets.”

3. Wide Temperature Operation for Diverse Climates

“Engineered for versatility:
  • -10~60℃ Range: Powers robots in cold storage warehouses (-10℃) and high-heat manufacturing zones (60℃), ensuring uninterrupted automation in temperature-variable settings.”

4. Compact Form Factor for Robotic Integration

“At 235mm×165mm×78mm and 4.2Kg, this battery fits seamlessly into robotic chassis:
  • Ideal for space-constrained service robots, lightweight inspection bots, and compact automation machines—eliminating integration bottlenecks.”

Application Scenarios

1. Service Robots in Hospitality & Retail

“Guest Assistance & Inventory Management: Powers hotel delivery robots, retail inventory bots, and concierge machines. The Battery for Robots with RS485 Communication’s RS485 enables remote monitoring, ensuring uninterrupted guest service and inventory accuracy.”

2. Industrial Inspection Robots

“Factory & Infrastructure Audits: Supplies energy for robots inspecting manufacturing lines, pipelines, or civil structures. Its 15A discharge current drives LiDAR, cameras, and communication modules simultaneously, while RS485 syncs inspection data in real time.”

3. Automation Machines in Logistics & Healthcare

“Parcel Sorting & Patient Support: Powers logistics robots sorting packages and healthcare bots assisting patients. The battery’s compact size and wide temperature tolerance work in warehouse sorting centers and hospital wards alike.”

Reviews

There are no reviews yet.

Be the first to review “26650 22.4V 17Ah LFP Battery for Robots with RS485 Communication”

Your email address will not be published. Required fields are marked *

Customized Battery & Charging Solutions for Robotics

We offer full OEM/ODM services to meet the unique power needs of your robotic systems, AGVs, AMRs, and automated equipment. Whether you need a standard solution or a fully customized design, we are ready to support your project.

Battery Customization

  • Voltage & Capacity Tailoring (e.g., 12V, 24V 48V.72V)
  • Cell Selection: LiFePO4 / NMC / 18650 / 26650 / 21700
  • Communication Protocols: RS232 / RS485 /CAN / Modbus
  • Protection Levels: lP54,lP65. and more
  • Size & Shape Adaptation for Any Robot Platform

Charger Integration

  • Smart Chargers with Fast Charging Support
  • Multi-voltage & Multi-current Configurations
  • Multi-model compatible BMS
  • Support for Safety Features: Overcharge Overheat, Short Circuit Protection etc
  • Optional Communication Interface for Intelligent Monitoring

Full System support

  • Desian,Assembly, Testing. and Mass Production
  • Multi-voltage & Multi-current Configurations
  • Custom Labeling, Branding, and Packaging
  • Global Certification Support: CE, UN38.3, KC,lEC, etc
  • Quick Sample Delivery & Technical Documentation
  • Dedicated Engineering Team for Custom Projects
