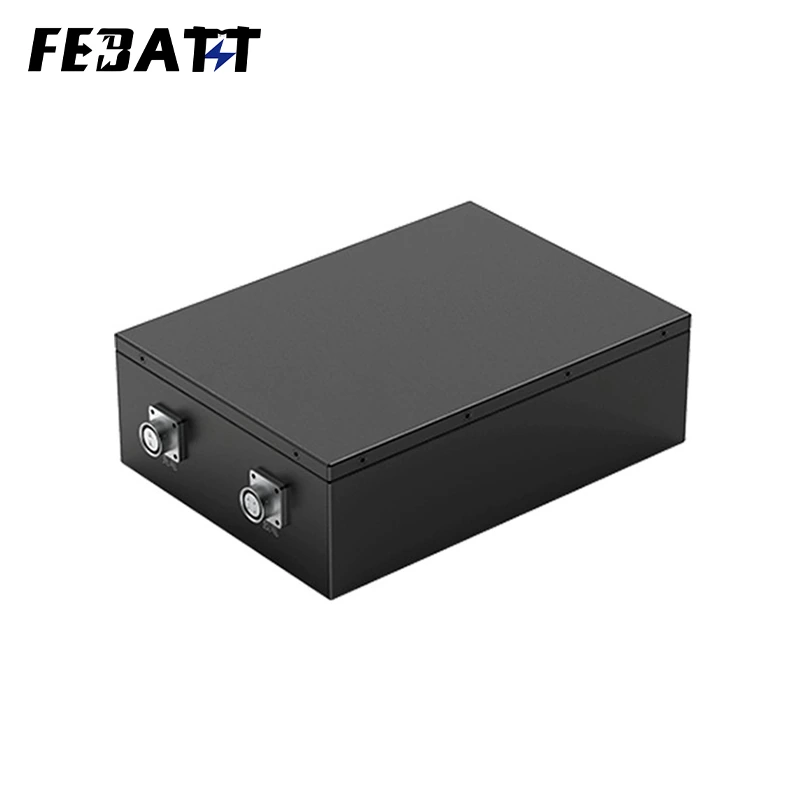

22.4V 27.2Ah 26650 LFP Battery
22.4V 27.2Ah 26650 LFP Battery for AGV Robots with RS485
22.4V 27.2Ah 26650 LFP Battery for AGV Robots with RS485
22.4V 27.2Ah 26650 LFP Battery for AGV Robots with RS485

22.4V 27.2Ah 26650 LFP Battery for AGV Robots with RS485

Category

LFP Battery for AGV Robots delivers 22.4V 27.2Ah power, RS485 communication, and -10~55℃ operation—ideal for AGV robots, automated warehouse bots, and industrial logistics devices.

  • Nominal Voltage：22.4V
  • Rated Capacity：27.2Ah
  • Dimension：290*210*94mm
  • Charge Voltage：25.5V
  • Charge Current：≤10.0A
  • Discharge Current：10.0A
  • Discharge Cut-off Voltage：14.0V
  • Weight：7.5kg
  • Operating Temperature：-10～55℃
  • Application：robot, AGV

For More Robot Battery Solution Service, please Contact Us for details!

Quote Now
Send Email

LFP Battery for AGV Robots: 22.4V 27.2Ah RS485-Enabled Power for Automated Logistics

Product Introduction

Engineered exclusively for automated guided vehiclesand industrial robotics, the LFP Battery for AGV Robots is a lithium iron phosphate solution with RS485 communication. This 22.4V 27.2Ah LFP Battery for AGV Robots combines 27.2Ah capacity, 22.4V nominal voltage, and industrial-grade safety. Unlike standard batteries, it features RS485 for real-time data transmission, LFP’s inherent thermal stability, and wide temperature resilience—making it the reliable power source for AGV robots in logistics, warehousing, and manufacturing.

Technical Specifications

Parameter Details
Chemistry LFP
Nominal Voltage 22.4V
Rated Capacity 27.2Ah
Charge Voltage 25.5V
Charge Current ≤10.0A
Discharge Current 10.0A
Discharge Cut-off Voltage 14.0V
Weight 7.5kg
Dimensions (L×W×H) 290×210×94mm
Operating Temperature -10~55℃
Communication RS485
Application AGV robots, automated logistics bots, industrial robotics

Core Advantages of LFP Battery for AGV Robots

1. RS485 Smart Communication for AGV Fleet Management

“Real-Time Data Transmission: The LFP Battery for AGV Robots supports RS485 communication, enabling AGVs to transmit battery health, SOC, and temperature data to central management systems. This allows for predictive maintenance, fleet optimization, and seamless integration into automated warehouse workflows—critical for minimizing downtime in logistics operations.”

2. LFP Safety & Long Cycle Life for Industrial Reliability

“Thermal Stability & ≥2000 Cycles: Built with LFP chemistry, the AGV Robots LFP Battery avoids thermal runaway, ensuring safety in high-traffic warehouse environments. It retains 80% capacity after 2000 charge-discharge cycles, lasting 3-5 times longer than conventional batteries—slashing replacement costs for AGV operators.”

3. Wide Temperature Operation for Diverse Climates

“-10~55℃ Reliability: Whether powering an AGV in a -10℃ cold storage or a 55℃ manufacturing plant, the LFP Battery with RS485 for AGV Robots performs consistently. Its robust thermal management ensures stable power in extreme industrial climates, eliminating the need for climate-controlled storage.”

4. High-Power Delivery for Heavy-Duty AGV Tasks

“10A Continuous Discharge: Designed to power AGVs with heavy loads and frequent starts/stops, the 22.4V LFP Battery for AGV Robots delivers 10A continuous power. It handles peak demands like simultaneous lifting and navigation, ensuring AGVs operate smoothly in automated logistics hubs.”

Application Scenarios

1. Automated Warehouse AGVs

“Goods Transport & Sorting: Powers AGVs that move pallets, sort packages, and manage inventory in e-commerce warehouses. The LFP Battery for AGV Robots’ long cycle life and RS485 integration support 24/7 operations, reducing downtime during peak shipping seasons.”

2. Manufacturing Line Robots

“Material Handling in Factories: Supplies energy for AGVs that transport raw materials and finished goods on assembly lines. Its -10℃ operation enables use in cold manufacturing zones (e.g., food processing), while 55℃ tolerance supports metalworking plants.”

3. Cold-Storage Logistics Robots

“Frozen Goods Transport: Powers AGVs in -10℃ freezer warehouses, with the LFP Battery for AGV Robots maintaining full capacity in freezing temperatures. This ensures uninterrupted logistics in pharmaceutical or food cold chains.”
