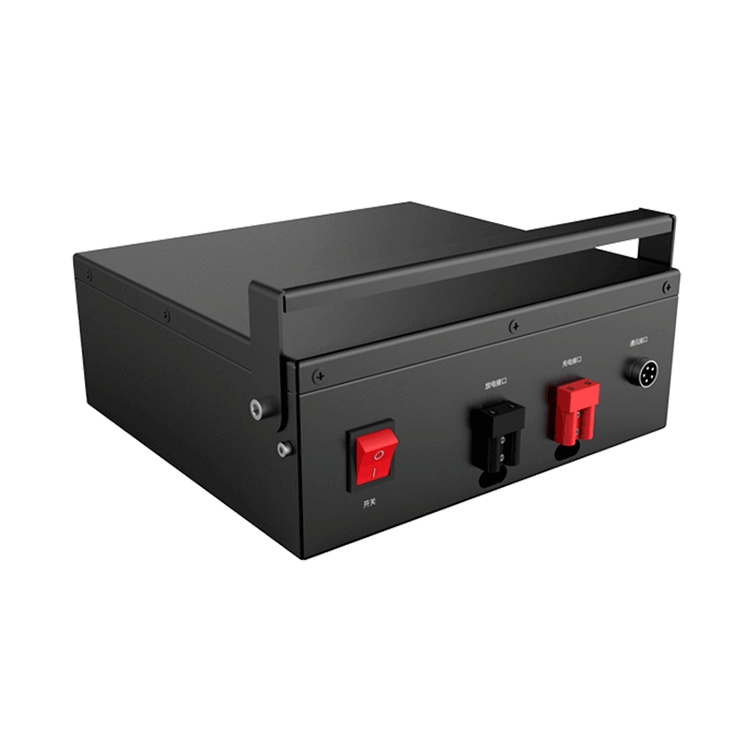

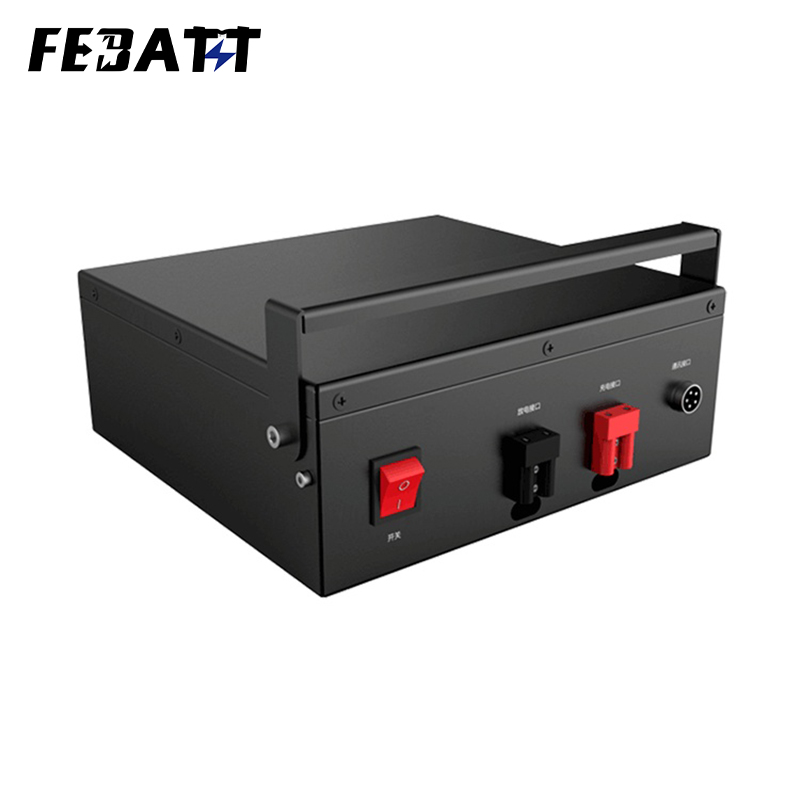

NMC Battery for Service Robots with RS485: 25.2V 60Ah 18650 Battery for Automated Service Fleets
Product Introduction
Engineered as a NMC Battery for Service Robots with RS485, this 18650 NMC solution is purpose-built for the dynamic workflows of service robotic systems. Featuring 25.2V nominal voltage, 60Ah capacity, and integrated RS485 communication, this RS485-Enabled NMC Battery for Service Robots combines NMC’s high energy density with real-time data transmission capabilities. Unlike standard batteries, it supports 100A instantaneous discharge for peak robotic movements, withstands -20~50℃ temperature extremes, and features a rugged cold-rolled metal casing—making it the reliable power source for home service robots, medical assistance bots, hotel concierge machines, restaurant automation systems, and educational programming robots.
Technical Specifications
Table: NMC Battery for Service Robots with RS485 Core Parameters
| Parameter | Details |
|---|---|
| Chemistry | NMC |
| Cell Type | 18650 (3.6V 3.35Ah) |
| Nominal Voltage | 25.2V |
| Rated Capacity | 60Ah |
| Charging Voltage | 29.4V |
| Charging Current | ≤15A |
| Discharge Current | 40A (Continuous) / 100A (Instantaneous) |
| Discharge Cut-off Voltage | 19.6V |
| Weight | 7.5Kg |
| Dimensions (L×W×H) | 265mm×250mm×100mm (Max) |
| Operating Temperature | Charging: 0~45℃; Discharging: -20~50℃ |
| Storage Temperature | -20~40℃ |
| Communication | RS485 (For Fleet Monitoring) |
| Casing | Cold-Rolled Metal Plate |
| Protection Features | Short Circuit, Overcharge, Over-discharge, Overcurrent, Temperature Protection |
| Application | Home Service Robots, Medical Service Robots, Hotel Service Robots, Restaurant Bots, Educational Service Robots |
Core Advantages of NMC Battery for Service Robots with RS485
1. RS485-Driven Smart Service Fleet Management
“The NMC Battery for Service Robots with RS485 integrates advanced RS485 communication:
- Transmits real-time data on voltage, current, temperature, and capacity to robotic control systems. Hotel managers can monitor 50+ concierge robots simultaneously, while healthcare facilities track battery health of patient-assist bots to ensure uninterrupted care.
- Supports custom protocols for niche service robot brands, enabling seamless integration with AI-driven workflows (e.g., voice-controlled home robots or curriculum-linked educational bots).”
2. NMC High Energy Density & 100A Instantaneous Discharge
“Leverages NMC chemistry and 18650 cell architecture:
- Delivers 60Ah capacity in a compact 265mm×250mm×100mm form factor, powering home service robots through 12-hour cleaning cycles or restaurant bots through peak dining hours without mid-shift recharging.
- 100A instantaneous discharge sustains heavy-load tasks like medical robot patient lifts or hotel robot luggage transport, ensuring dynamic service operations.”
3. -20~50℃ Wide Temperature Adaptability
“Engineered for diverse service environments:
- Powers medical service robots in hospital cold rooms (-20℃) and restaurant bots in commercial kitchens (50℃), ensuring consistent performance regardless of climate.
- Maintains stable 25.2V output in temperature extremes, enabling educational robots to run coding workshops or home bots to operate in unheated garages.”
4. Cold-Rolled Metal Casing & Multi-Layer Protection
“Built for industrial service robot demands:
- Cold-rolled metal casing withstands impacts and vibrations during robotic movement, protecting the battery in high-traffic hospitality environments.
- Comprehensive protection (short circuit, overcharge, etc.) prevents power anomalies that could disrupt guest service or medical care workflows.”
Application Scenarios
1. Home Service Robots
“Domestic Automation: The NMC Battery for Service Robots with RS485 powers vacuum bots, lawn mowers, and companion robots. RS485 communication lets homeowners track battery status via smart home hubs, while -20℃ operation enables outdoor tasks like snow removal.”
2. Medical Service Robots
“Patient Care & Supply Transport: Energizes robots delivering medications, assisting with mobility, and sterilizing equipment. 60Ah capacity supports 10-hour hospital shifts, and 100A instantaneous discharge handles peak-load tasks like patient transfer.”
3. Hotel & Restaurant Service Robots
“Hospitality & Food Service: Supplies energy for concierge bots, luggage transporters, and meal-delivery machines. 40A continuous discharge handles simultaneous operation of robotic arms and navigation systems, while RS485 integrates with venue management software for fleet optimization.”
4. Educational Service Robots
“STEM Learning & Coding Workshops: Powers programming robots and lab automation devices. Long cycle life supports multi-day robotics camps, and the rugged metal casing withstands student-led project handling.”
