Q1: What applications are lithium batteries for service robots designed for?

A: Lithium batteries for service robots are commonly used in hotel service robots, restaurant delivery robots, reception and guidance robots, retail service robots, and other mobile service automation platforms. Battery selection should be based on the robot’s voltage, required runtime, continuous and peak load, available installation space, charging method, and communication requirements.

Q2: How do I choose the right lithium battery for a service robot?

A: Start with the robot’s nominal voltage, required capacity, continuous and peak current, target runtime, battery compartment dimensions, weight limit, charging current, connector type, and communication interface. Output power and capacity should be matched to the robot’s real duty cycle rather than selected from voltage or ampere-hours alone.

Q3: Can FEBATT customize lithium battery packs for service robot manufacturers?

A: Yes. FEBATT can develop custom lithium battery packs for service robot projects, including voltage, capacity, dimensions, housing, connector type, BMS settings, charging parameters, and communication interfaces. This is useful when a robot has a proprietary battery compartment, non-standard power requirements, or specific integration requirements.

Q4: What is the typical cycle life of a service robot lithium battery?

A: Cycle life varies with cell chemistry, depth of discharge, charge and discharge rate, operating temperature, and duty cycle. As a published reference, one FEBATT 25.6V 60Ah service robot battery is rated for 2,000+ cycles. The cycle-life rating for each service robot battery should be confirmed from the specifications of the selected model and its test conditions.

Q5: How does the BMS protect a lithium battery for service robots?

A: The Battery Management System (BMS) monitors key battery conditions such as voltage, current, and temperature and can provide protection against overcharge, over-discharge, overcurrent, short circuit, and abnormal temperature conditions. Depending on the configuration, the BMS may also provide state-of-charge information, fault data, cell balancing, and communication with the robot controller.

Q6: Can service robot batteries support continuous and peak power demands?

A: Yes, when the battery is engineered for the robot’s load profile. Service robots can experience short power peaks during startup, acceleration, lifting, turning, or operation of actuators and accessories. The battery cells, BMS, wiring, and connectors must therefore be selected to support both the required continuous current and short-duration peak current without excessive voltage drop or unintended protection shutdown.

Q7: What communication interfaces are available for service robot batteries?

A: Service robot lithium batteries can be configured with communication interfaces such as CAN or RS485, depending on the project. These interfaces allow the robot controller to access battery information such as state of charge, voltage, current, temperature, and fault status. FEBATT’s published service robot battery configurations include CAN and RS485 examples, but the required protocol and message format should be confirmed during integration.

Q8: How does operating temperature affect a service robot lithium battery?

A: Temperature affects available capacity, charging behavior, internal resistance, and battery aging. FEBATT’s published service robot references include selected configurations with operating ranges down to -20°C and up to 60°C, while another 25.6V 60Ah service robot battery is specified at -15°C to 60°C. Actual charge and discharge temperature limits are model-specific and should be confirmed for the robot’s operating environment.

Q9: How do charging current and charging strategy affect service robot uptime?

A: Charging strategy should be matched to the battery design and the robot’s operating schedule. Charge current, charger voltage, allowable charging window, duty cycle, and whether the robot charges between tasks all affect practical uptime. For reference, FEBATT’s published 48V 45Ah service robot battery configuration specifies a 21A (0.5C) charge current. This is an example rather than a universal charging rate for all service robot batteries.

Q10: What lithium battery chemistry is suitable for service robots?

A: LiFePO4 and other rechargeable lithium-ion chemistries can both be used in service robots. LiFePO4 is often selected when long cycle life and thermal stability are priorities, while other lithium-ion chemistries can be useful when energy density, compact size, or lower weight is more important. The best chemistry depends on the robot’s runtime target, space and weight limits, load profile, charging strategy, and operating environment.

Powerful OEM 48V 60Ah C40 LiFePO4 Battery for Robotics

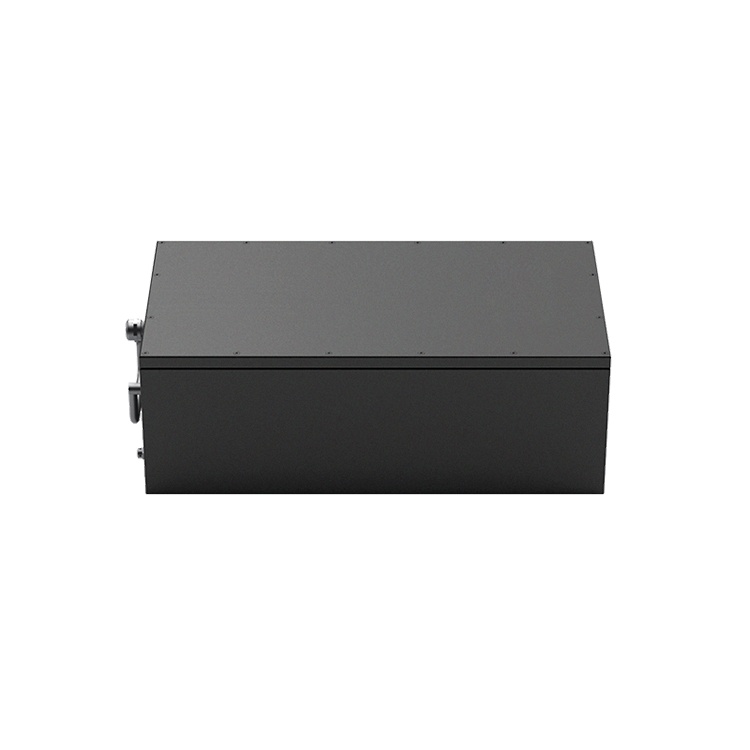

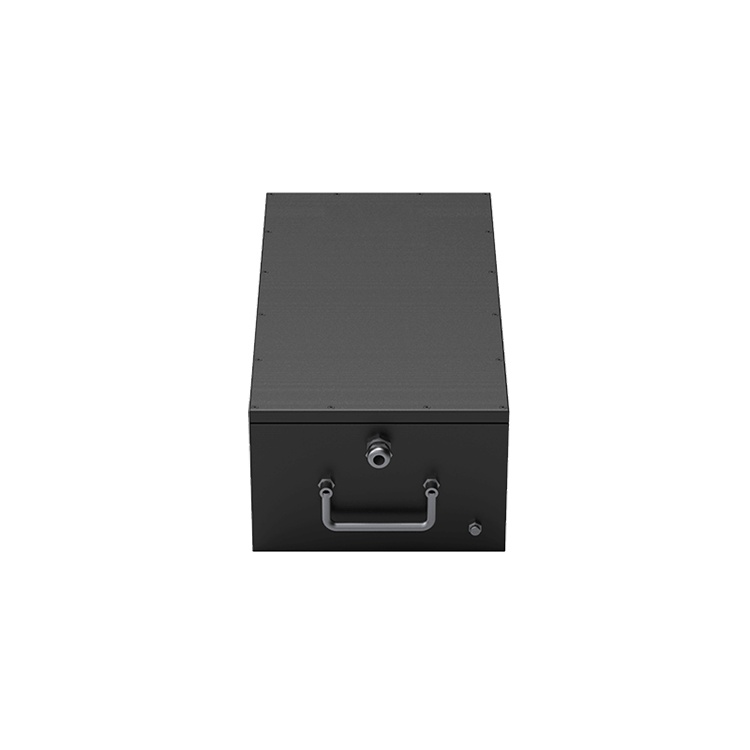

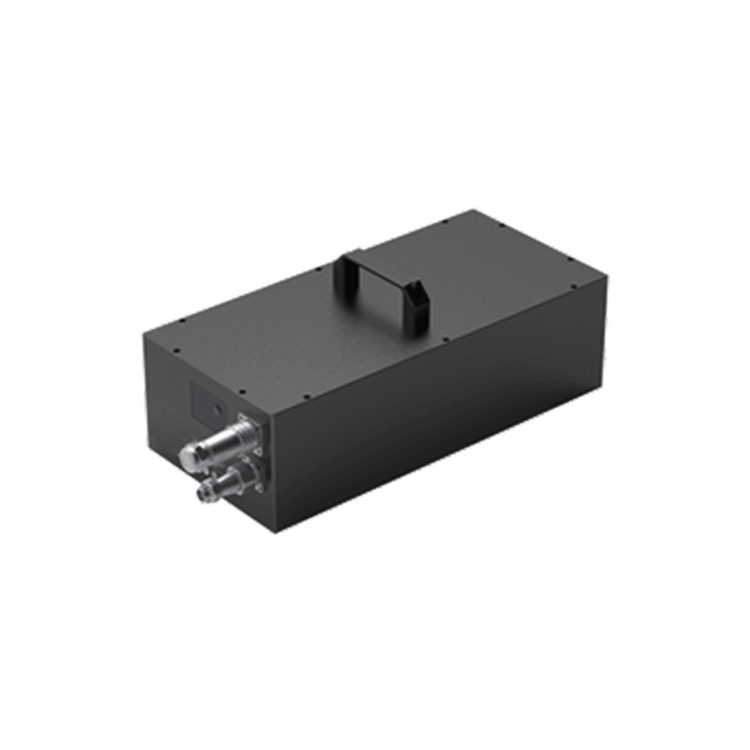

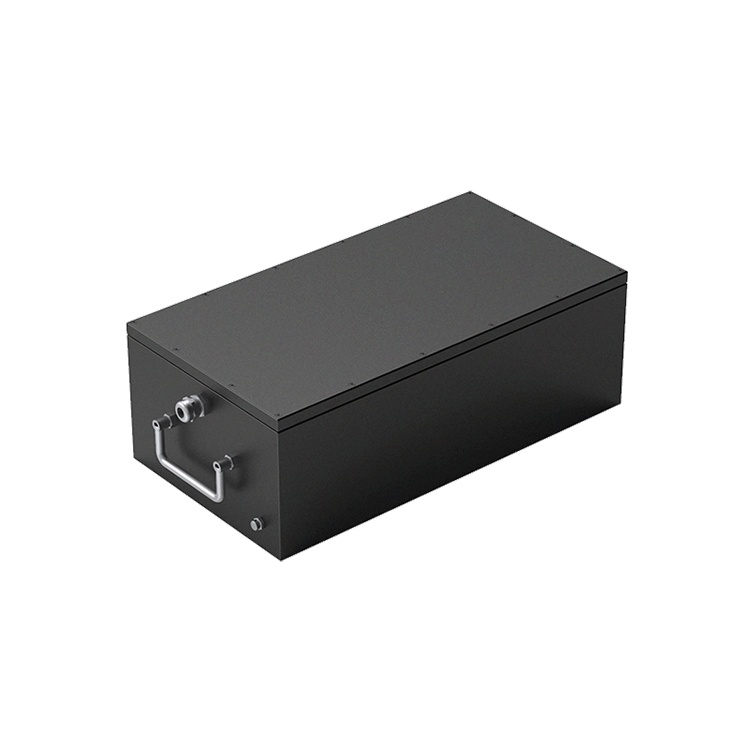

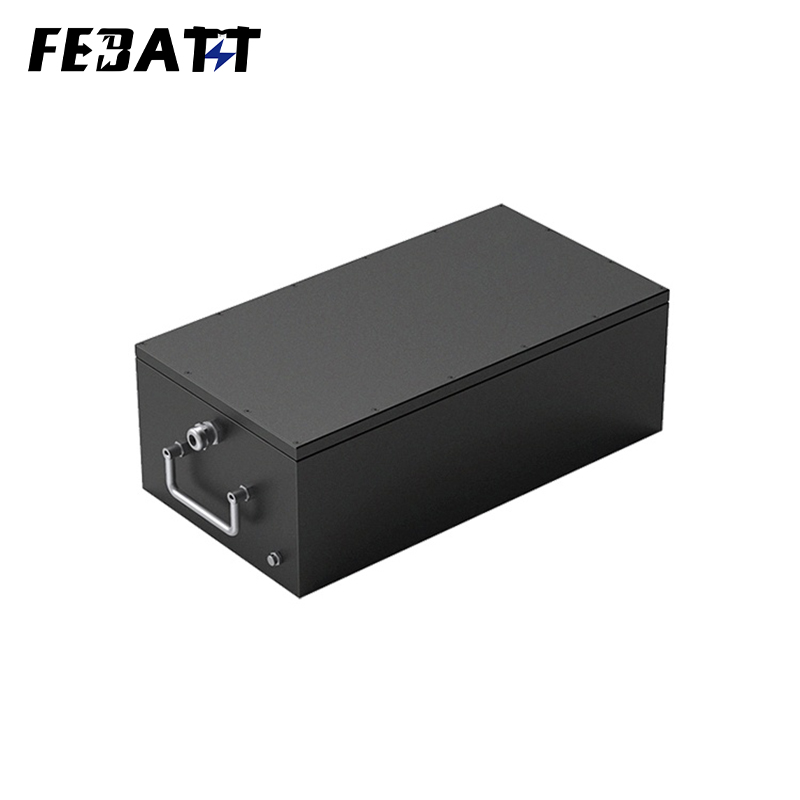

Name: Powerful OEM 48V 60Ah C40 LiFePO4 Battery for Robotics
Availability: InStock

C40 LiFePO4 Battery for Robotics: 48V 60Ah Power for Service Robot Fleets

Product Introduction

Engineered as a C40 LiFePO4 Battery for Robotics, this lithium iron phosphate solution is purpose-built for the demanding workflows of service robotic systems. Featuring a nominal voltage of 48V, 60Ah capacity, and a rugged black sheet metal casing, this Robotics C40 LiFePO4 Battery combines LiFePO4’s inherent safety with industrial-grade durability. Unlike standard batteries, it supports -20~55℃ wide-temperature discharge, 40A continuous discharge for dynamic robotic movements, and multi-layer protection—making it the reliable power source for hotel service robots, restaurant automation bots, and healthcare assistance machines.

Technical Specifications

Table: C40 LiFePO4 Battery for Robotics Core Parameters

Parameter	Details
Chemistry	LiFePO4
Model	C40-3.2V-20Ah (C40-15S3P-48V-60Ah)
Nominal Voltage	48V
Rated Capacity	60Ah
Charging Voltage	54.75V
Charging Current	30A
Discharge Current	40A (Continuous)
Discharge Cut-off Voltage	30V
Weight	25Kg
Dimensions (L×W×H)	(460×245×160)±1mm
Operating Temperature	Charging: 0~45℃; Discharging: -20~55℃
Storage Temperature	-20~45℃ (≤1 month), -20~35℃ (≤3 months), -20~25℃ (≤6 months)
Protection Features	Short Circuit, Overcharge, Over-discharge, Overcurrent, Over Temperature
Casing	Black Sheet Metal Case
Application	Hotel Service Robots, Restaurant Bots, Healthcare Assistance Robots

Core Advantages of C40 LiFePO4 Battery for Robotics

1. LiFePO4 Longevity & Safety for Service Robotics

“The C40 LiFePO4 Battery for Robotics leverages lithium iron phosphate chemistry:

≥2000 Cycle Life (80% Retention): Outlasts standard lithium batteries by 3-4 times, reducing service robot fleet maintenance costs by 65% over 5 years.
Thermal runaway resistance ensures safety in customer-centric environments like hotel lobbies and restaurant dining areas, eliminating hazards during guest interactions.”

2. -20~55℃ Wide Temperature Operation for All-Environment Service

“Engineered for diverse service scenarios:

Powers hotel service robots in cold storage rooms (-20℃) and restaurant bots in hot kitchen environments (55℃), ensuring uninterrupted service regardless of climate.
Maintains consistent 40A discharge in temperature extremes, enabling robotic arms to deliver amenities or serve meals with precision.”

3. 40A Continuous Discharge for Dynamic Robotic Agility

“Supports high-power service robot tasks:

40A continuous discharge drives robotic navigation, sensor arrays, and AI processing simultaneously—critical for hotel bots navigating complex layouts or restaurant bots maneuvering around diners.
30A fast charging reduces downtime, allowing service robots to recharge during off-peak hours for full-shift operation.”

4. Robust Sheet Metal Casing & Multi-Layer Protection

“Built for industrial service robot demands:

Black sheet metal casing withstands impacts and vibrations during robotic movement, protecting the battery in high-traffic hospitality environments.
Comprehensive protection (short circuit, overcharge, etc.) prevents power anomalies that could disrupt guest service or food delivery workflows.”

Application Scenarios

1. Hotel Service Robots

“Guest Concierge & Room Service: The C40 LiFePO4 Battery for Robotics powers luggage transport bots, room service delivery machines, and concierge assistants. 60Ah capacity supports 12-hour guest interaction shifts, while -20℃ operation enables use in cold storage linen rooms.”

2. Restaurant Automation Bots

“Food Service & Table Management: Energizes order-taking robots, meal delivery bots, and table-cleaning machines. 40A discharge handles simultaneous operation of robotic arms and food warmers, while the robust sheet metal casing resists kitchen spills and debris.”

3. Healthcare Assistance Robots

“Patient Support & Supply Transport: Supplies energy for robots assisting patients in hospitals and clinics. ≥2000 cycle life reduces long-term battery replacement costs for healthcare facilities, and 55℃ operation works in warm therapy rooms.”

48V 60Ah C40 LiFePO4 Battery for Robotics Applications
