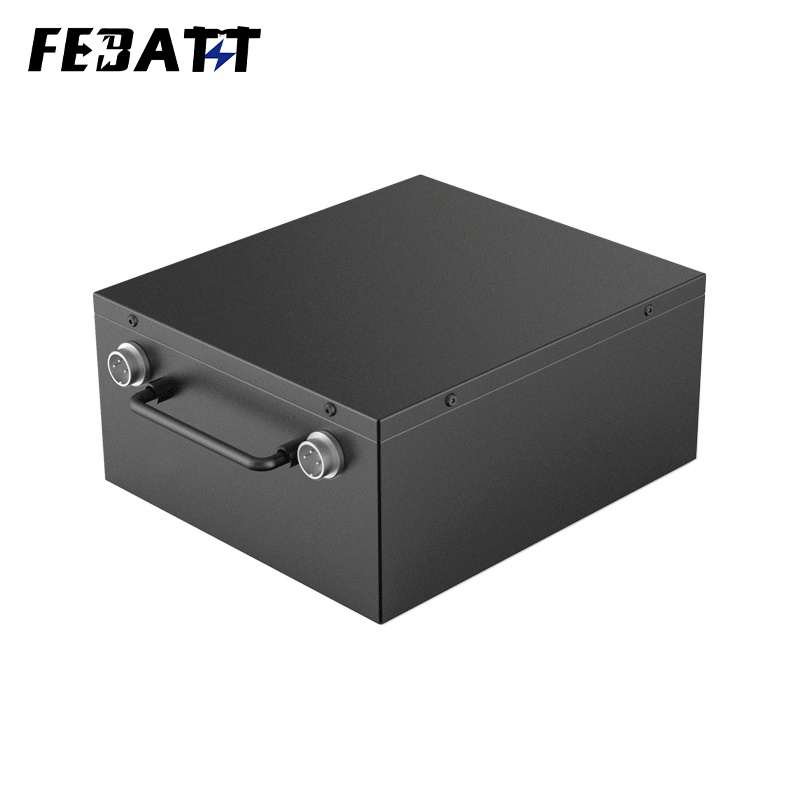

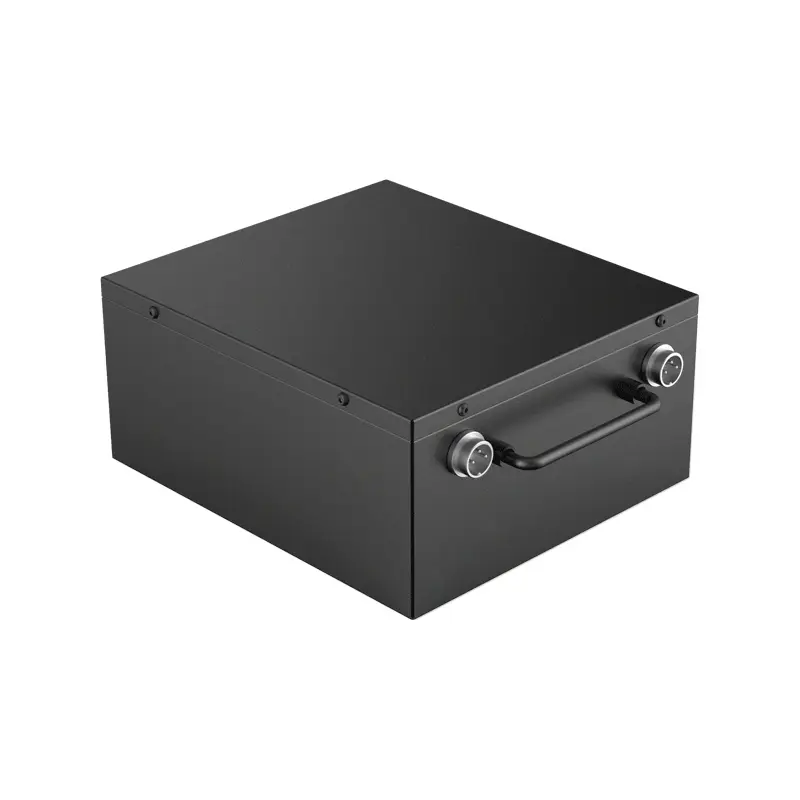

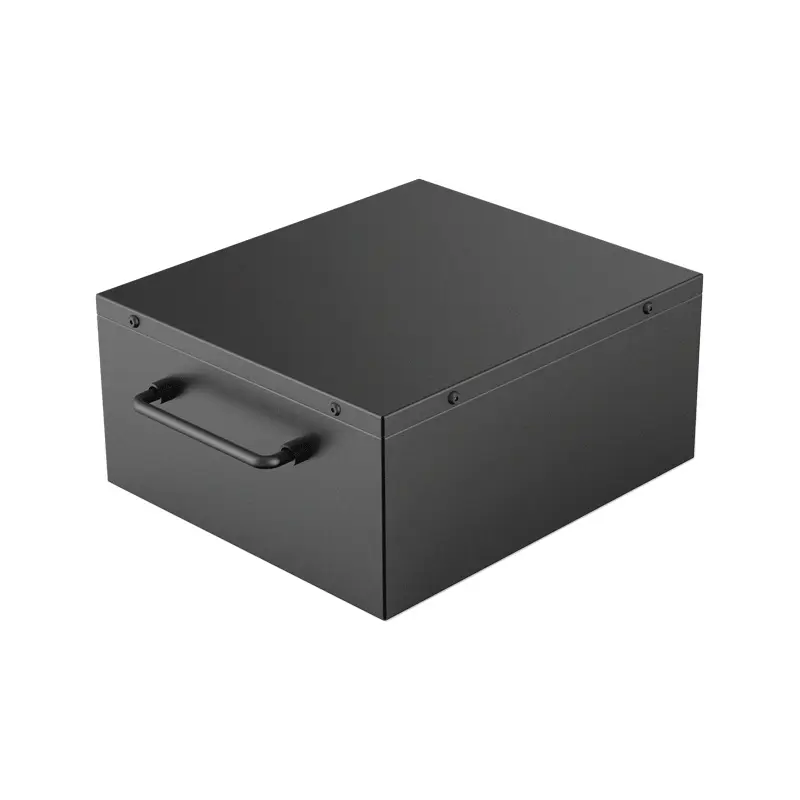

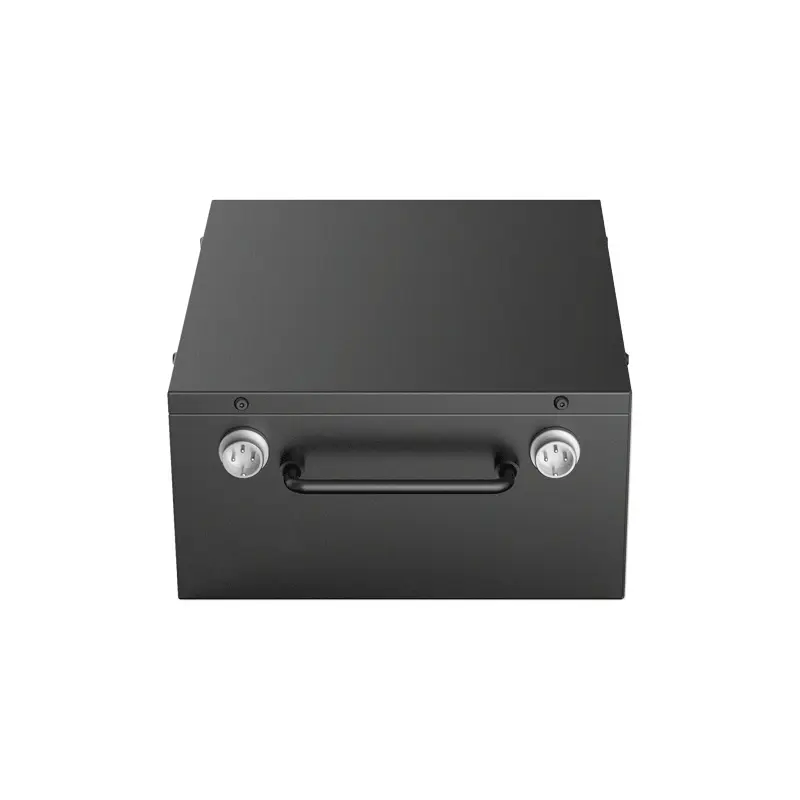

26650 25.6V 50Ah Li-ion Battery for Special Underwater Vehicle with RS485
Battery for Special Underwater Vehicle delivers 25.6V 50Ah power, RS485 communication, and -20~60℃ operation—ideal for underwater robots, submersible vehicles, and marine exploration equipment.
- Nominal Voltage：25.6V
- Rated Capacity：50000mAh
- Dimension：344*245*135mm
- Charge Voltage：29.2V
- Charge Current：≤15A
- Discharge Current：50A
- Discharge Cut-off Voltage：16V
- Weight：30000g
- Operating Temperature：-20～60℃
- Application：Special underwater vehicle
FAQ
Q1: What applications are special robot lithium batteries designed for?
A: Special robot lithium batteries are designed for robotic systems that operate outside standard indoor service conditions, including patrol robots, firefighting robots, underwater robots or underwater equipment, inspection robots, and other specialized mobile platforms. Battery selection should be based on the robot’s voltage, runtime, load profile, available installation space, communication needs, charging method, and operating environment.
Q2: How do I choose the right lithium battery for a special robot application?
A: Start with the required voltage, usable capacity, continuous and peak current, target runtime, installation dimensions, weight limit, charging requirements, communication interface, and environmental conditions. Special applications may also require additional consideration for moisture, dust, vibration, shock, temperature, sealing, or other project-specific factors. The battery should therefore be engineered around the complete mission profile rather than selected by capacity alone.
Q3: What lithium battery chemistry is suitable for special robot applications?
A: LiFePO4 and other lithium-ion chemistries can both be used in special robot applications. LiFePO4 is often selected when thermal stability and cycle life are priorities, while other lithium-ion chemistries may be considered when energy density, weight, or compact size are more important. The appropriate chemistry depends on the robot’s duty cycle, space, load, environment, and performance requirements.
Q4: Can FEBATT customize batteries for patrol, firefighting, or underwater robots?
A: Yes. FEBATT can develop custom lithium battery packs for special robot projects, including patrol, firefighting, underwater, inspection, and other specialized robots. Customization may include voltage, capacity, dimensions, housing, connector type, BMS settings, charge and discharge current, communication interface, and environmental protection requirements. Final specifications should be defined according to the robot platform and operating conditions.
Q5: How does the BMS protect a special robot lithium battery?
A: Yes. FEBATT can develop custom lithium battery packs for special robot projects, including patrol, firefighting, underwater, inspection, and other specialized robots. Customization may include voltage, capacity, dimensions, housing, connector type, BMS settings, charge and discharge current, communication interface, and environmental protection requirements. Final specifications should be defined according to the robot platform and operating conditions.
Q6: What communication interfaces can be integrated into special robot batteries?
A: Depending on the project, interfaces such as RS485 or CAN can be integrated for communication between the battery BMS and the robot controller. These interfaces can transmit information such as state of charge, voltage, current, temperature, and fault status. Published FEBATT special-robot examples include patrol and firefighting robot battery configurations using RS485 or CAN, but the required protocol and message format should be confirmed for each project.
Q7: How are special robot batteries adapted to demanding operating environments?
A: Environmental requirements should be defined during battery development. Factors may include moisture exposure, dust, vibration, shock, immersion, operating temperature, and mechanical impact. Battery chemistry, enclosure design, sealing, connector selection, thermal design, and BMS protection can then be configured for the application. Environmental protection levels and temperature limits should always be confirmed for the specific battery model or project rather than assumed across the full product range.
Q8: What factors affect the cycle life of a special robot battery?
A: Cycle life depends on battery chemistry, depth of discharge, charge and discharge rate, operating temperature, charging strategy, and the robot’s duty cycle. For example, one published FEBATT 22.4V 28Ah patrol robot battery is specified for 1,000+ cycles while retaining at least 80% capacity. This is a model-specific reference, not a universal rating for all special robot batteries.
Q9: How do continuous and peak current requirements affect special robot battery design?
A: Special robots may experience short-duration power peaks during movement, climbing, acceleration, pump operation, actuators, or other mission-specific loads. The battery must provide sufficient continuous current for normal operation and adequate peak current for transient loads without excessive voltage drop or unwanted protection shutdown. These requirements should be matched to the cell configuration, BMS, connectors, wiring, and thermal design.
Q10: How should charging requirements be defined for a special robot battery?
A: Charging voltage, maximum charge current, available charging window, charger communication, and mission schedule should be defined before the battery is finalized. Published FEBATT configurations show why this is model-specific: a 22.4V 28Ah patrol robot battery lists a maximum charge current of 14A, while a 48V 100Ah firefighting robot battery lists up to 47A. These figures are product examples only; the correct charging strategy must be matched to the selected battery and robot system.
