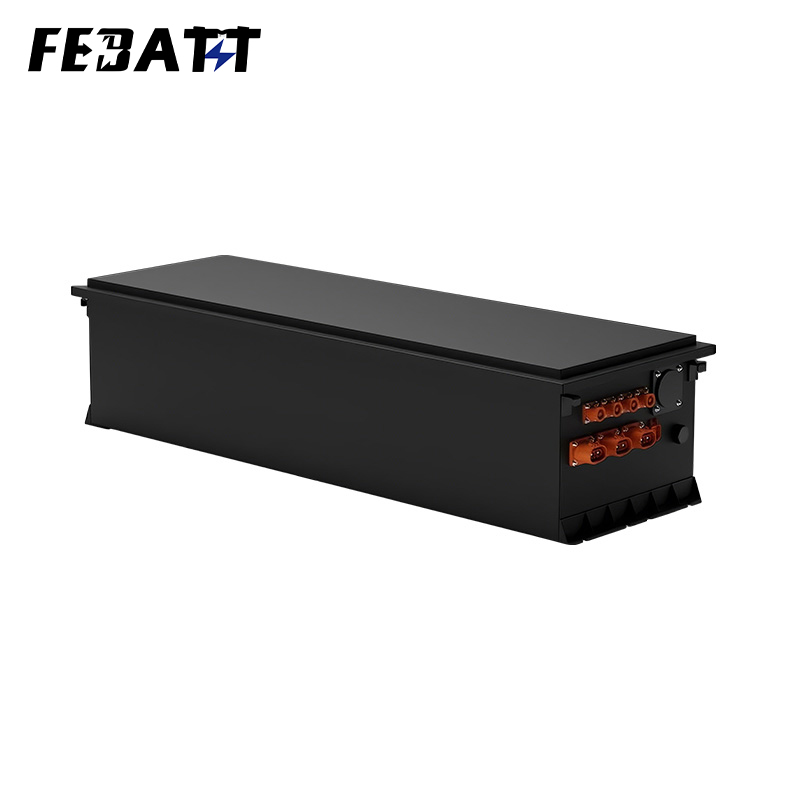

76.8V 230Ah LiFePO4 battery
76.8V 230Ah LiFePO4 battery for Heavy-Duty Operations

76.8V 230Ah LiFePO4 battery for Heavy-Duty Operations

Category

76.8V 230Ah LiFePO4 Battery for Logistics Robot delivers 17.68kWh energy, 250A peak discharge, ≥3500 system cycles, IP67 protection, and CAN+RS485 communication. It suits heavy-load logistics robots, warehouse sorting robots, and outdoor logistics handling equipment

  • Cell Certification: UN38.3
  • Nominal Capacity: 230Ah
  • Nominal Voltage: 76.8V
  • Total Energy: 17.68kWh
  • Weight: ≈135kg
  • Normal Charging Current: ≤40A
  • Peak Charging Current: ≤50A
  • Continuous Discharge Current: ≤230A
  • Peak Discharge Current: ≤250A
  • Communication: CAN+RS485
  • Protection Grade: IP67
  • Dimensions L×W×H: 1100×330×260mm

For More Robot Battery Solution Service, please Contact Us for details!

Quote Now
Send Email

 76.8V 230Ah LiFePO4 Battery for Logistics Robot | High-Durability LFP Power for Heavy-Duty Operations



Product Introduction

Engineered as a 76.8V 230Ah LiFePO4 Battery for Logistics Robot, this lithium iron phosphate solution is built for high-intensity logistics robots that handle continuous cargo transfers, large-volume sorting tasks, and mixed warehouse/outdoor environments. Featuring 76.8V nominal voltage, 230Ah high capacity, and a rugged Q235 casing, this 76.8V 230Ah LiFePO4 Battery for Logistics Robots stands out with 17.68kWh total energy and 250A peak discharge — enabling logistics robots to handle 1000+ kg loads and operate continuously for 25+ hours. Unlike ordinary logistics robot batteries, its 2S configuration and IP67 protection meet the rigorous needs of industrial warehouse and outdoor logistics tasks, making it a stable power core for high-frequency logistics workflows.

Technical Specifications

76.8V 230Ah LiFePO4 Battery for Logistics Robot Core Parameters
Parameter Details (Tailored for Logistics Robots)
Cell Type LFP 230Ah
Cell Cycle Life ≥4000 cycles (100% DOD) – lowers logistics robot fleet replacement costs
System Cycle Life ≥3500 cycles (100% DOD)
Cell Certification UN38.3
Nominal Capacity 230AH (2S) – supports long-duration logistics robot operations
Nominal Voltage 76.8V (2S)
Working Voltage Range 60V-87.6V
Total Energy 17.68kWh – powers 25+ hours of logistics robot sorting/handling
Weight ≈135kg
Normal Charging Current ≤40A
Peak Charging Current ≤50A – fast recharging for logistics robot shift turnover
Continuous Discharge Current ≤230A – sustains heavy-load logistics robot workflows
Peak Discharge Current ≤250A – lifts 1000+ kg cargo via logistics robots
Operating Temperature Charge: 0℃-55℃; Discharge: -15℃-50℃ – adapts to warehouse/outdoor logistics environments
Communication CAN+RS485 – syncs with logistics robot fleet management systems
Casing Material Q235 – resists impacts from cargo in logistics workflows
Protection Grade IP67 – dust/waterproof for outdoor logistics handling robots
Plug Type FSP200100C-LJM81A – stable connection for high-power logistics robots
Dimensions (L×W×H) 1100mm×330mm×260mm – fits large-scale logistics robot chassis
Application Heavy-Load Logistics Handling Robots, Warehouse Sorting Logistics Robots, Outdoor Logistics Equipment

Core Advantages of 76.8V 230Ah LiFePO4 Battery for Logistics Robot

1. 17.68kWh High Energy for 25+ Hour Logistics Robot Runtime
76.8V 230Ah LiFePO4 Battery for Logistics Robot delivers 17.68kWh total energy:It supports 25+ hours of continuous operation for warehouse sorting logistics robots — enough to cover 8000+ parcel sorts per full daily shift without recharging.
For heavy-load logistics handling robots, this capacity powers 18+ hours of non-stop pallet transfers across large warehouses.

2. 250A Peak Discharge for Ultra-Heavy Logistics Loads
Tailored for logistics robot cargo demands:250A peak discharge enables heavy-load logistics handling robots to lift 1000+ kg bulk cargo — critical for industrial warehouse material transfer tasks.230A continuous discharge sustains stable performance through frequent load shifts (common in high-volume logistics yards).

3. IP67 Protection for Harsh Logistics Environments
Built for warehouse/outdoor logistics scenarios:IP67 dust/waterproof rating shields the battery from warehouse dust accumulation, liquid spills (e.g., cargo packaging leaks), and light rain (for outdoor logistics handling) — no performance loss in typical logistics work environments.

4. ≥3500 System Cycles for Low-Cost Logistics Fleets
Optimized for high-frequency logistics use:≥3500 system cycles mean this 76.8V 230Ah Logistics Robot Battery lasts 1.5x longer than standard alternatives. For a 8-unit heavy-load logistics robot fleet, this cuts replacement costs by 60% over 3 years.

5. CAN+RS485 Communication for Logistics Fleet Coordination
Syncs with logistics operations:CAN+RS485 communication transmits real-time battery data (state of charge, temperature) to logistics robot fleet management systems. Managers can schedule charging to align with off-peak sorting hours, minimizing logistics workflow downtime.

Application Scenarios

1. Heavy-Load Logistics Handling Robots
The 76.8V 230Ah LiFePO4 Battery powers 1000+ kg cargo lifts. 250A peak discharge handles bulk material transfers, and IP67 protection resists warehouse debris.
2. Warehouse Sorting Logistics Robots
It suits 25+ hours of non-stop parcel sorting. 17.68kWh energy covers full-shift high-volume e-commerce logistics tasks, and long cycle life reduces fleet maintenance.
3. Outdoor Logistics Handling Equipment
It energizes 18+ hours of cross-yard cargo delivery. IP67 protection withstands light rain, and wide temperature adaptability works in seasonal outdoor logistics conditions.
