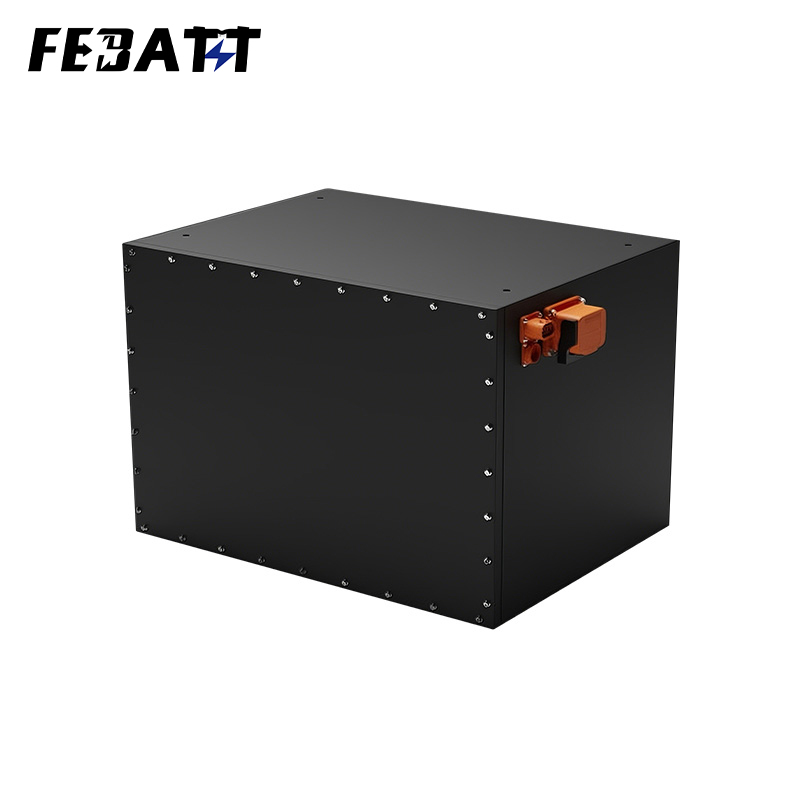

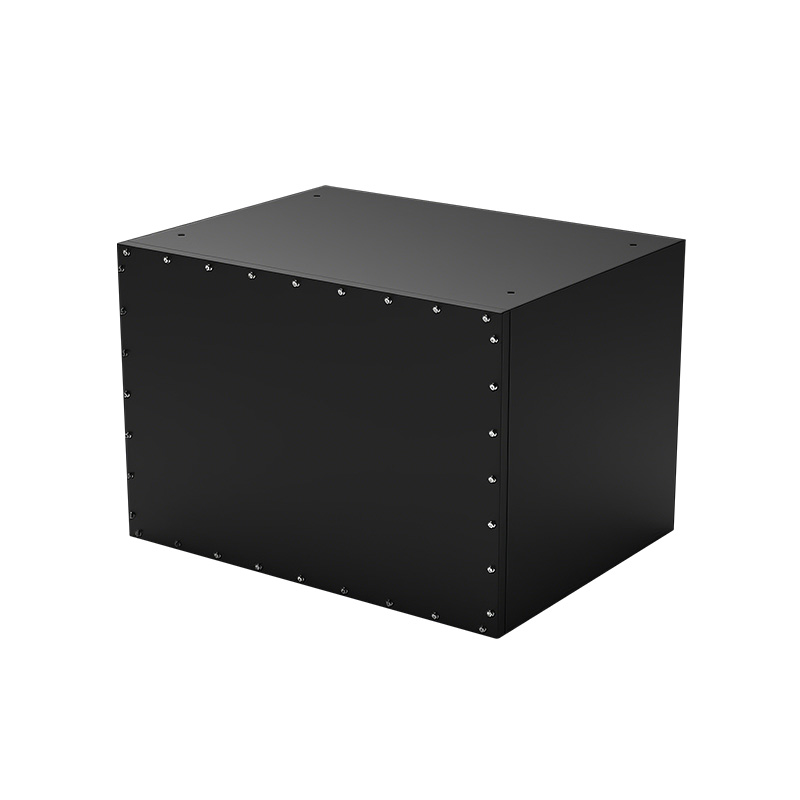

576V52Ah LiFePO4 battery
576V52Ah LiFePO4 battery

576V52Ah LiFePO4 battery for Industrial Warehouse Bots

Category

576V 52Ah LiFePO4 Battery for Logistics Robots delivers 29.952kWh energy, 80A peak discharge, ≥1500 cycles, IP54 protection, and CAN-RS485 communication. It suits high-voltage logistics sorting robots, heavy-duty pallet-moving robots, and automated warehouse transport robots.

  • Cell Certification: UN38.3
  • Nominal Capacity: 52Ah
  • Nominal Voltage: 576V
  • Total Energy: 29.952kWh
  • Weight: ≈240kg
  • Normal Charging Current: ≤20A
  • Peak Charging Current: ≤40A
  • Continuous Discharge Current: ≤40A
  • Peak Discharge Current: ≤80A
  • Communication: CAN-RS485
  • Protection Grade: IP54
  • Dimensions L×W×H: 730mm×668mm×500mm





For More Robot Battery Solution Service, please Contact Us for details!

Quote Now
Send Email

576V 52Ah LiFePO4 Battery  | High-Voltage LFP Power for Industrial Warehouse Bots



Product Introduction

Engineered as a 576V 52Ah LiFePO4 Battery for logistics robots, this high-voltage LFP power pack is built to meet the intense demands of large-scale warehouse automation. With a 576V nominal voltage and 52Ah capacity, this 576V 52Ah LFP battery (LiFePO4) delivers 29.952kWh total energy — enabling logistics robots to operate continuously for 12+ hours in high-throughput sorting or pallet-moving workflows.
Unlike low-voltage alternatives, this576V 52Ah LiFePO4 battery packfeatures a rugged Q235 steel casing, 40A continuous discharge (ideal for steady robotic transport), and 80A peak discharge (for sudden acceleration during warehouse path changes). Its 1P configuration and IP54 protection make it a reliable power core for logistics robots navigating dusty warehouse floors or occasional liquid spills, while UN38.3 certification ensures compliance with industrial safety standards.

Technical Specifications

576V 52Ah LiFePO4 Battery Core Parameters (Tailored for Logistics Robots)
Parameter Details (Logistics Robot-Optimized)
Cell Type LFP 52Ah
Cell Cycle Life ≥2000 cycles (100% DOD) – cuts long-term logistics robot fleet maintenance costs
System Cycle Life ≥1500 cycles (100% DOD) – aligned with high-frequency logistics operation lifespans
Cell Certification UN38.3 – meets global logistics equipment safety requirements
Nominal Capacity 52AH (1P) – supports extended logistics robot runtime
Nominal Voltage 576V (160S) – high-voltage efficiency for large warehouse logistics robots
Working Voltage Range 450V–605V – stable power output for consistent robotic performance
Total Energy 29.952kWh – powers 12+ hours of non-stop logistics sorting/transport tasks
Weight ≈240kg – durable build for heavy-duty logistics robot integration
Normal Charging Current ≤20A – balanced charging for daily logistics shift turnover
Peak Charging Current ≤40A – fast top-ups for mid-shift logistics robot resupply
Continuous Discharge Current ≤40A – sustains steady logistics robot cargo handling
Peak Discharge Current ≤80A – handles sudden acceleration for warehouse path navigation
Operating Temperature Charge: 0℃–55℃; Discharge: -15℃–60℃ – adapts to climate-controlled/seasonal warehouse environments
Communication CAN-RS485 – syncs with logistics robot fleet management systems for real-time power monitoring
Casing Material Q235 steel – resists impacts from warehouse cargo or robot collisions
Protection Grade IP54 – dust/water-resistant for typical logistics warehouse conditions
Plug Type FH200296C-1001 – stable high-voltage connection for logistics robot power interfaces
Dimensions (L×W×H) 730mm×668mm×500mm – fits standard high-capacity logistics robot chassis
Application High-Voltage Logistics Sorting Robots, Heavy-Duty Pallet-Moving Robots, Automated Warehouse Transport Robots

Core Advantages of 576V 52Ah LiFePO4 Battery for Logistics Robots

1. 29.952kWh High Energy for Extended Logistics Robot Runtime
576V 52Ah LiFePO4 battery delivers 29.952kWh total energy:Powers 12+ hours of continuous operation for high-voltage logistics sorting robots (handles 8000+ parcel sorts per shift without recharging).Supports 10+ hours of heavy-duty pallet-moving tasks (critical for large-scale warehouse material flow).

2. 80A Peak Discharge for Dynamic Logistics Robot Operations
Tailored for warehouse navigation needs:80A peak discharge enables logistics robots to accelerate quickly when adjusting paths (reduces bottlenecks in busy sorting yards).40A continuous discharge sustains stable performance during long-haul pallet transport across large warehouses.

3. IP54 Protection for Logistics Warehouse Environments
Built for real-world logistics workflows:IP54 rating shields the 576V 52Ah LiFePO4 battery from warehouse dust accumulation and accidental liquid spills (e.g., cleaning solutions) — no downtime from environmental exposure.

4. ≥1500 System Cycles for Cost-Effective Logistics Fleets
Optimized for high-frequency use:≥1500 system cycles mean this 576V 52Ah LiFePO4 battery lasts 3+ years in daily logistics robot operations. For a 5-unit pallet-moving robot fleet, this reduces battery replacement costs by 60% over 2 years.

5. CAN-RS485 Communication for Logistics Fleet Coordination
Syncs with warehouse operations:CAN-RS485 communication transmits real-time battery data (state of charge, temperature) to logistics management systems. Managers can schedule charging during off-peak warehouse hours, minimizing disruption to sorting/transport workflows.

Application Scenarios

1. High-Voltage Logistics Sorting Robots
The 576V 52Ah LiFePO4 battery powers 12+ hours of non-stop parcel sorting. Its 29.952kWh energy covers full-shift high-throughput tasks, ideal for e-commerce fulfillment centers.
2. Heavy-Duty Pallet-Moving Robots
It supports 10+ hours of 500kg+ pallet transport. The Q235 steel casing resists warehouse collisions, and 80A peak discharge handles quick path adjustments in busy storage yards.
3. Automated Warehouse Transport Robots
It energizes cross-warehouse cargo runs. The wide temperature range adapts to unheated/ventilated storage facilities, and IP54 protection withstands daily warehouse debris.
