Premium Commercial Fleet Power

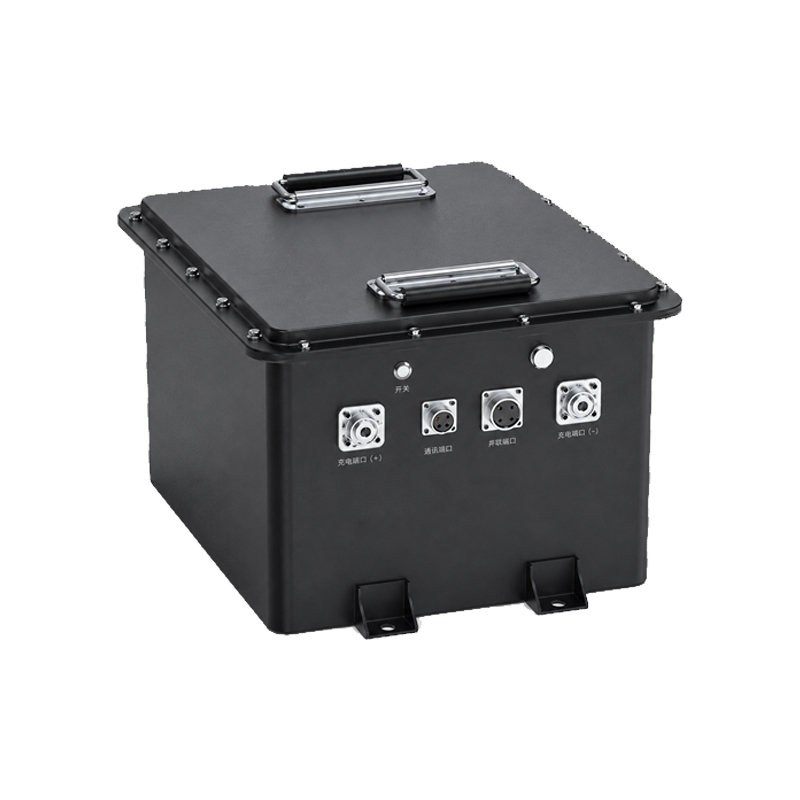

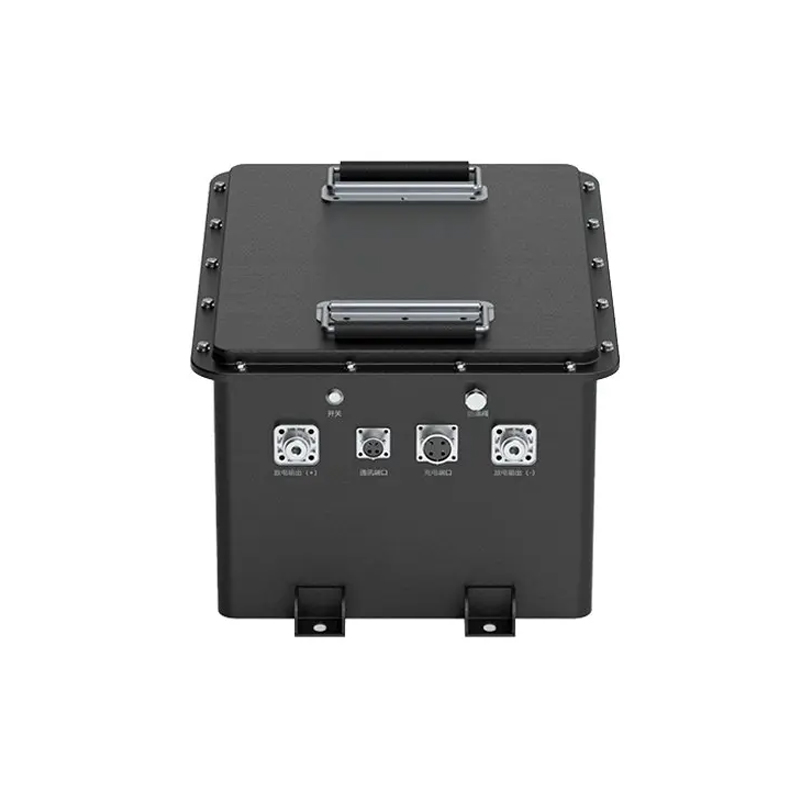

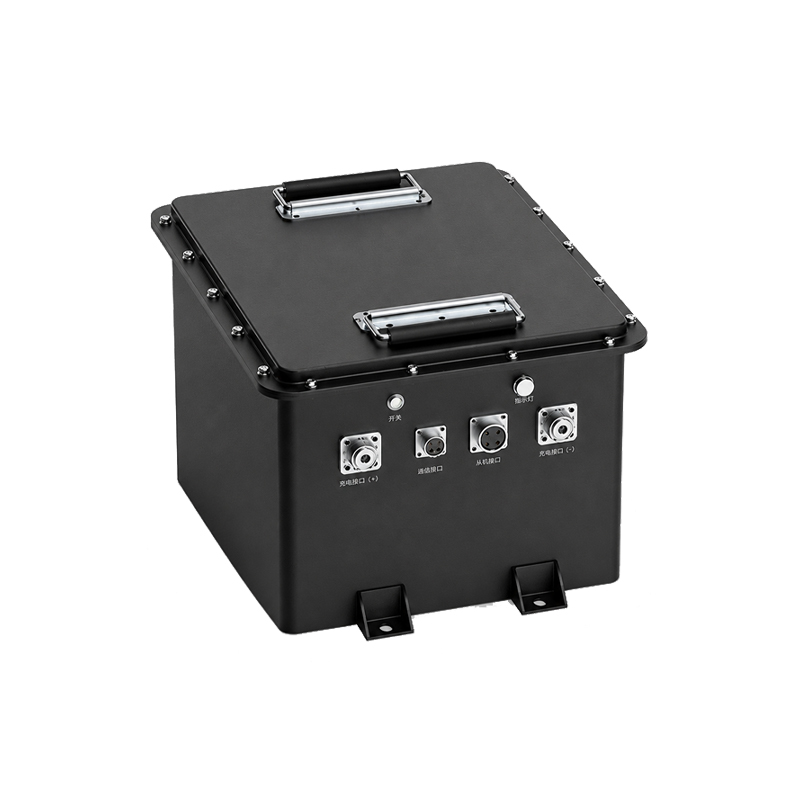

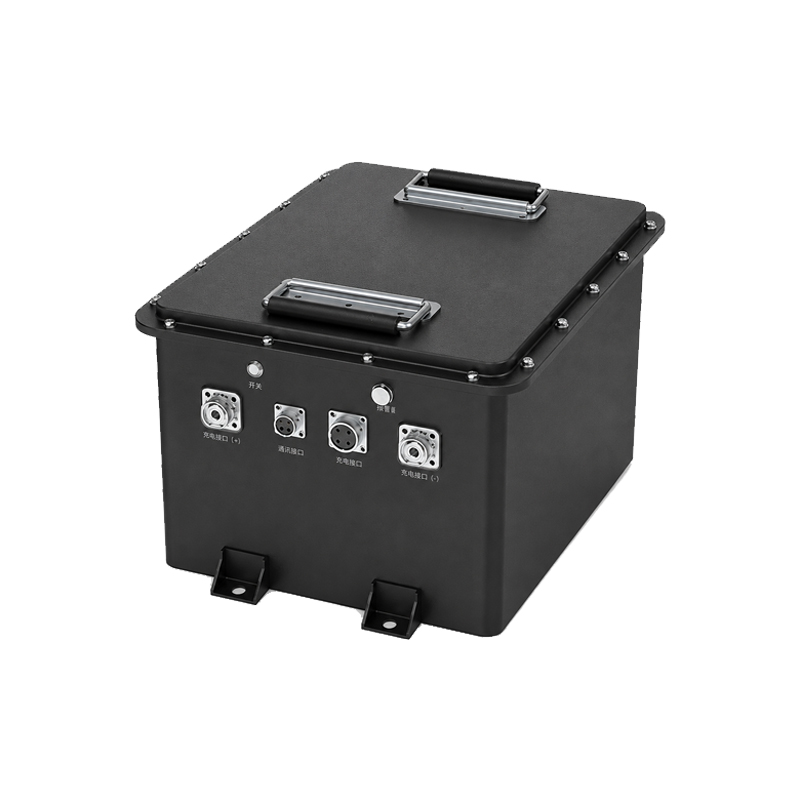

Engineered for utility vehicle fleets, this 51.2V 105Ah LiFePO4 golf cart battery outputs 5.376kWh of high-density energy. Built with LF105 cells in a 16S1P setup, it delivers over 4000 cycles to drastically lower your company’s long-term asset turnover costs.
Eliminating Heavy Lead-Acid Failures
Avoid voltage sag, short lifespans, and heavy towing weights. This lightweight alternative replaces bulky lead-acid systems, optimizing payload capacity and boosting motor efficiency. The 51.2V 105Ah LiFePO4 golf cart battery solves critical fleet vulnerabilities to keep your commercial operations running smoothly without unexpected breakdowns.
Intelligent Smart BMS Safety
Equipped with an advanced RS485/CAN smart BMS, the 51.2V 105Ah LiFePO4 golf cart battery safeguards against overcharge and short circuits. This industrial-grade lithium pack ensures steady power on steep slopes and handles rugged terrain from -20°C to 55°C seamlessly.
Technical Parameters
| Specification | Details |
|---|---|
| Cell Model | LF105/105Ah/3.2V |
| Battery Configuration | 16S1P (16 cells in series, 1 cell in parallel) |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 105Ah |
| Charging Voltage | 58.4V |
| Charging Current | ≤50A |
| Discharging Current | 105A |
| Instantaneous Discharge Current | 120A |
| Discharge Cutoff Voltage | 40.0V |
| Internal Resistance | ≤100mΩ |
| Battery Weight | ≤54kg |
| Product Dimensions | 240×300×460mm |
| Charging Temperature | 0~55°C |
| Discharging Temperature | -20~55°C |
| Storage Temperature | -20~45°C |
| Battery Case | Sheet metal casing |
| Intelligent Protection | BMS with RS485/CAN (short circuit, overcharge, over-discharge, overcurrent, over-temperature protection) |
| Applications | Golf carts, robots, UPS systems, energy storage |
Fast 2-3 Hour Opportunity Charging
Eliminate standard 8-10 hour charging delays. Supporting rapid opportunity charging, it fully recharges in just 2-3 hours with 100% usable capacity. This maximizes daily vehicle availability and eliminates downtime for busy resorts, industrial facilities, and large-scale corporate campuses.
Zero Maintenance Fleet Operations
Cut labor costs completely with a maintenance-free sheet metal casing design. Requiring no watering, acid monitoring, or terminal cleaning, it minimizes operational overhead for electric tricycles, forklifts, and utility transport, ensuring seamless, hassle-free everyday performance.
Certified B2B Supply & OEM Support
FEBATT supports large-volume orders with a stable factory supply and full custom integration. This 51.2V 105Ah LiFePO4 golf cart battery is certified with UN38.3, MSDS, CE, and RoHS, guaranteeing absolute international safety compliance for global engineering projects.
