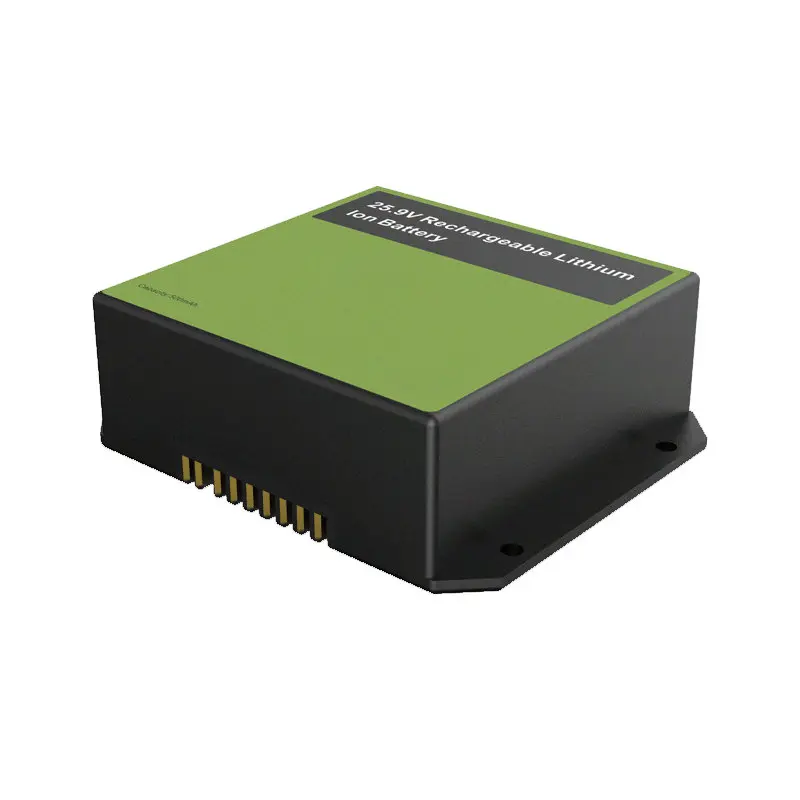

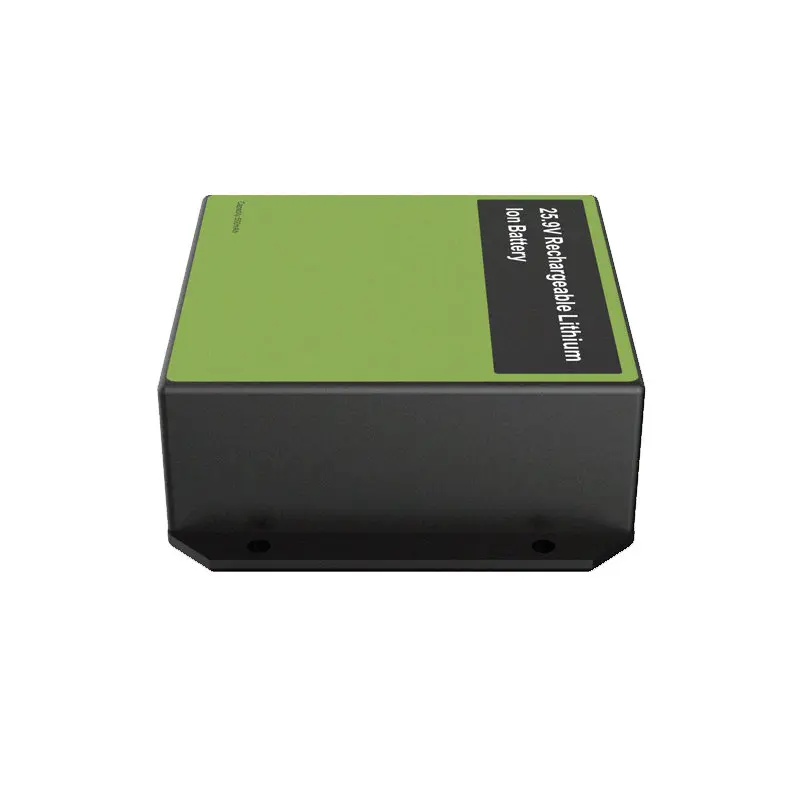

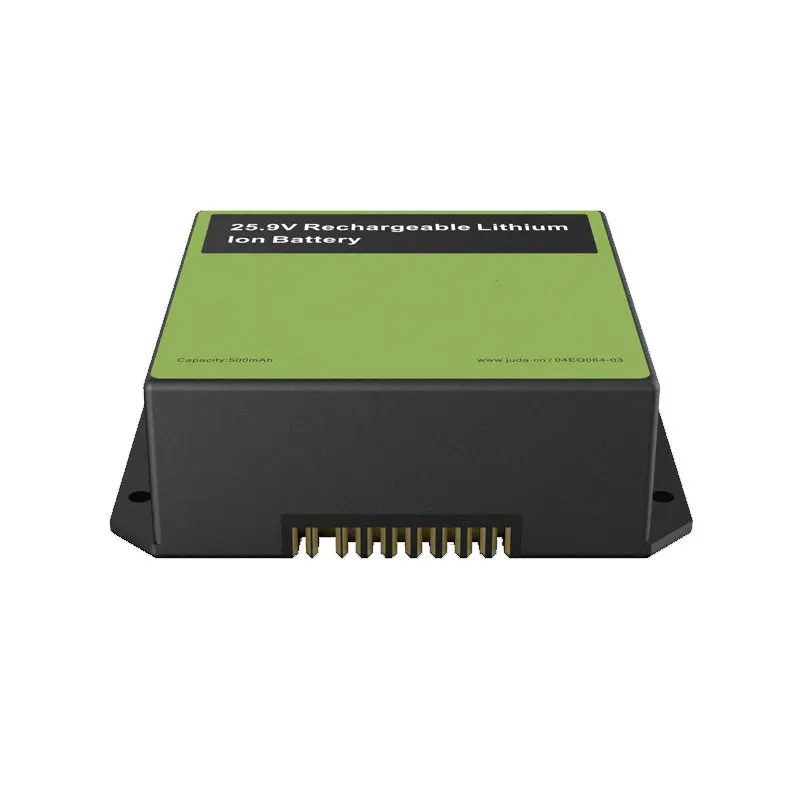

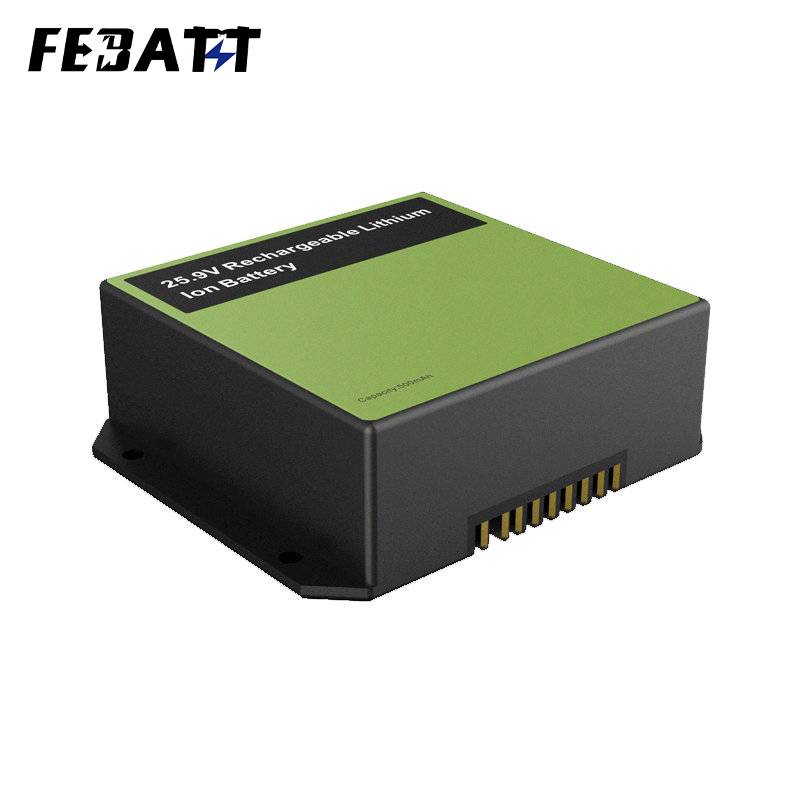

Engineered for special equipment in ultra- ow-temperature environments, the 500mAh Instrument Low-Temperature Battery (specification LA254545/7S1P) delivers 500mAh capacity at 25.9V, with operation in -40~+60℃ discharge and 0~+45℃ charging. As a specialized Low-Temperature Lithium Battery for Instruments, it features an aluminum alloy casing with shockproof structure, multi – layer protection, and high cycle life—making it the go – to 25.9V 500mAh Low-Temp Battery for Special Equipment in arctic exploration, cold – storage industrial tools, and high – altitude scientific gear.
Product Details:
Cell Model: 254545/3.7V/500mAh
Battery Specification: LA254545/7S1P/500mAh/25.9V
Nominal Voltage: 25.9V
Nominal Capacity: 500mAh
Charging Voltage: 29.4V
Charging Current: ≤500mA
Discharging Current: 0.5A
Instantaneous Discharging Current: 1A
Discharge Cut-off Voltage: 19.25V
Finished Product Internal Resistance: ≤150mΩ
Battery Weight: 500g
Product Size: 50×50×20 (Max)
Charging Temperature: 0～45℃
Discharging Temperature: -40～60℃
Storage Temperature: -20～40℃
Battery Casing: Aluminum alloy
Lithium Battery Protection: Short circuit protection, overcharge protection, over-discharge protection, overcurrent protection
Application: Special equipment
- “-40℃ Discharge & +60℃ Operation: This 500mAh Instrument Low-Temperature Battery powers arctic ice – core drills in -40℃ tundra and +55℃ desert geophysical tools, delivering 25.9V/500mAh for continuous data collection—no shutdowns in frigid winters or scorching summers.”
- “Wide Thermal Adaptability: In industrial zones with drastic temperature swings, the Low-Temperature Lithium Battery for Instruments maintains stable output, ensuring uninterrupted precision for special equipment.
- “Aluminum Alloy Shockproof Casing: The 25.9V 500mAh Low-Temp Battery for Special Equipment withstands shocks from arctic transport and vibrations in industrial machinery, protecting internal cells from damage.”
- “0.5A Continuous Discharge: Scientific sensors rely on the 500mAh Instrument Low-Temperature Battery to run environmental monitors, with 0.5A current supporting real – time data transmission in remote cold zones.
- “Arctic Exploration Tools: Researchers use the Low-Temperature Lithium Battery for Instruments to power magnetic field detectors in -40℃ polar caps, with 500mAh enabling multi – day expeditions without recharging.”
- “Cold – Storage Industrial Gear: This 25.9V 500mAh Low-Temp Battery for Special Equipment drives robotic arms in -20℃ freezers, with temperature protection preventing overheating during automated tasks.
- “Polar Ice – Core Drills: A 500mAh Instrument Low-Temperature Battery powers drilling systems in -40℃ arctic regions, with 25.9V/500mAh supporting 48 – hour ice sampling for glaciologists.”
- “Mountain Weather Stations: The Low-Temperature Lithium Battery for Instruments runs sensors in +60℃ Himalayan peaks, transmitting atmospheric data with stable power.
- “Freezer Robotic Arms: The 25.9V 500mAh Low-Temp Battery for Special Equipment powers robotic handlers in -20℃ pharmaceutical freezers, ensuring precise vial manipulation during power outages.”
- “Cold – Zone Pipeline Sensors: This 500mAh Instrument Low-Temperature Battery drives corrosion detectors in -35℃ oil pipelines, with -40℃ discharge capability ensuring winter monitoring.
