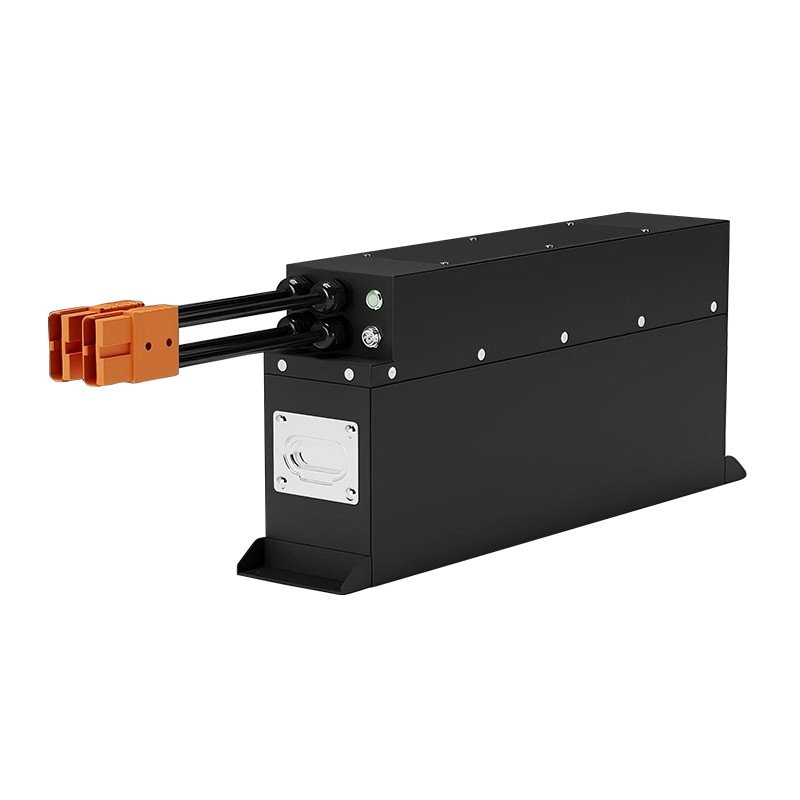

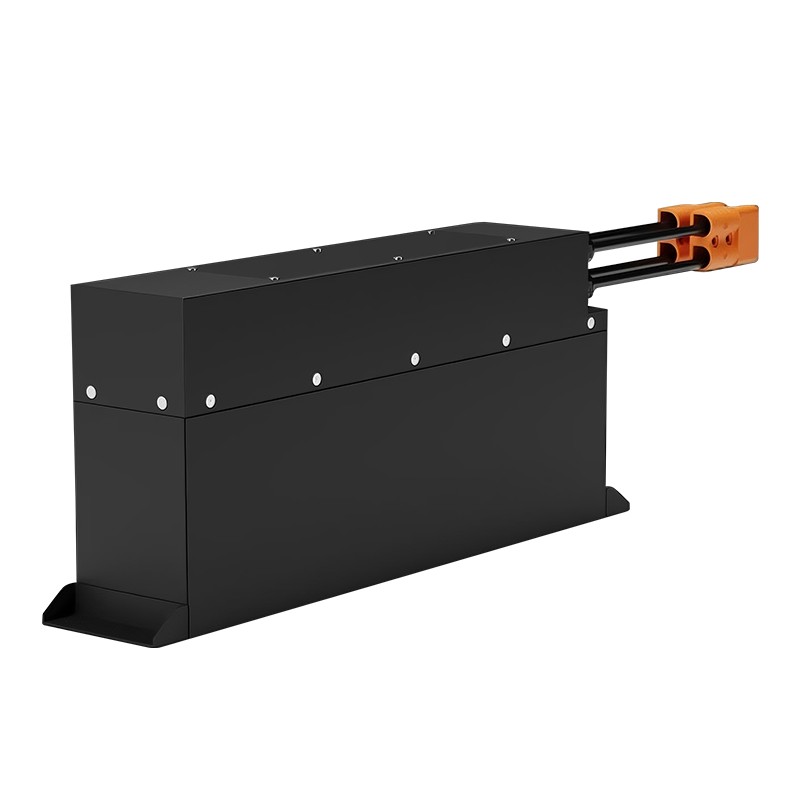

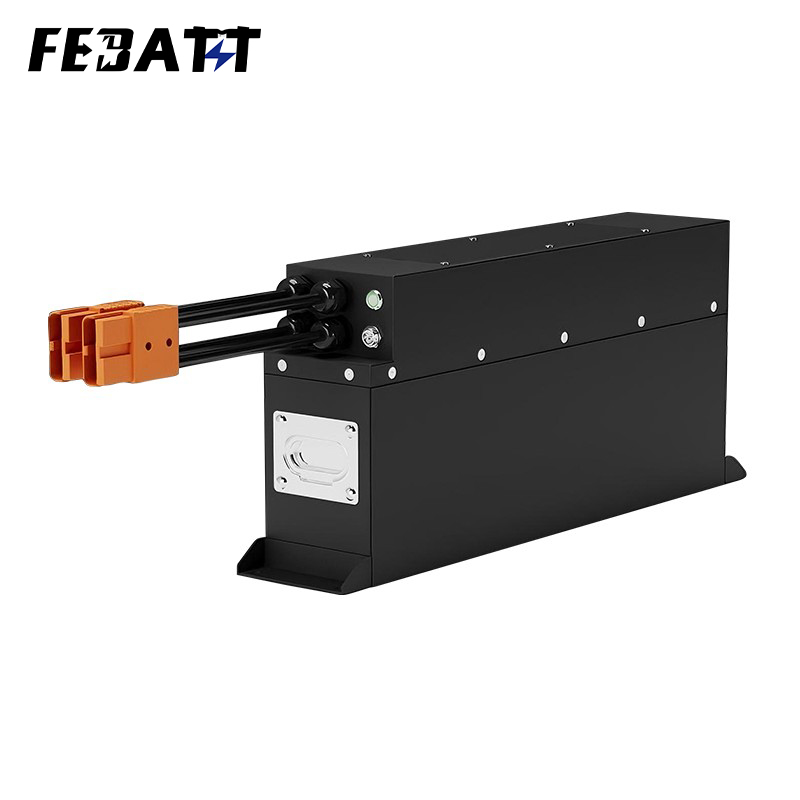

48V 20Ah Battery for Driverless Vehicles

48V 20Ah Battery for Driverless Vehicles delivers 0.96kWh energy, 60A peak discharge, ≥2000 cell cycles, CAN+RS485 communication, and IP54 protection. It suits campus shuttle driverless vehicles, warehouse autonomous carts, and industrial driverless patrol units.

  • Cell Certification: UN38.3
  • Nominal Capacity: 20AH
  • Nominal Voltage: 48V
  • Total Energy: 0.96kWh
  • Weight: ≈9.8kg
  • Normal Charging Current: ≤20A
  • Peak Charging Current: ≤30A
  • Continuous Discharge Current: ≤45A
  • Peak Discharge Current: 60A
  • Communication: CAN+RS485
  • Protection Grade: IP54
  • Dimensions (L×W×H): 503×97×212mm

For More Robot Battery Solution Service, please Contact Us for details!

48V 20Ah Battery for Driverless Vehicles: Compact LFP Power for Low-Speed Autonomous Operations

Product Introduction

Engineered as a 48V 20Ah Battery for Driverless Vehicles, this lithium iron phosphate solution is tailored for low-speed autonomous systems that demand reliable power, compact integration, and seamless system connectivity. Featuring 48V nominal voltage, 20Ah capacity, and a rugged Q235 steel casing, this 48V 20Ah LFP Battery for Low-Speed Driverless Vehicles stands out with CAN+RS485 dual communication — enabling real-time data sync with driverless vehicle control systems. Unlike generic vehicle batteries, its 5P configuration and 60A peak discharge meet the frequent start-stop demands of autonomous operations, making it a stable power core for high-frequency daily tasks.

Technical Specifications

Table: 48V 20Ah Battery for Driverless Vehicles Core Parameters

Parameter Details
Cell Type LFP 4Ah
Cell Cycle Life ≥2000 cycles (100% DOD)
System Cycle Life ≥1500 cycles (100% DOD)
Cell Certification UN38.3
Nominal Capacity 20AH (5P)
Nominal Voltage 48V (15S)
Working Voltage Range 37.5V-54.75V
Total Energy 0.96kWh
Weight ≈9.8kg
Normal Charging Current ≤20A
Peak Charging Current ≤30A
Continuous Discharge Current ≤45A
Peak Discharge Current 60A
Operating Temperature Charge: 0℃-50℃; Discharge: -10℃-55℃
Communication CAN+RS485
Casing Material Q235
Protection Grade IP54
Plug Type Anderson SB120
Dimensions (L×W×H) 503mm×97mm×212mm
Application Campus Shuttle Driverless Vehicles, Warehouse Autonomous Handling Carts, Industrial Driverless Patrol Vehicles

Core Advantages of 48V 20Ah Battery for Driverless Vehicles

1. CAN+RS485 Communication for Driverless System Sync

The 48V 20Ah Battery for Driverless Vehicles integrates CAN+RS485 dual communication:
  • It syncs real-time battery data (state of charge, temperature) with driverless vehicle control systems — critical for autonomous task scheduling and fault pre-warning in warehouse or campus fleets.

2. 60A Peak Discharge for Driverless Vehicle Start-Stop

Tailored for autonomous operation demands:
  • 60A peak discharge supports frequent start-stop cycles of warehouse autonomous handling carts (common in parcel sorting tasks) and ensures stable power for driverless vehicle load shifts (up to 300kg).

3. ≥2000 Cell Cycles for High-Frequency Driverless Fleets

Optimized for daily autonomous tasks:
  • ≥2000 cell cycles mean this 48V 20Ah Power Battery for Autonomous Utility Vehicles lasts 2x longer than generic vehicle batteries. For a 20-unit campus shuttle fleet, this cuts replacement costs by 60% over 2 years.

4. Compact Form for Driverless Vehicle Chassis Fit

Designed for space-constrained autonomous units:
  • Its slim 503mm×97mm×212mm profile fits seamlessly into the chassis of small driverless shuttles and warehouse carts — no custom modification required to preserve vehicle maneuverability.

5. IP54 Protection for Driverless Operating Environments

Rugged for campus/industrial settings:
  • IP54 protection resists dust accumulation (common in warehouse sorting zones) and minor splashes (in outdoor campus routes), extending battery lifespan in typical driverless vehicle working conditions.

Application Scenarios

1. Campus Shuttle Driverless Vehicles

The 48V 20Ah Battery for Driverless Vehicles powers 8+ hours of daily campus shuttle runs. Compact form fits shuttle chassis, and dual communication syncs with route scheduling systems.

2. Warehouse Autonomous Handling Carts

It suits 10+ hours of non-stop parcel sorting carts. 60A peak discharge handles frequent load transfers, and long cycle life reduces fleet maintenance.

3. Industrial Driverless Patrol Vehicles

It energizes 12+ hours of factory patrol units. Wide temperature adaptability works in cool storage zones and warm production areas, while Q235 casing resists industrial debris impacts.
