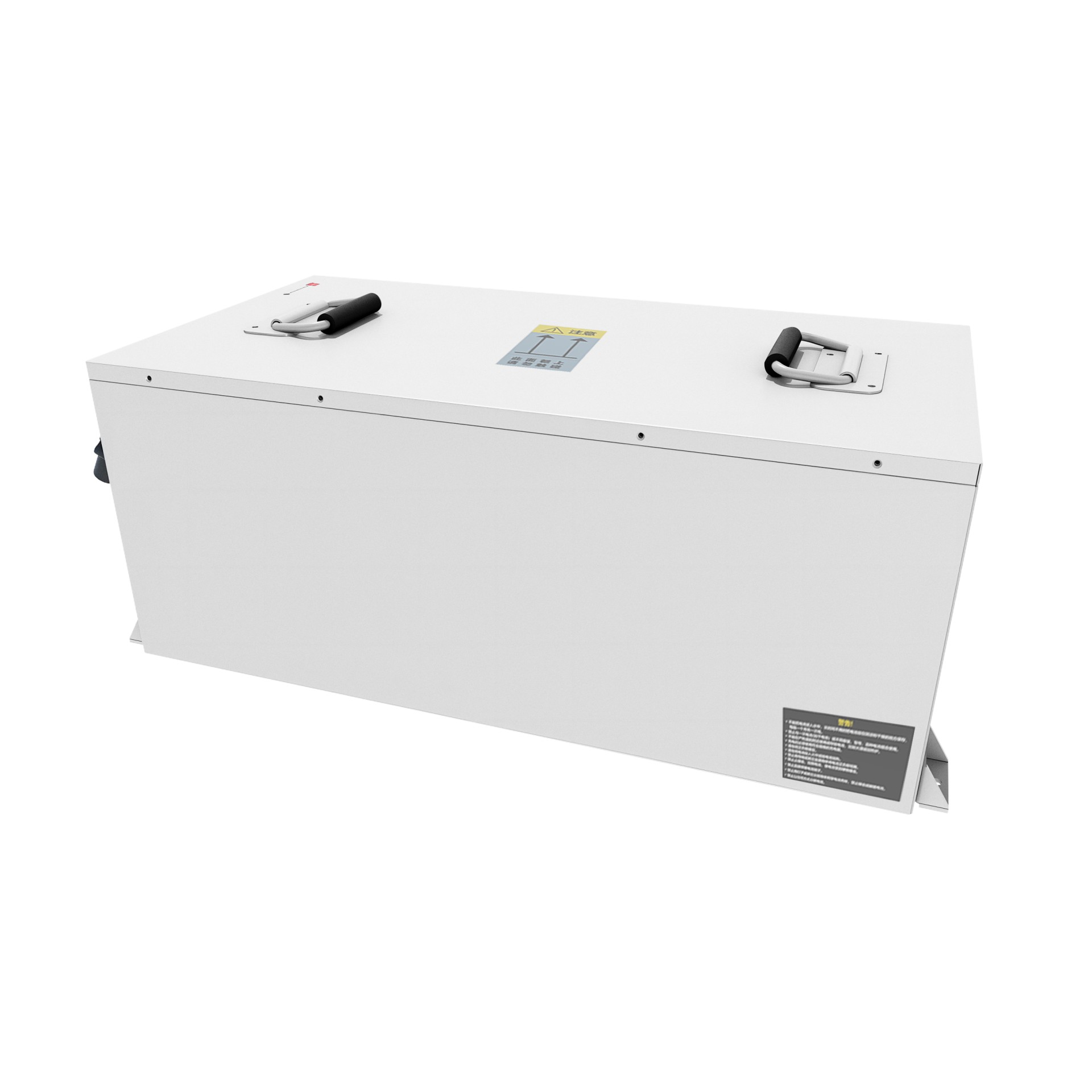

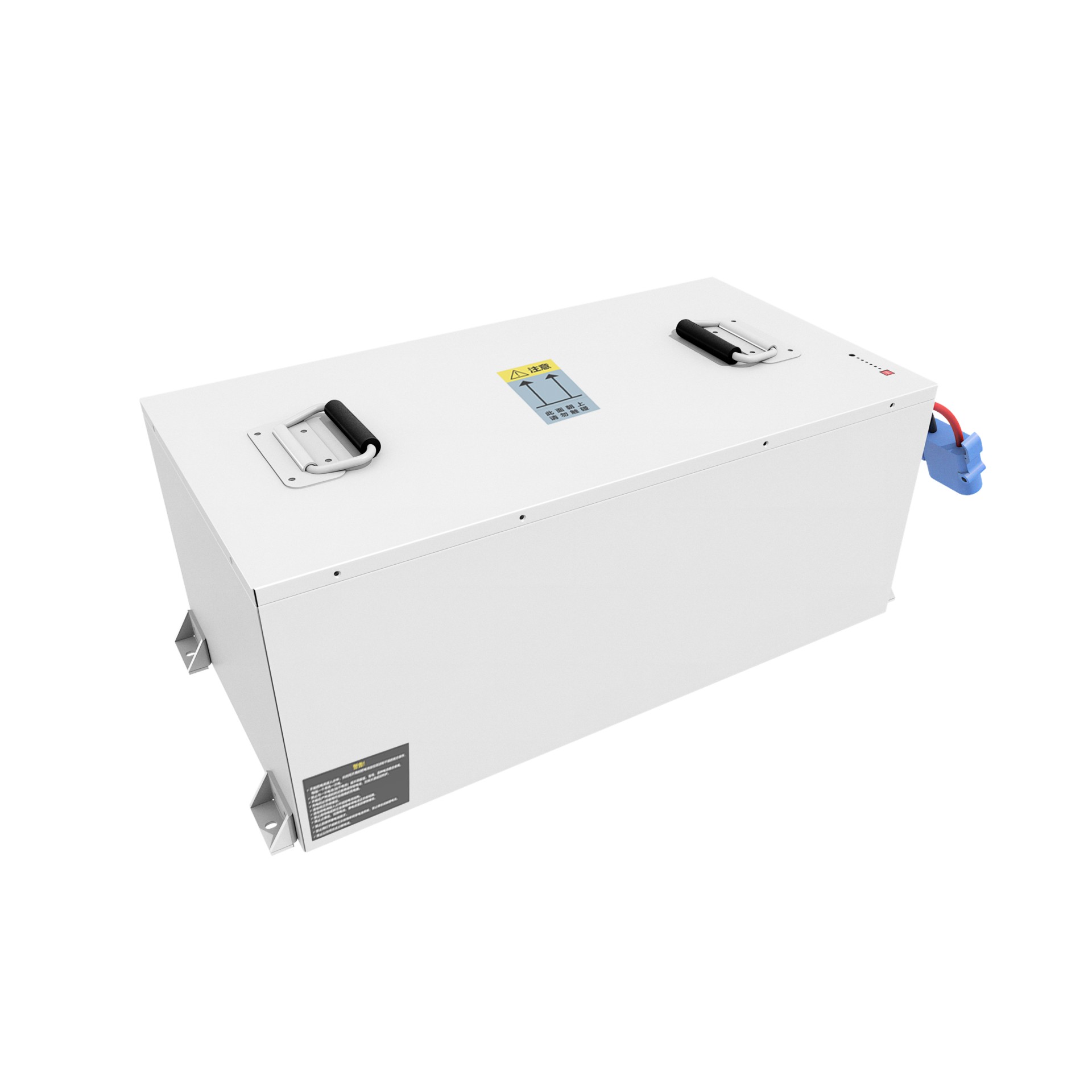

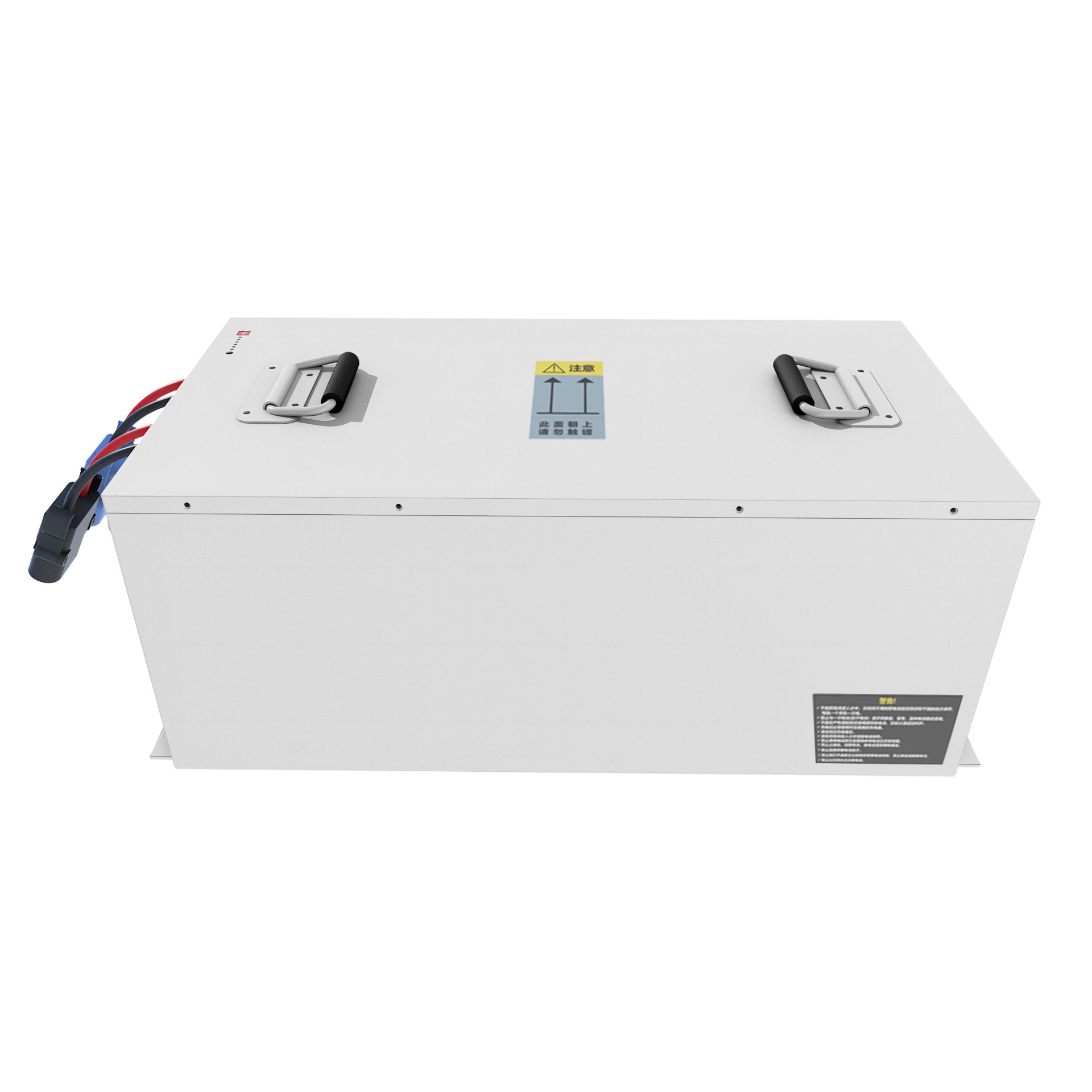

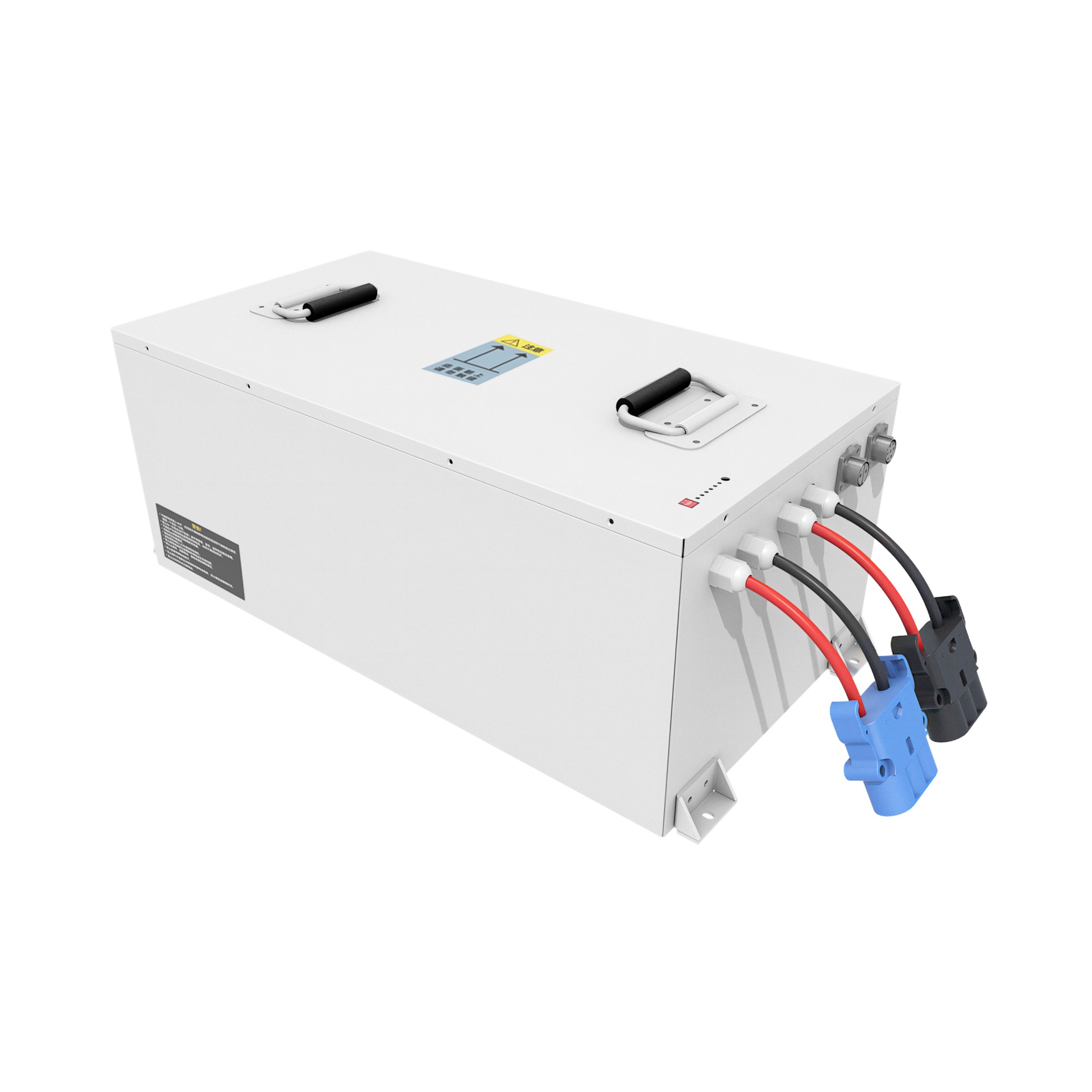

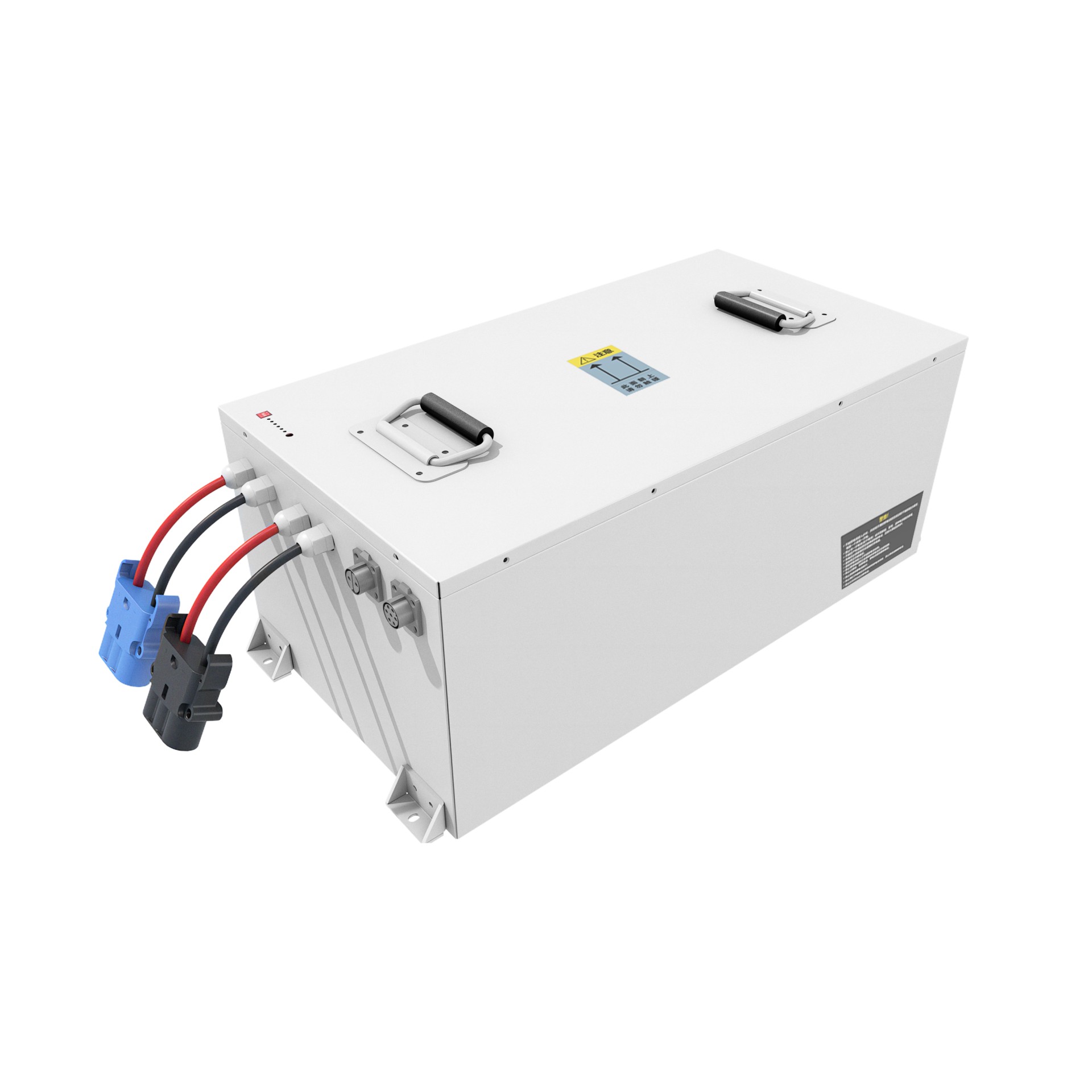

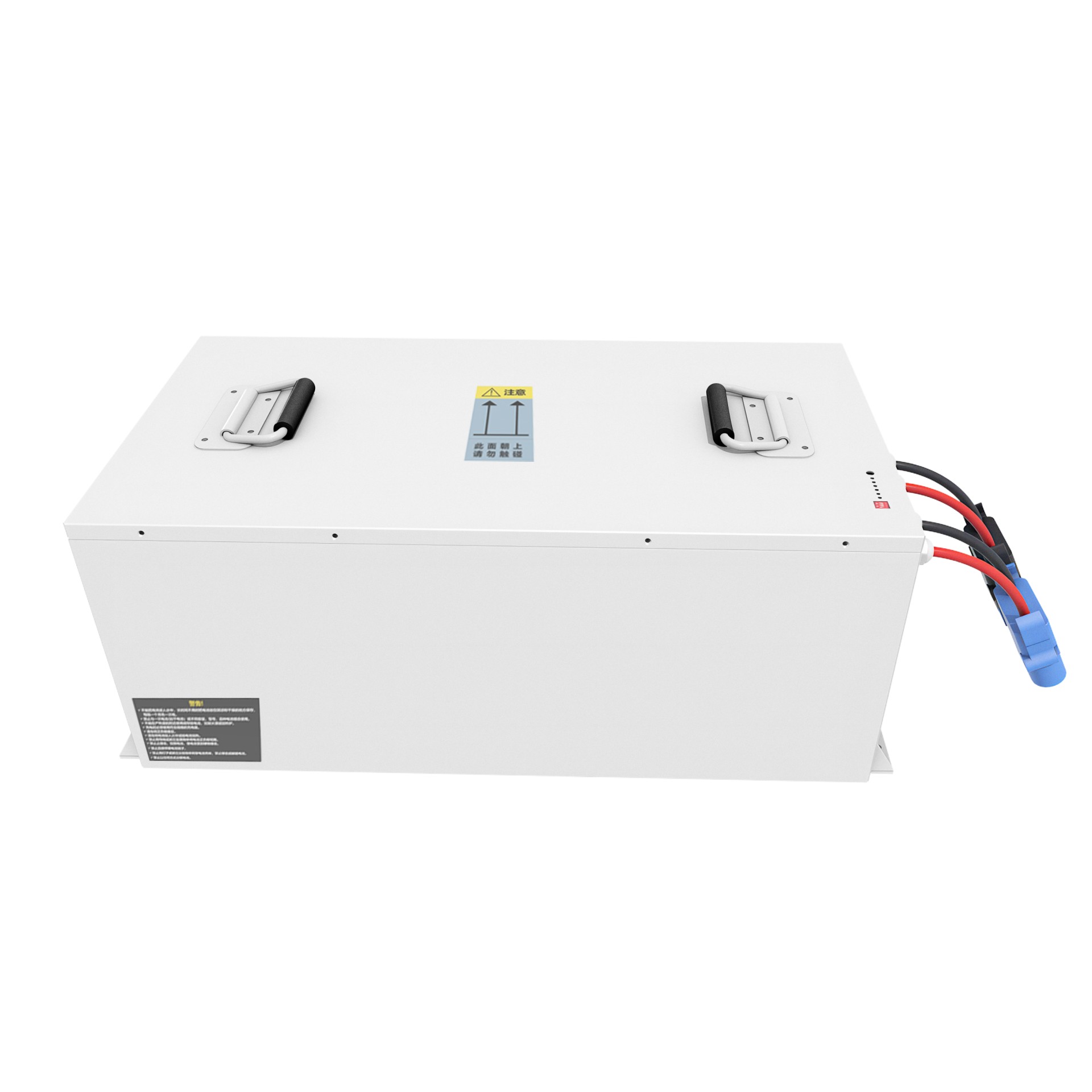

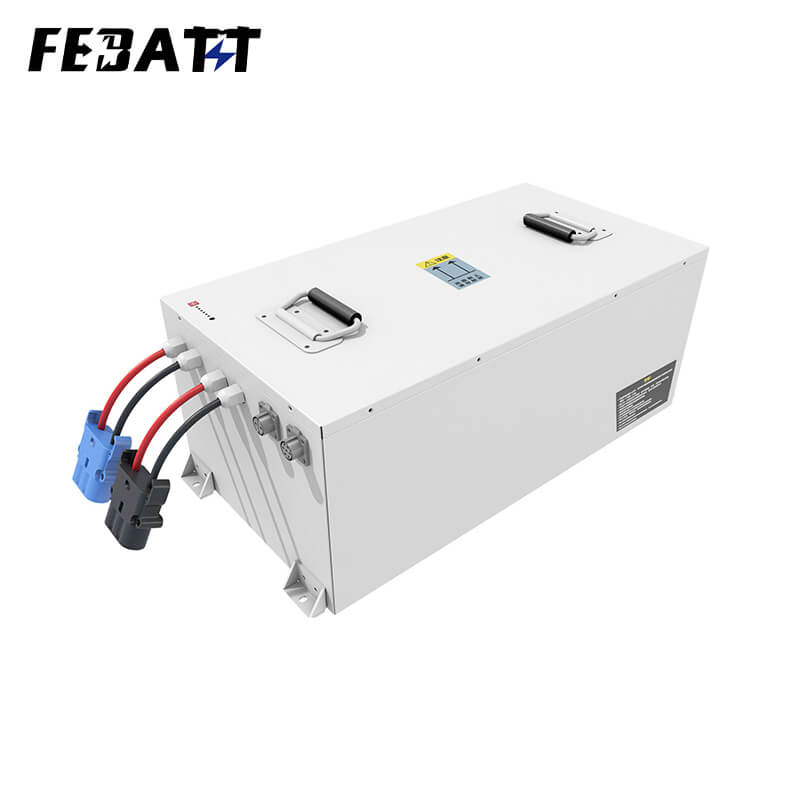

48V 100Ah LiFePO4 Battery for AGV Robots | RS485/CAN BMS for Heavy – Duty Automation
Introduction
Engineered for heavy – duty logistics, the 48V 100Ah LiFePO4 Battery for AGV Robots delivers 100Ah high – capacity endurance, RS485/CAN smart monitoring, and 48V stable power. As a critical LiFePO4 Battery for AGV, it integrates A – grade LFP cells, multi – layer safety, and flexible communication—ideal for lifting AGVs, traction robots, and 24/7 industrial automation systems.
Nominal Voltage：48V
Rated Capacity：100Ah
Actual Voltage：48V
Charging Voltage：54.75V
Minimum Discharge Voltage：42V
Nominal Discharge Current：Max 100A continuous discharge
Nominal Charging Current：Max 70A continuous charge
Discharge Protection：<42V (configurable)
Rated Capacity：100Ah
Actual Voltage：48V
Charging Voltage：54.75V
Minimum Discharge Voltage：42V
Nominal Discharge Current：Max 100A continuous discharge
Nominal Charging Current：Max 70A continuous charge
Discharge Protection：<42V (configurable)
Overtemperature Protection：>65℃ (configurable)
Operating Temperature：-10～60℃
Dimension：550mm(L)*290mm(W)*225mm(H)
Communication Interface：RS-485, CAN
Application：Lifting AGV, Traction AGV
Operating Temperature：-10～60℃
Dimension：550mm(L)*290mm(W)*225mm(H)
Communication Interface：RS-485, CAN
Application：Lifting AGV, Traction AGV
Core Specifications
| Parameter | 48V 100Ah LiFePO4 Battery for AGV Robots | Lead – Acid | AGV Impact |
|---|---|---|---|
| Nominal Voltage | 48V | 48V | Matches 48V 100Ah LiFePO4 Battery for AGV power needs |
| Rated Capacity | 100Ah | 100Ah | Powers 12 + hours of continuous AGV ops |
| Battery Type | LiFePO4 | Lead – Acid | 3000 + cycles for 24/7 logistics |
| Communication | RS485, CAN | None | Real – time SOC, fault warnings |
| Operating Temp | – 10~60℃ | 0~40℃ | Withstands cold storage, hot foundries |
Why This LiFePO4 Battery Dominates Heavy – Duty AGVs
1. Ultra – High Capacity for 24/7 Operations
The 48V 100Ah LiFePO4 Battery for AGV Robots ensures:
- “100Ah Endurance: Runs lifting AGVs to handle 1000 + pallets per charge—no mid – shift downtime.”
- “48V Stable Output: Drives traction motors, lifting hydraulics, and navigation systems in heavy – duty AGVs.”
2. RS485/CAN Smart Fleet Control
Integrated communication provides:
- “Real – Time Fleet Health: Monitors battery voltage, capacity, and faults—prevents AGV shutdowns in critical logistics.”
- “Custom Alerts: Overcurrent, overheating warnings—critical for automated material – handling fleets.”
3. Rugged Design for Industrial Harshness
With A – grade LFP cells and – 10~60℃ operation:
- “Shock – Resistant Casing: Survives forklift impacts, vibrations in factory yards—no battery damage.”
- “Wide Temp Adaptation: Works in – 10℃ cold storage, 60℃ foundries—no climate – related failures.”
Application Scenarios
1. Lifting AGV Operations
The LiFePO4 Battery for AGV Robots powers:
- “Pallet – Lifting AGVs: 100Ah capacity enables 8 + hours of continuous load lifting, stacking in warehouses.”
- “Heavy – Duty Traction AGVs: 48V output drives motors to transport 5 + ton loads across factory floors.”
2. Extreme – Condition Logistics
For steel mills, cold storage:
- “Steel Mill AGVs: Operates at 60℃ high – temp zones—powers robots to move hot steel coils.”
- “Cold Storage AGVs: Works at – 10℃ frozen warehouses—no performance loss during deep – freeze ops.”
