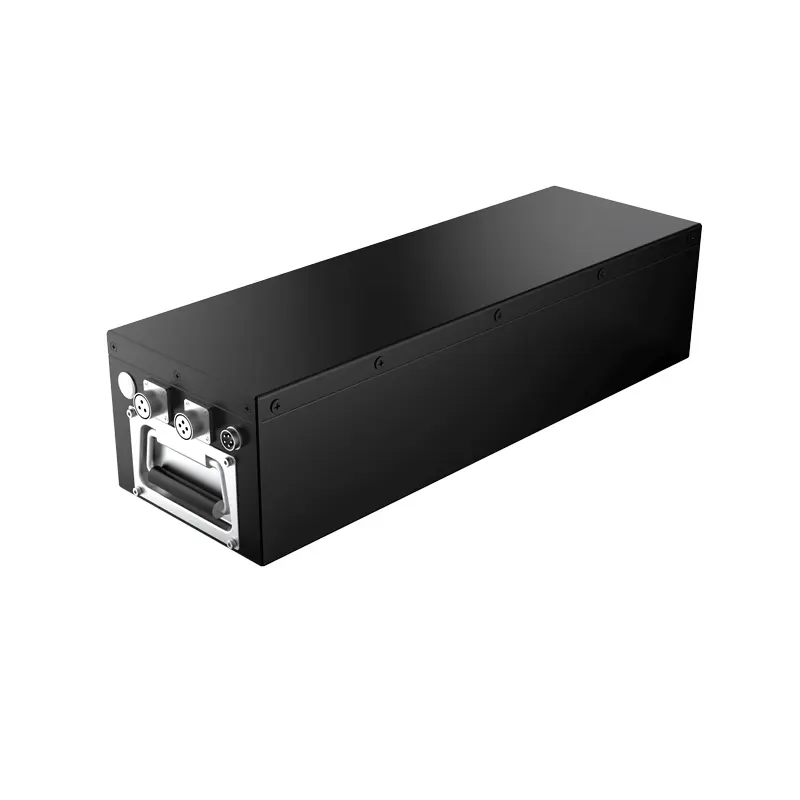

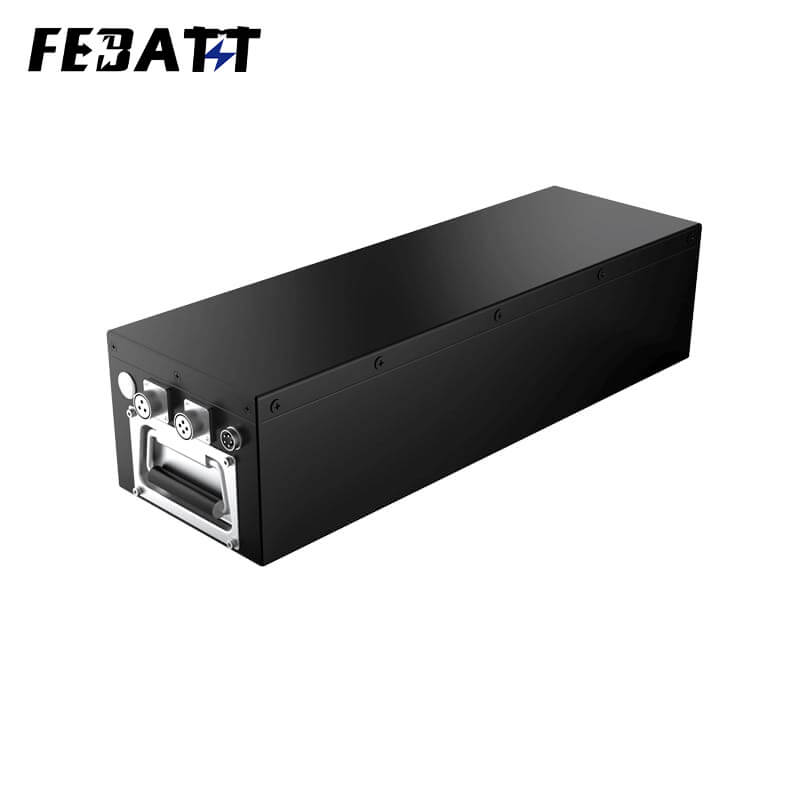

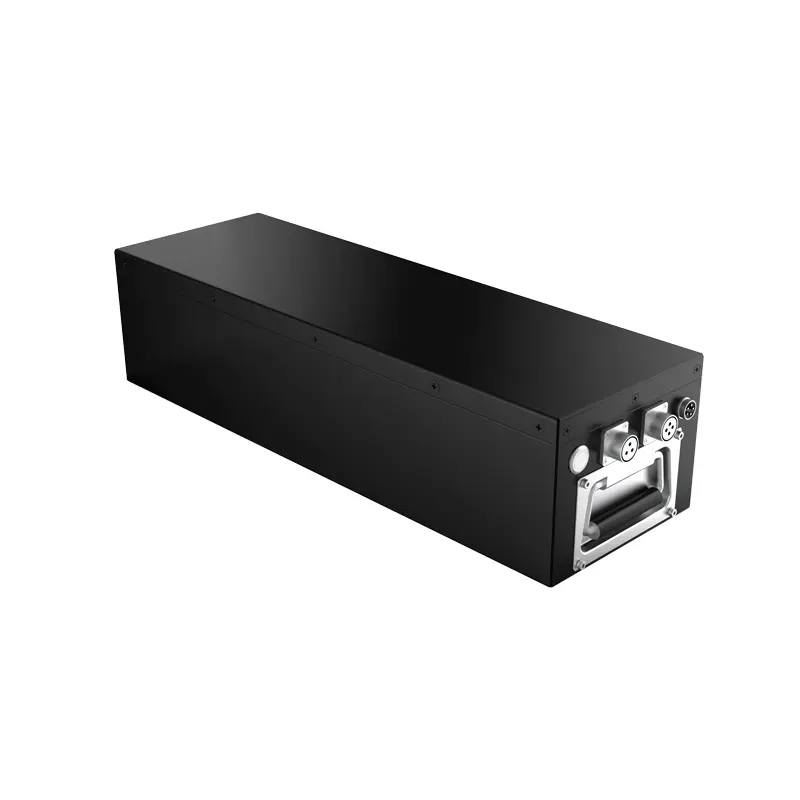

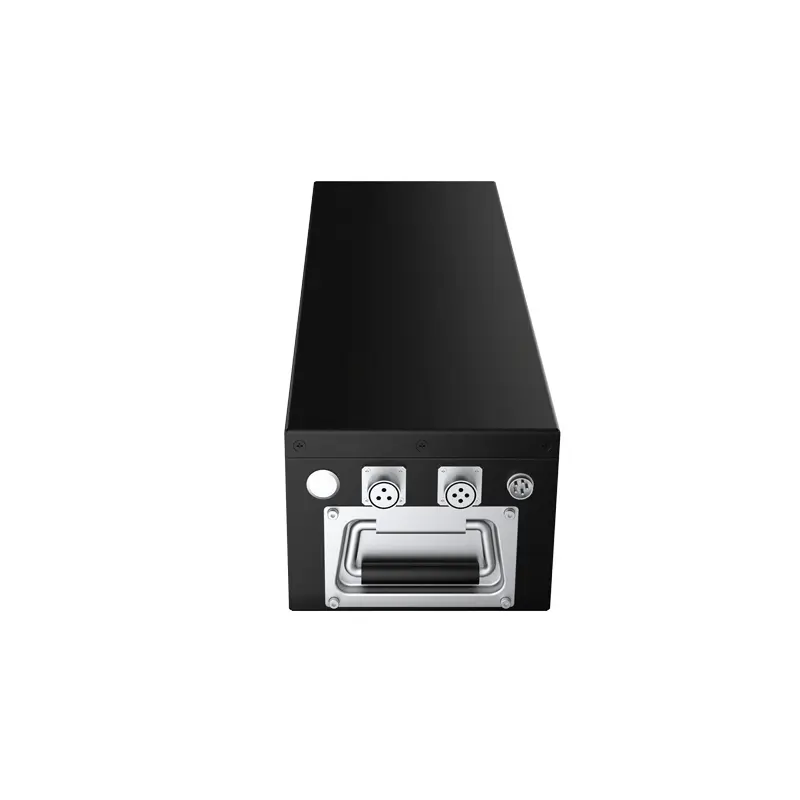

The 46.8V 80Ah Outdoor Inspection Robot Battery is a high-performance lithium-ion solution engineered exclusively for outdoor inspection robots, autonomous guided vehicles (AGVs), and rail-guided vehicles (RGVs). Built with 18650 cell architecture, a cold-rolled sheet metal casing, and advanced Battery Management System (BMS), this battery supplies stable 46.8V power, 80Ah capacity, and 100A instantaneous discharge—enabling reliable, long-duration operation in industrial and outdoor environments. Whether powering AGVs in warehouse yards, RGVs in manufacturing plants, or autonomous inspection robots in construction sites, the 46.8V 80Ah Outdoor Inspection Robot Battery ensures robust energy delivery for demanding robotic applications.
Product Details
Cell Model: 18650 3.6V/3.35Ah
Battery Configuration: 13S24P/46.8V/80Ah
Nominal Voltage: 46.8V
Nominal Capacity: 80Ah
Charging Voltage: 54.6V
Charging Current: ≤25A
Discharging Current: 40A
Instantaneous Discharge Current: 100A
Discharge Cutoff Voltage: 31.2V
Internal Resistance: ≤120mΩ
Battery Weight: 20Kg
Product Dimensions: 580×180×140mm (Max)
Charging Temperature: 0～45℃
Discharging Temperature: -20～50℃
Storage Temperature: -20～40℃
Temperature Protection: 65℃±5℃
Battery Case: Cold-rolled sheet metal
Battery Protection: Short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection
Application Fields: Robots (AGV, RGV)
The 46.8V 80Ah Outdoor Inspection Robot Battery features a cold-rolled sheet metal casing with internal shock-resistant structure, meeting automotive-level durability standards. This design withstands vibrations, impacts, and rough handling—critical for AGVs/RGVs navigating industrial floors or inspection robots operating in outdoor construction zones.
With 40A continuous discharge and 100A instantaneous discharge, this battery powers robotic systems through dynamic tasks: AGV acceleration, RGV load handling, or inspection robot motor-driven maneuvers. Copper-nickel composite nickel strips ensure stable current flow under high-load conditions, preventing voltage sag during peak demands.
Equipped with a Battery Management System (BMS), the battery enables:
- Real-time data transmission (voltage, current, temperature, capacity) via RS485 protocol.
- Automatic temperature protection (activates at 65°C±5°C) with integrated temperature probes.
- Mitigation of safety risks through overcharge, over-discharge, short-circuit, and overcurrent safeguards.
Engineered to discharge in -20°C to 50°C, this battery supports inspection robots in winter outdoor deployments (-20°C) or sun-exposed industrial sites (50°C). Charging compatibility from 0~45°C ensures flexible recharging in varied indoor/outdoor environments.
The 46.8V 80Ah Outdoor Inspection Robot Battery powers:
- Outdoor Inspection Robots: Autonomous robots for construction site monitoring, pipeline inspection, or infrastructure surveillance in diverse climates.
- Autonomous Guided Vehicles (AGVs): Warehouse, factory, or logistics AGVs navigating outdoor/indoor hybrid environments (e.g., yard-to-warehouse transport).
- Rail-guided Vehicles (RGVs): Manufacturing plant RGVs for material handling, production line integration, or heavy-load transport.
