Febatt Your Power

Home - Product - Robot Battery - Logistics Robot Battery - 422.4V LiFePO4 battery 27Ah for Automated Handling

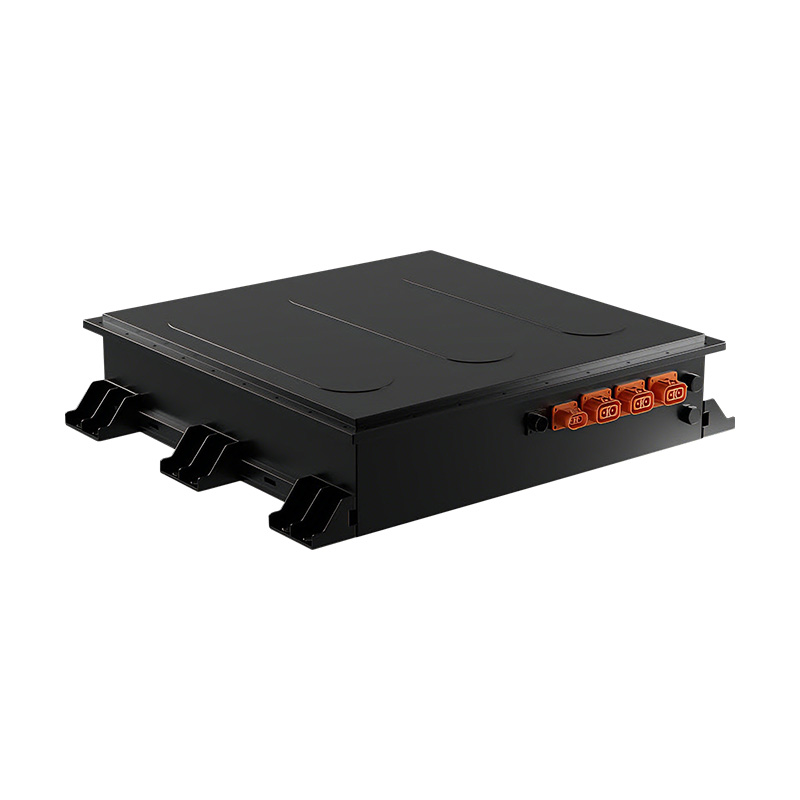

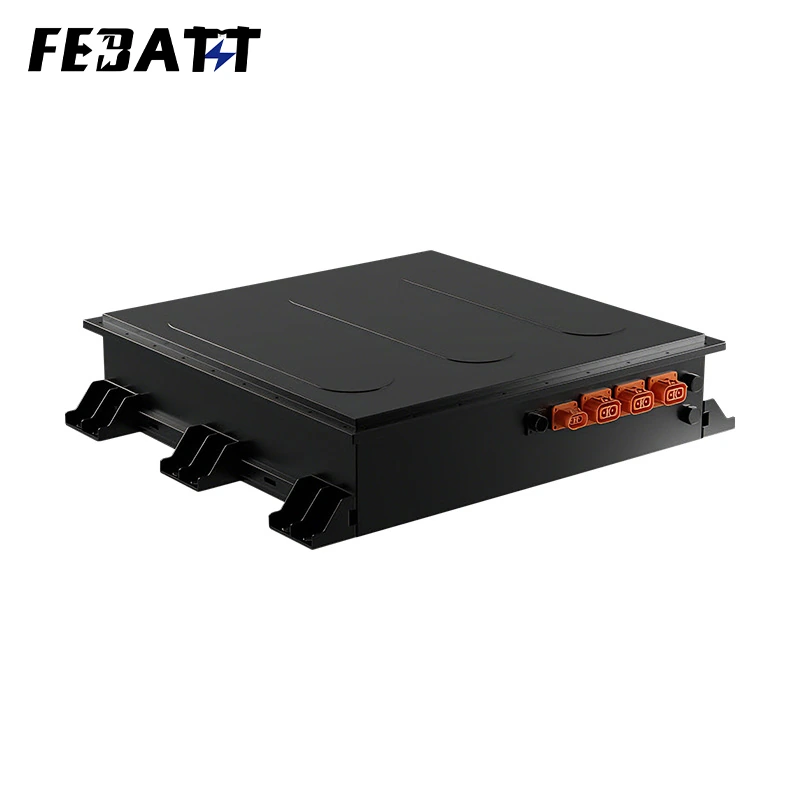

422.4V LiFePO4 battery 27Ah for Automated Handling

422.4V LiFePO4 battery 27Ah delivers 11.404kWh energy, 108A peak discharge, ≥2000 cell cycles, IP54 protection, and CAN communication. It suits medium-load logistics robots, warehouse sorting robots, and indoor material handling robots.

  • Cell Certification: UN38.3
  • Nominal Capacity: 27Ah
  • Nominal Voltage: 422.4V
  • Total Energy: 11.404kWh
  • Weight: ≈105kg
  • Normal Charging Current: ≤90A
  • Peak Charging Current: ≤50A
  • Continuous Discharge Current: ≤54A
  • Peak Discharge Current: ≤108A
  • Communication: CAN
  • Protection Grade: IP54
  • Dimensions (L×W×H): 750mm×750mm×181.5mm

For More Robot Battery Solution Service, please Contact Us for details!

422.4V LiFePO4 battery 27Ah for Logistics Robot | High-Voltage Power for Automated Handling



Product Introduction

Engineered as a 422.4V LiFePO4 battery 27Ah for Logistics Robot, this lithium iron phosphate solution is built for logistics robots that handle medium cargo, continuous sorting tasks, and indoor warehouse environments. Featuring 422.4V nominal voltage, 27Ah capacity, and a rugged SPCC casing, this 422.4V 27Ah LiFePO4 battery for Logistics Robots stands out with 11.404kWh total energy and 108A peak discharge — enabling logistics robots to operate continuously for 12+ hours. Unlike standard low-voltage logistics robot batteries, its 1P configuration and IP54 protection meet the rigorous needs of indoor warehouse tasks, making it a reliable power core for high-frequency logistics operations.

Technical Specifications

 422.4V LiFePO4 battery 27Ah Core Parameters (Tailored for Logistics Robots)
Parameter Details (Tailored for Logistics Robots)
Cell Type LFP 27Ah
Cell Cycle Life ≥2500 cycles (100% DOD) – cuts logistics robot fleet replacement costs
System Cycle Life ≥2000+ cycles (100% DOD)
Cell Certification UN38.3
Nominal Capacity 27AH (1P) – supports medium-duration logistics robot runs
Nominal Voltage 422.4V (120S)
Working Voltage Range 330V-481.82V
Total Energy 11.404kWh – powers 12+ hours of logistics robot sorting/handling
Weight ≈105kg
Normal Charging Current ≤90A
Peak Charging Current ≤50A – stable recharging for shift turnover
Continuous Discharge Current ≤54A – sustains medium-load logistics robot operations
Peak Discharge Current ≤108A – handles medium cargo transfers via logistics robots
Operating Temperature Charge: 0℃-55℃; Discharge: -20℃-60℃ – adapts to indoor warehouse logistics environments
Communication CAN – syncs with logistics robot fleet management systems
Casing Material SPCC – resists impacts from cargo in logistics workflows
Protection Grade IP54 – dust/splash-proof for indoor warehouse logistics robots
Plug Type Terminal connector – stable connection for high-voltage logistics robots
Dimensions (L×W×H) 750mm×750mm×181.5mm – fits medium logistics robot chassis
Application Medium-Load Logistics Handling Robots, Warehouse Sorting Logistics Robots, Indoor Material Handling Robots

Core Advantages of 422.4V LiFePO4 battery 27Ah for Logistics Robot

1. 11.404kWh High Energy for 12+ Hour Logistics Robot Runtime
422.4V LiFePO4 battery 27Ah delivers 11.404kWh total energy:It supports 12+ hours of continuous operation for warehouse sorting logistics robots — enough to cover full daily shift tasks (e.g., 3000+ parcel sorts) without recharging.For indoor material handling robots, this capacity powers 10+ hours of cargo transfer across warehouse zones.

2. 108A Peak Discharge for Medium-Load Logistics Handling
Tailored for logistics robot cargo needs:108A peak discharge enables medium-load logistics handling robots to transfer standard pallets or cartons — critical for indoor warehouse material flow.54A continuous discharge sustains stable performance through frequent sorting cycles (common in e-commerce logistics yards).

3. IP54 Protection for Logistics Robot Indoor Environments
Built for warehouse logistics scenarios:IP54 dust/splash-proof rating shields the battery from warehouse dust accumulation and accidental liquid splashes — no performance loss in typical indoor logistics work environments.

4. ≥2500 Cell Cycles for Low-Cost Logistics Robot Fleets
Optimized for high-frequency logistics use:≥2500 cell cycles mean this 422.4V 27Ah Logistics Robot Battery lasts 1.5x longer than standard alternatives. For an 8-unit medium-load logistics robot fleet, this cuts replacement costs by 60% over 3 years.

5. CAN Communication for Logistics Robot Fleet Coordination
Syncs with logistics operations:CAN communication transmits real-time battery data (state of charge, temperature) to logistics robot fleet management systems. Managers can schedule charging to align with off-peak sorting hours, minimizing logistics workflow downtime.

Application Scenarios

1. Medium-Load Logistics Handling Robots
The 422.4V LiFePO4 battery 27Ah powers standard pallet transfers. 108A peak discharge handles medium cargo loads, and IP54 protection resists warehouse debris.
2. Warehouse Sorting Logistics Robots
It suits 12+ hours of non-stop parcel sorting. 11.404kWh energy covers full-shift tasks, and long cycle life reduces fleet maintenance for high-volume logistics.
3. Indoor Material Handling Robots
It energizes 10+ hours of cross-warehouse cargo delivery. Wide temperature adaptability works in heated/cooled indoor logistics facilities.
422.4V LiFePO4 battery 27Ah
