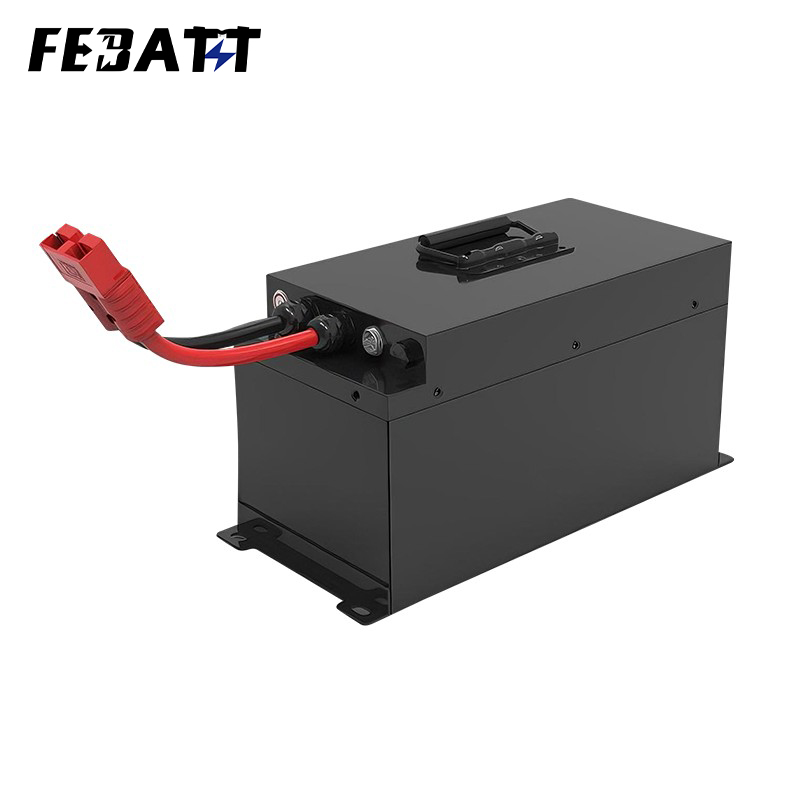

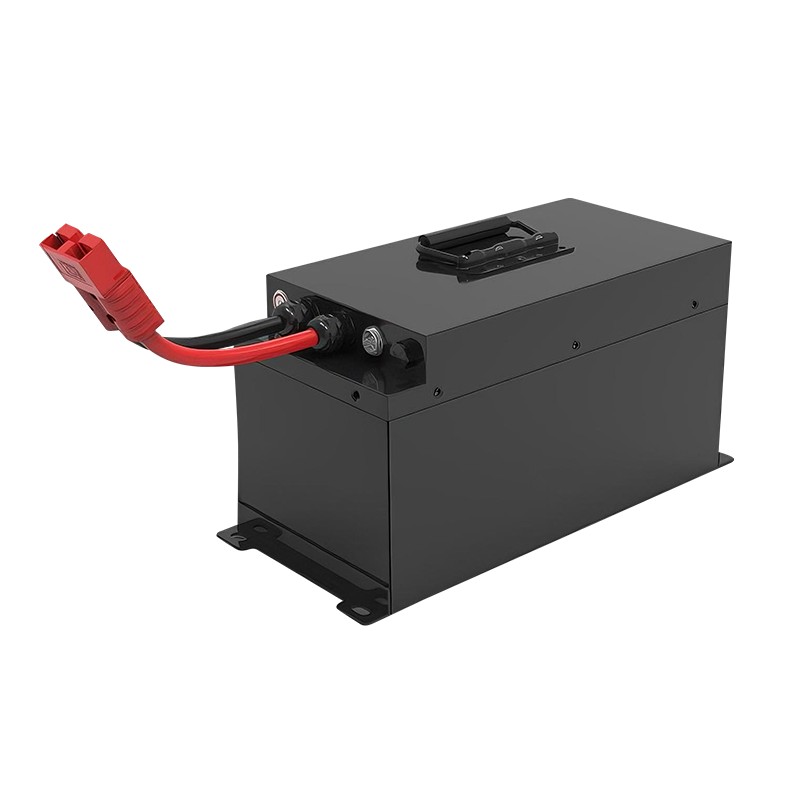

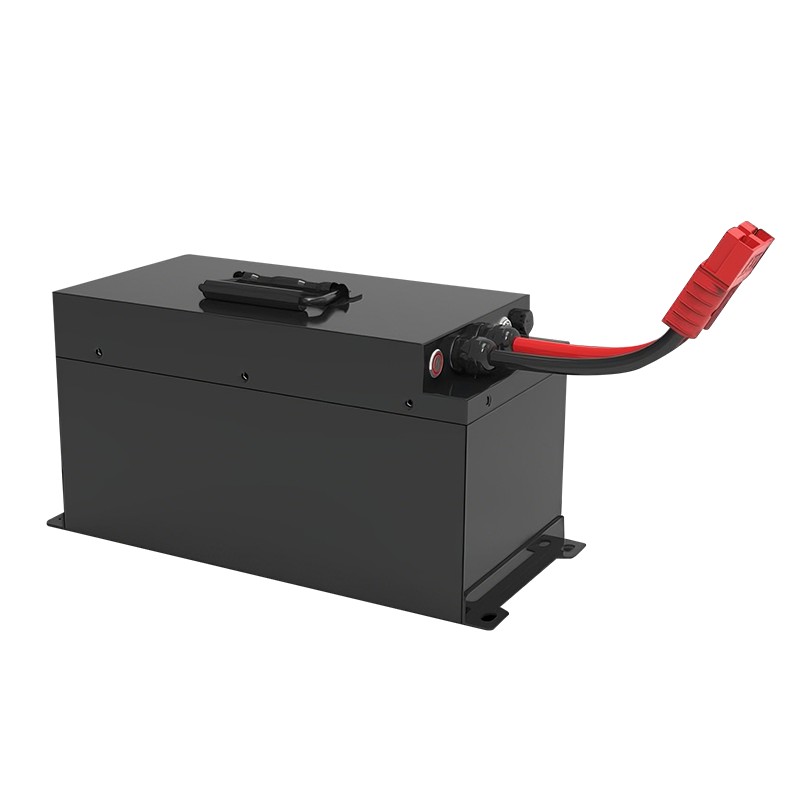

25.6V 60Ah LFP Battery for Logistics Robot

25.6V 60Ah LFP Battery for Logistics Robot delivers 1.536kWh energy, 70A peak discharge, ≥2000 cell cycles, -15~60℃ operation, and CAN communication. It suits warehouse sorting logistics robots, small cargo handling logistics robots, and storage shuttle logistics robots.

  • Cell Certification: UN38.3
  • Nominal Capacity: 60AH
  • Nominal Voltage: 25.6V
  • Total Energy: 1.536kWh
  • Weight: ≈14kg
  • Normal Charging Current: ≤30A
  • Peak Charging Current: ≤60A
  • Continuous Discharge Current: ≤60A
  • Peak Discharge Current: ≤70A
  • Communication: CAN
  • Protection Grade: IP54
  • Dimensions L×W×H: 360×160×186mm

For More Robot Battery Solution Service, please Contact Us for details!

25.6V 60Ah LFP Battery for Logistics Robot: Compact High-Discharge Power for Warehouse Logistics Operations

Product Introduction

Engineered as a 25.6V 60Ah LFP Battery for Logistics Robot, this lithium iron phosphate solution is built for logistics robots requiring robust performance in warehouse sorting, small cargo handling, and frequent start-stop operations. Featuring 25.6V nominal voltage, 60Ah capacity, and a rugged cold-rolled steel casing, this 25.6V 60Ah LFP Logistics Robot Battery stands out with 70A peak discharge and 1.536kWh total energy — enabling logistics robots to handle continuous sorting and short-haul cargo transfers. Unlike standard small robot batteries, its LFP chemistry and 4P configuration meet the high-demand needs of daily warehouse logistics tasks, making it ideal for high-frequency sorting and storage circulation.

Technical Specifications

Table: 25.6V 60Ah LFP Battery for Logistics Robot Core Parameters

Parameter Details
Cell Type LFP 15Ah
Cell Cycle Life ≥2000 cycles at 100% depth of discharge
System Cycle Life ≥1500 cycles at 100% depth of discharge
Cell Certification UN38.3
Nominal Capacity 60AH 4P
Nominal Voltage 25.6V 8S
Working Voltage Range 20V-29.2V
Total Energy 1.536kWh
Weight ≈14kg
Normal Charging Current ≤30A
Peak Charging Current ≤60A
Continuous Discharge Current ≤60A
Peak Discharge Current ≤70A
Operating Temperature Charge: 0℃-45℃; Discharge: -15℃-60℃
Communication CAN
Casing Material Cold-rolled steel
Protection Grade IP54
Plug Type Anderson SB120
Dimensions L×W×H 360mm×160mm×186mm
Application Warehouse Sorting Logistics Robots, Small Cargo Handling Logistics Robots, Storage Shuttle Logistics Robots

Core Advantages of 25.6V 60Ah LFP Battery for Logistics Robot

1. 70A Peak Discharge for Logistics Robot Frequent Start-Stop

The 25.6V 60Ah LFP Battery for Logistics Robot delivers 70A peak discharge:
  • It powers warehouse sorting logistics robots through continuous start-stop cycles and supports small cargo handling robots lifting 300+ kg loads — critical for efficient warehouse logistics.
  • 60A continuous discharge sustains stable performance for 8+ hours of non-stop logistics robot operations.

2. ≥2000 Cell Cycles for High-Frequency Logistics Tasks

Optimized for daily warehouse use:
  • ≥2000 cell cycles mean the 25.6V 60Ah LFP Logistics Robot Battery lasts 2x longer than standard logistics robot batteries. For a 20-unit warehouse sorting robot fleet, this cuts replacement costs by 55% over 2 years.

3. Compact Form for Logistics Robot Small Chassis

Tailored for space-constrained warehouse robots:
  • Its slim 360mm×160mm×186mm design fits into the compact chassis of most warehouse sorting and shuttle logistics robots, requiring no custom modifications.
  • The 14kg lightweight design preserves logistics robot payload capacity for small cargo moves.

4. Wide Temperature Range for Diverse Warehouse Environments

Built for warehouse variability:
  • The -15℃ to 60℃ discharge range ensures consistent power delivery in cool storage zones and standard-temperature sorting areas — no capacity loss that shortens logistics robot runtime.

5. CAN Communication for Logistics Robot Fleet Management

Optimized for warehouse efficiency:
  • CAN communication enables real-time tracking of battery state of charge and cycle life for logistics robot fleets. Warehouse managers can remotely schedule charging to align with off-peak sorting hours, minimizing downtime.

Application Scenarios

1. Warehouse Sorting Logistics Robots

The 25.6V 60Ah LFP Battery for Logistics Robot powers parcel sorting robots in e-commerce warehouses. 70A peak discharge handles frequent sorting start-stop cycles, while long cycle life reduces fleet maintenance.

2. Small Cargo Handling Logistics Robots

It suits robots moving small components or packages between warehouse shelves. Compact design fits tight chassis spaces, and 8+ hour runtime covers full daily shift tasks.

3. Storage Shuttle Logistics Robots

It energizes shuttle robots transporting inventory between warehouse racks. Wide temperature adaptability works in varied storage zones, and CAN communication syncs with warehouse management systems.
