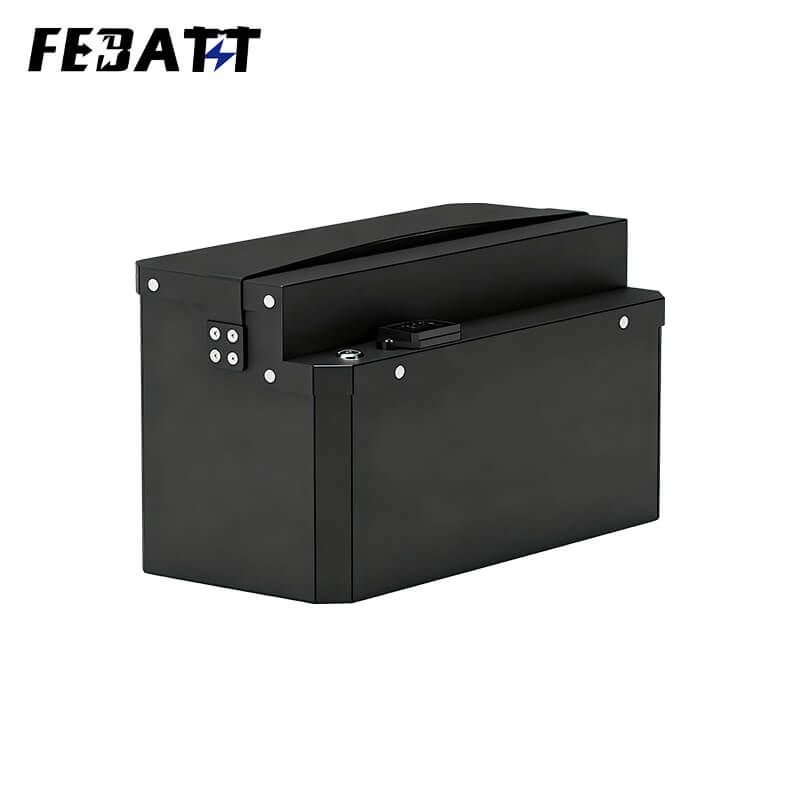

25.6V 20Ah LFP AGV Battery: High-Durability Power for Automated Guided Vehicle Systems
Product Introduction
Engineered as a 25.6V 20Ah LFP AGV Battery, this lithium iron phosphate LFP solution is purpose-built for high-intensity demands of automated guided vehicles in logistics, warehousing, and manufacturing. Featuring 25.6V nominal voltage, 20Ah capacity, and a rugged Q235 metal casing, this 25.6V 20Ah AGV LFP Battery combines ≥2000 cell cycles at 100% depth of discharge with 30A peak discharge—critical for AGVs continuous cargo transport and dynamic path adjustments. Unlike generic batteries, it supports CAN+RS485 smart fleet monitoring, IP54 dust-water protection, and -10~55℃ wide-temperature operation, making it a reliable power source for 24/7 AGV systems.
Technical Specifications
Table: 25.6V 20Ah LFP AGV Battery Core Parameters
| Parameter | Details |
|---|---|
| Cell Type | LFP 20Ah |
| Cell Cycle Life | ≥2000 cycles at 100% depth of discharge |
| System Cycle Life | ≥1500 cycles at 100% depth of discharge |
| Cell Certification | UN38.3 |
| Nominal Capacity | 20Ah 1P |
| Nominal Voltage | 25.6V 8S |
| Working Voltage Range | 20V-29.2V |
| Total Energy | 0.512kWh |
| Weight | ≈5.4kg |
| Normal Charging Current | ≤10A |
| Peak Charging Current | ≤20A |
| Continuous Discharge Current | ≤20A |
| Peak Discharge Current | 30A |
| Operating Temperature | Charge: 0℃-50℃; Discharge: -10℃-55℃ |
| Communication | CAN+RS485 |
| Casing Material | Q235 Metal |
| Protection Grade | IP54 |
| Dimensions L×W×H | 244.4×122.4×140mm |
| Application | Warehouse AGVs, Sorting AGVs, Production Line AGVs |
Core Advantages of 25.6V 20Ah LFP AGV Battery
1. Ultra-Long Cycle Life for 24/7 AGV Operations
The 25.6V 20Ah LFP AGV Battery offers ≥2000 cell cycles at 100% depth of discharge:
- It outlasts standard AGV batteries by 3x, supporting round-the-clock logistics AGV runs without frequent replacements. For a warehouse with 20 AGVs, this cuts annual battery costs by 70%.
- LFP cell chemistry ensures stable capacity retention, even after long-term high-discharge tasks such as AGVs continuous pallet transport across 1000+ meter routes daily.
2. 30A Peak Discharge for AGV Dynamic Maneuvers
Tailored for AGVs variable load demands:
- 30A peak discharge current powers AGVs sudden uphill cargo transport, rapid direction changes, and fork-lifting operations—no voltage drop or performance lag.
- Continuous 20A discharge sustains 8-hour daily AGV cycles, covering 800+ cargo transfers per shift.
3. CAN+RS485 Communication for AGV Fleet Management
Integrated dual-protocol smart monitoring:
- CAN+RS485 enables real-time tracking of state of charge, voltage, and cycle life for AGV fleets. Warehouse managers can remotely diagnose battery health, schedule charging, and avoid mid-task power outages via central control systems.
- It supports third-party AGV management platform integration, aligning with automated logistics workflows.
4. IP54 Protection & Wide Temperature Adaptability
Built for harsh industrial environments:
- IP54 dust-water protection resists warehouse debris, packaging dust, and occasional spills—critical for AGVs operating in manufacturing or e-commerce logistics hubs.
- The -10~55℃ discharge range ensures reliability in cold-storage AGV tasks and high-temperature production line AGV operations.
Application Scenarios
1. Warehouse & Logistics AGVs
The 25.6V 20Ah LFP AGV Battery powers fork AGVs and tugger AGVs. 20A continuous discharge supports 8-hour daily runs, while CAN+RS485 lets managers optimize AGV charging schedules to minimize downtime.
2. E-Commerce Sorting AGVs
It energizes small sorting AGVs in e-commerce warehouses. Compact 244.4mm×122.4mm×140mm dimensions fit into AGV chassis, while IP54 protection resists dust from package handling.
3. Production Line AGVs
It supplies power for AGVs transporting parts between production stations. 30A peak discharge handles sudden load changes such as heavy component lifting, and ≥1500 system cycles withstand 3-shift daily production demands.
