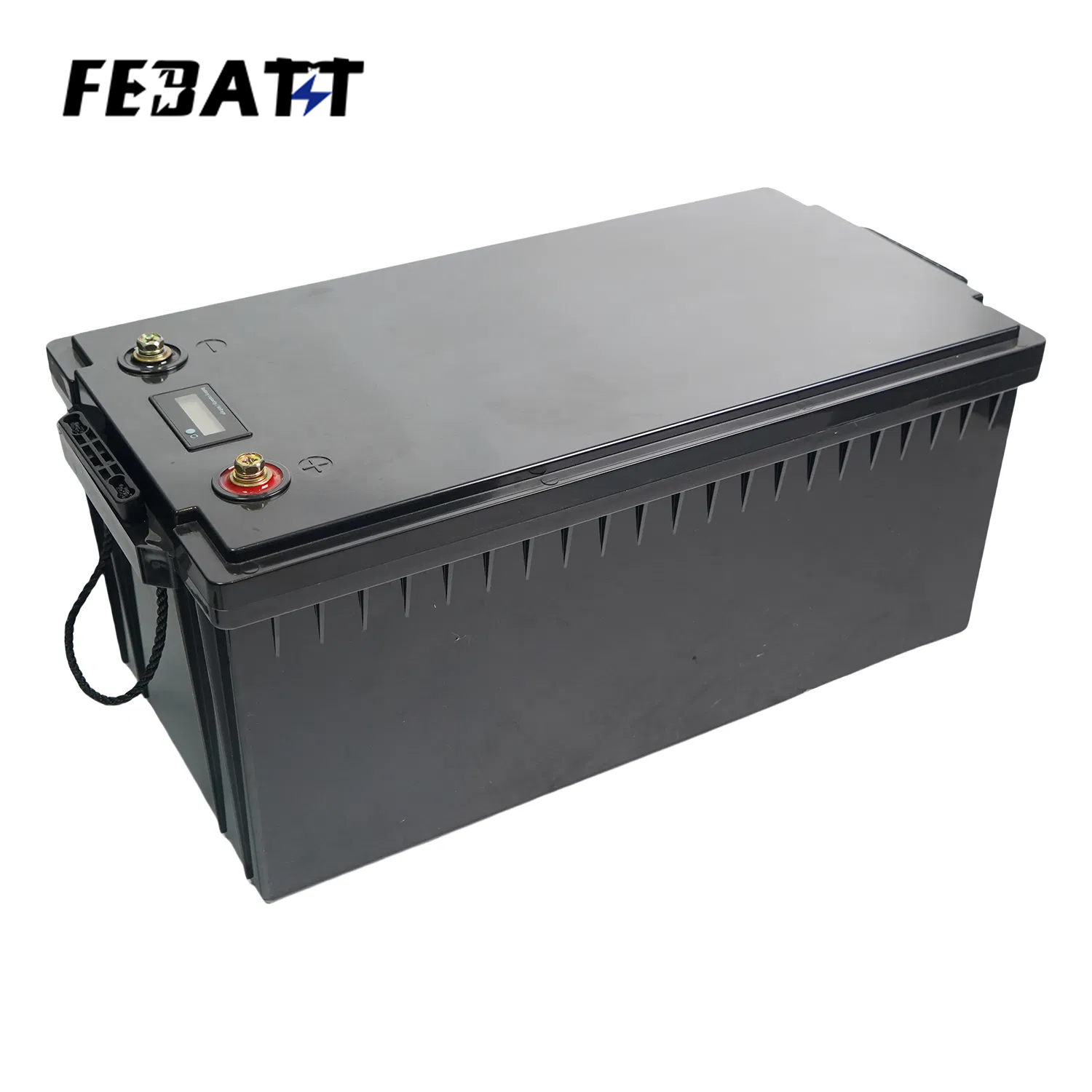

25.6V 100Ah High-Capacity Lithium Truck Battery

Category

25.6V 100ah Lithium Truck Battery delivers 160+ Wh/kg density, 3000+ cycles, and -40~60℃ operation—ideal for electric trucks, mobile power stations, and heavy-duty transport.

  • Normal Voltage: 25.6V
  • Discharging Cut-FF Voltage: 20.0V
  • Charging Cut-off Condition: 5A
  • Operation Temperature: -40~60℃
  • Nominal Capacity: 100ah
  • Charging Cut-off Voltage: 29.2V
  • Max Pulse Charging Current: 100A
  • Weight About: 23kg

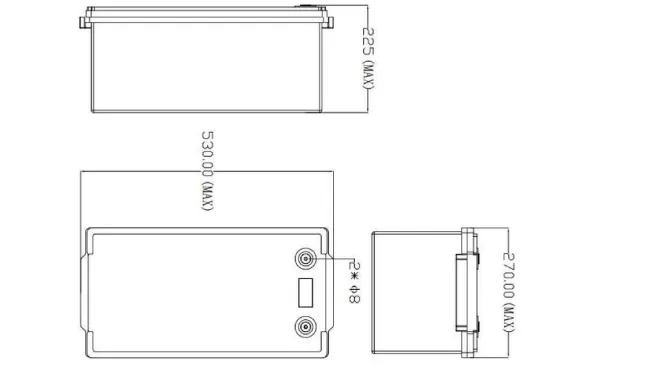

  • Specification: 530x270x225mm (L×H×W)
For More Solution Service, please Contact Us for details

25.6V 100Ah Lithium Truck Battery: High-Efficiency Power for Electric Trucks

Product Introduction

Introducing our 25.6V 100ah Lithium Truck Battery—a high-capacity, energy-efficient solution engineered exclusively for electric trucks and truck-mounted power stations. This lithium truck battery is purpose-built to power pure electric or hydrogen fuel cell trucks, delivering reliable, long-lasting performance for heavy-duty transport needs. With a lightweight yet durable design, the 25.6V 100ah lithium truck battery eliminates frequent recharging, providing consistent power for extended truck operations. Upgrade to this top-quality 25.6V 100ah lithium truck battery and experience the efficiency of advanced lithium technology for your electric fleet.
Parameter Details
Model NO. 25.6V100AH
Size Large
Normal Voltage 25.6V
Discharging Cut-FF Voltage 20.0V
Max Continuous Charging Current 75A
Max Continuous Discharging Current 75A
Charging Cut-off Condition 5A
Operation Temperature (Discharging) -40~60℃
Storage Humidity <75%Rh
Transport Package Explosion-Proof Carton and Pallet Packing
Rechargeable Yes
Nominal Capacity 100ah
Charging Cut-off Voltage 29.2V
Recommended Charging Current 20A
Recommended Discharging Current 20A
Max Pulse Charging Current 100A
Operation Temperature (Charging) 0~55℃
Storage Temperature -10~35℃
Weight About 23kg
Specification 530x270x225mm (L×H×W)

Core Features

1. High Energy Density for Extended Truck Range

The 25.6V 100ah Lithium Truck Battery boasts energy density ≥160 Wh/kg (LFP chemistry), ensuring:
  • Longer Driving Range: Powers electric trucks through full-day routes (e.g., long-haul logistics, urban delivery) without mid-trip recharging.

2. High Power Output for Heavy-Duty Performance

Engineered to meet truck dynamics:
  • 2C~3C Instantaneous Discharge: Supports rapid acceleration, steep climbing, and high-load scenarios (e.g., hauling heavy cargo), matching the dynamic power demands of electric trucks.

3. Ultra-Long Cycle Life for Commercial Fleets

Built to endure trucking’s rigors:
  • 3000~5000 Cycles (≥80% Capacity Retention): Withstands years of daily commercial truck use, reducing replacement costs and boosting total cost efficiency for fleets.

4. Fast Charging Capability for Minimal Downtime

Optimized for fleet operations:
  • 1C~2C Fast Charging: Reaches 80% charge in 30 minutes, with temperature rise ≤45℃ during fast charging—keeping trucks on the road longer.

5. Superior Safety with LFP Chemistry

Prioritizing truck operational safety:
  • LFP (Lithium Iron Phosphate) Composition: Passes rigorous tests (needle piercing, squeezing, overcharging per GB 38031), ensuring thermal stability for electric truck fleets.

6. Advanced Temperature Management

Adapts to diverse climates:
  • Integrated Cooling System (Liquid/Fan): Maintains stable performance in -20℃~50℃, enabling reliable operation in cold winters or hot summers.

7. Lightweight Design for Max Cargo Capacity

Engineered to reduce truck weight:
  • Aluminum Enclosure & Efficient Packaging: Lowers battery weight to increase electric truck cargo capacity, enhancing fleet profitability.

Application Scenarios

The 25.6V 100ah Lithium Truck Battery is ideal for:
  • Pure Electric Trucks: Delivering driving energy for long-haul logistics, urban delivery, and heavy-duty transport fleets.
  • Hydrogen Fuel Cell Trucks: Supplementing power for extended range and high-load scenarios (e.g., mountainous routes).
  • Truck-Mounted Power Stations: Providing reliable energy for on-site operations (construction, emergency services) where trucks serve as mobile power hubs.
