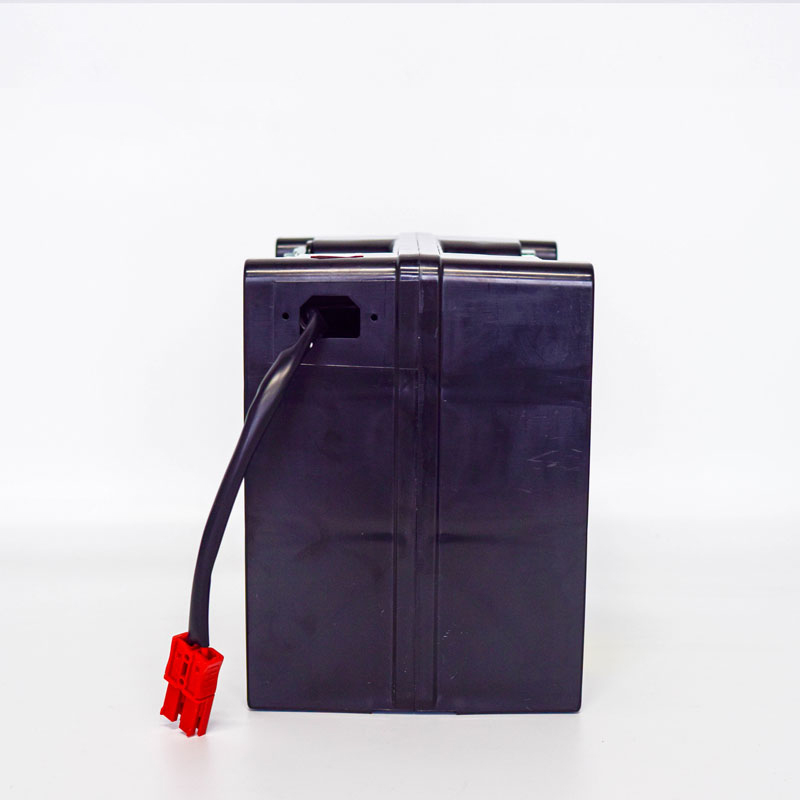

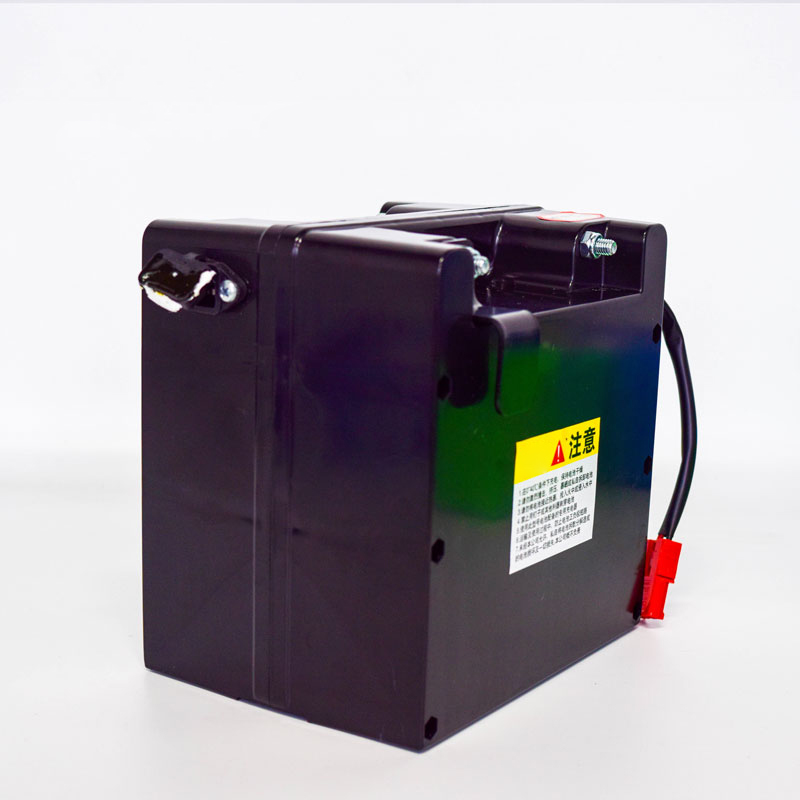

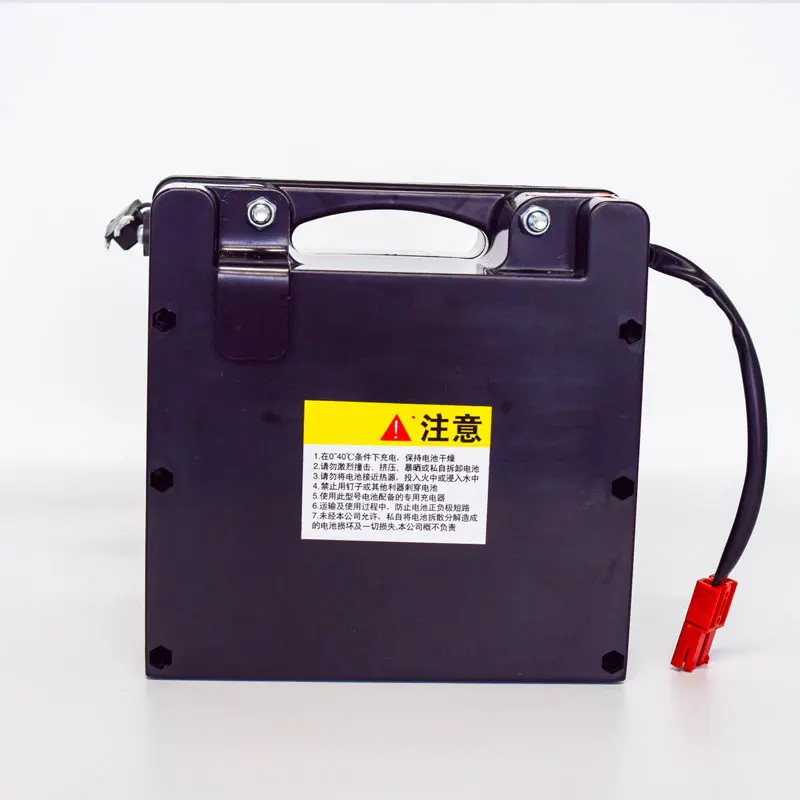

This 24V 20Ah Electric Wheelchair NMC Battery is a high-performance lithium-ion battery designed for mobility devices. It offers long life and stable output.
When it comes to reliable power for electric wheelchairs, the 24V 20Ah Electric Wheelchair NMC Battery stands out as a top choice. Specifically engineered for electric wheelchairs, this NMC battery (Lithium-Nickel-Manganese-Cobalt) delivers consistent performance, ensuring seamless mobility for daily use. Here are its core specifications:
- Nominal Voltage: 24V
- Nominal Capacity: 20Ah
- Nominal Energy: 480Wh
- Operating Temperature:
- Charging: 0℃~45℃
- Discharging: -10℃~60℃
- Storage Conditions:
- Temperature:
- Humidity: ≤75%RH
- Battery Chemistry：NMC
- Rated capacity：≥20Ah
- Charging Current：≤10A
- Operating Current：≤20A
- Dimension：custom
- Certification：CE, KC, UN38.3
- Communication Interface：RS-485, CAN
Comparison with Common Lithium Battery Models
| Parameter | 24V 20Ah Electric Wheelchair NMC Battery | 24V 15Ah Li-ion Battery | 24V 25Ah LiFePO4 Battery | 24V 30Ah LFP Battery |
| Nominal Voltage | 24V | 24V | 24V | 24V |
| Nominal Capacity | 20Ah | 15Ah | 25Ah | 30Ah |
| Nominal Energy | 480Wh | 360Wh | 600Wh | 720Wh |
| Chemistry | NMC | Li-ion | LiFePO4 | LFP (Lithium Iron Phosphate) |
| Cycle Life | ≥1000 cycles | 800-1000 cycles | ≥2000 cycles | ≥1500 cycles |
| Weight | 3.5-5kg | 2.5-4kg | 5-7kg | 6-8kg |
| Charging Time | 3-5 hours | 2-4 hours | 4-6 hours | 5-7 hours |
| Operating Temp (Discharging) | -10℃~60℃ | -5℃~50℃ | -20℃~60℃ | -15℃~65℃ |
| Primary Application | Electric wheelchairs, mobility aids | Compact electric wheelchairs, lightweight mobility aids | Heavy-duty mobility scooters, wheelchairs | Heavy-duty electric wheelchairs, off-road mobility devices |
Whether you need to adjust the capacity to meet specific range requirements, customize the size to fit the wheelchair battery compartment, or optimize high and low temperature performance for extreme environments, our team of professional engineers will tailor a battery solution that balances safety and durability based on your electric wheelchair model, usage scenarios, and special requirements.
- Tailored for Electric Wheelchairs: The 24V voltage and 20Ah capacity of this NMC battery perfectly match the power needs of most electric wheelchairs, ensuring optimal performance without overloading the device.
- NMC Chemistry Benefits: As a 24V 20Ah NMC battery, it offers high energy density—meaning more power in a compact size, ideal for lightweight electric wheelchairs that require portability.
- Long-Lasting Reliability: This electric wheelchair NMC battery boasts a long cycle life, reducing the need for frequent replacements. Whether used daily at home or for outdoor trips, the 24V 20Ah capacity ensures all-day power.
- Safety You Can Trust: Designed with built-in protections, the 24V 20Ah Electric Wheelchair NMC Battery guards against overcharging, over-discharging, and short circuits—critical for safe mobility.
