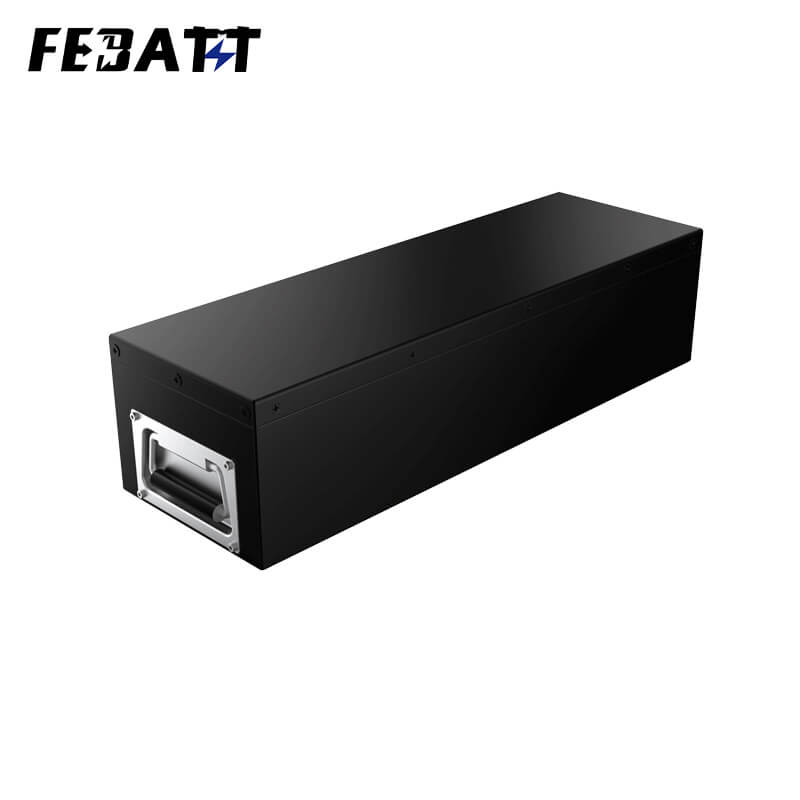

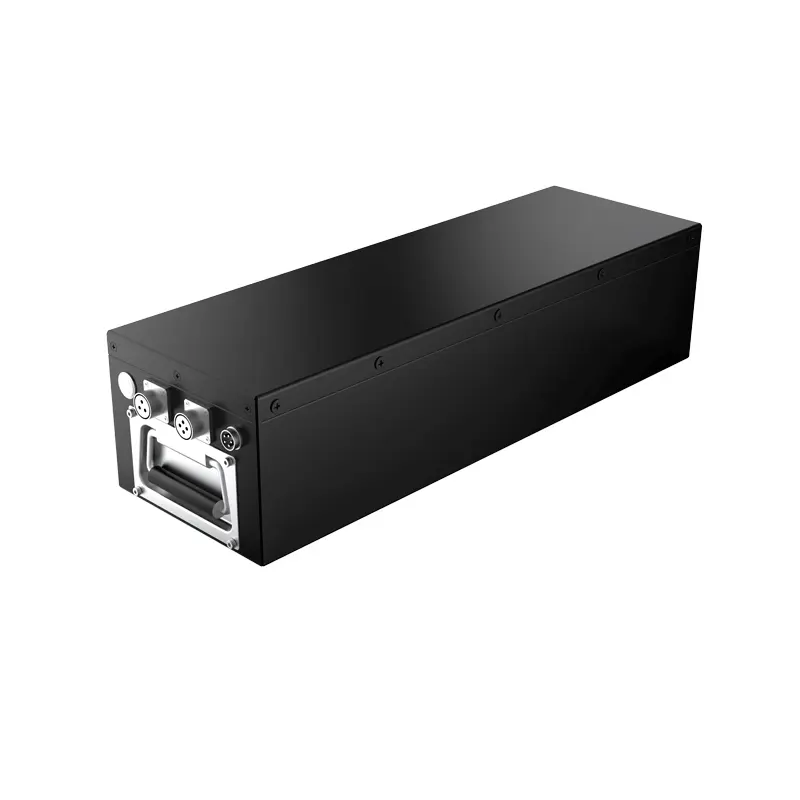

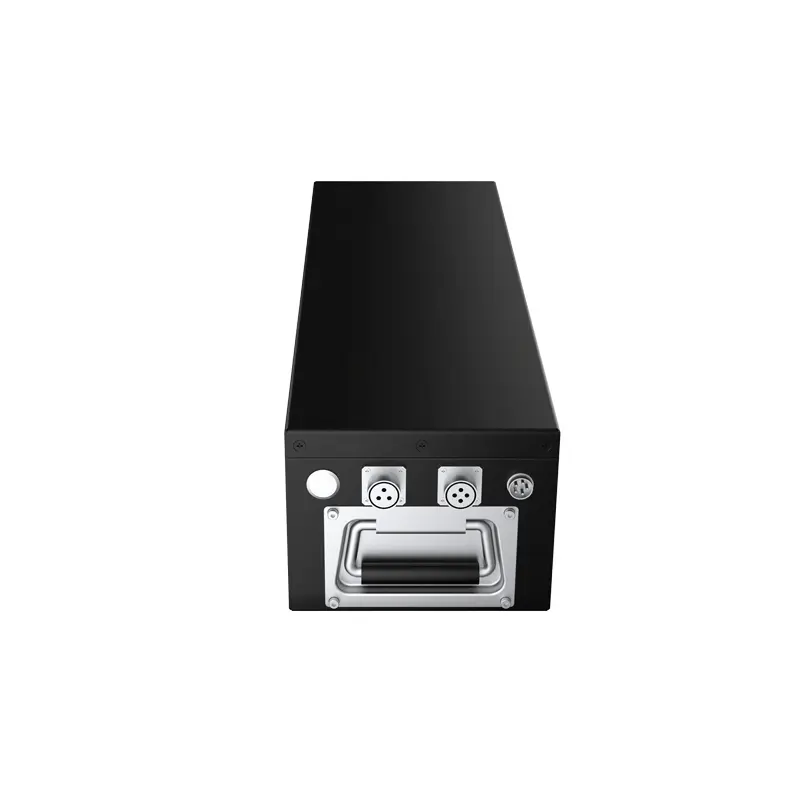

Vehicle-grade Outdoor Inspection Robots Battery: 46.8V 80Ah Power for Rugged Autonomous Systems
Product Introduction
The Vehicle-grade Outdoor Inspection Robots Battery is a high-performance lithium-ion solution purpose-built for autonomous guided vehicles (AGVs), rail-guided vehicles (RGVs), and rugged outdoor inspection robots. With a 46.8V nominal voltage, 80Ah capacity, and robust vehicle-grade engineering, this battery combines 100A instantaneous discharge, shock-resistant cold-rolled metal casing, and advanced BMS (Battery Management System) to power reliable, long-duration operation in outdoor industrial environments. Whether enabling AGVs in warehouse yards, RGVs in manufacturing plants, or autonomous inspection robots in construction sites, the Vehicle-grade Outdoor Inspection Robots Battery ensures stable, safe energy for demanding robotic applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Cell Model | 18650 / 3.6V/3.35Ah |
| Battery Configuration | 18650-13S24P / 46.8V/80Ah |
| Nominal Voltage | 46.8V |
| Nominal Capacity | 80Ah |
| Charging Voltage | 54.6V |
| Charging Current | ≤25A |
| Discharging Current | 40A (Continuous); 100A (Instantaneous) |
| Discharge Cut-off Voltage | 31.2V |
| Internal Resistance | ≤120mΩ |
| Weight | 20Kg |
| Dimensions (L×W×H) | 580×180×140mm (Max) |
| Operating Temperature | Charging: 0~45℃; Discharging: -20~50℃ |
| Storage Temperature | -20~40℃ |
| Casing Material | Cold-rolled Sheet Metal (Shock-absorbing) |
| Safety Protections | Short-circuit, overcharge, over-discharge, overcurrent, temperature protection |
Core Features
1. Vehicle-grade Durability for Robotic Systems
The Vehicle-grade Outdoor Inspection Robots Battery features a cold-rolled sheet metal casing with internal shock-absorbing structure, mirroring automotive durability standards. This design withstands vibrations, impacts, and rough handling—critical for AGVs/RGVs navigating industrial floors or inspection robots operating in outdoor construction zones.
2. High Current Capability for Robotic Dynamics
With 40A continuous discharge and 100A instantaneous discharge, this battery powers robotic systems through dynamic tasks: AGV acceleration, RGV load handling, or inspection robot motor-driven maneuvers. Copper-nickel composite nickel strips ensure stable current flow under high-load conditions, preventing voltage sag during peak demands.
3. Advanced BMS for Precision Monitoring & Safety
Equipped with a Battery Management System (BMS), the battery enables:
- Real-time data transmission (voltage, current, temperature, capacity) via RS485 protocol.
- Precise temperature control and automatic protection activation (if temps exceed 65℃±5℃).
- Mitigation of safety risks through overcharge/over-discharge/short-circuit safeguards.
4. Wide Temperature Operation for Outdoor Use
Engineered to discharge in -20~50℃, this battery supports inspection robots in winter outdoor deployments (-20℃) or sun-exposed industrial sites (50℃). Charging compatibility from 0~45℃ ensures flexible recharging in varied indoor/outdoor environments.
Application Scenarios
The Vehicle-grade Outdoor Inspection Robots Battery powers:
- Autonomous Guided Vehicles (AGVs): Warehouse, factory, or logistics AGVs navigating outdoor/indoor hybrid environments (e.g., yard-to-warehouse transport).
- Rail-guided Vehicles (RGVs): Manufacturing plant RGVs for material handling, production line integration, or heavy-load transport.
- Outdoor Inspection Robots: Autonomous robots for construction site monitoring, pipeline inspection, or infrastructure surveillance in diverse climates.
