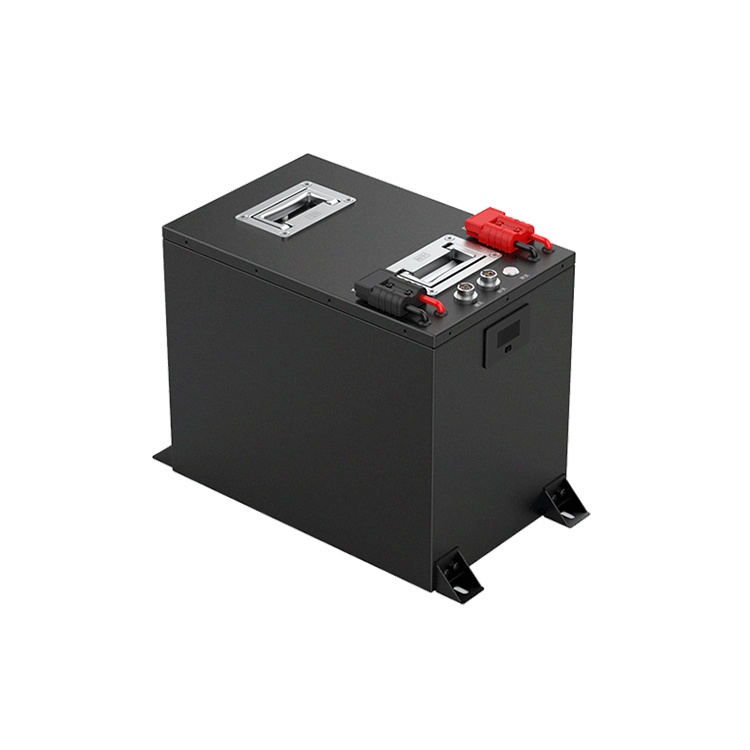

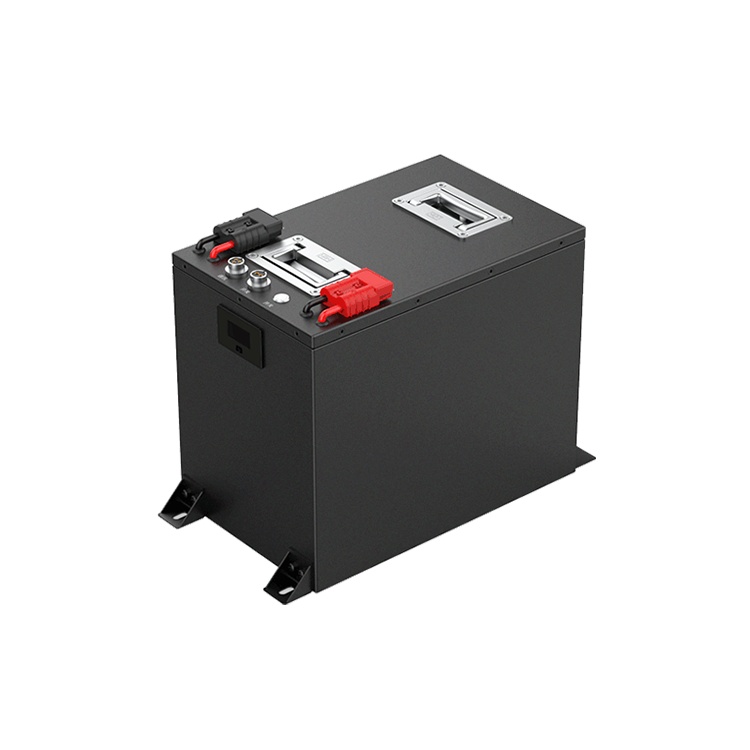

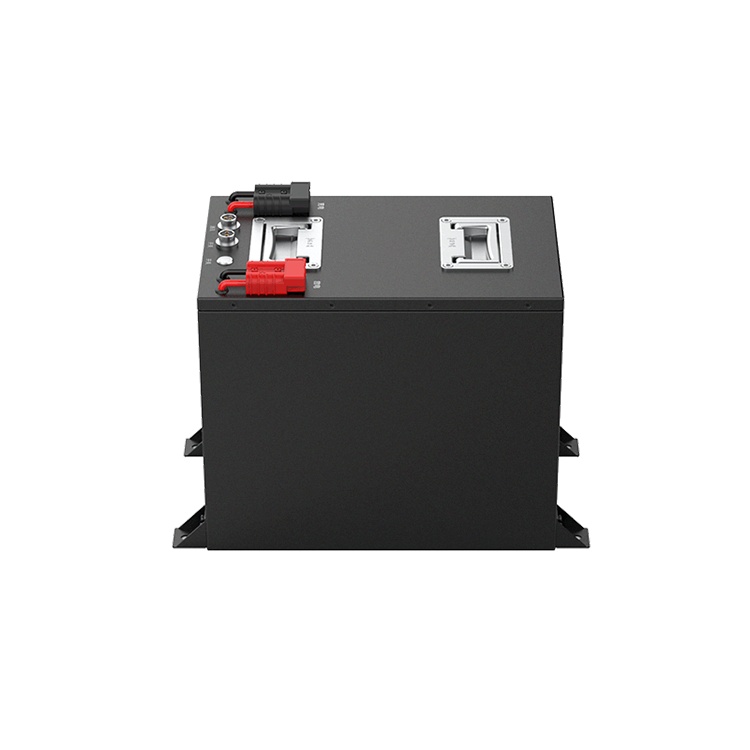

32140 48V 45Ah LiFePO4 Battery for Mining Robots Low Temp

32140 48V 45Ah LiFePO4 Battery for Mining Robots Low Temp

Introduction

Nominal Voltage: 48V
Rated Capacity: 45ah
Dimension: (300*190*245)±1mm
Charge Voltage: 54V
Charge Current: 21A(0.5C)
Discharge current: 42A(1.0C)
Discharge cut-off Voltage: 37.5V
Weight: ≤24Kg
Operating Temperature: -20~60℃
Application: Robots

Features

1.The battery pack is safe, resistant to high temperatures, and has a long cycle life.
2.The battery pack has a high cycle life, conforming to the value concepts of low – carbon, energy – saving, and environmental protection.
3.The battery is equipped with a built – in BMS (Battery Management System) with multiple protection functions. The protection systems (PCM/BMS) all use the most advanced chips and MOS from Japan and the United States.
4.For the cell materials, LiMn2O4 (lithium manganate), Li – Ni – Co – Mn – O (ternary material), and LiFePO4 (lithium iron phosphate) are available options.
5.Original cells from imported brands such as Sanyo, Sony, Panasonic, Samsung, LG, as well as domestic well – known brand cells can be selected as combination units, ensuring the consistency, stability, and safety of the battery pack.
6.It supports multi – parallel and multi – series combinations as well as modular battery design.
7.The battery has a built – in heating device. Under extreme low – temperature conditions, the host supplies voltage to heat the battery, keeping it within an appropriate temperature range for operation.
8.With an IP65 waterproof rating, it is suitable for outdoor photovoltaic power stations.
