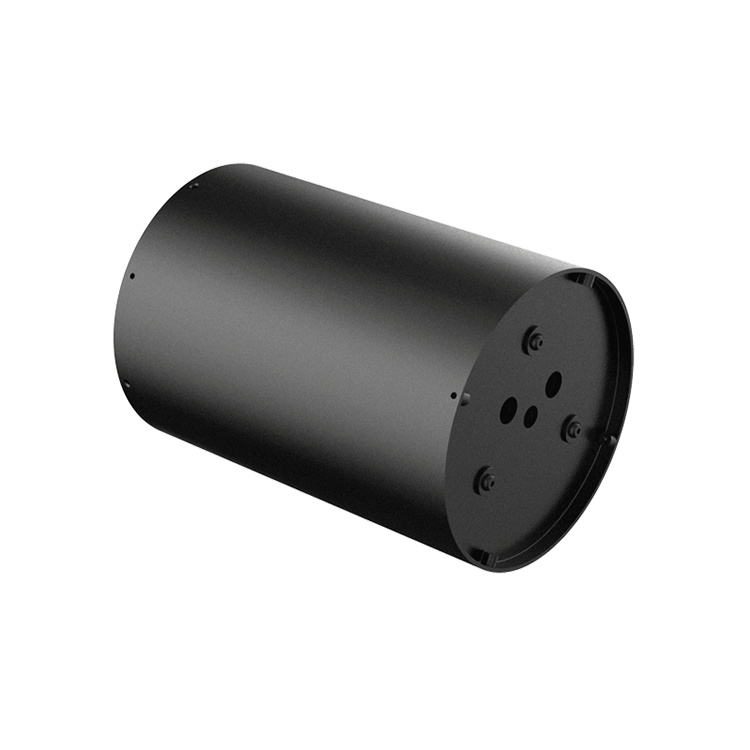

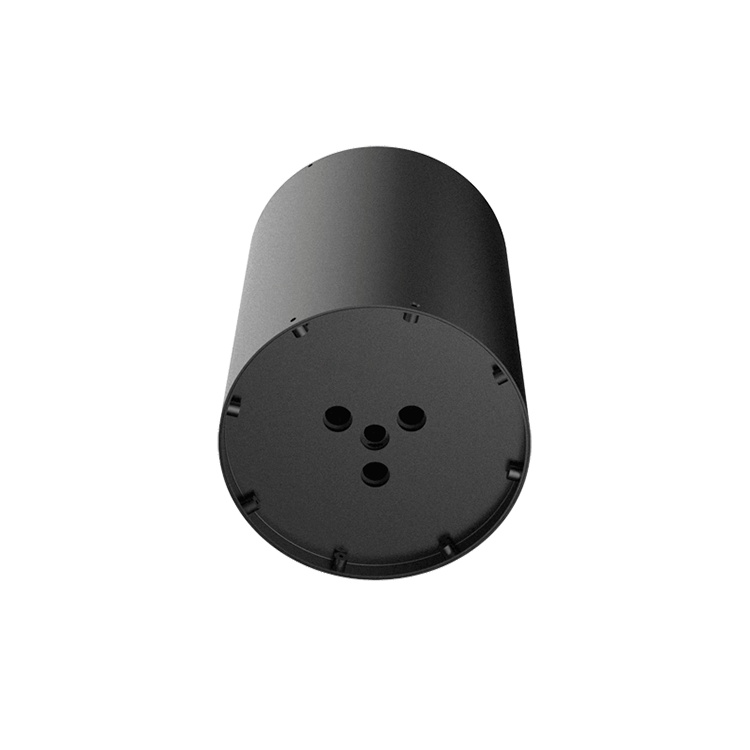

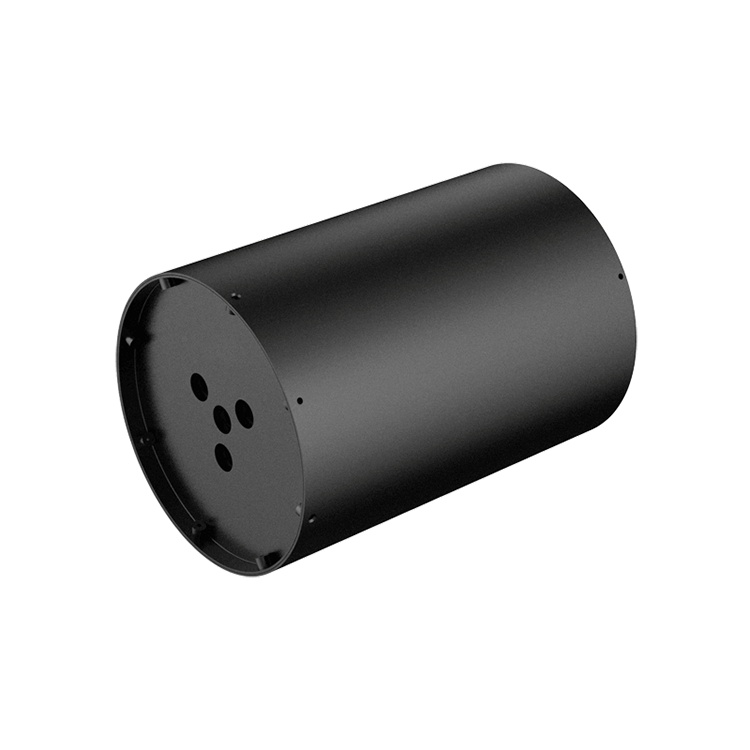

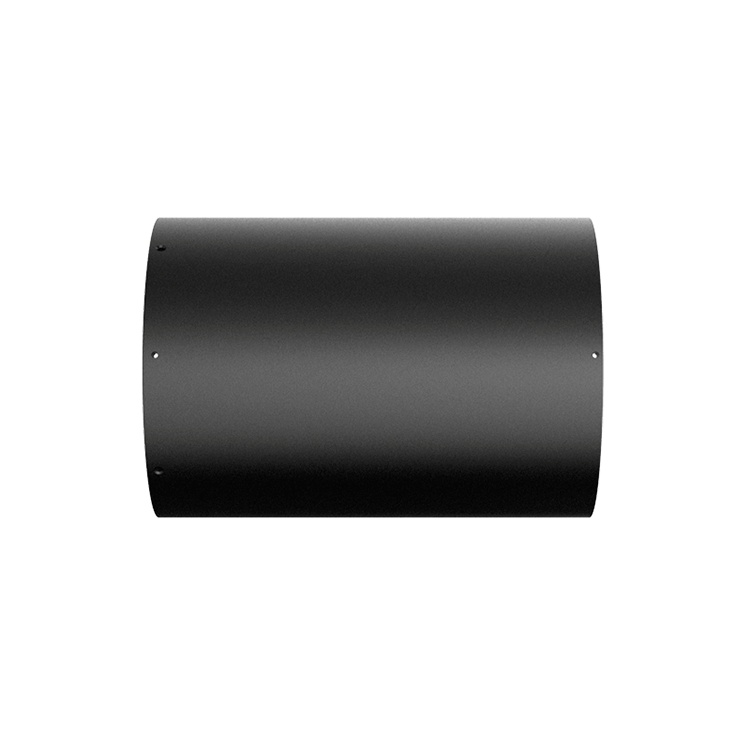

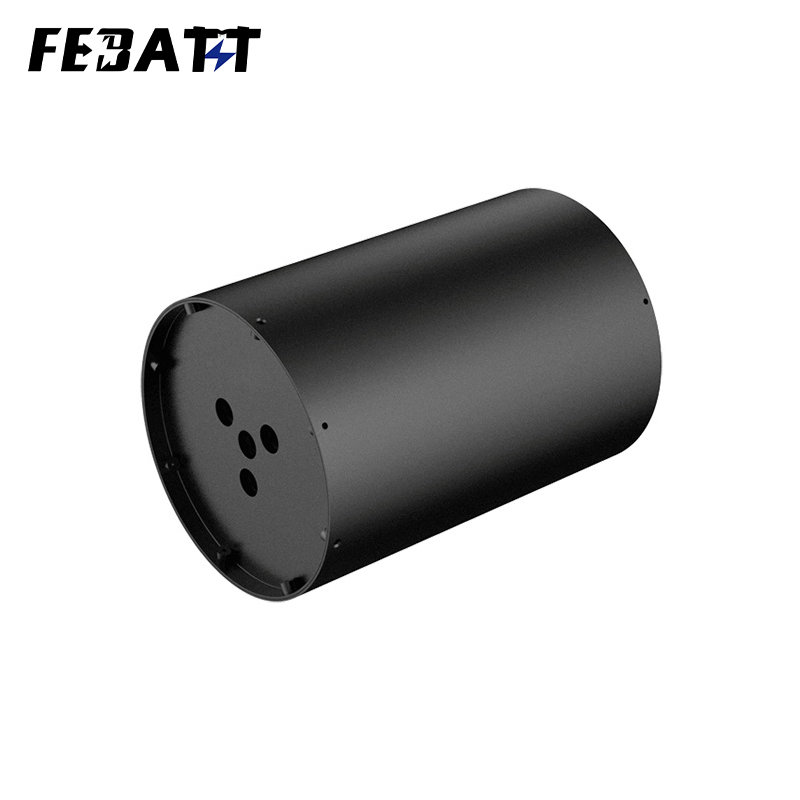

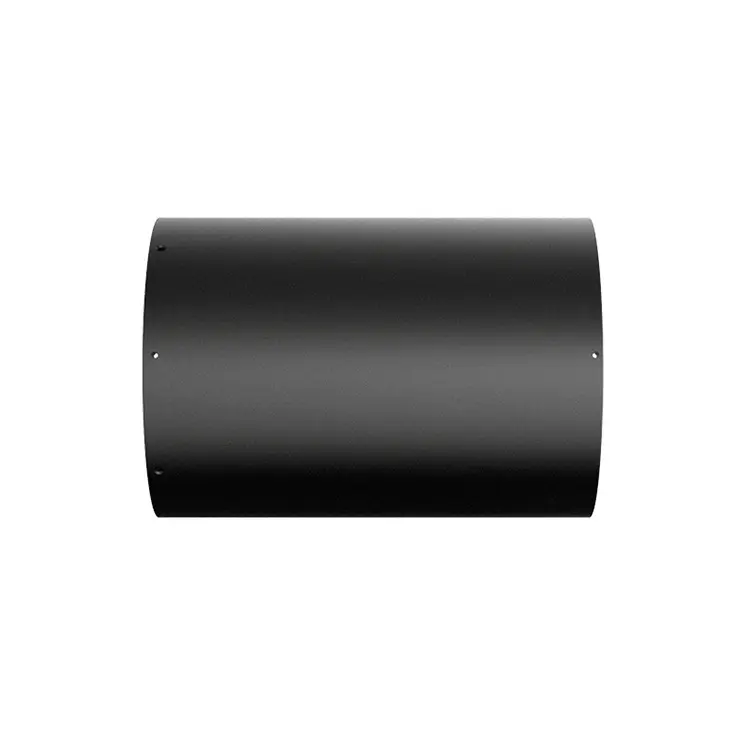

26650 22.4V 28Ah Li-ion Battery
26650 22.4V 28Ah Li-ion Battery for Patrol Robots with RS485
26650 22.4V 28Ah Li-ion Battery for Patrol Robots with RS485
26650 22.4V 28Ah Li-ion Battery for Patrol Robots with RS485

26650 22.4V 28Ah Li-ion Battery for Patrol Robots with RS485

Category

Battery for Patrol Robots With RS485 delivers 22.4V 28Ah power, RS485 communication, and -20~60℃ operation—ideal for security patrol bots, electric monitoring robots, and industrial mapping devices.

  • Nominal Voltage：22.4V
  • Rated Capacity：28000mAh
  • Dimension：240*φ168mm
  • Charge Voltage：25.2V
  • Charge Current：≤14A
  • Discharge Current：5.6A
  • Discharge Cut-off Voltage：17.5V
  • Weight：5500g
  • Operating Temperature：-20～60℃

For More Robot Battery Solution Service, please Contact Us for details!

Quote Now
Send Email

Battery for Patrol Robots With RS485: 22.4V 28Ah 26650 Li-ion for Security & Inspection Bots

Product Introduction

Engineered exclusively as a Battery for Patrol Robots With RS485, this 26650 lithium-ion solution is purpose-built for security, power monitoring, and mapping robots. Featuring 22.4V nominal voltage, 28Ah capacity, and RS485 communication, this Patrol Robot Battery With RS485 enables real-time data transmission, wide temperature resilience, and multi-layer safety. Unlike standard batteries, it leverages 26650 cell design for durability, making it the reliable power source for patrol robots in diverse industrial and security environments.

Technical Specifications

Table: Battery for Patrol Robots With RS485 Core Parameters

Parameter Details
Cell Type 26650 Lithium-ion
Nominal Voltage 22.4V
Rated Capacity 28Ah
Charge Voltage 25.2V
Charge Current ≤14A
Discharge Current 5.6A
Discharge Cut-off Voltage 17.5V
Weight 5500g
Dimensions 240×Φ168mm
Operating Temperature -20~60℃
Communication RS485
Application Patrol robots, electric monitoring robots, mapping robots

Core Advantages of Battery for Patrol Robots With RS485

1. RS485 Communication for Patrol Fleet Intelligence

“The Battery for Patrol Robots With RS485 supports RS485, enabling robots to transmit battery health, SOC, and temperature data to central control systems. This allows for predictive maintenance, remote diagnostics, and seamless integration into security or industrial automation workflows—critical for minimizing downtime in 24/7 patrol missions.”

2. 26650 Cell Durability & Wide Temperature Adaptation

“Built with 26650 lithium-ion cells, the Patrol Robot Battery With RS485 operates reliably in -20~60℃ environments, from Arctic border patrols to desert industrial sites. Its robust cell design ensures ≥80% capacity retention after 1000+ cycles, reducing replacement costs for fleets running round-the-clock operations.”

3. Multi-Layer Safety for High-Stakes Scenarios

“Equipped with short-circuit, overcharge, over-discharge, over-temperature, and ESD protection, this battery ensures safe operation in critical infrastructure patrols or urban security missions. The 26650 form factor and rugged build minimize failure risks, protecting both robots and personnel.”

4. Tailored Power for Diverse Patrol Tasks

“With 22.4V 28Ah capacity, the 22.4V 28Ah Battery for Patrol Robots powers multi-sensor operations—including cameras, LiDAR, and communication modules—delivering stable voltage for extended patrol durations and uninterrupted task completion in security and industrial inspection.”

Application Scenarios

1. Security Patrol Robots

“Powers robots monitoring campuses, factories, or city perimeters. The Battery for Patrol Robots With RS485’s RS485 integration and long cycle life support round-the-clock patrols, with real-time battery status updates for security teams to ensure uninterrupted coverage.”

2. Electric Monitoring Robots

“Supplies energy for bots inspecting power lines, substations, and grid equipment. Its -20℃ operation enables winter grid patrols, while 60℃ tolerance supports high-heat transformer inspections—all with the reliability of 26650 lithium-ion technology.”

3. Mapping & Surveying Robots

“Powers LiDAR-equipped robots creating 3D models of factories, mines, or construction sites. The Patrol Robot Battery With RS485’s 28Ah capacity ensures full-site mapping without mid-mission recharges, critical for efficient facility audits.”
