The inverter-integrated household energy storage system can be applied to small-scale industries

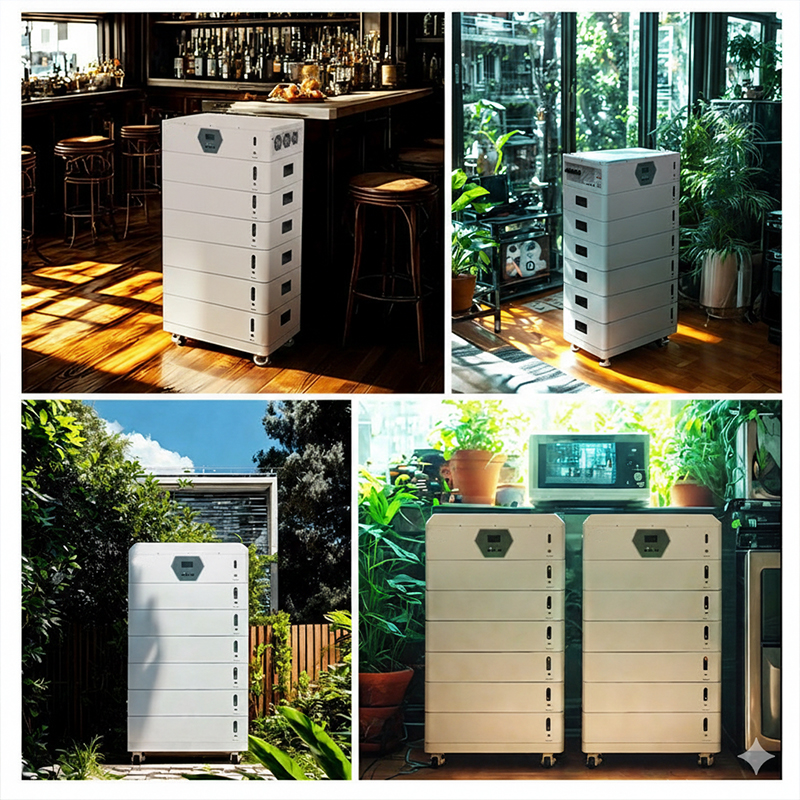

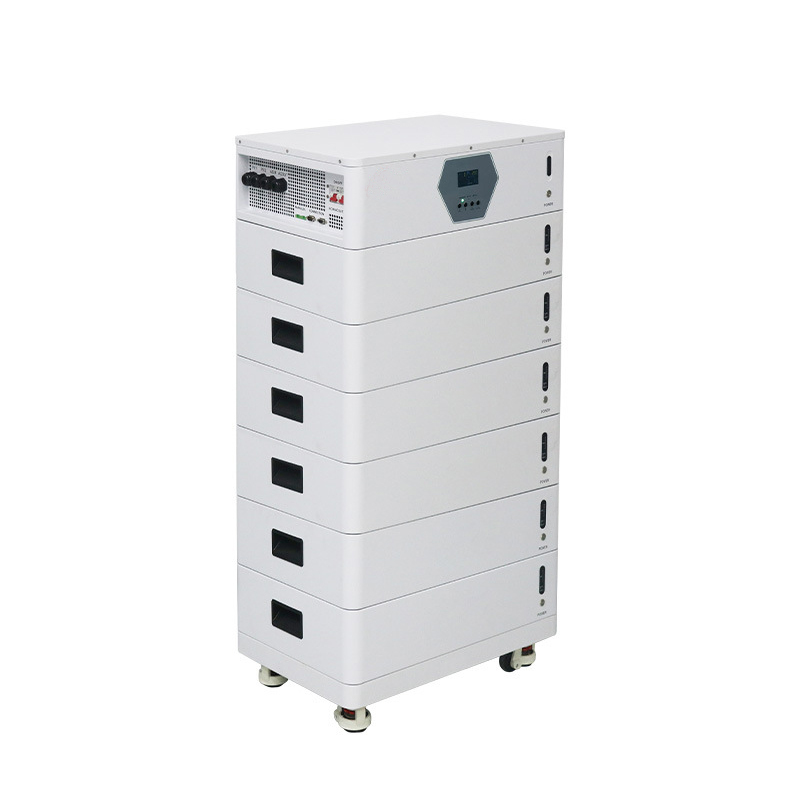

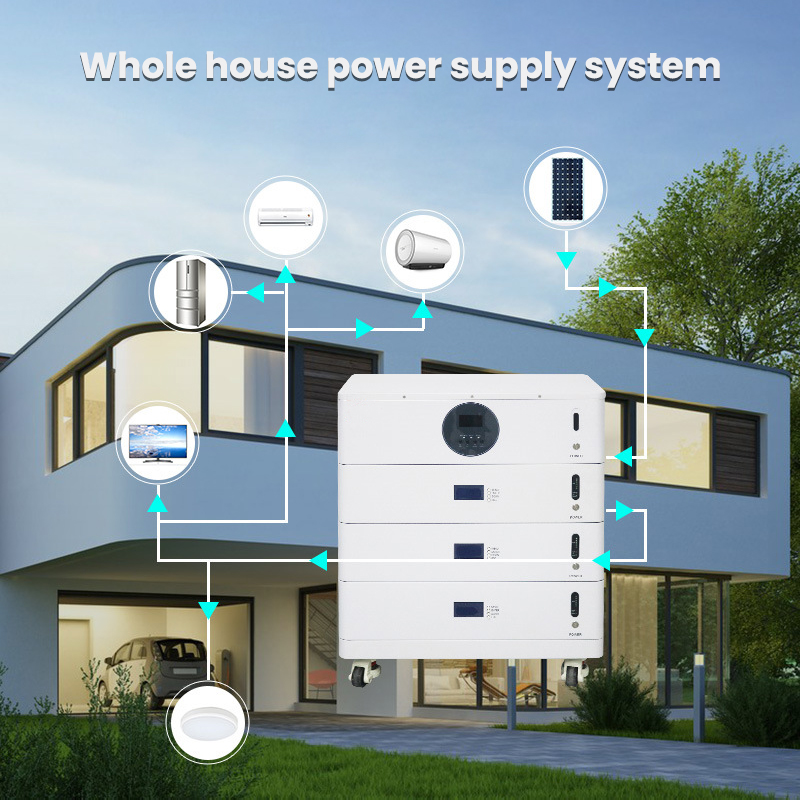

Inverter household energy storage all-in-one machine. Integrating advanced inverter and large-capacity energy storage technologies, it can be paired with solar panels to convert and store solar energy, and can also continuously power critical appliances such as refrigerators, lighting, and communication devices during sudden power outages. Supporting multiple access and output specifications, it is perfectly compatible with various household appliances. With a compact design that requires no complicated installation, it easily fits into home spaces like balconies and storage rooms without occupying too much area.
This inverter home energy storage all-in-one unit is equipped with multiple safety protection mechanisms including overcharge, over-discharge, overload, and short-circuit protection, comprehensively safeguarding household electricity safety and the service life of the equipment. For users seeking energy independence, reducing electricity bills, or emphasizing emergency support and improving the stability of daily electricity use, it is a one-stop reliable solution. It not only reduces reliance on the power grid but also ensures uninterrupted power supply, enabling families to embrace a green and intelligent new era of independent electricity use.
Product attributes:
| Battery Parameters | |
| Product Specification | 30kWh+6kW/12kW |
| Voltage Platform | 51.2V |
| Energy | 30kWh |
| Dimensions (mm) | 735x425x1050 |
| Weight | 320kg |
| Inverter Power | 6kW/12kW |
| Inverter Parameters | |
| Utility Mode | |
| Rated Input Voltage | 220-230 Vac |
| Input Voltage Range | (90Vac-280Vac)±2% |
| Frequency Range | 47±0.3Hz-55±0.3Hz(50Hz); 57±0.3Hz-65±0.3Hz(60Hz); |
| Maximum Efficiency | >95% |
| Maximum Bypass Overload Current | 50A/90A |
| Inverter Mode | |
| Output Voltage Waveform | Pure Sine Wave |
| Rated Output Power | 6kW/12kW |
| Rated Output Voltage | 220/230/240V±5 |
| Output Frequency Range | 50Hz±0.3Hz/60Hz±0.3Hz |
| Maximum Efficiency | >92% |
| PV Input (DC) | |
| Maximum DC Voltage | 500Vdc |
| MPPT Voltage Range | 80-450Vdc |
| Maximum PV Input Current | 100A |
