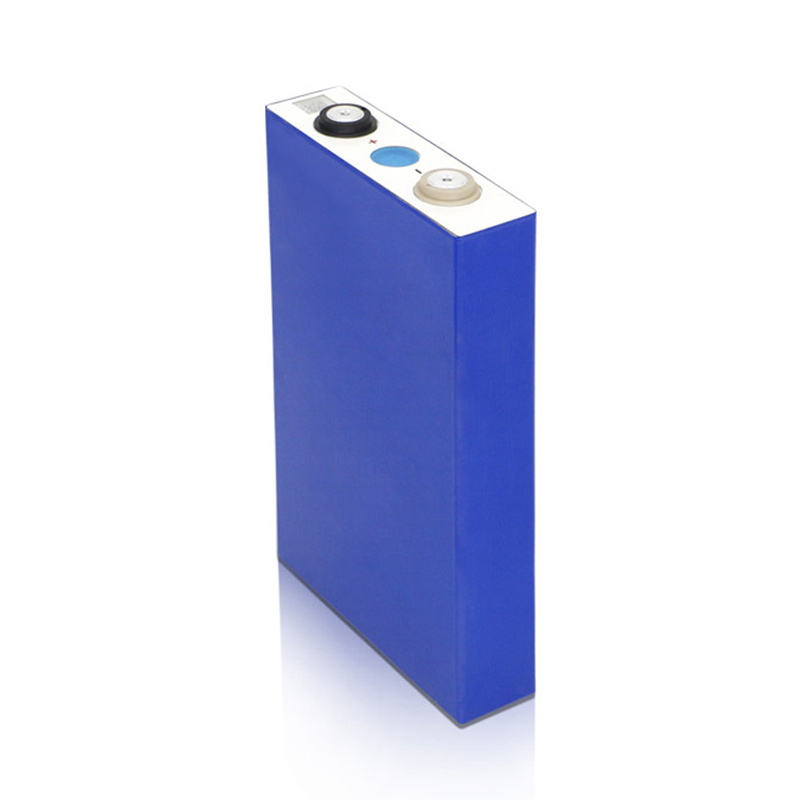

EVE Prismatic LF105 Cells LiFePO4 Cell: 4000-Cycle Power for Extreme Environments
Introduction
In Arctic winters where temperatures plummet to -35℃, or desert solar farms scorched at 65℃, ordinary batteries falter. EVE’s prismatic LF105 Cells LiFePO4 solution rises to the challenge—delivering 105Ah capacity, 3.2V stability, and a 4000-cycle lifespan. As an OEM-ready cell (model: LF105), it scales into custom 12V/24V packs for solar storage, RV off-grid systems, and 24/7 industrial AGVs—rewriting the rules of extreme-environment energy.
Core Specifications
Parameter
EVE LF105 Cells LiFePO4 Cell
Ordinary LFP Cells
Value for Custom Systems
Nominal Capacity
105Ah (0.2C, 25℃)
≤90Ah
Powers 525W loads for 6.4hrs (vs. 5.4hrs)
Cycle Life
4000 Cycles (80% Retention)
≤3000 Cycles
5-year replacement cost down by 40%+
Discharge Temperature
-35~65℃
-20~60℃
Operates in Arctic winters, desert summers
Continuous Current
52.5A (0.5C, charge/discharge)
≤45A (0.5C for 90Ah)
2-hour recharge for 105Ah AGV batteries
Prismatic Dimension
200.5×130.3×36.35mm
Cylindrical (bulkier)
12% higher energy density than cylindrical
OEM Customization
Voltage/capacity scaling (4S/8S)
Fixed configs
Build 12V/24V systems for specific needs
Key Advantages of EVE LF105 Cells
1. 4000-Cycle Longevity
The LF105 Cells prismatic cell retains 80% capacity after 4000 cycles—enough to power 24/7 AGV fleets for 8+ years, doubling the lifespan of standard LFP cells.
2. Extreme Temperature Mastery
With a -35℃ to 65℃ operating range, it starts RV heaters in Arctic regions (delivering 85% capacity at -35℃) and endures 65℃ desert solar farms without shutdown.
3. 0.5C Symmetric Charge/Discharge
Its 52.5A continuous current recharges a 105Ah battery in 2 hours, while stable 3.2V output avoids voltage sag in 5kW industrial tools or 3kW RV ACs.
4. OEM-Ready Scalability
EVE offers custom voltage/capacity configurations (4S/8S series for 12V/24V, parallel for 210Ah+ packs) and BMS integration, adapting to unique project needs.
Application Scenarios
1. Solar & Energy Storage
Residential: A single LF105 Cells stores 3.36kWh, powering a 3-bedroom home for 6.7 hours during outages.
Commercial: 4000-cycle durability cuts O&M costs by 40% in 8-year solar projects.
2. RV, Marine & Off-Road
Arctic RVs: The cell’s -35℃ discharge keeps heaters running in freezing winters.
Marine: Lightweight (1980g) and corrosion-resistant prismatic design suits boats/yachts.
3. Industrial AGVs & Machinery
AGV Fleets: 2-hour recharge (52.5A) eliminates downtime between shifts.
Cold Construction: Starts 10kW motors at -35℃, avoiding cold-weather delays.
