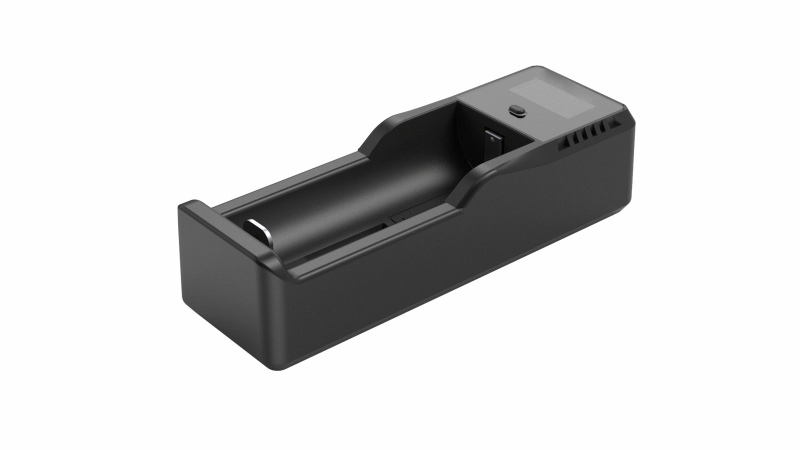

DC-DC Single Slot Lithium Battery Charger: Universal Charging for Diverse Batteries
Product Introduction
The DC-DC Single Slot Lithium Battery Charger is a versatile charging solution engineered to power a wide range of rechargeable batteries. Designed to accommodate NiMH batteries, lithium iron phosphate batteries, ternary lithium batteries, and popular formats like 26650/18650/18490, this charger delivers reliable DC-DC charging with robust protection features. Whether charging industrial lithium batteries, special-purpose cells, or medical-grade batteries, the DC-DC Single Slot Lithium Battery Charger ensures safe, efficient power delivery for diverse scenarios.
Technical Specifications
| Parameter | Details |
|---|---|
| Input Voltage | 4.75–5.25Vdc |
| Input Current | 1A Max. (@5Vdc, full load) |
| Output Current | 500mA or 1000mA |
| Operating Temperature | -20°C ~ +50°C |
| Status Display | LED Indicator |
| Input Socket | MICRO 5PIN USB Interface |
| Design Standard | Safety requirements based on CE/EN55022 Class B |
| Product Dimensions | 113.5×38.5×30mm (tolerance +/-0.5mm) |
| Product Weight | 57g±5g (excluding USB cable and adapter) |
| Product Material | Engineering Plastics |
Core Features
1. Broad Battery Compatibility
The charger works with an extensive range of battery types:
- Rechargeable lithium batteries (26650, 18650, 18490, 17335, 16340, 10440, etc.).
- NiMH batteries.
- Lithium iron phosphate (LiFePO4) batteries.
- Ternary lithium batteries.
This versatility makes it a top choice for charging industrial, special, and medical batteries.
2. Robust Protection Mechanisms
Equipped with multiple safety safeguards:
- Overvoltage protection.
- Overcurrent protection.
- Reverse connection protection.
- Short circuit protection.
These features protect both batteries and the charger from potential damage during operation.
3. Compact & Durable Build

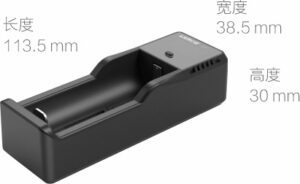

Crafted from engineering plastics and sized at 113.5×38.5×30mm (weighing approximately 57g), the charger balances portability and durability—making it ideal for both field use and desktop applications.
Application Fields
The charger excels in these scenarios:
- Industrial Lithium Batteries: Charging batteries for machinery, tools, and various industrial equipment.
- Special Lithium Batteries: Powering custom or specialized devices such as tactical gear and research instruments.
- Medical Lithium Batteries: Supporting medical devices like portable monitors and diagnostic tools.
