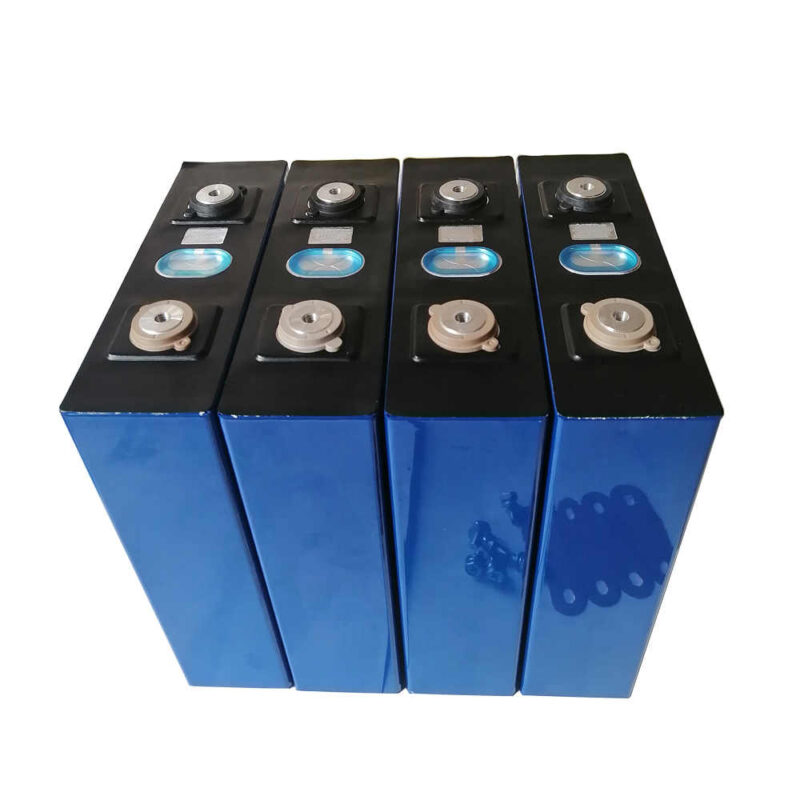

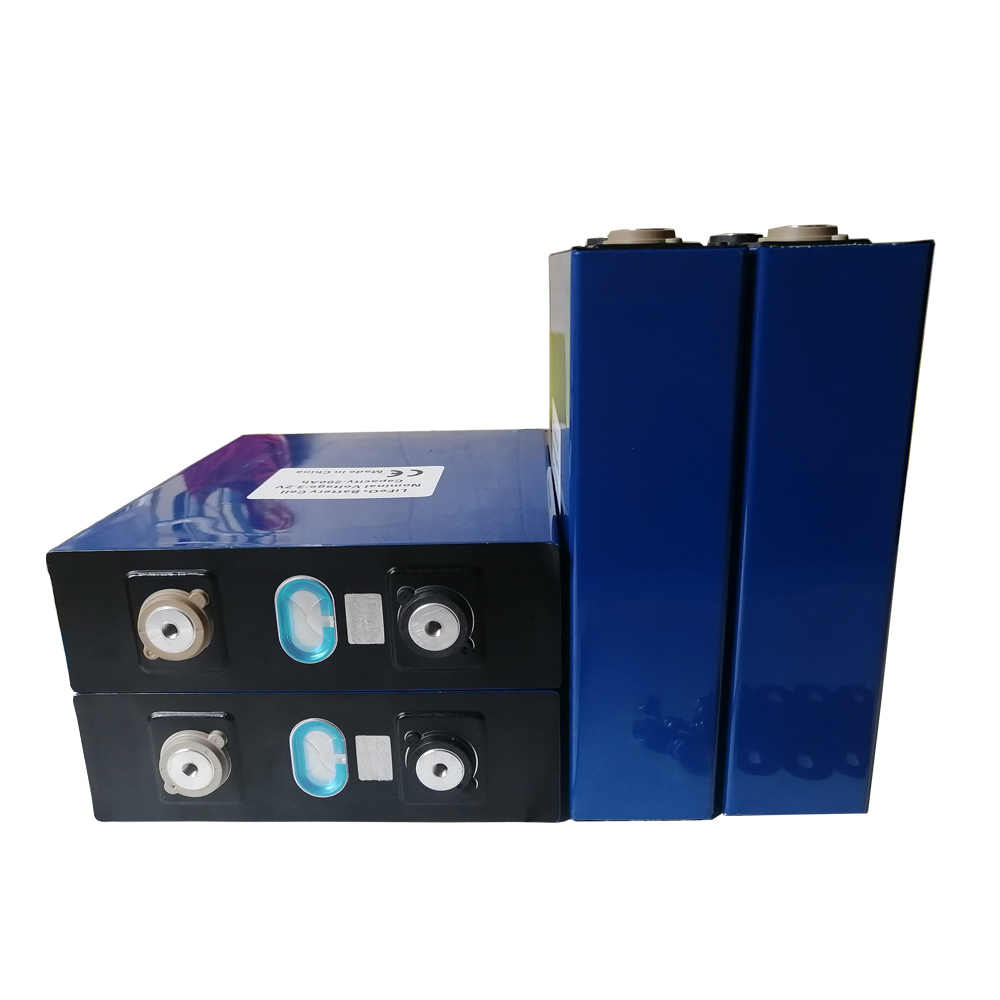

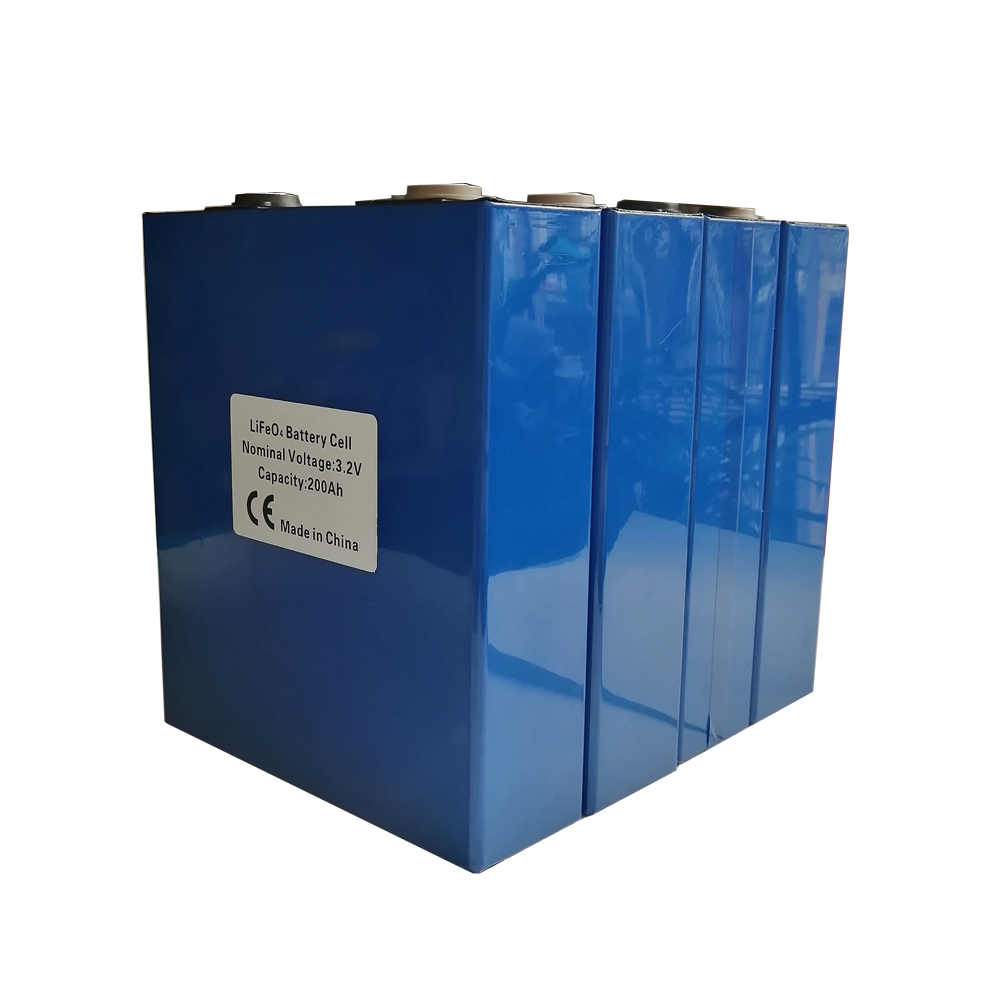

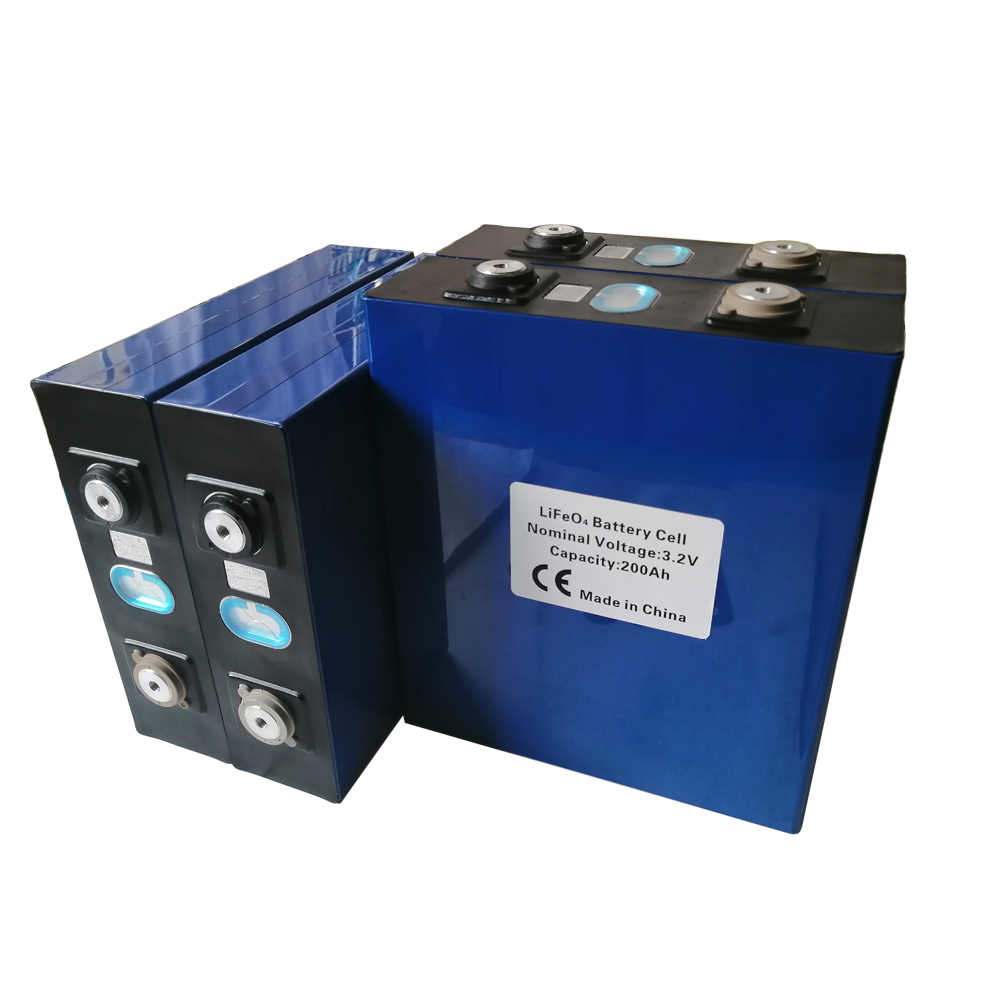

In industrial energy storage, heavy-duty AGVs, or marine propulsion, ordinary LiFePO4 batteries falter under high currents, wide temperatures, or long cycles. The CATL 200Ah Prismatic LFP Cell shatters these limits:
- Delivers 200Ah capacity, 3.2V stability, and a 2000-cycle lifespan (80% retention at 100% DOD).
- Supports 2C continuous discharge (400A) and 1C fast charging (200A) — refuels 200Ah in 2 hours, powers 80kW industrial tools.
- Operates in -20~60℃ discharge and 0~45℃ charge — recharging in freezing conditions where competitors stall.
- Boasts ≤0.3mΩ inner resistance (40% lower loss vs. ordinary LFP) and a prismatic form factor (200×175×54mm) for custom voltage/capacity scaling (series/parallel).
Core Specifications
- “2000 Cycles: The CATL 200Ah Prismatic LFP cell retains 80% capacity after 7 years of daily use — powering a 100kWh industrial UPS for 7+ years, outlasting ordinary LFP cells by 33%.”
- “2C Continuous Discharge (400A): Drives 80kW industrial tools or heavy-duty AGVs — no voltage sag, even at full load. 1C Fast Charge (200A): Refuels 200Ah in 2 hours, minimizing downtime for 24/7 operations.”
- “-20℃ Discharge: Delivers 85% capacity at -20℃ to start 50kW motors in Arctic winters. 0℃ Charge: Recharges in freezing conditions where standard LFP cells (5℃ min) fail, avoiding downtime.”
- “≤0.3mΩ Inner Resistance: Reduces energy loss by 40% vs. ordinary LFP cells — critical for high-efficiency energy storage systems and grid-scale applications.”
- “Grid-Scale Storage: A 4S 200Ah pack (12.8V, 200Ah) stores 2.56kWh — supports 100kW peak shaving. 2000-cycle durability cuts replacement costs by 30% over 10 years.”
- “Industrial UPS: Low 0.3mΩ resistance ensures stable 80kW backup power, even during 60℃ summer heat — powered by 200Ah prismatic LFP cells.”
- “Warehouse AGVs: 2C discharge handles 80kW lifting, 1C charge refuels in 2 hours — zero downtime between shifts, enabled by CATL 200Ah Prismatic LFP cells.”
- “Construction Equipment: 3C peak discharge (600A) boosts acceleration, 200Ah capacity supports 30-minute peak operation — no performance drop in -20℃ winters.”
- “Marine Propulsion: 2C continuous discharge (400A) powers 80kW thrusters, 3C peak (600A) boosts acceleration. IP65-customized 200Ah prismatic packs resist saltwater, extending range by 50%.”
- “Off-Road Trucks: -20℃ discharge starts 60kW engines in freezing mines, 0℃ charge recharges via on-board generators — no cold-weather delays.”
We offer end-to-end customization for CATL 200Ah Prismatic LFP cells:
- ✅ Voltage Scaling: 4S (12.8V) to 16S (51.2V) for industrial UPS and grid-scale storage.
- ✅ Capacity Expansion: 2P (400Ah) to 4P (800Ah) for high-energy marine or off-road applications.
- ✅ BMS Integration: CAN/RS485 smart charge control — manages 2C discharge and 1C charging without overheating.
- ✅ Enclosure Customization: IP65 waterproof, ruggedized casings for marine/industrial use (as featured in the 200Ah-8S model).
“Explore our popular custom models (200Ah-4S, 200Ah-2P) — or design your unique 200Ah Prismatic LFP system for specialized high-power projects.”
| Nominal Voltage | 3.2V |
| Minimal Capacity | 200Ah |
| Std. Charge Current | 40A ~ 100A (0.2C ~ 0.5C) |
| Max. Charge Current | 200A (1C Rate) |
| Continuous Discharge Current | 2C (400A) |
| Peak Discharge Current | 3C (600A) |
| Charge Cut-Off Voltage | 3.9V |
| Discharge Cut-Off Voltage | 2.0V |
| Inner Resistance | ≤ 0.3mΩ (At 0.2C rate, 2.0V cut-off) |
| Weight | 6.4kg |
| Dimension | Length: 200mm |
| Width: 175mm |
| Thickness: 54mm |
| Operating Temperature | Charging: 0°C ~ 45°C |
| Discharging: -20°C ~ 60°C |
| The cell surface temperature cannot exceed 70°C. |
| Storage Temperature / Humidify | Temperature: -10°C ~ +35°C |
| Humidity: 65%±20%RH |
| Optimal store temperature of 23 ± 5°C for long term storage. |
| Life Cycle | ≥2000 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard) |
