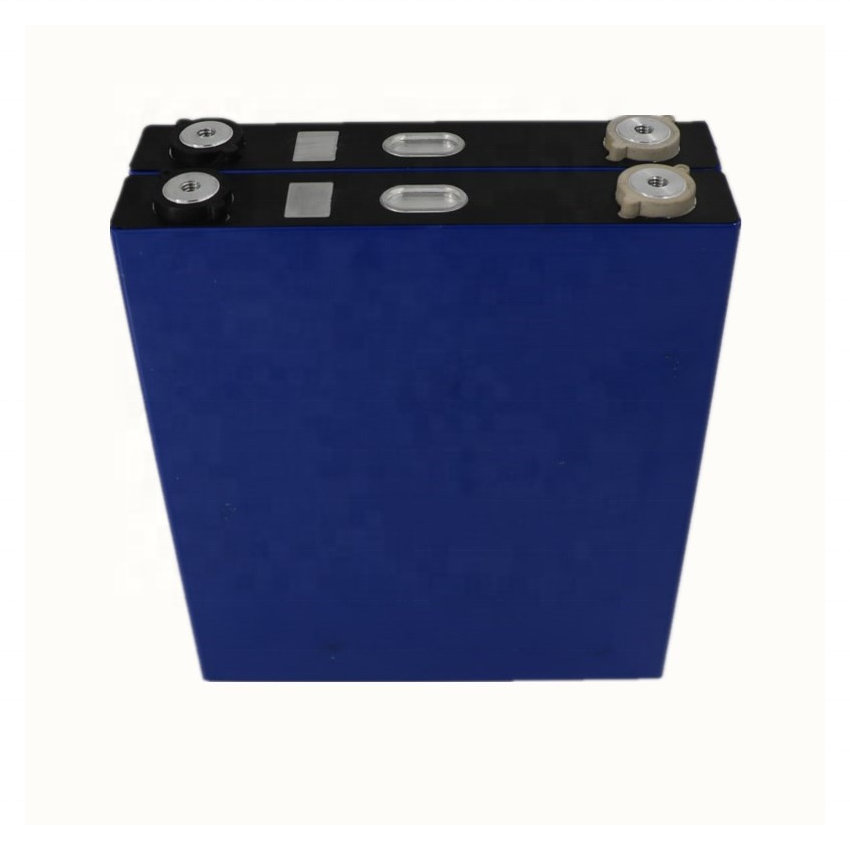

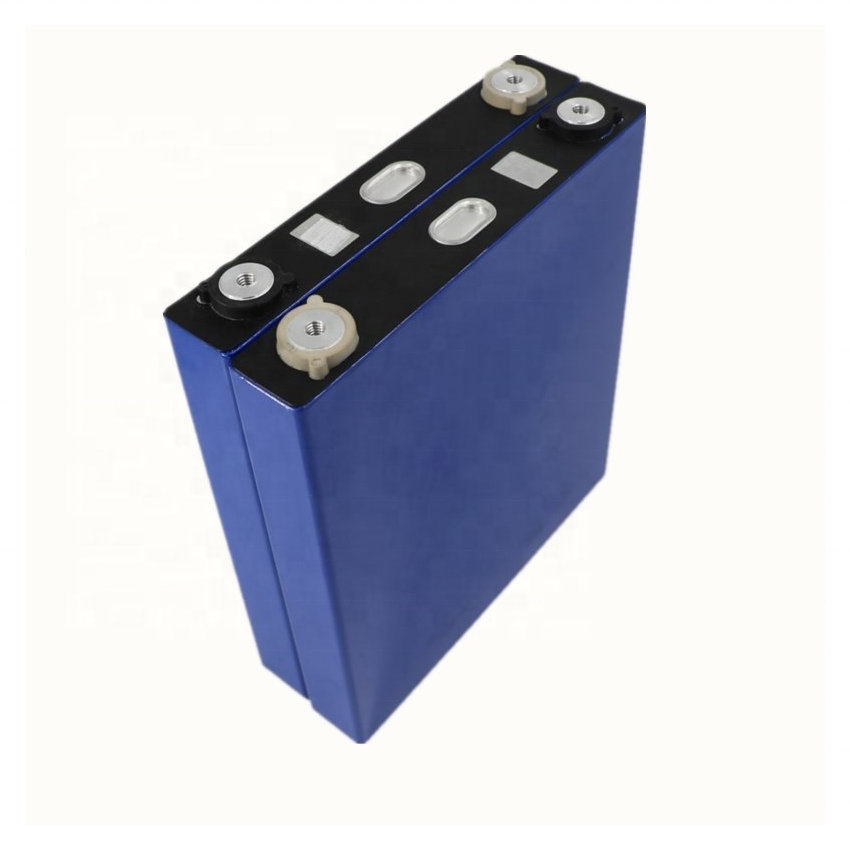

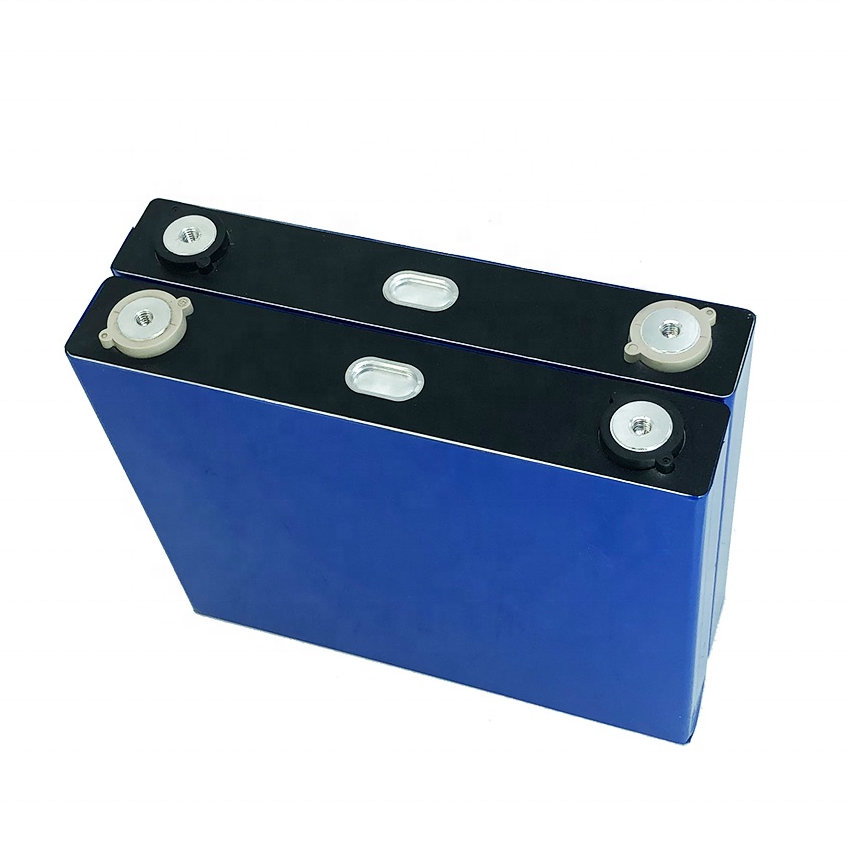

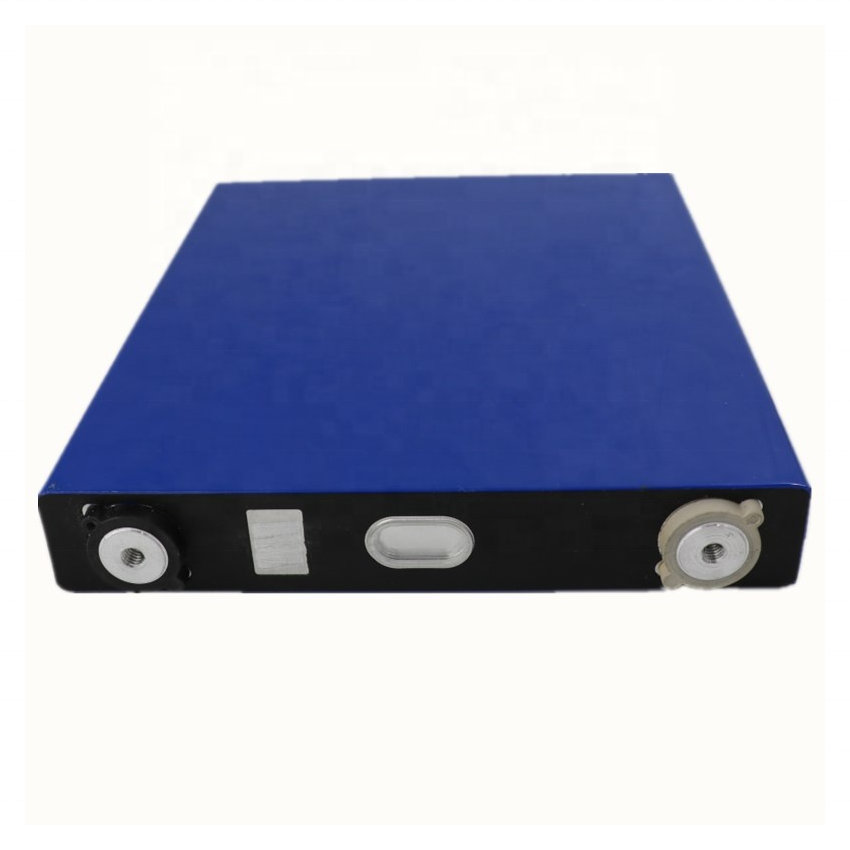

Engineered for versatile energy storage, the CATL 100Ah 3.2V LFP Cell Battery delivers 100Ah high-capacity, 3.2V stable output, and robust LiFePO₄ chemistry. Built with prismatic design, ultra-low self-discharge, and -20~60℃ temperature tolerance, this 100Ah 3.2V LFP Cell Battery fuels solar systems, RV off-grid setups, and 24/7 industrial backup—eliminating downtime in critical power applications.
| Battery Type: | LiFePO4 battery cell |
| Rated Voltage | 3.2V |
| Rated Capacity | 86Ah |
| Recommended Charge Current | 0.2C |
| Continuous Charge Current | 1.0C |
| Continuous Discharge Current | 1.0C |
| Max. Discharge Current | 3.0C |
| Discharge Cut-off Voltage | 2.5V |
| Charge Limited Voltage | 3.65V±0.03V |
| Internal Impedance | ≤0.7mΩ |
| Charge Temperature (CC/CV) | 0~45°C |
| Discharge Temperature (CC/CV) | -20~60°C |
| Cycle Life | ≥3000 cycles |
| Dimension | 48*174*128mm |
| Weight | 2120g |
- “3000+ Cycles: Powers a 5kWh solar system for 8+ years—outlasting 2 sets of lead-acid batteries.”
- “80% Capacity Retention: Maintains reliable output even after a decade of daily charging/discharging.”
- “-20℃ Discharge: Starts RV appliances in freezing winters without capacity loss.”
- “60℃ Charge Resistance: Endures desert solar farms—no thermal shutdown during peak sunlight.”
- “Zero Thermal Runaway: Safely installed in homes, RVs—no fire risk like NMC batteries.”
- “Low Self-Discharge: Holds 97% charge after 3 months—ready for emergency backup.”
- “1C Continuous Discharge (100A): Runs 5kW industrial tools or 3kW RV air conditioners.”
- “3C Peak Discharge (300A): Handles sudden surges in solar inverters or heavy machinery startups.”
- “Cobalt-Free LFP: Meets EU environmental standards—no toxic materials for safe disposal.”
- “Prismatic Packaging: 15% Higher Energy Density than cylindrical cells—saves space in battery banks.”
The CATL 100Ah 3.2V LFP Cell Battery enables:
- “Off-Grid Solar Systems: Stores 3.2kWh per cell—powers a 3-bedroom home for 8hrs during blackouts.”
- “Grid-Tied Solar Farms: 100Ah capacity buffers peak demand—reduces utility fees by 30%.”
For mobile power needs:
- “RV House Batteries: -20℃ operation keeps fridges, heaters running in mountainous regions.”
- “Marine Energy Storage: IP67-compatible prismatic design resists saltwater corrosion—extends boat runtime.”
In critical infrastructure:
- “UPS Systems: 3000-cycle lifespan supports data centers for 5+ years—no frequent battery swaps.”
- “Heavy Machinery Backup: 3C peak current starts 100kW motors—prevents production halts.”
