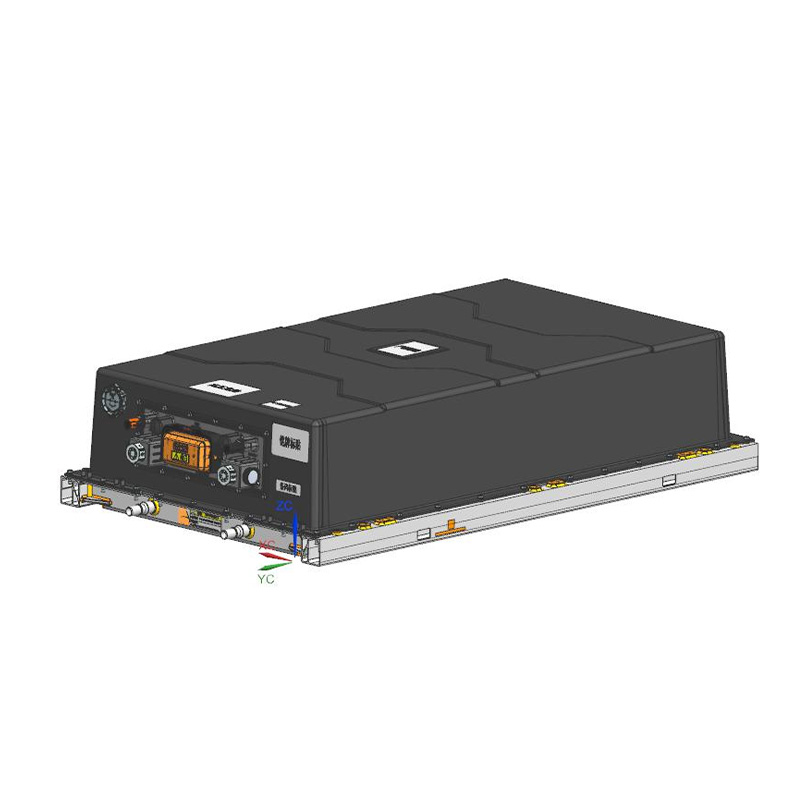

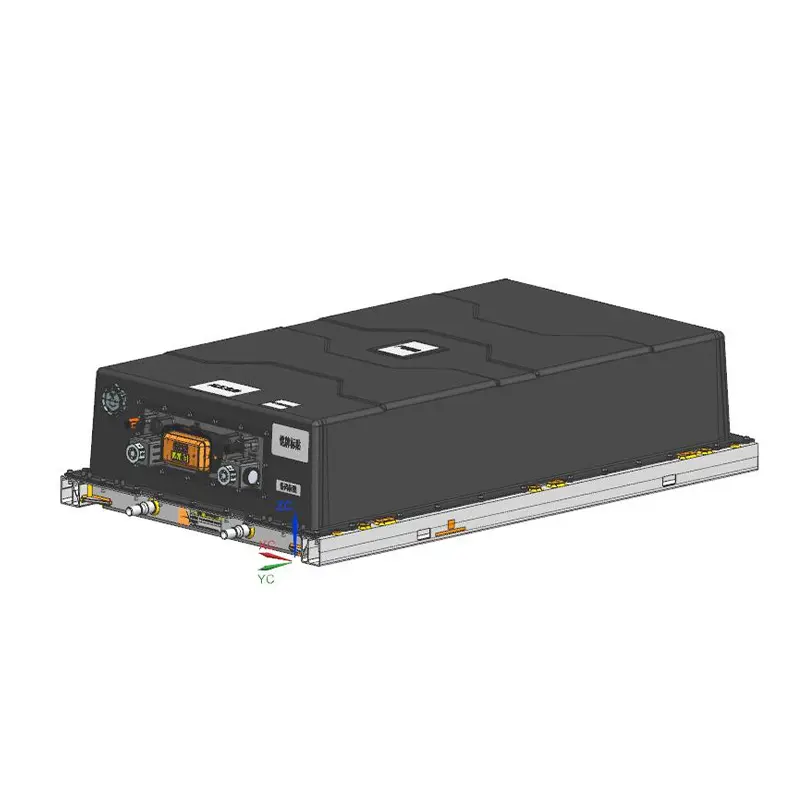

The BYD B30 LFP LiFePO4 Battery Box is a cutting-edge lithium iron phosphate (LFP) energy solution designed for industrial energy storage systems, electric vehicles (EVs), and heavy-duty equipment. Leveraging BYD’s proprietary Cell-to-Pack (CTP) technology and liquid cooling, this battery box provides a nominal voltage of 153.6V, a rated capacity of 245.5Ah, and a total energy output of 37.70kWh. With LFP’s inherent safety, long cycle life, and BYD’s precision engineering (including single-cell voltage/temperature monitoring and robust IP68 protection), the BYD B30 LFP LiFePO4 Battery Box ensures reliable, efficient power for demanding industrial and automotive scenarios.
| Category | Parameter | Value |
|---|
| Basic Parameters | Nominal Voltage | 153.6V |
| Rated Capacity | 245.5Ah (2.0~3.7V) |
| Rated Energy | 37.70KWh |
| Pack GED | 167.5wh/kg |
| VCtP | 60.9% |
| Cell GED | 181 wh/kg |
| IP Rating | IP68 |

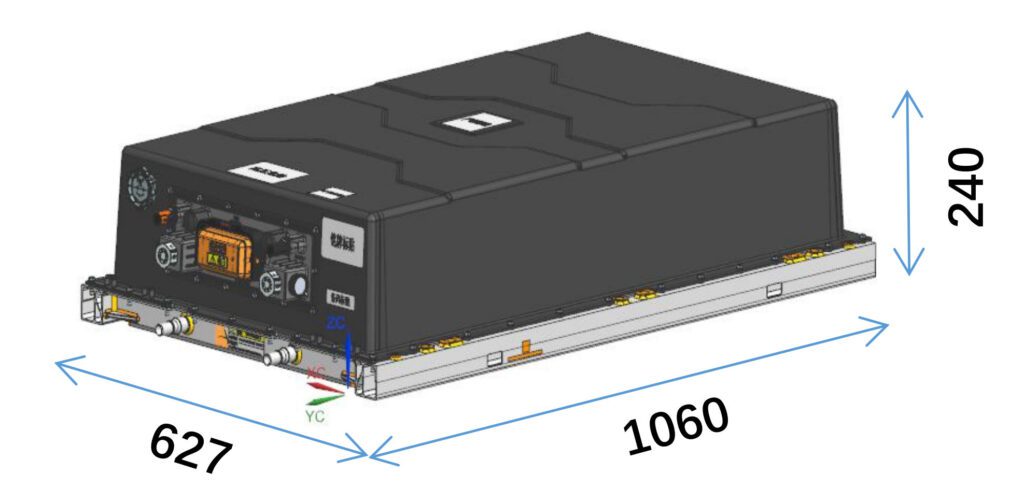

| Structural Dimensions | Height | 240 ±3mm |
| Width | 627 ±5mm |
| Length | 1060 ±5 mm |
| Weight | 225 ±6kg |
| Electrical Parameters | Charging Method | CC/CP |
| Charging Current | 49A (Standard) |
| Maximum Charging Current (at 25°C) | 250A |
| Charging Cut-off Voltage | 3.7V per cell |
| Discharge Method | CC/CP |
| Discharge Cut-off Voltage | 2.0V per cell |
| Discharge Current | 49A (Standard) |
| Maximum Discharge Current (at 25°C) | 250A |
| Pulse Charge/Discharge Current (at 25°C for 30S) | 350/400A |
| Charge/Discharge Efficiency | > 95% (0.2C@RT) |
| Battery Pack Impedance | ≤38.4mΩ |
| Single Cell Impedance | < 0.8mΩ |
| Insulation Resistance | > 5000Ω/v |
| Y Capacitance | <40nF |
| Operating Conditions | Charging Environment Temperature | -20 ~ +50°C |
| Discharge Environment Temperature | -30 ~ +55°C |
| Storage Environment Temperature | Short-term Storage: 28 ~ +40°C (< 1 month, SOC: 20% to 50%) |
| | Long-term Storage: -20 ~ +28°C (< 6 months, SOC: 20% to 50%) |
| Storage Humidity | 5% ~ 95% |
| Shipping State | 40% ~ 60% SOC (adjustable according to customer requirements) |
The BYD B30 LFP LiFePO4 Battery Box utilizes lithium iron phosphate (LFP) as the cathode, enabling:
- Unmatched Safety: LFP’s thermal stability eliminates thermal runaway risks, making the battery box ideal for safety-critical uses like EVs or industrial energy storage.
- Long Lifespan: Designed for thousands of charge-discharge cycles, reducing total cost of ownership in long-term deployments.
- Cell-to-Pack (CTP) Design: Integrates 48 C115F cells in series without redundant modules, boosting energy density (167.5Wh/kg pack GED) and structural reliability.
Equipped with liquid cooling and single-cell temperature monitoring, this battery box ensures:
- Consistent performance across -30~55℃ discharge temperatures—vital for cold-region EVs or industrial gear in extreme climates.
- Automatic heating/cooling activation to maintain optimal cell temps, maximizing efficiency and cycle life.
The battery box features:
- IP68 Rating: Dust-tight and waterproof, allowing deployment in harsh environments (e.g., outdoor energy storage, construction machinery).
- High-Strength Casing: The top cover uses low-density, fire-resistant glass fiber prepreg (PCM process), balancing weight reduction with fire safety—critical for automotive and industrial applications.
Integrated single-cell voltage monitoring and multi-layer protections (overcharge, over-discharge, overcurrent, short-circuit) provide:
- Real-time visibility into cell health for predictive maintenance.
- Automatic shutdown during unsafe conditions, protecting the battery and connected systems.
The BYD B30 LFP LiFePO4 Battery Box powers:
- Electric Vehicles (EVs): Buses, trucks, or specialty vehicles needing high safety, long range, and durable power (e.g., public transit, logistics fleets).
- Industrial Energy Storage: Grid-tied/off-grid systems for peak shaving, backup power, or renewable energy (solar/wind) integration.
- Heavy-Duty Equipment: Construction machinery, forklifts, or port cranes requiring high current output (up to 250A continuous) and rugged operation.
