BTS50-05-60 Cabinet-Type Comprehensive Tester
Price range: $6,794.12 through $24,264.71
30 Day Price Guarrantee
Fast Delivery
Global Warranty
Lifetime Support

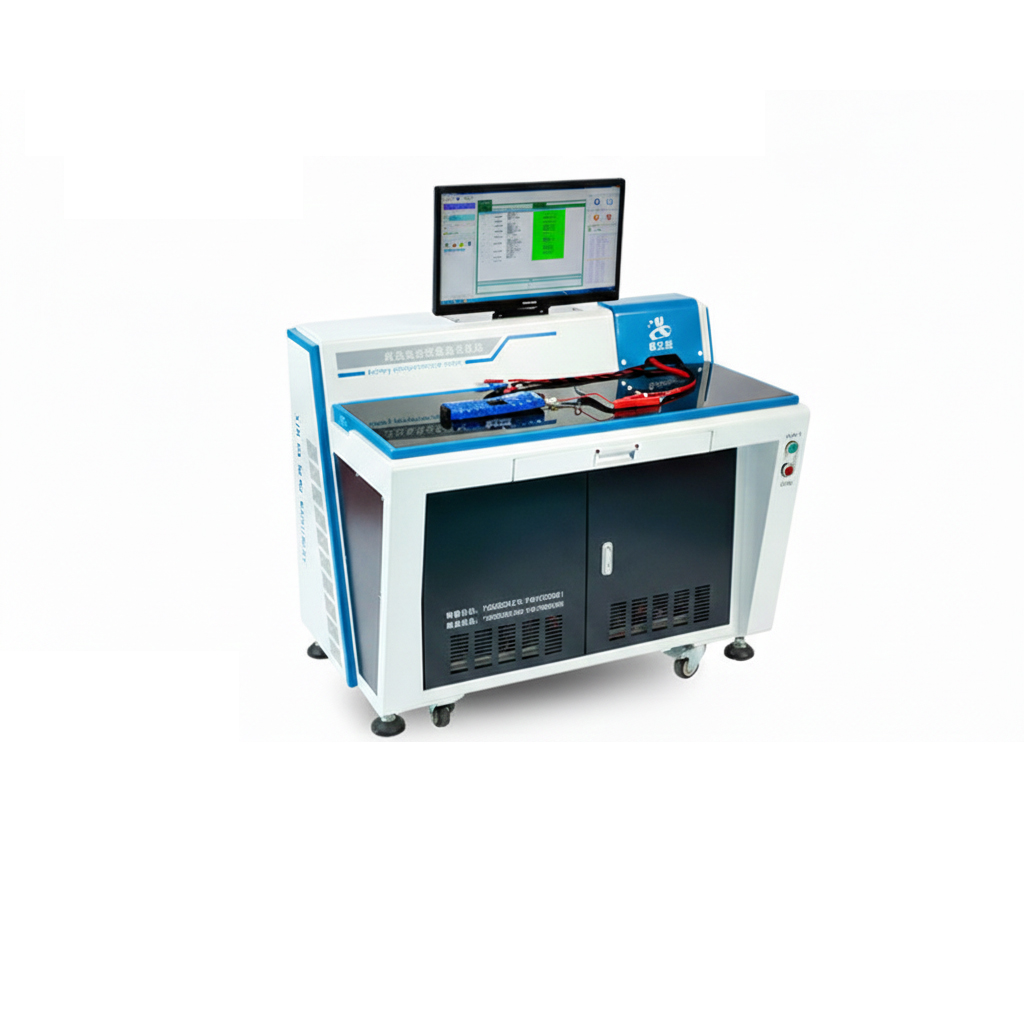

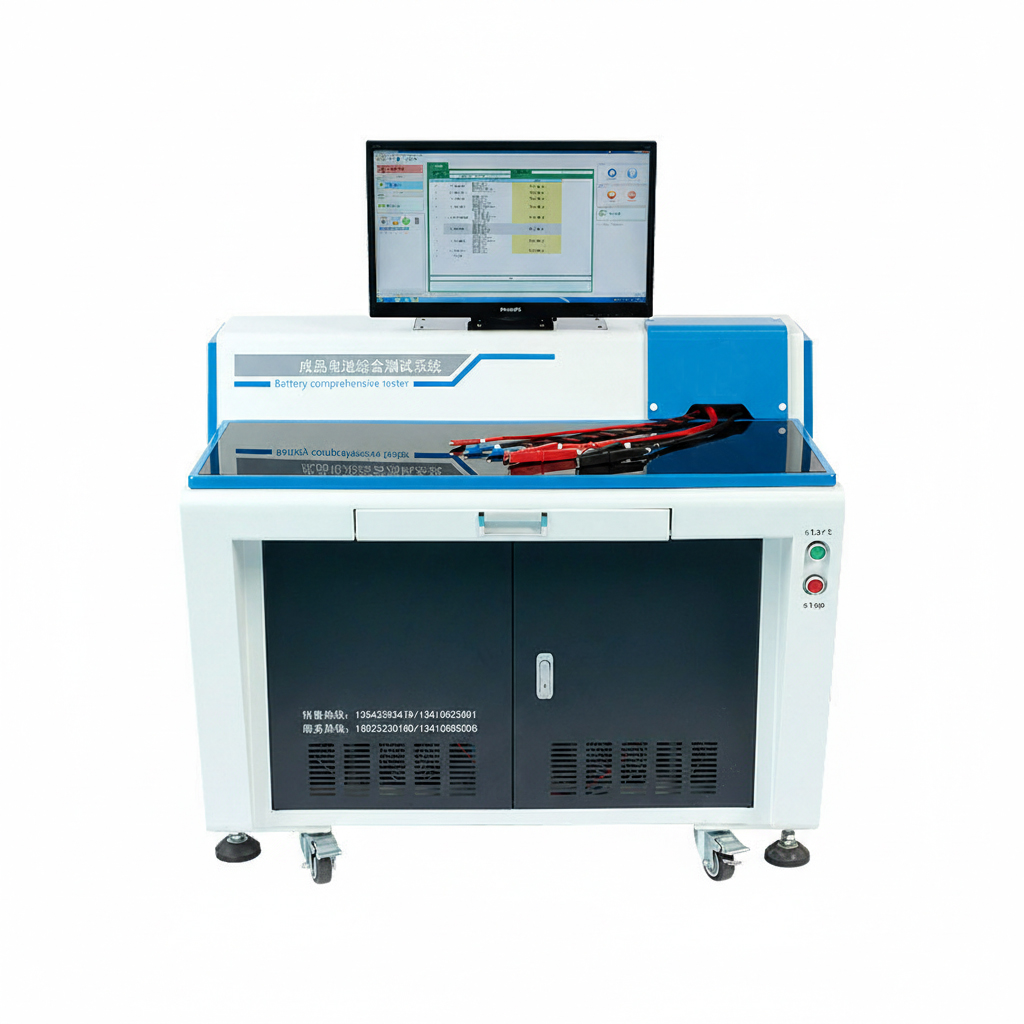

BTS50-05-60 Cabinet-type Comprehensive Tester – Professional Lithium Battery Testing Solution
Battery Testing Solution BTS50-05-60 Cabinet-type Comprehensive Tester is a dedicated testing equipment for lithium batteries, supporting both same-port and different-port lithium battery pack solutions, as well as hardware and software board testing. With a user-friendly human-machine interface, this BTS50-05-60 cabinet-type tester allows multi-machine online use, significantly improving testing efficiency and production capacity for battery manufacturing or testing scenarios.
This BTS50-05-60 comprehensive tester covers a full range of essential testing functions: open-circuit voltage testing (0-50V range, 2mV resolution), AC internal resistance testing (0-1000mΩ range, 1mΩ resolution), charge-discharge overcurrent delay testing, continuous charge-discharge testing, and NTC/ID resistance testing (0-1000KΩ range, 0.1KΩ resolution). It also verifies the continuous charging function of battery packs and the continuous load-carrying capacity of battery packs, effectively checking voltage drop ΔV during discharge.
Equipped with barcode scanning auto-start and manual start modes, the BTS50-05-60 cabinet-type comprehensive tester automatically records test results, which can be saved to a database or Excel files and uploaded to MES systems for easy product traceability. It supports serial communication with upper computer software (needing self-prepared computer) and adopts a forced air cooling system for stable heat dissipation. Additionally, it offers a 1-year warranty and lifelong free software upgrades (until hardware incompatibility), making it a reliable choice for lithium battery testing needs.
