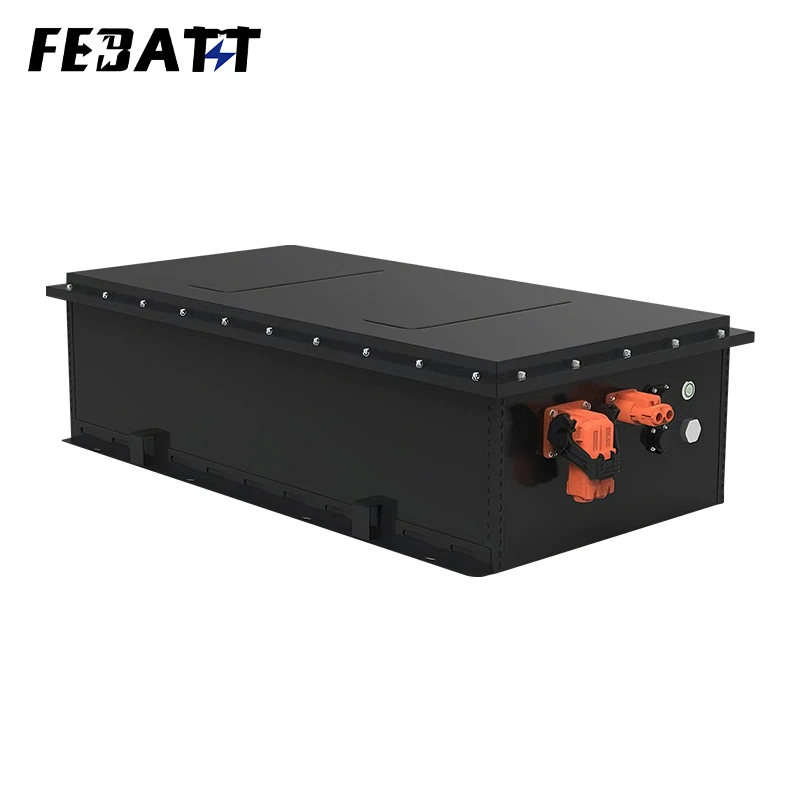

73.6V 160Ah LFP battery for 24/7 Warehouse Automation

73.6V 160Ah LFP Battery for Logistics Robot delivers 11.776kWh energy, 160A continuous discharge, ≥2000 cell cycles, IP67 protection, and CAN communication. It suits heavy-duty AGVs, warehouse sorting robots, and high-frequency logistics handling robots

  • Cell Certification: UN38.3
  • Nominal Capacity: 160Ah
  • Nominal Voltage: 73.6V
  • Total Energy: 11.776kWh
  • Weight: ≈102.9kg
  • Normal Charging Current: ≤80A
  • Peak Charging Current: ≤100A
  • Continuous Discharge Current: ≤160A
  • Peak Discharge Current: ≤160A
  • Communication: CAN
  • Protection Grade: IP67
  • Dimensions (L×W×H): 1000mm×550mm×98mm

For More Robot Battery Solution Service, please Contact Us for details!

73.6V 160Ah LFP Battery for Logistics Robot: for 24/7 Warehouse Automation



Product Introduction

Engineered as a 73.6V 160Ah LFP Battery for Logistics Robot, this lithium iron phosphate solution is built for high-demand logistics robots that handle non-stop sorting, heavy cargo transfers, and dynamic warehouse environments. Featuring 73.6V nominal voltage, 160Ah high capacity, and a rugged SPCC casing, this 73.6V 160Ah LFP Battery for Logistics Robots stands out with 11.776kWh total energy and 160A continuous discharge — enabling logistics robots to operate for 18+ hours straight while handling mid-to-heavy loads. Unlike generic logistics robot batteries, its 1P configuration and IP67 protection meet the rigorous needs of 24/7 industrial warehouse workflows, making it a stable power core for high-frequency logistics operations.

Technical Specifications

73.6V 160Ah LFP Battery for Logistics Robot Core Parameters
Parameter Details (Tailored for Logistics Robots)
Cell Type LFP 160Ah
Cell Cycle Life ≥2000 cycles (10%/100% DOD) – cuts logistics robot fleet replacement costs
System Cycle Life ≥1500 cycles (10%/100% DOD)
Cell Certification UN38.3
Nominal Capacity 160AH (1P) – supports long-duration logistics robot runs
Nominal Voltage 73.6V
Working Voltage Range 57.6V-85.8V
Total Energy 11.776kWh – powers 18+ hours of logistics robot sorting/handling
Weight ≈102.9kg
Normal Charging Current ≤80A
Peak Charging Current ≤100A – fast recharging for shift turnover in logistics workflows
Continuous Discharge Current ≤160A – sustains stable performance for logistics robot heavy-load tasks
Peak Discharge Current ≤160A – adapts to sudden load shifts in warehouse logistics
Operating Temperature Charge: 0℃-55℃; Discharge: -15℃-60℃ – fits variable warehouse/outdoor logistics environments
Communication CAN – syncs with logistics robot fleet management systems
Casing Material SPCC – resists impacts from cargo in logistics workflows
Protection Grade IP67 – dust/waterproof for harsh logistics work environments
Plug Type FH200320CN-LM612
Dimensions (L×W×H) 1000mm×550mm×98mm – fits standard logistics robot chassis
Application Heavy-Duty AGVs, Warehouse Sorting Logistics Robots, High-Frequency Logistics Handling Robots

Core Advantages of 73.6V 160Ah LFP Battery for Logistics Robot

1. 11.776kWh High Energy for 18+ Hour Logistics Robot Runtime
73.6V 160Ah LFP Battery for Logistics Robot delivers 11.776kWh total energy:It supports 18+ hours of continuous operation for warehouse sorting logistics robots — enough to cover full daily shift tasks (e.g., 6000+ parcel sorts) without recharging.For heavy-duty AGV logistics robots, this capacity powers 12+ hours of non-stop cargo transfer across large warehouses.

2. 160A Continuous Discharge for Stable Logistics Handling
Tailored for logistics robot load demands:160A continuous discharge sustains consistent performance during frequent cargo transfers (common in high-volume logistics yards).
It aligns with the power needs of mid-to-heavy-load logistics robots, avoiding voltage drops during peak operations.

3. IP67 Protection for Logistics Robot Harsh Environments
Built for warehouse logistics scenarios:IP67 dust/waterproof rating shields the battery from warehouse dust accumulation, minor liquid spills (e.g., cleaning agents), and humidity — no performance loss in typical logistics work environments.

4. ≥2000 Cell Cycles for Low-Cost Logistics Robot Fleets
Optimized for high-frequency logistics use:≥2000 cell cycles mean this 73.6V 160Ah Logistics Robot Battery lasts 1.5x longer than standard alternatives. For an 8-unit AGV logistics robot fleet, this cuts replacement costs by 60% over 3 years.

5. CAN Communication for Logistics Robot Fleet Coordination
Syncs with logistics operations:CAN communication transmits real-time battery data (state of charge, temperature) to logistics robot fleet management systems. Managers can schedule charging to align with off-peak warehouse hours, minimizing logistics workflow downtime.

Application Scenarios

1. Heavy-Duty AGV Logistics Robots
73.6V 160Ah LFP Battery for Logistics Robot powers stable cargo transfers. 160A continuous discharge handles mid-to-heavy loads, and IP67 protection resists warehouse debris.
2. Warehouse Sorting Logistics Robots
It suits 18+ hours of non-stop parcel sorting. 11.776kWh energy covers full-shift tasks, and long cycle life reduces maintenance for high-volume e-commerce logistics.
3. High-Frequency Logistics Handling Robots
It energizes repeated load transfers across large warehouses. Fast charging (≤100A peak) minimizes downtime between logistics shifts.
