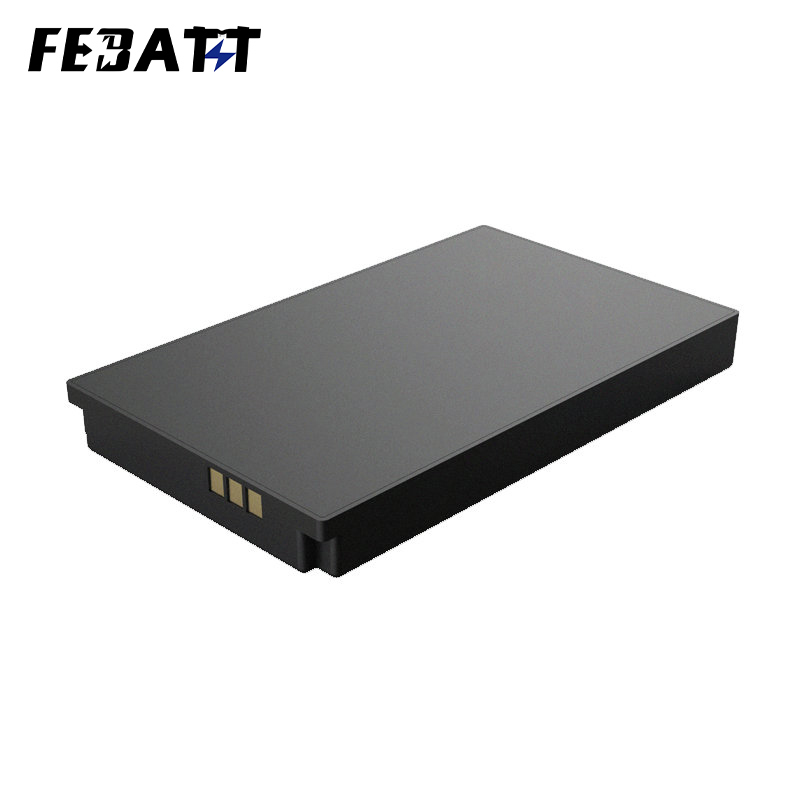

Engineered for safety in volatile settings, the 7.4V 3.5Ah Explosion-proof Lithium Battery delivers 3500mAh capacity at 7.4V, with an intrinsically safe explosion – proof design and operation in -20~+55℃ discharge. As a specialized Explosion-proof Lithium Battery for Mobile Terminals, it features engineering plastic casing, multi – layer safety safeguards, and gold – plated terminals—making it the go – to 7.4V Explosion-proof Battery for specialized mobile terminals, tablets, and handheld devices in hazardous industrial and security environments.
Product Details
Cell Model: 4567104/3.7V/3500mAh
Battery Specification: 4567104-2S1P/7.4V/3500mAh
Nominal Voltage: 7.4V
Nominal Capacity: 3.5Ah
Charging Voltage: 8.4V
Charging Current: ≤2A
Discharging Current: 0.6A
Instantaneous Discharge Current: 1.5A
Cut-off Discharging Voltage: 6.0V
Finished Product Internal Resistance: ≤180mΩ
Battery Weight: 150g
Product Dimensions: 13×72×118mm (Max)
Charging Temperature: 0～45℃
Discharging Temperature: -20～55℃
Storage Temperature: -20～45℃
Battery Enclosure: Engineering plastic
Lithium Battery Protection: Short-circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, intrinsically safe explosion-proof design, etc.
Application Areas: Specialized mobile terminals, tablets
| Model | Nominal Voltage | Rated Capacity | Battery Type | Explosion-proof Features | Key Applications |
|---|
| 3.6V 3.8Ah Explosion-proof Polymer Battery | 3.6V | 3800mAh | Polymer | ABS+PC shell, multi-layer protection | Special firefighting helmets, security equipment, handheld devices |
| 7.4V 3.5Ah Explosion-proof Lithium Battery | 7.4V | 3500mAh | Lithium Ion | Engineering plastic casing, intrinsically safe design | Specialized mobile terminals, tablets, industrial/hazardous zone handheld devices |
| 3.6V 6.7Ah 18650 Sensor Explosion-proof Ternary Lithium Battery | 3.6V | 6700mAh | Ternary Lithium (18650) | T4 safety standard compliance, multi-layer protection | Oil & gas sensors, mining detectors, chemical monitors |
| Special Explosion-proof Polymer Cell 3600mAh | 3.6V | 3600mAh | Polymer | Passes puncture test, short circuit temperature ≤120℃ | Oil rigs, mines, chemical plants instrumentation |
| 3.6V 3350mAh Low Temperature 18650 Cell (with explosion-proof variants) | 3.6V | 3350mAh | 18650 Lithium Ion | Optional explosion-proof design for extreme cold hazardous environments | Aerospace, polar exploration, cold-region industrial equipment with explosion risks |
- “Intrinsically Safe Design & Engineering Plastic Casing: This 7.4V 3.5Ah Explosion-proof Lithium Battery withstands volatile atmospheres in oil & gas sites, preventing ignition risks for specialized mobile terminals—critical for field technicians.”
- “Multi – Layer Protection: In security operations with combustible dust, the Explosion-proof Lithium Battery for Mobile Terminals’s safeguards eliminate overcharge and short – circuit risks, ensuring uninterrupted power for tablet – based surveillance.”
- “-20~+55℃ Operation: The 7.4V Explosion-proof Battery powers barcode scanners in -15℃ warehouses and data terminals in +50℃ factories, maintaining 7.4V output for all – day operation.”
- “3500mAh Capacity: Specialized mobile terminals rely on this 7.4V 3.5Ah Explosion-proof Lithium Battery to run inventory management and diagnostic apps for hours, reducing downtime in hazardous zones.”
- “Industrial Mobile Terminals: The Explosion-proof Lithium Battery for Mobile Terminals drives RFID scanners in chemical plants, with explosion-proof design ensuring safety near corrosive substances.”
- “Security Patrol Tablets: Law enforcement uses the 7.4V Explosion-proof Battery to power rugged tablets in -20℃ urban patrols, with 3500mAh enabling extended shift operations.”
- “Oil Field Data Terminals: A 7.4V 3.5Ah Explosion-proof Lithium Battery powers handheld data loggers in -20℃ oil fields, with intrinsically safe design eliminating ignition risks near natural gas.”
- “Factory Inventory Scanners: The Explosion-proof Lithium Battery for Mobile Terminals runs barcode scanners in +55℃ manufacturing zones, ensuring accurate inventory tracking in high – heat environments.”
- “Chemical Plant Inspection Tablets: Inspectors use the 7.4V Explosion-proof Battery to power tablets in -10℃ chemical storage areas, with explosion – proof design ensuring safety near volatile chemicals.”
- “Arctic Patrol Devices: This 7.4V 3.5Ah Explosion-proof Lithium Battery drives communication terminals in -20℃ arctic security patrols, maintaining reliable power in freezing conditions.”
