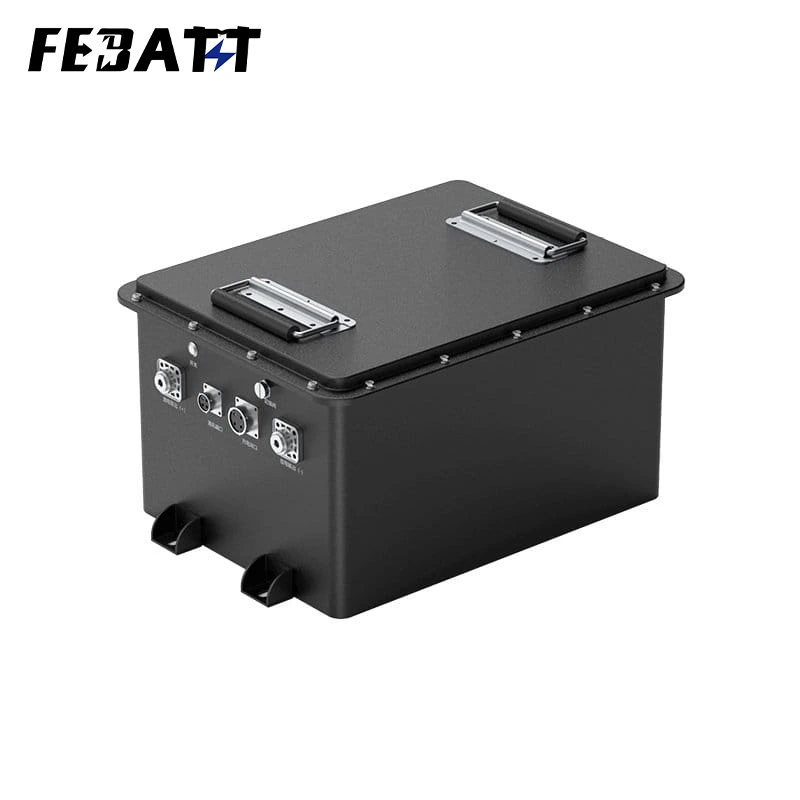

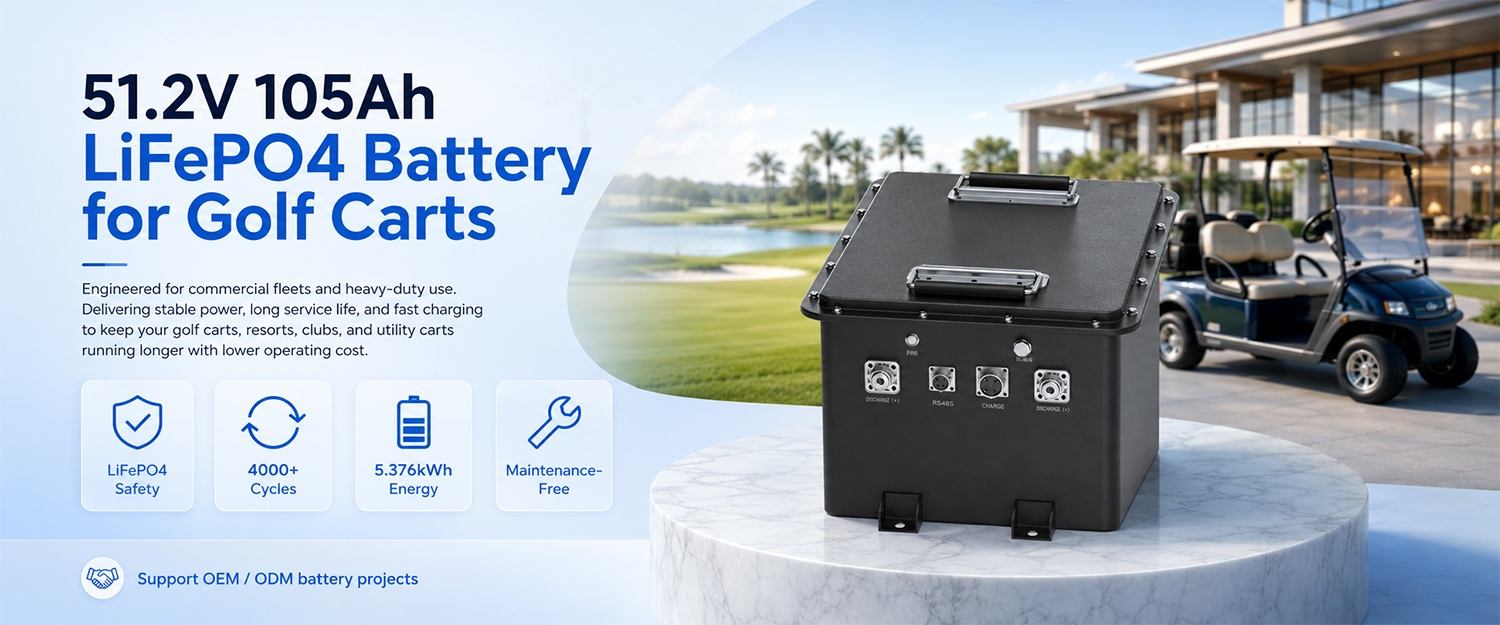

51.2V 105Ah Lithium Battery for Golf Carts: High-Capacity Power for Smooth Course Navigation
When powering golf carts, a reliable, high-performance battery is essential for smooth course navigation. Our 51.2V 105Ah lithium battery for golf carts is specifically engineered to keep golf carts running efficiently, whether on the fairway or in rugged terrain. But this versatility doesn’t stop at golf carts—this 51.2V 105Ah lithium battery also excels in robots, UPS systems, and energy storage applications, making it a multi-purpose power solution for diverse industries.
Core Advantages
1. High Capacity & Stable Voltage for Extended Runtime
This 51.2V 105Ah lithium battery for golf carts provides robust power:
- With a nominal voltage of 51.2V and 105Ah capacity, it supplies ample energy to keep golf carts operating for extended periods—even on large courses. The consistent 51.2V output ensures stable performance, whether powering a golf cart’s motors or a robot’s sensors.
2. Wide Temperature Tolerance for All-Weather Use
Engineered to perform in diverse climates:
- Charge in 0~55℃, discharge in -20~55℃: This 51.2V 105Ah lithium battery for golf carts thrives in hot summers and cold winters, making it reliable for golf courses in varied climates or robots operating outdoors.

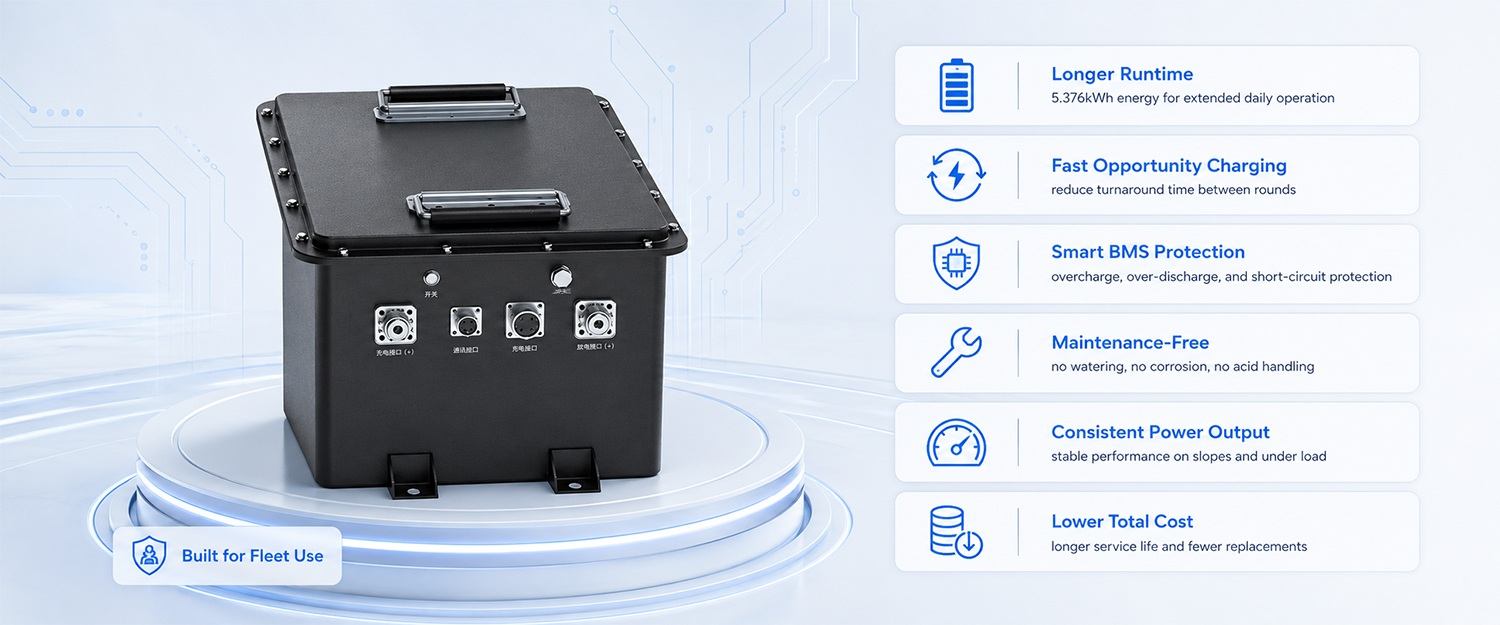

3. Advanced Battery Management for Safety & Longevity
Equipped with an intelligent BMS (Battery Management System):
- Features RS485 and CAN protocols to protect against short circuit, overcharge, over-discharge, overcurrent, and over-temperature. This ensures the 51.2V 105Ah lithium battery for golf carts (and other applications) remains safe and durable over thousands of cycles.
4. Durable Sheet Metal Casing for Rugged Environments
Built to withstand harsh conditions:
- Housed in a sheet metal casing, this 51.2V 105Ah lithium battery for golf carts resists physical damage, dust, and vibrations—ideal for golf carts traversing uneven terrain or robots working in industrial settings.
Product Specifications
| Specification | Detail |
|---|---|
| Cell Model | LF105/105Ah/3.2V |
| Battery Configuration | 16S1P (16 cells in series, 1 cell in parallel) |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 105Ah |
| Charging Voltage | 58.4V |
| Charging Current | ≤50A |
| Discharging Current | 105A |
| Instantaneous Discharge Current | 120A |
| Discharge Cutoff Voltage | 40.0V |
| Internal Resistance | ≤100mΩ |
| Battery Weight | ≤54kg |
| Product Dimensions | 240×300×460mm |
| Charging Temperature | 0~55°C |
| Discharging Temperature | -20~55°C |
| Storage Temperature | -20~45°C |
| Battery Case | Sheet metal casing |
| Intelligent Protection | BMS with RS485/CAN (short circuit, overcharge, over-discharge, overcurrent, over-temperature protection) |
| Applications | Golf carts, robots, UPS systems, energy storage |
Application Scenarios
1. Golf Carts & Course Maintenance
- Golf Course Navigation: Powers golf carts for 18-hole rounds with consistent 51.2V 105Ah power, ensuring smooth acceleration and reliable runtime.
- Course Maintenance Vehicles: Supplies energy for lawnmowers, utility carts, or sprayers—withstanding outdoor elements and heavy use.
2. Robotics & Automation
- Industrial Robots: Provides stable 51.2V power for robotic arms, autonomous guided vehicles (AGVs), or warehouse robots—with smart BMS for uninterrupted operation.
- Service Robots: Powers cleaning, delivery, or hospitality robots in commercial spaces, with temperature resilience for 24/7 use.
3. UPS & Energy Storage
- Backup Power Systems: Acts as a reliable UPS for servers, medical equipment, or critical infrastructure—delivering 51.2V 105Ah energy during outages.
- Small-Scale Energy Storage: Stores surplus solar/wind power for off-grid homes, cabins, or microgrids—scalable for growing energy needs.
