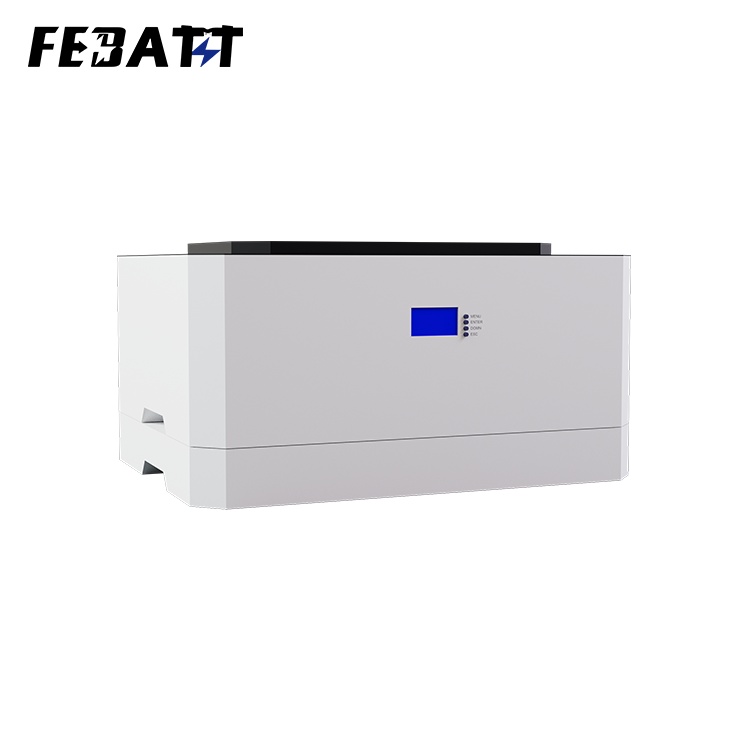

51.2V 100Ah Stacked Lithium Battery: Scalable Energy Storage for Diverse Power Needs
Product Introduction
Introducing the 51.2V 100Ah Stacked Lithium Battery—a high-performance energy storage solution engineered for scalable power systems across solar energy, electric mobility, and industrial applications. This 51.2V 100Ah stacked lithium battery combines a 100Ah capacity, 5120Wh nominal energy, and an innovative stackable design to meet the demands of distributed energy storage, extended-range electric vehicles, and reliable industrial power backup. With support for 1–15 parallel units, RS485/CAN communication, and a rugged metal casing, this stacked lithium battery ensures flexible configuration and long-lasting performance for diverse energy needs.
Technical Specifications
| Parameter | Details |
|---|---|
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 5120Wh (51.2V × 100Ah) |
| Charge Voltage | 58.4V |
| Cut-off Voltage | 40V |
| Expandability | 1–15 Units in Parallel (Scalable Storage) |
| Max. Charge Current | 100A |
| Max. Discharge Current | 100A |
| Communication Protocols | RS485, CAN (For System Integration) |
| Operating Temperature | Charge: 0–50℃; Discharge: -20–60℃ |
| Cycle Life | ≥6000 Cycles (≥80% Capacity Retention) |
| Product Dimensions (L×W×H) | 545×480×195mm |
| Net Weight (NW) | ~46kg |
| Package Dimensions (L×W×H) | 620×550×260mm |
| Gross Weight (GW) | ~50kg |
| Casing Material | Metal (Durable & Heat-Resistant) |
Core Features

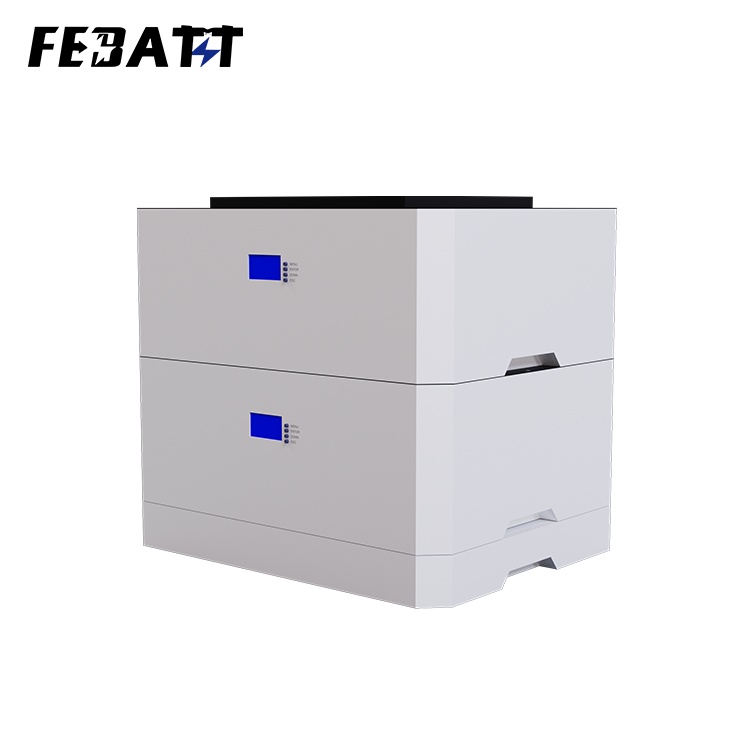

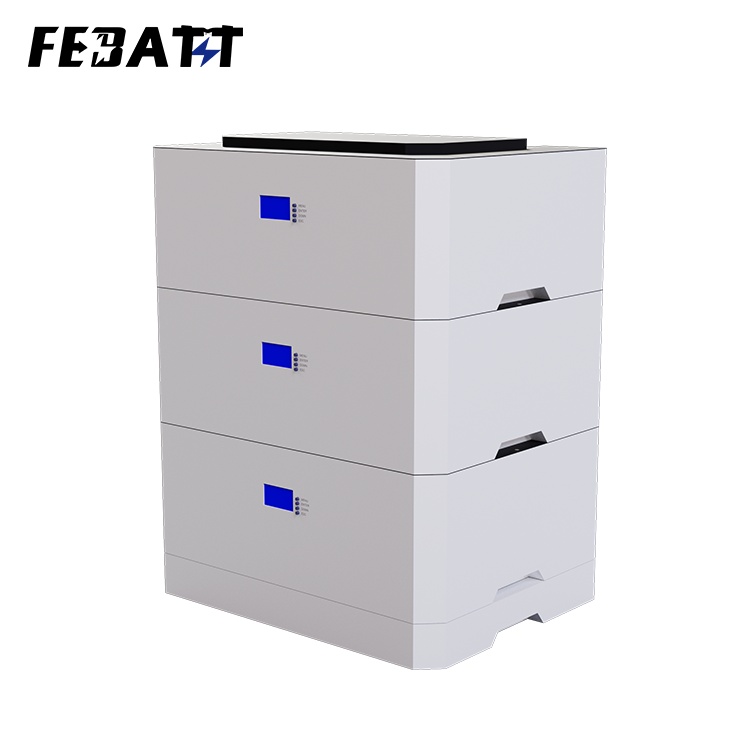

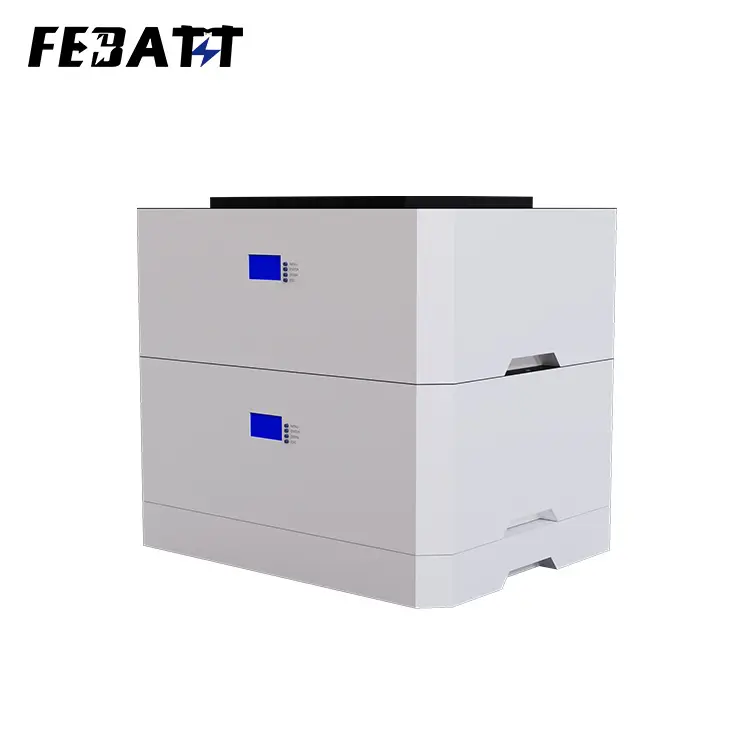

1. Scalable Stacked Design for Custom Energy Systems
This 51.2V 100Ah Stacked Lithium Battery enables flexible capacity growth:
- 1–15 Parallel Expandability: Easily scale energy storage from 5120Wh to 76.8kWh (with 15 units), making it perfect for small-scale solar setups, commercial backup systems, or extended-range electric vehicle fleets.
2. Long Cycle Life for Cost-Effective Reliability
Engineered with premium lithium chemistry:
- ≥6000 Cycles (≥80% Capacity Retention): Outlasts traditional battery technologies, reducing replacement costs for solar storage systems, industrial power backups, or EV charging infrastructure over years of use.
3. Wide Temperature Resilience for All-Environment Use
Built to perform in diverse climates:
- -20℃~60℃ Discharge Range: Powers critical loads in cold regions (e.g., winter solar installations) or hot industrial zones, ensuring uninterrupted energy supply in extreme conditions.
4. Smart Communication for Seamless Integration
Designed for modern energy networks:
- RS485 & CAN Connectivity: Integrates with solar inverters, BMS (Battery Management Systems), or industrial controls—enabling real-time monitoring of SOC (State of Charge), battery health, and faults for predictive maintenance.
5. Rugged Metal Casing for Industrial Durability
Constructed to withstand harsh environments:
- Metal Enclosure: Protects the 51.2V 100Ah stacked lithium battery from physical impact, dust, and heat—ideal for outdoor solar installations or industrial settings.
Application Scenarios
The 51.2V 100Ah Stacked Lithium Battery excels in:
- Small-Scale Solar Energy Storage: Storing surplus solar power for off-grid homes, cabins, or microgrids.
- Extended-Range Electric Vehicles: Powering electric bikes, scooters, or light EVs with scalable energy for longer trips.
- Industrial Power Backup: Supporting low-power security systems, portable medical equipment, or manufacturing line auxiliary power.
