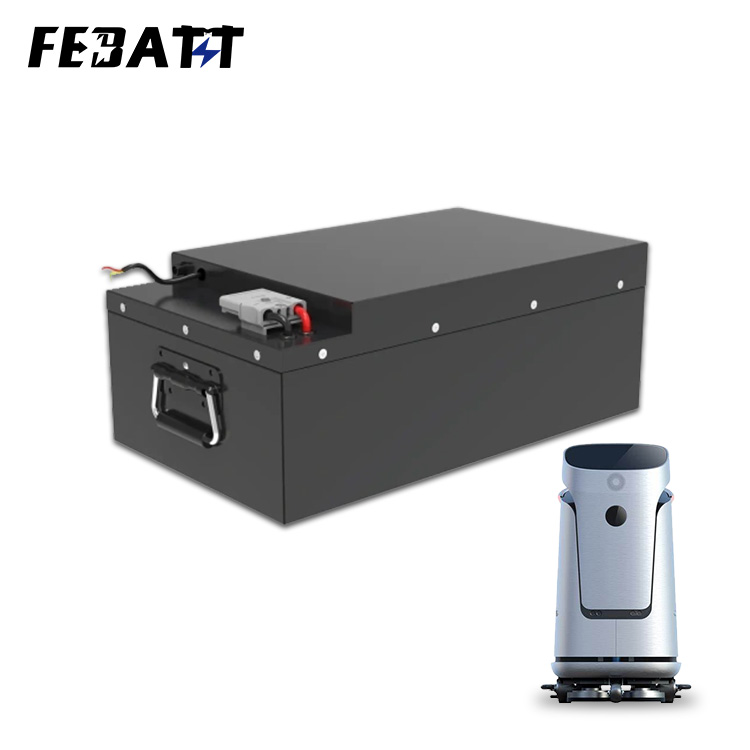

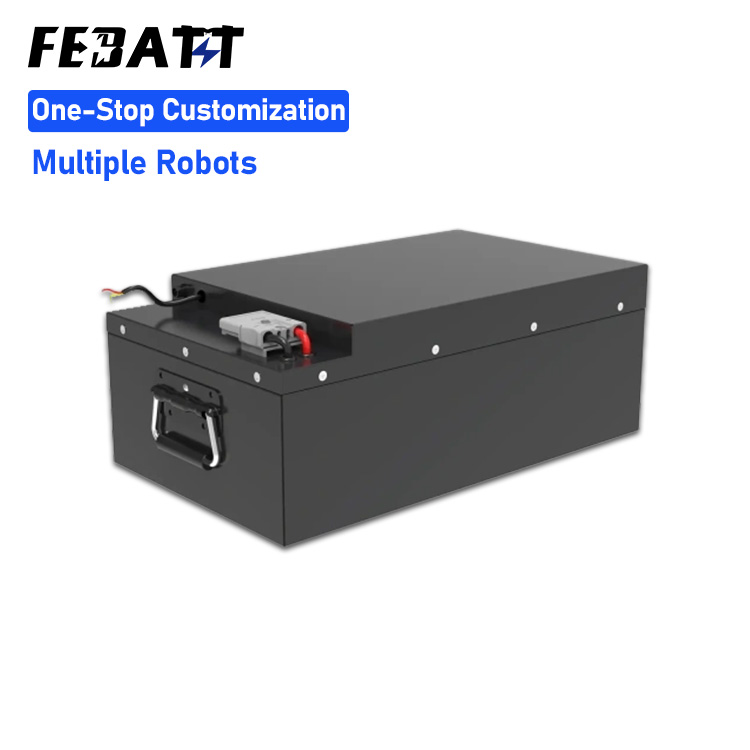

48V 60Ah AMR Battery with RS485 & BMS

48V 60Ah AMR Battery with RS485 & BMS

Introduction

Battery Type：Lithium Iron Phosphate (LiFePO4)
Nominal Voltage：48V
Rated Capacity：60Ah
Actual Voltage：48V
Cycle Time：≥2000 cycles
Max. Continuous Current：60A
Peak Current：90A
Voltage Range：37.5V – 54.75V
Operating Temperature：-10～60℃
Dimension：455*260*168mm
Waterproof Grade：IP64
Communication：RS485

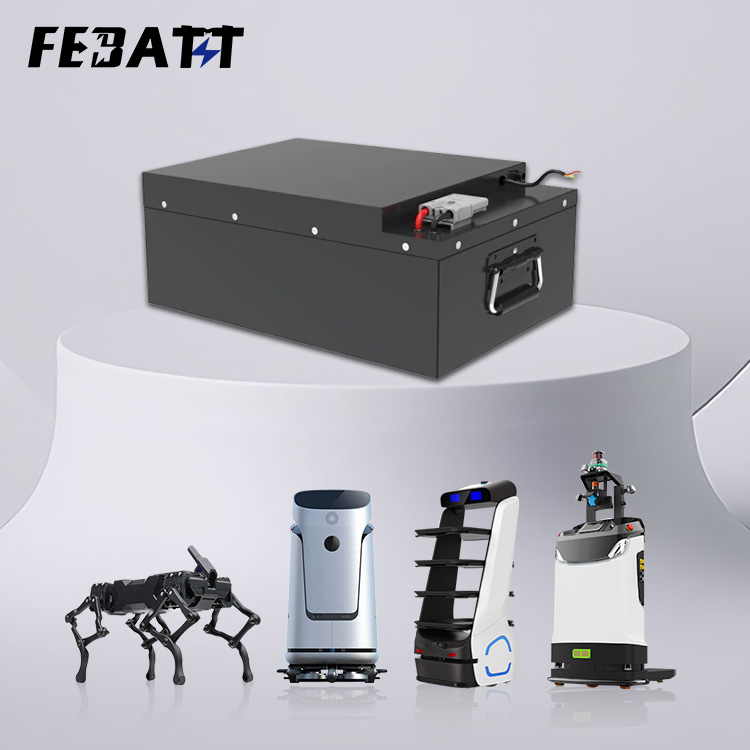

Application：AGV、AMR、RGV

Features

1.Shock Resistance: Through the design of filling the shock-absorbing structure inside the cold-rolled sheet metal housing.
2.High-Current Capability: Copper-nickel composite nickel strips are used for connection.

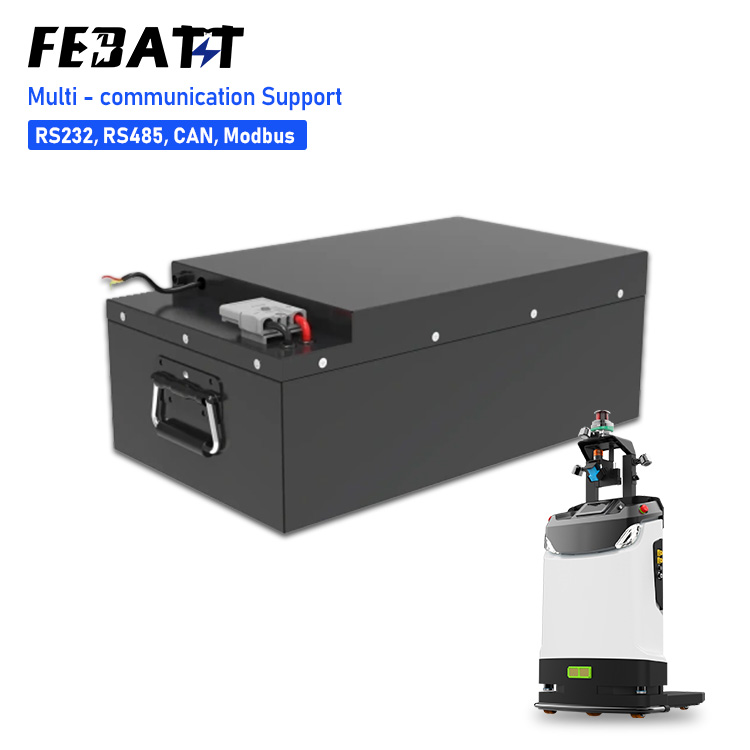

3.Communication Interface: The RS485 communication protocol allows reading of battery voltage, current, temperature, and capacity.
4.Data Communication Management: BMS software-managed chip ensures precise data transmission.
5.Battery Pack Safety: Equipped with temperature probe for automatic protection.
6.High cycle life, conforming to low-carbon and energy-saving values.
