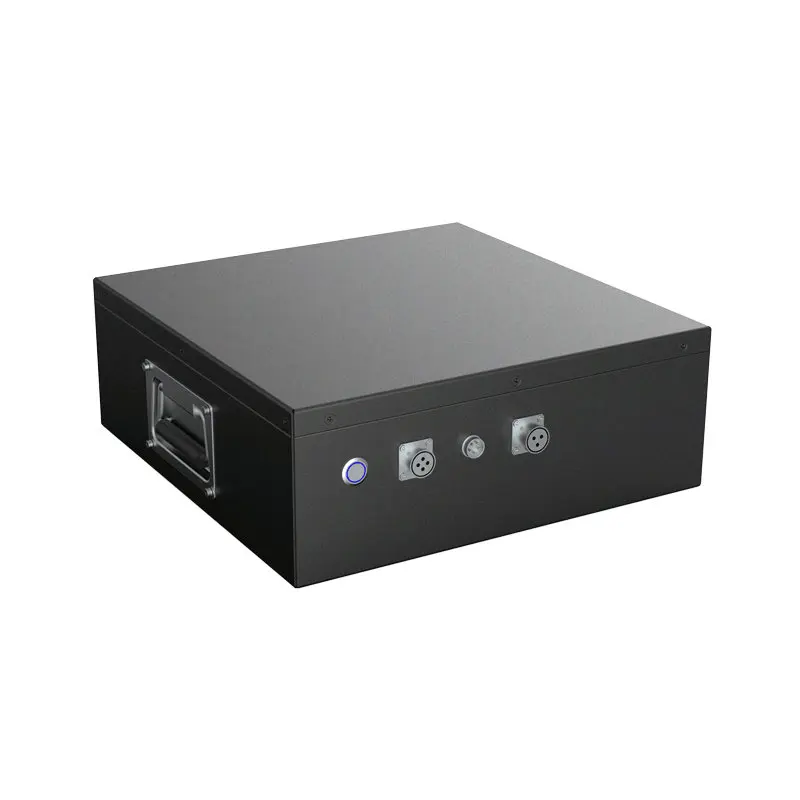

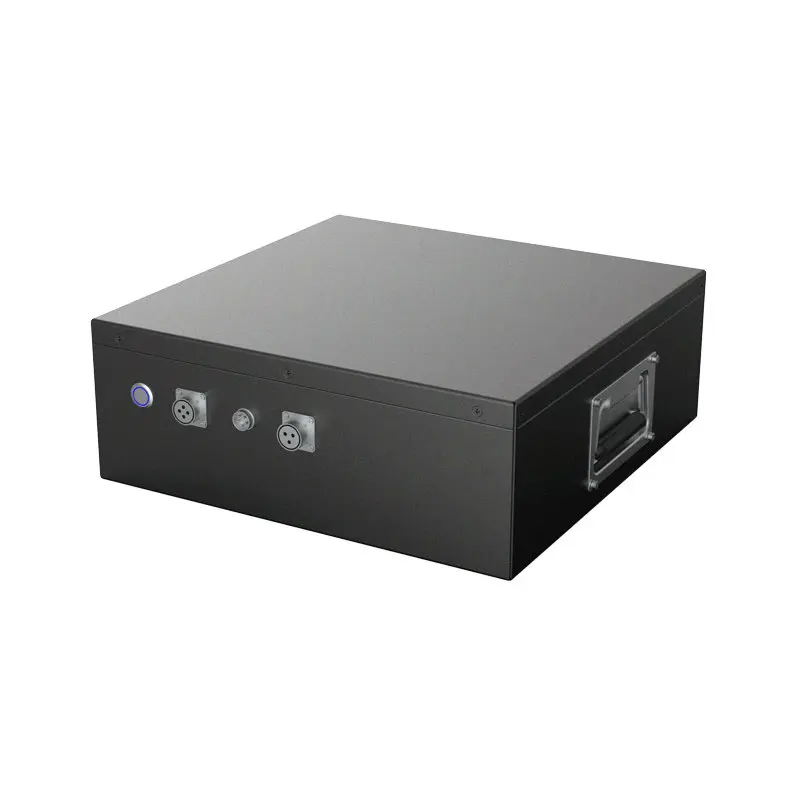

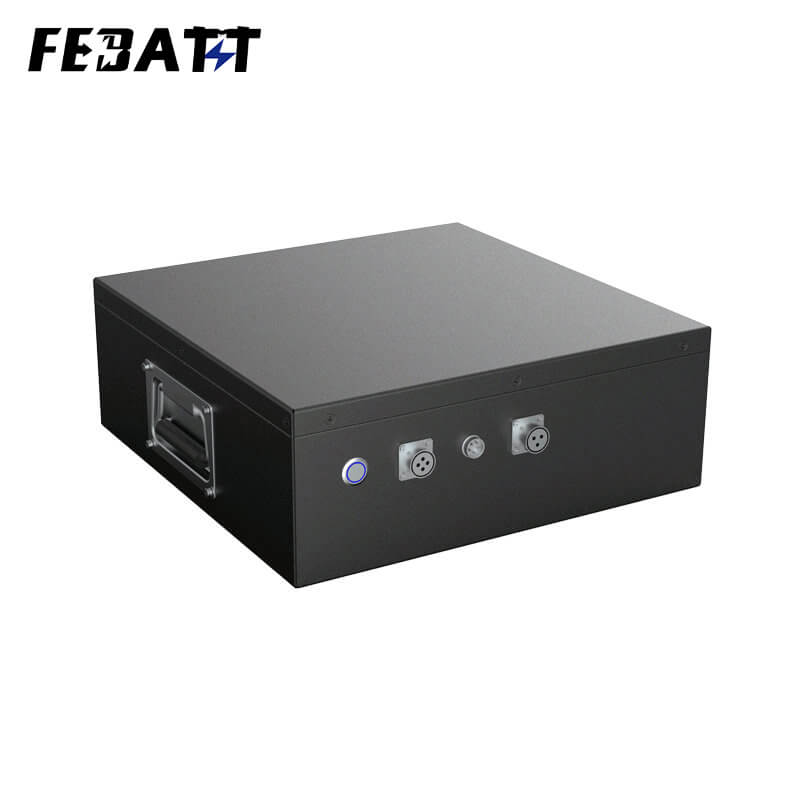

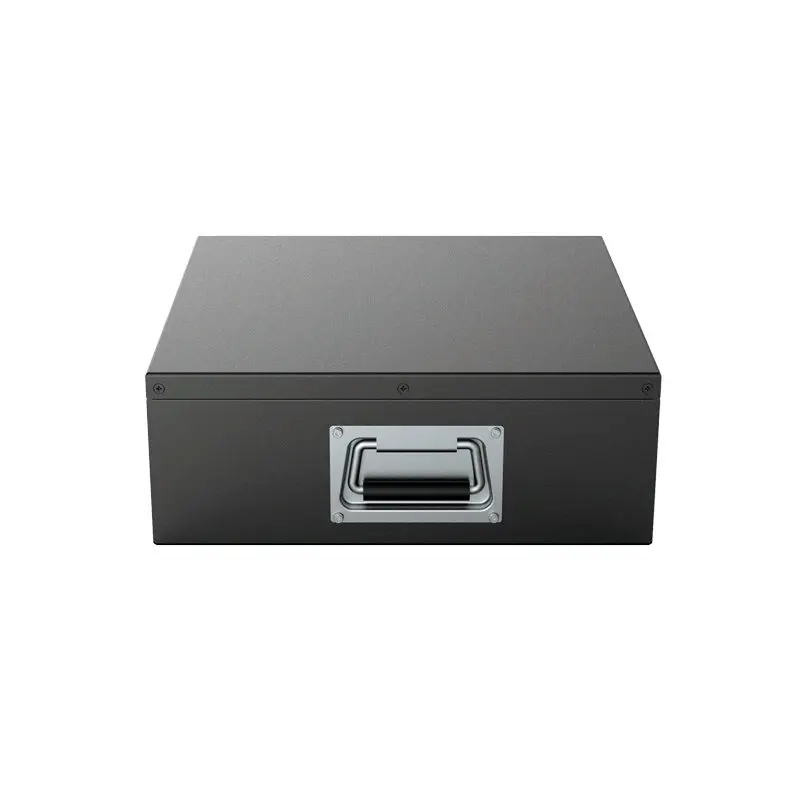

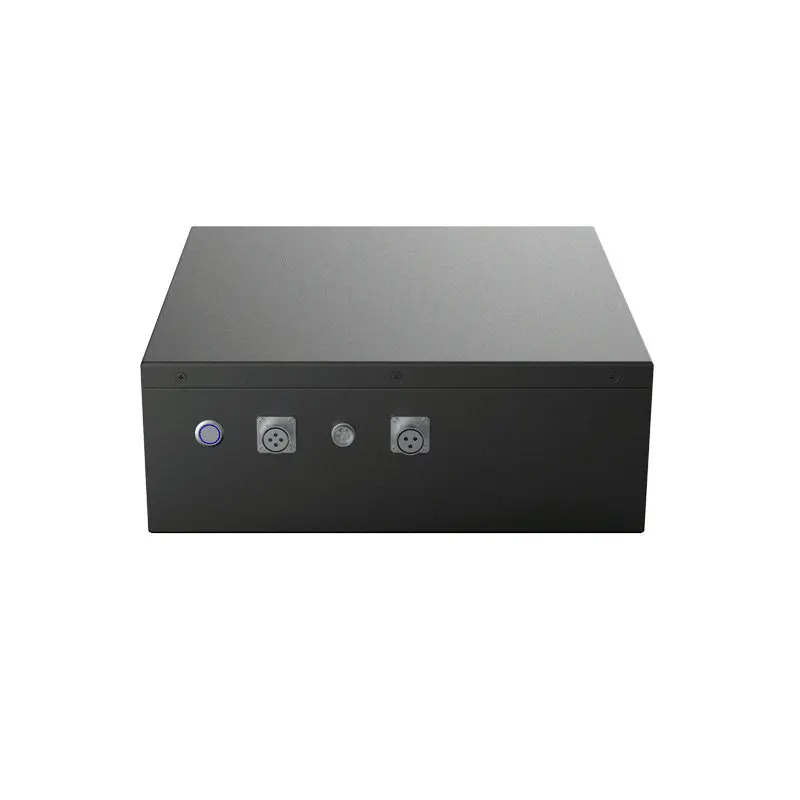

Engineered for patrol robots, the 48V 40Ah Lithium Battery for Patrol Robots (Lithium Iron Phosphate, 26650 cell) delivers 40Ah capacity, 48V stable output, and a rugged cold – rolled sheet metal casing. With 8A continuous discharge, 50A instantaneous current, and a wide temperature range (-20~55℃ discharge), this Patrol Robot Li – ion Battery fuels security patrol bots, autonomous inspection robots, and outdoor surveillance systems—ensuring uninterrupted operation in harsh environments.
Cell Model: 26650/3.2V/3.3Ah
Battery Configuration: 26650/15S12P/48V/40Ah
Nominal Voltage: 48V
Nominal Capacity: 40Ah
Charging Voltage: 54V
Charging Current: ≤20A
Discharge Current: 8A
Instantaneous Discharge Current: 50A
Discharge Cutoff Voltage: 45V
Finished Internal Resistance: ≤200mΩ
Battery Weight: 30kg
Battery Dimensions: 380×380×140mm (Max)
Charge Temperature: 0～45℃
Discharge Temperature: -20～55℃
Storage Temperature: -20～40℃
Temperature Protection: 65℃±5℃
Battery Enclosure: Cold-rolled sheet metal casing
Lithium Battery Protection: Short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection
Application Field: Robotics
The 48V 40Ah Lithium Battery for Patrol Robots ensures:
- “40Ah Capacity: Runs a security patrol robot for 12 + hours—no interruptions in factory, campus surveillance.”
- “48V Stable Output: Powers autonomous inspection robots 24/7—consistent data for security compliance.”
With cold – rolled sheet metal casing and smart protection:
- “Cold – Rolled Sheet Metal Casing: Withstands drops, vibrations in industrial zones—no damage in field use.”
- “-20℃ Discharge: Operates in winter perimeter patrols—maintains power for robots in freezing temps.”
Advanced performance features:
- “50A Instantaneous Current: Powers robot emergency lighting, sensor bursts—ideal for tough surveillance checks.”
- “Temperature Protection: Shields against overheating in hot factories—safe for continuous patrol use.”
The 48V 40Ah Lithium Battery for Patrol Robots powers:
- “Factory Patrol Robots: 48V 40Ah output supports 10 + hours of operation—uninterrupted safety checks.”
- “Outdoor Security Bots: -20℃ discharge runs surveillance robots in winter—no slowdowns in cold nights.”
For heavy – duty security systems:
- “Autonomous Inspection Robots: 8A continuous discharge powers high – resolution sensor stations—24/7 perimeter compliance.”
- “Surveillance Drones (Ground – Based): 50A instantaneous current handles camera, lighting bursts—efficient security monitoring.”
