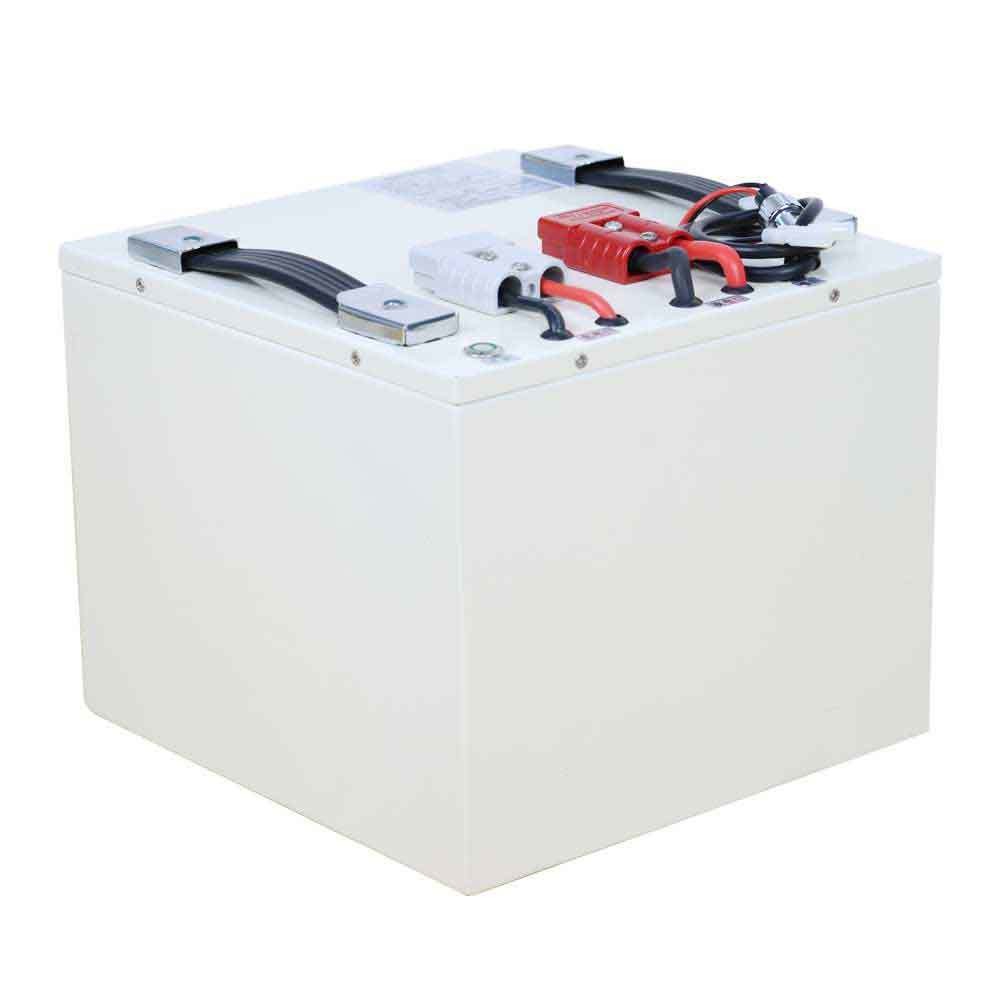

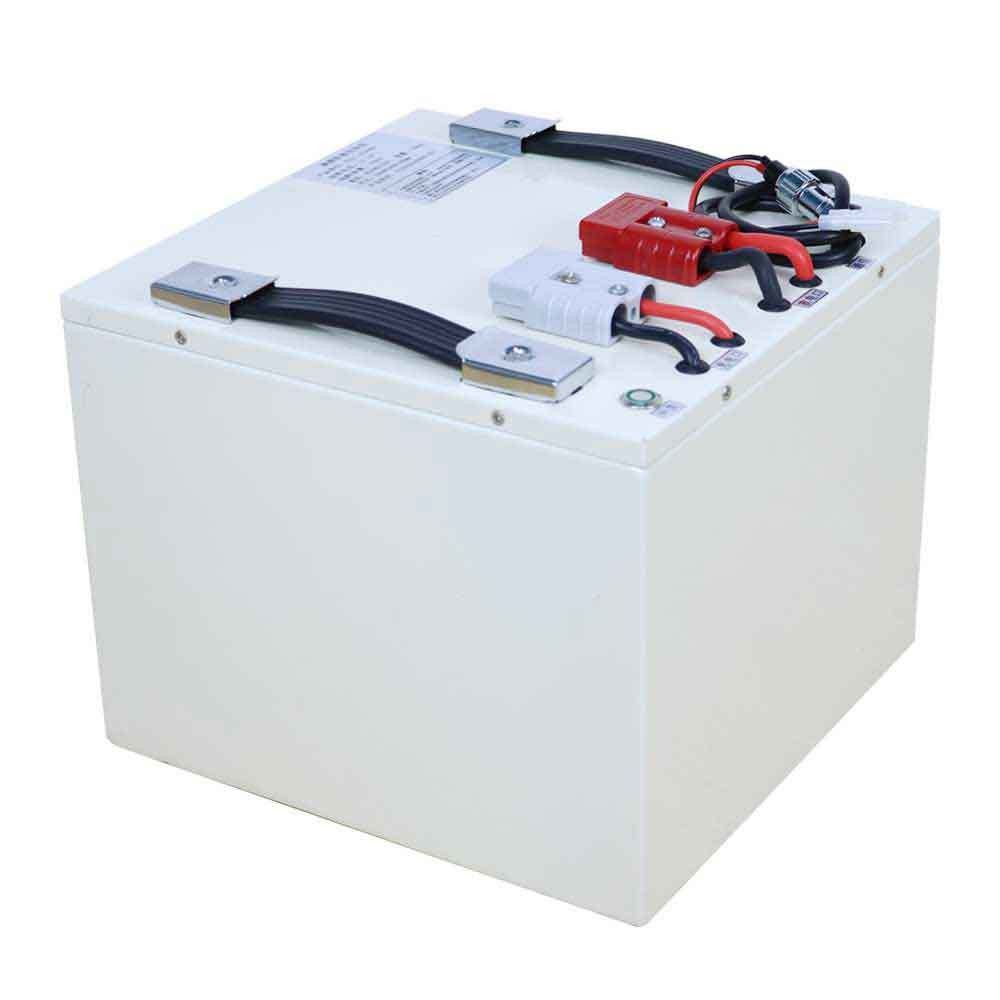

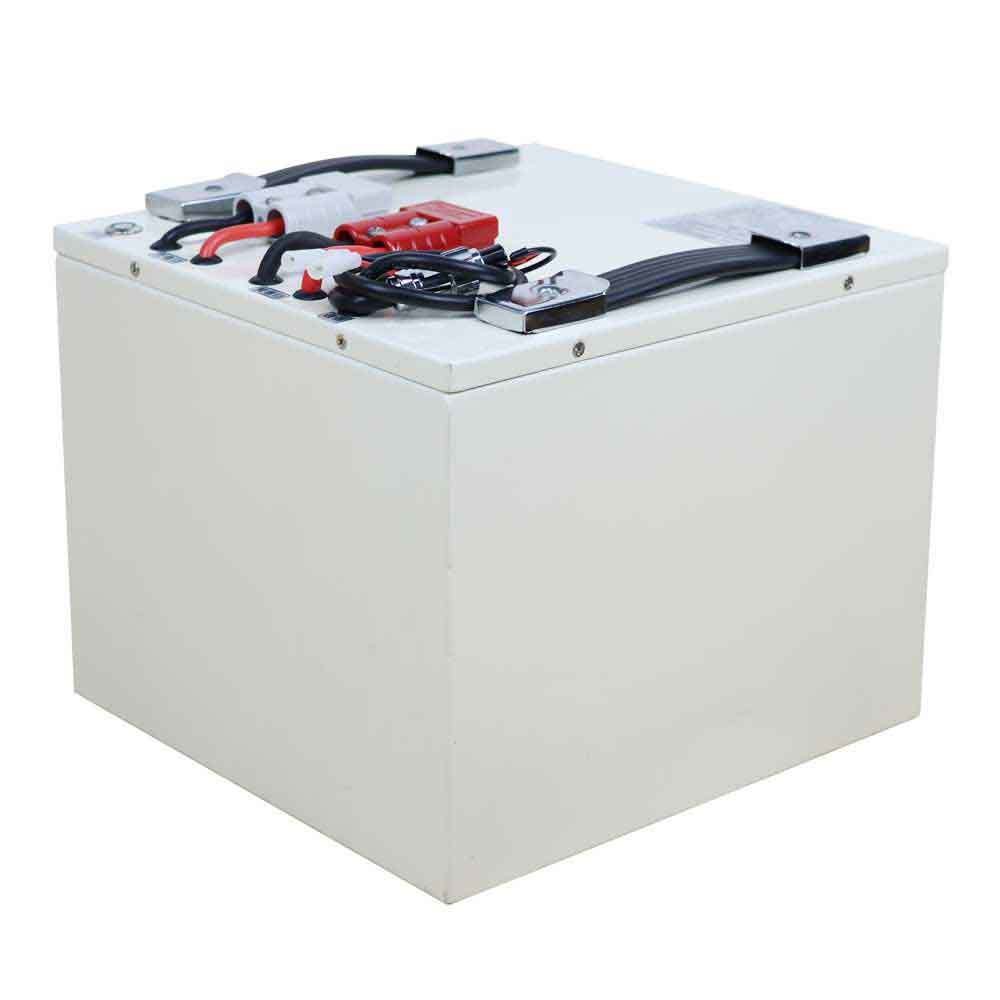

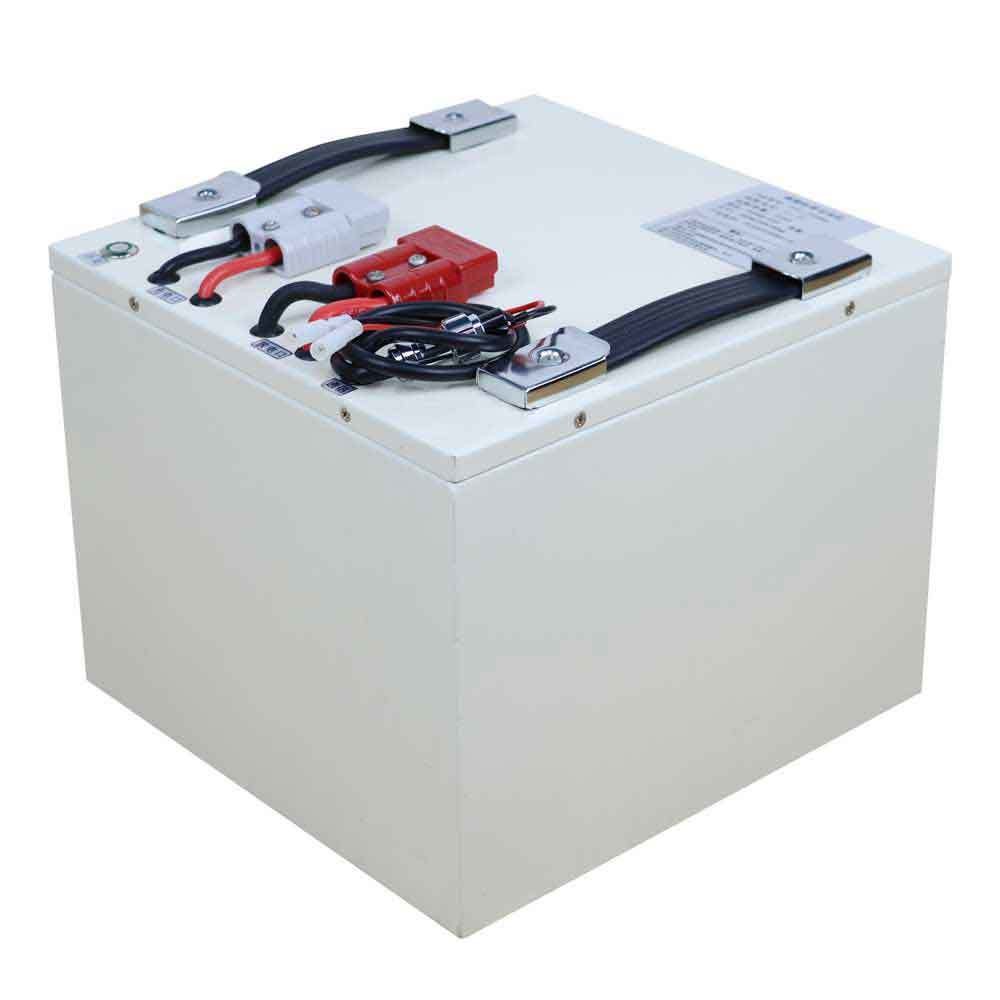

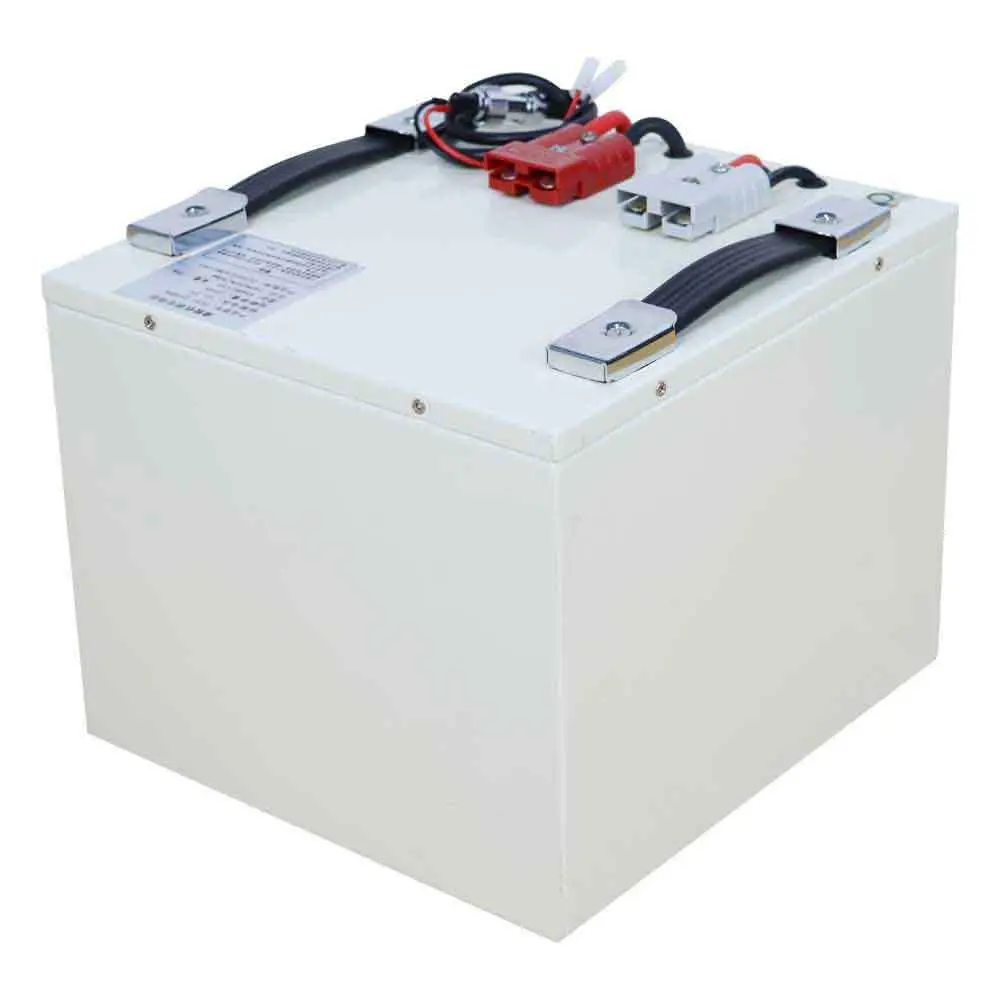

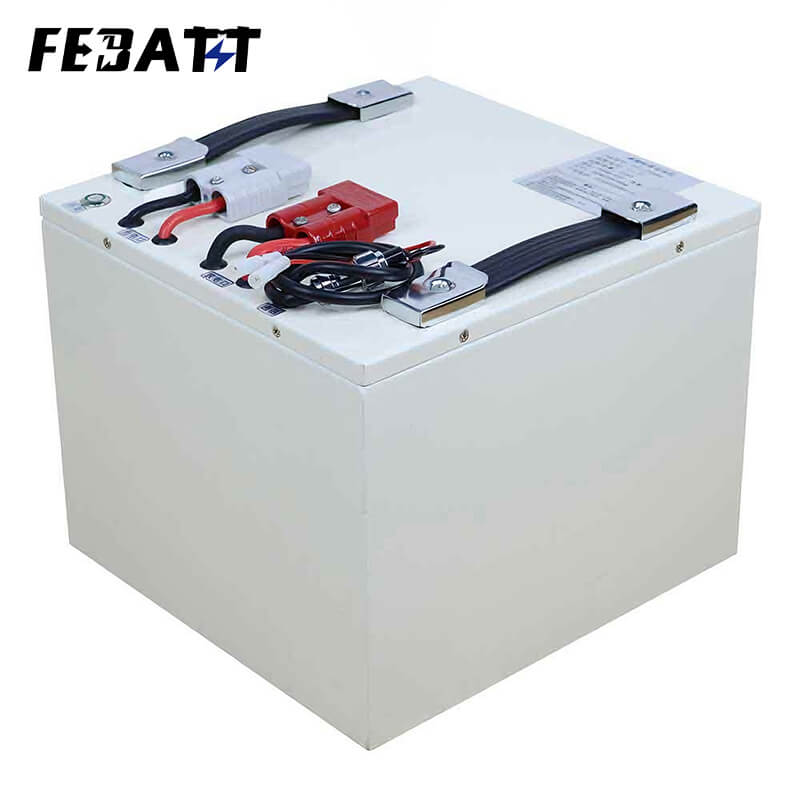

48V 30Ah LiFePO4 Battery for AGV with RS485 CAN BMS

48V 30Ah LiFePO4 Battery for AGV with RS485 CAN BMS

Introduction

Battery Type：LiFePO4 / LFP
Nominal Voltage：48V
Rated Capacity：30Ah
Actual Voltage：51.2V
Charging Voltage：58.4V
Minimum Discharge Voltage：43.2V
Nominal Discharge Current：Max 60A continuous discharge
Nominal Charging Current：Max 60A continuous charge
Discharge Protection：<43.2V (configurable) Overtemperature Protection：>65℃ (configurable)
Operating Temperature：-10～60℃
Dimension：250mm(L)*240mm(W)*165mm(H)
Communication Interface：RS485, CAN
Application：Industrial manufacturing/handling AGV carts, service AGV carts, Fork AGV, Traction AGV, Storage logistics AGV, Back-mounted transfer AGV

Features

1. Adopting A-grade battery cell of domestic first-tier battery cell factory, lithium iron phosphate system;

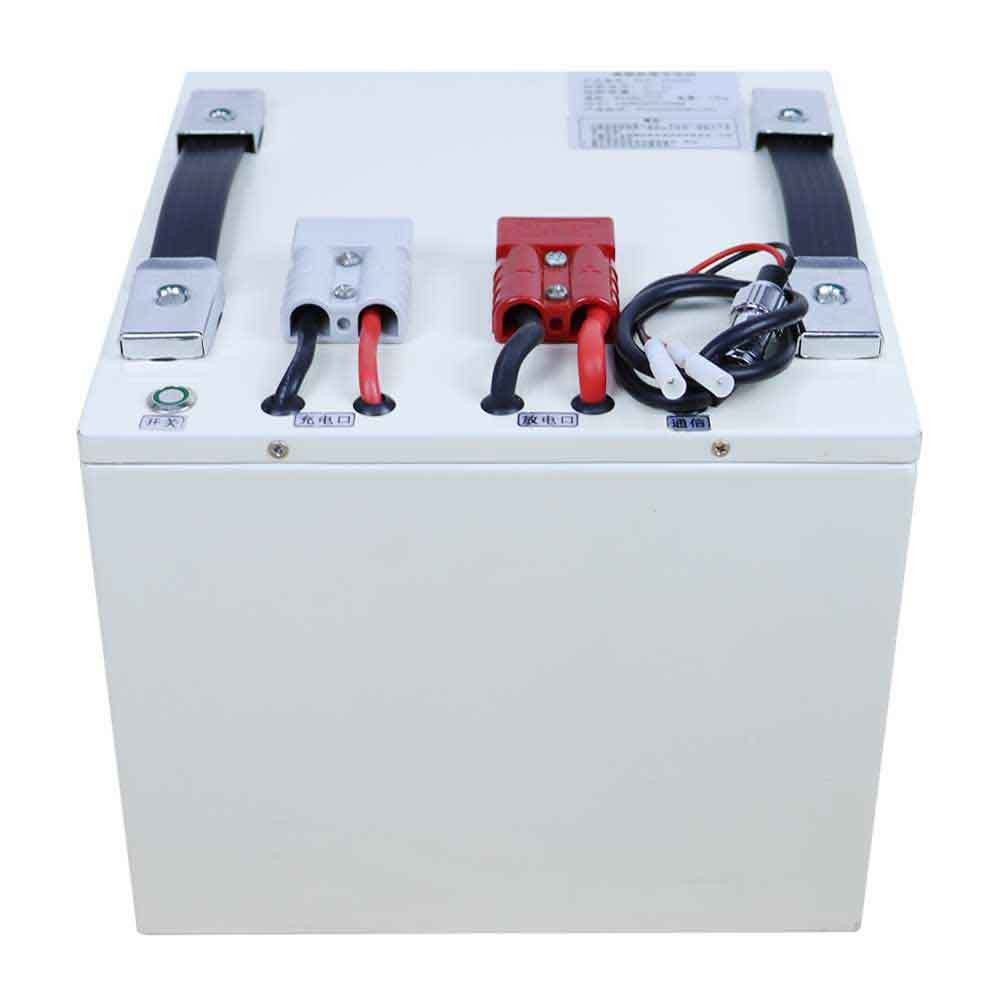

2. product charging port and discharge port separate lead, can be designed as a full split port mode, in the case of no charging current, charging port no voltage output
3. The product is designed with a weak switch, which can cut off the external output of the battery when not in use;
4. The product is equipped with power display function, which is convenient to recognize the current state of the battery;
5. External communication adopts CAN communication interface, and the BMS reserved RS485 communication interface can be used to select the communication mode according to the customer’s needs. 6.
6. complete protection functions, including over-current protection, over-voltage protection, short-circuit protection, over-temperature protection and other functions;
7. low power consumption in dormant standby, and can be stored and transported for a long time after cutting off the external output through the weak switch, which is suitable for the export of foreign products;
8. Battery management system (BMS) has high accuracy in calculating the power consumption, which can reach within 5% under normal charging and discharging conditions;
9. Designed with foldable handles for easy transportation.
