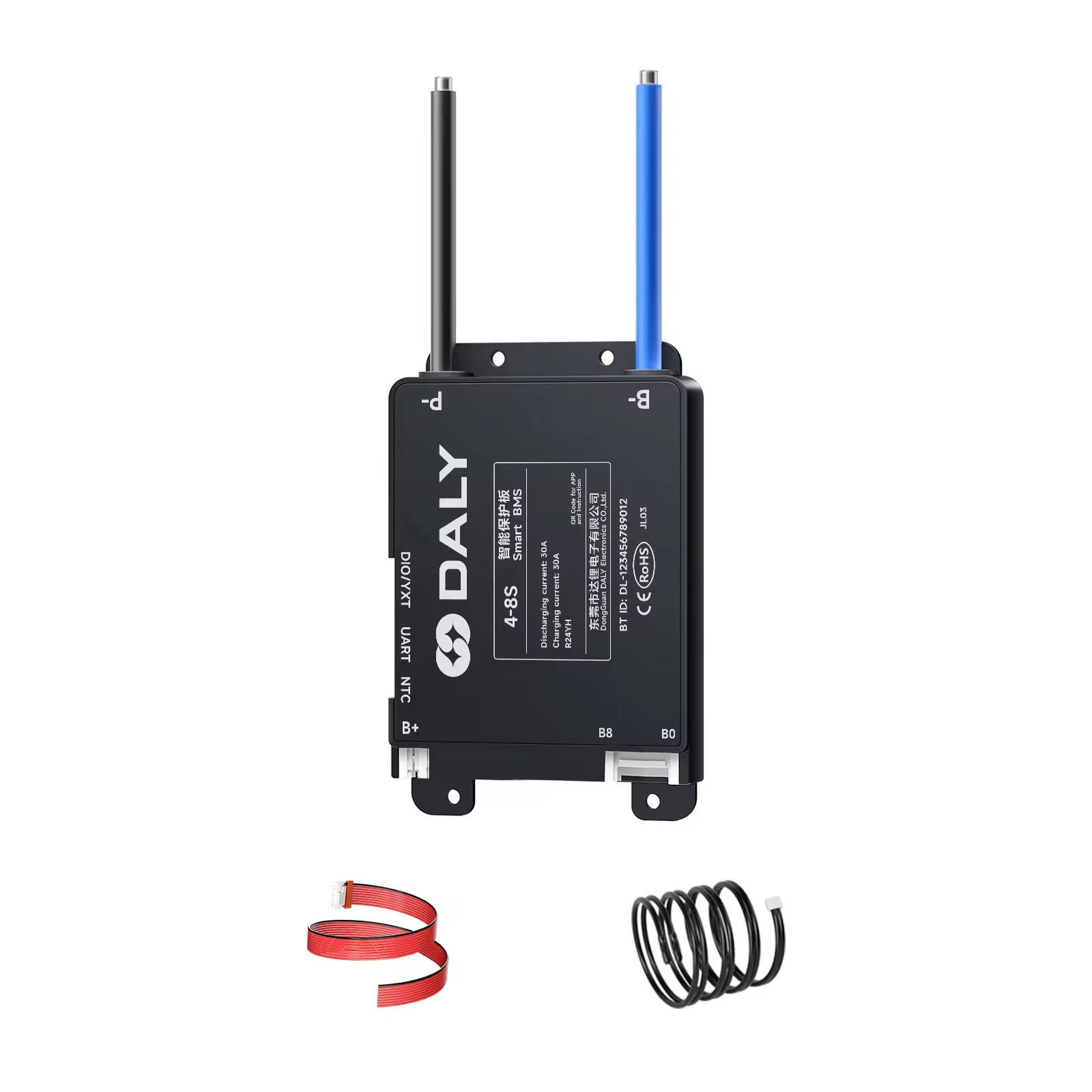

4-24 cell 30A-60V lithium battery protection board is a professional safety component for 4-24 series lithium batteries, matching 30A-60V specifications. It fits household energy storage, electric tools, and small electric vehicles, providing overcharge, over-discharge, over-current, and short-circuit protection to avoid hazards.

Crafted with quality components, the 4-24 cell 30A-60V lithium battery protection board boasts durability, low power consumption, and compact design for easy installation. Its stable performance ensures rapid protection response, extending battery life and enhancing equipment reliability—ideal for DIY and commercial use.

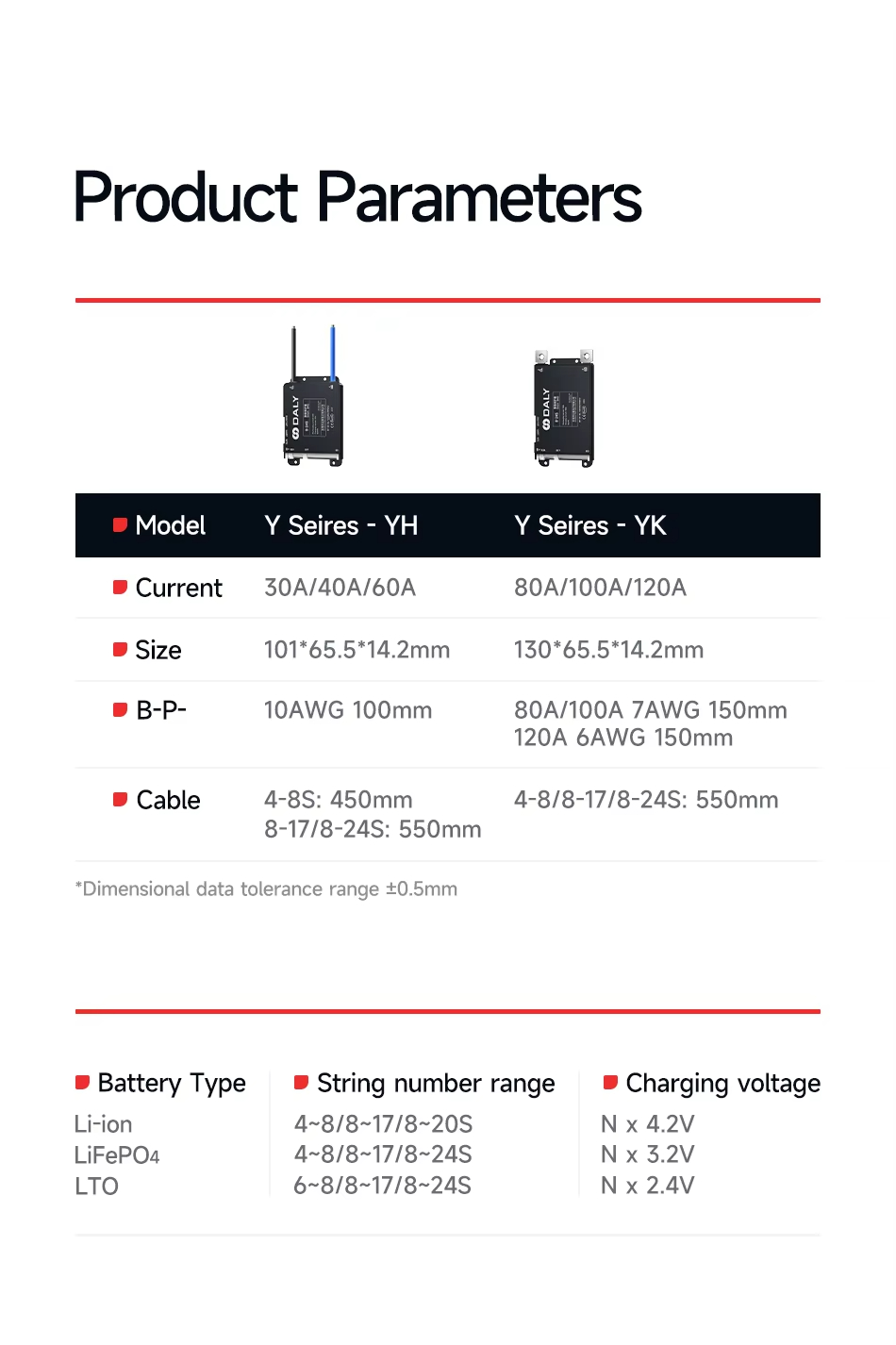

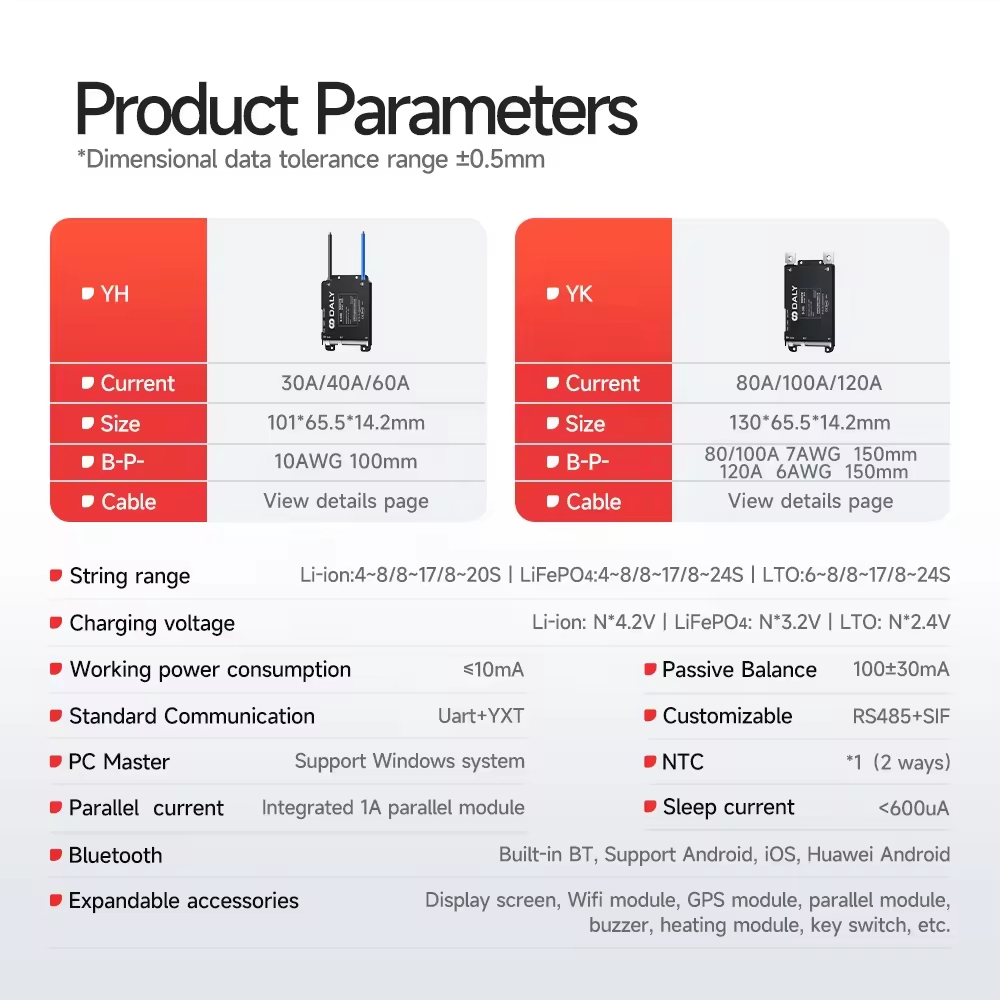

Category	Specifications

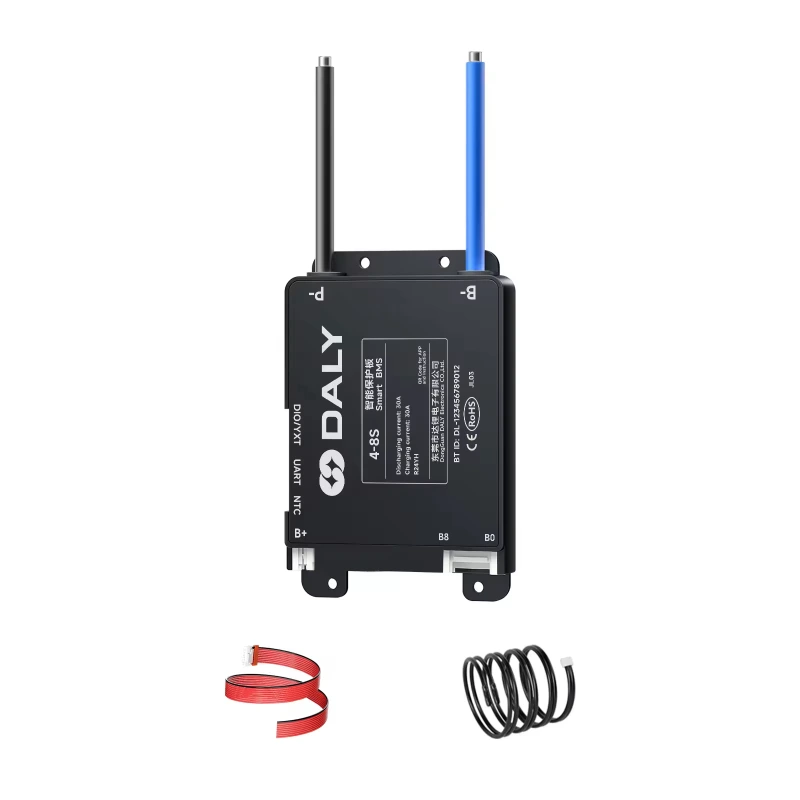

Model	Y Series-YH, Y Series-YK, Y Series-YM
Current	YH: 30/40/60A; YK: 80/100/120A; YM: 150A/200A
Dimensions (L×W×H)	YH: 101×65.5×14.2mm; YK: 130×65.5×14.2mm; YM: 180×92.4×17.2mm
B-P- Cable	YH: 10AWG 100mm; YK: 7AWG 150mm(80A), 6AWG 150mm(100/120A); YM: 2AWG 200mm
Wiring Harness Length	YH: 450mm(4-8S), 550mm(7-17/24S); YK: 550mm; YM: 550mm
Supported Battery Cells	Ternary Lithium, Lithium Iron Phosphate (LFP), Lithium Titanate

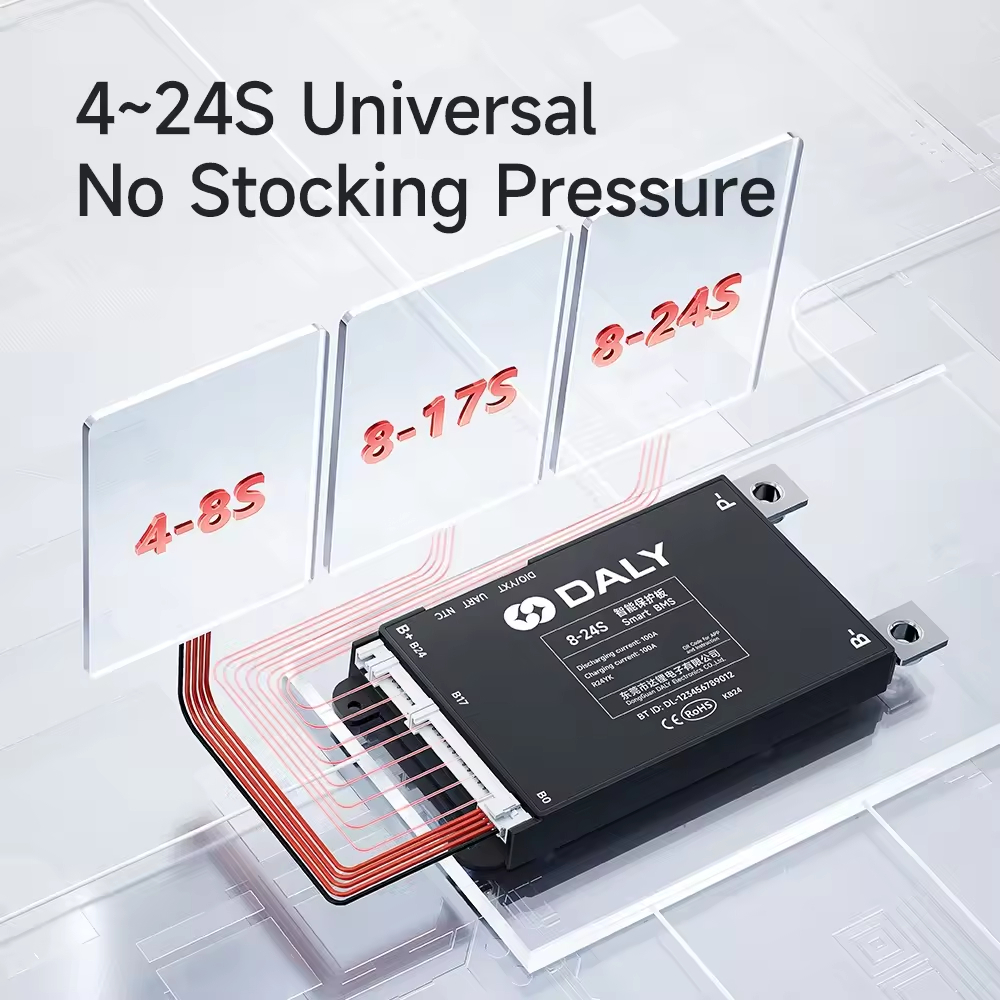

Compatible Series Range	4-8/7-17/7-20S, 4-8/8-17/8-24S, 6-8/10-17/10-24S
Charging Voltage	Cells ×4.2V, Cells ×3.2V, Cells ×2.4V

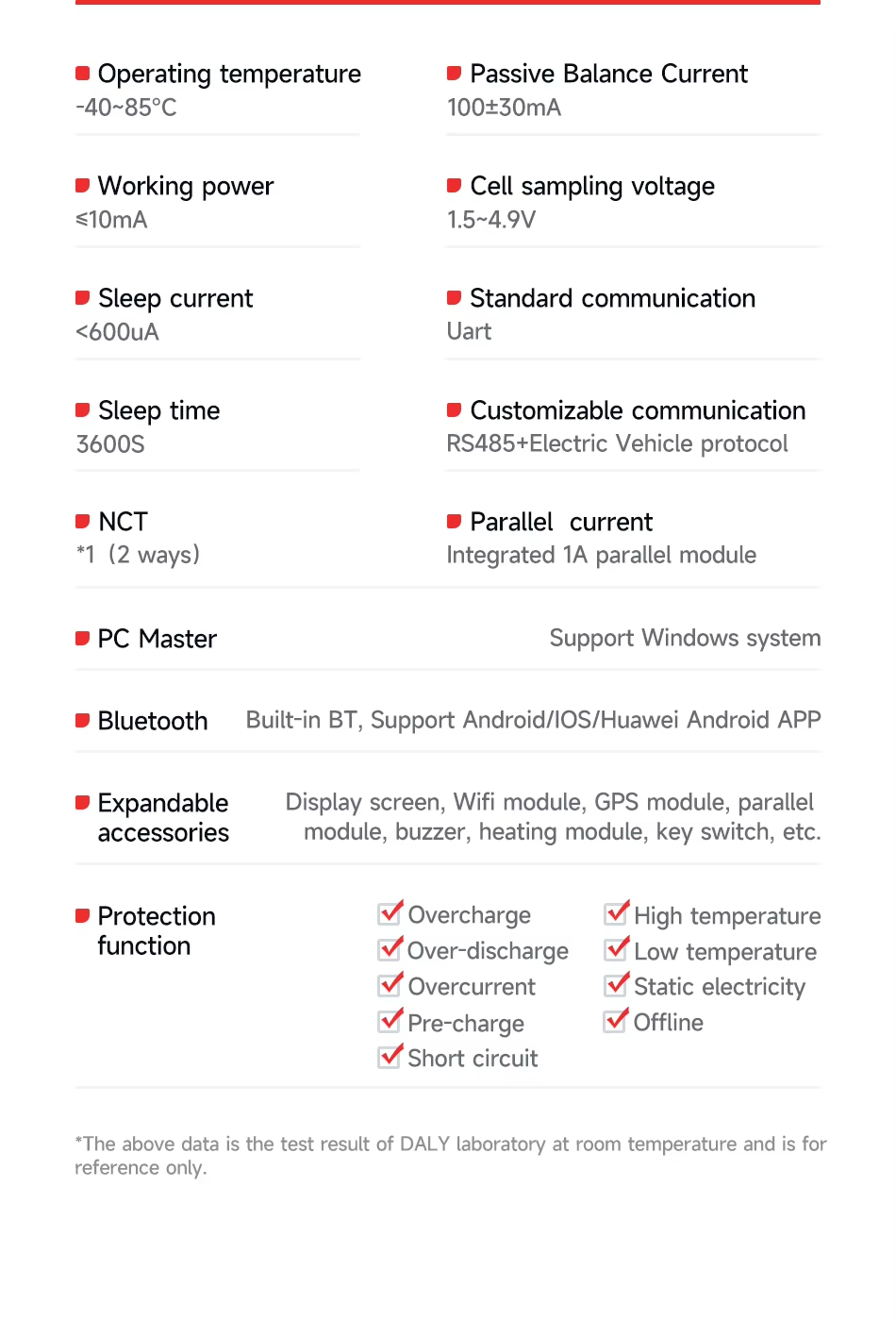

Operating Temperature	-40℃ to 85℃
Passive Balancing Current	100±30mA
Operating Power Consumption	≤10mA
Single Cell Voltage Sampling	1.5-4.9V
Sleep Current	<600uA
Standard Communication	Uart
Sleep Time	3600S

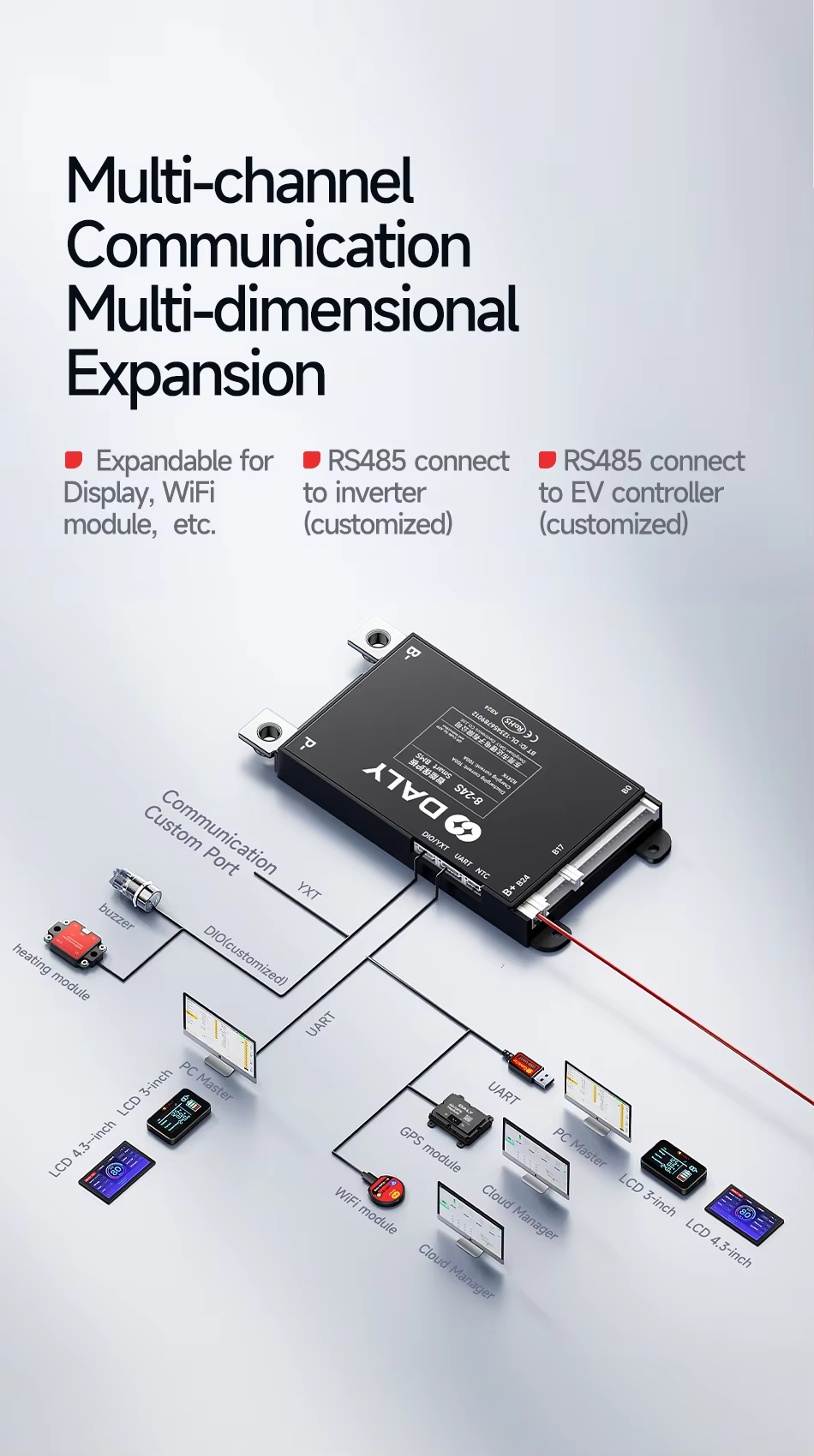

Customizable Communication	RS485, One-Wire Communication
Temp Control Channels	1 (2 channels)
Parallel Current Limiting	Integrated 1A parallel current limiting module
Upper Computer Support	Windows PC (parameter viewing/setting)
Bluetooth Function	Built-in; supports Android/iOS/Huawei Android APP & mini-programs
Expandable Accessories	Display, Wifi Module, GPS Module, Buzzer, Parallel Module, Heating Module, Key Switch, etc.
Protection Functions	Overcharge, Over-discharge, Over-current, High/Low Temperature, ESD, Pre-charge, Disconnection, Short-circuit Protection

Product Details：
