3V-8 Single Channel Standard Charger: Precision Charging for Diverse Batteries
Product Introduction
The 3V-8 Single Channel Standard Charger is a high – precision charging solution engineered for general – purpose batteries. Designed to provide 1.5V, 3.65V, or 4.2V adaptive charging with dual current modes (500mA standard, 1000mA fast), this charger leverages a built – in microprocessor to enable multi – stage charging (pre – charge, constant current, constant voltage, stop charge) and comprehensive battery maintenance. Housed in a rugged aluminum alloy shell (brown – green GY05) for natural heat dissipation, the 3V-8 Single Channel Standard Charger meets military standards (GJB151B – 2013/GJB150A – 2009) and operates reliably in extreme temperatures (-40℃~+55℃).
Technical Specifications
| Parameter | 3V-8 Single Channel Standard Charger |
|---|---|
| Input Voltage | 4.75–5.25Vdc |
| Input Current | 1A Max. (@5Vdc, full load) |
| Output Voltage Range | 1.5V / 3.65V / 4.2V |
| Output Current | 500mA or 1000mA |
| Operating Temperature | -40℃ ~ +55℃ |
| Status Display | LED Indicator |
| Input Interface | Taixing Linghang, JX – DC – 4KZ socket |
| Design Standard | GJB151B – 2013 / GJB150A – 2009 |

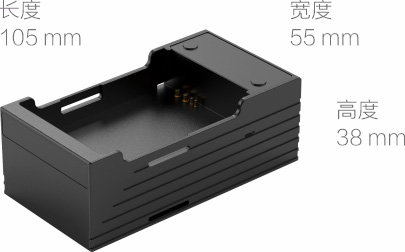

| Product Dimensions | 105×55×38mm (excluding connector, foot pad) |
| Product Weight | ≤250g (main unit, no accessories) |
| Shell Material | Aluminum Alloy (brown – green GY05) |
Key Features
- Intelligent Multi – Stage Charging: The charger leverages a microprocessor to manage pre – charging, constant current (CC) charging, constant voltage (CV) charging, and stop charging—optimizing battery life and performance.
- Comprehensive Battery Management: It includes battery performance detection, charge/discharge maintenance, and compatibility with solar photovoltaic module docking for flexible power sources.
- Rugged & Efficient Design: The brown – green GY05 aluminum alloy shell ensures natural heat dissipation and durability, making it suitable for field, industrial, or military applications.
- Robust Protection Mechanisms: Features overvoltage, overcurrent, reverse connection, and short – circuit protection to safeguard batteries and devices.
- Extreme Environment Capability: Operates reliably in temperatures from -40℃ to +55℃, ideal for harsh or remote settings.
Application Areas
The charger is well – suited for:
- General – Purpose Battery Charging: Powers various battery chemistries and sizes with adjustable voltage (1.5V/3.65V/4.2V) and current (500mA/1000mA).
- Military & Aerospace Use: Complies with GJB151B – 2013/GJB150A – 2009 standards, making it a reliable choice for defense or aerospace equipment.
- Outdoor & Industrial Operations: Functions in challenging environments, supporting off – grid charging via solar or regulated DC input.
Weight and size
