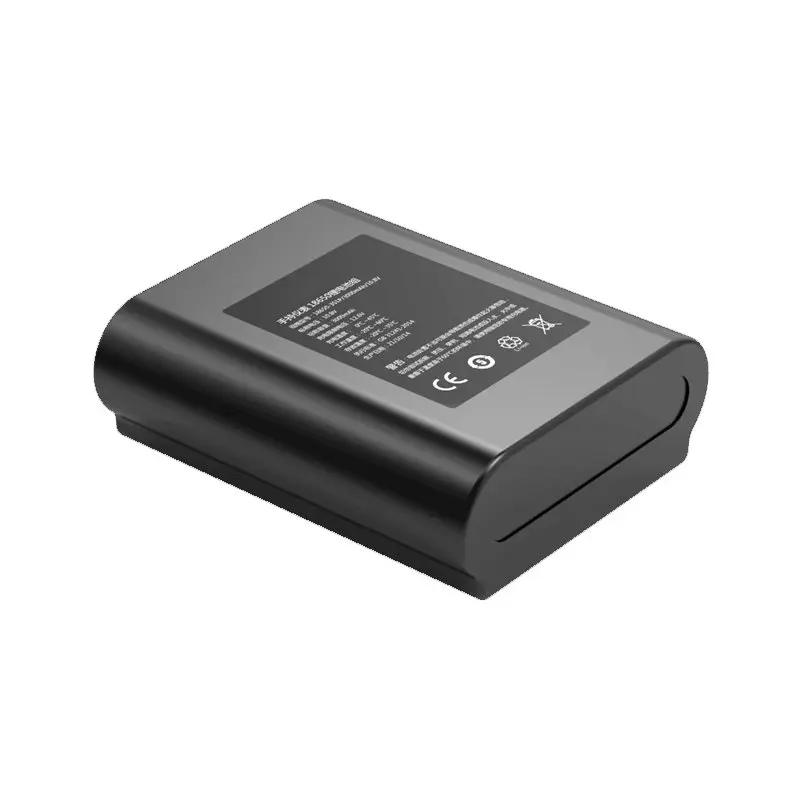

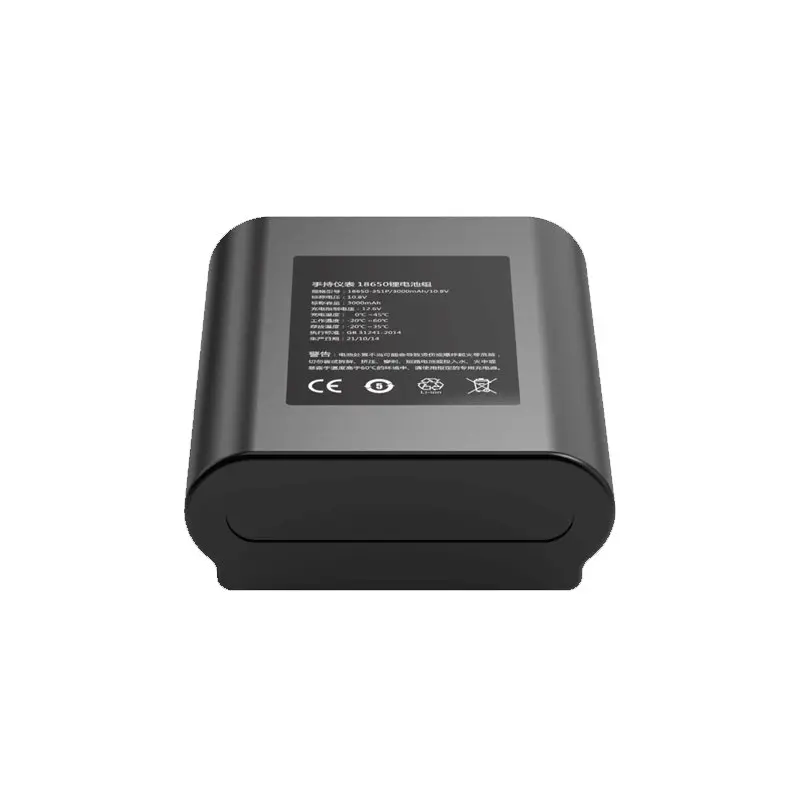

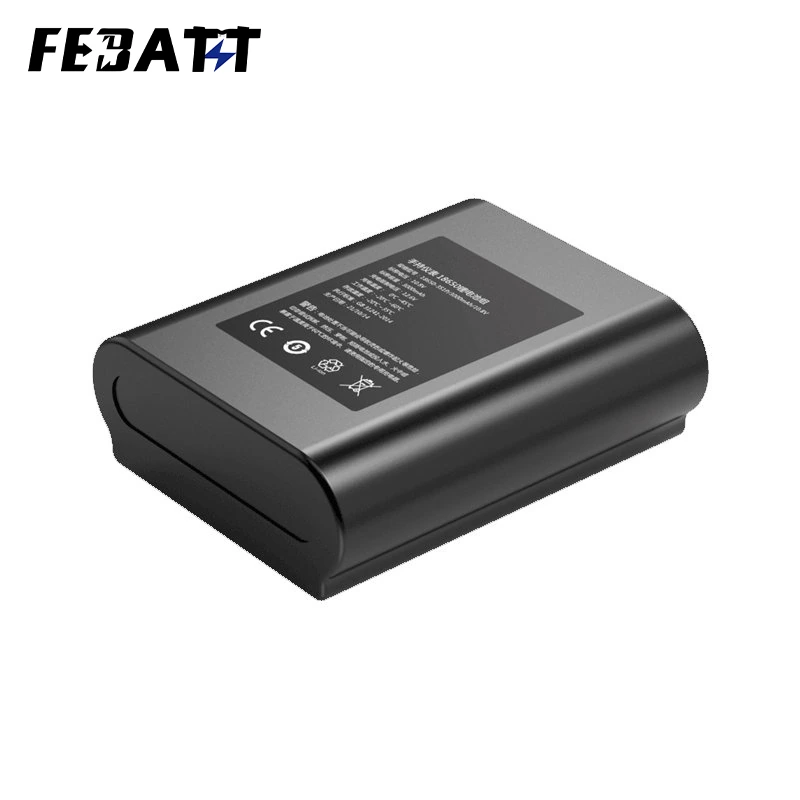

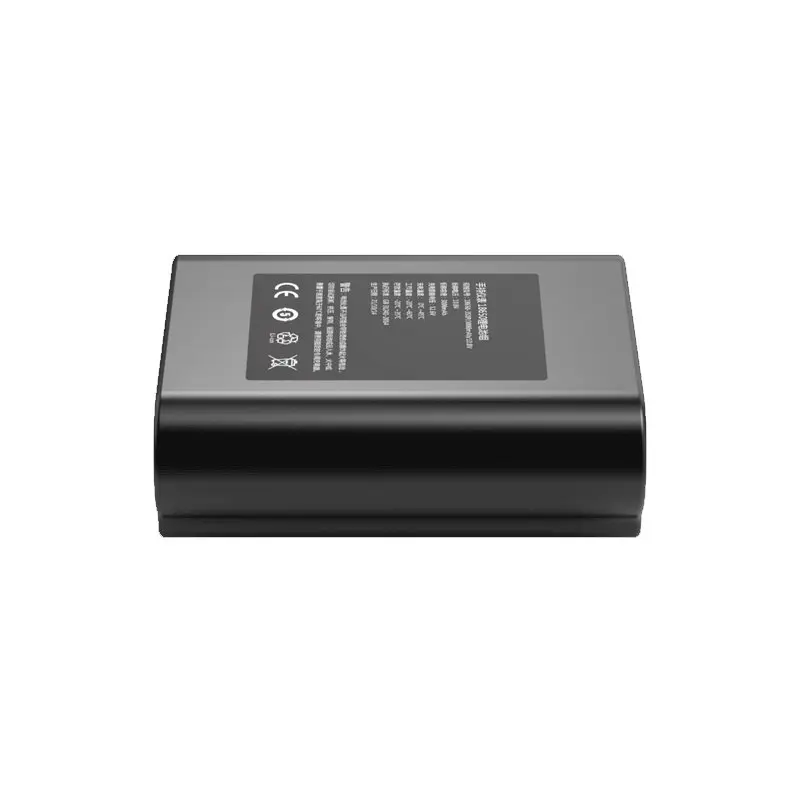

Engineered for handheld instruments in volatile environments, the 10.8V 3000mAh Battery for Handheld Instruments (specification 18650 – 3S1P) delivers 3000mAh capacity at 10.8V, with explosion – proof design and operation in -20~+60℃ discharge. As a specialized Handheld Instrument Battery, it features multi – layer protection, a compact 22.0×56×67.0mm form factor, and reliable power delivery—making it the go – to 10.8V 3000mAh Explosion – proof Battery for industrial meters, diagnostic tools, and field testers in hazardous industrial and scientific settings.
Product Details
Cell Model: NCR18650BF/3350mAh/3.6V
Battery Specification: 18650-3S1P/3000mAh/10.8V
Nominal Voltage: 10.8V
Nominal Capacity: 3000mAh
Charging Voltage: 12.6V
Charging Current: ≤2.5A
Discharging Current: 1.0A
Instantaneous Discharge Current: 2.5A
Discharge Cut-off Voltage: 8.10V
Finished Product Internal Resistance: ≤180mΩ
Battery Weight: 150g
Product Dimensions: 22.0×56×67.0mm
Charging Temperature: 0 to 45℃
Discharging Temperature: -20 to 60℃
Storage Temperature: -20 to 35℃
Lithium Battery Protection: Short-circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.
Application Areas: Specifically designed for handheld instruments
- “Explosion – Proof Design: This 3000mAh Battery for Handheld Instruments ensures safety in volatile industrial environments, preventing ignition risks for gas analyzers and pressure meters—critical for field technicians.”
- “Multi – Layer Protection: In scientific field tests with sensitive substances, the Handheld Instrument Battery’s safeguards eliminate overcharge and short – circuit risks, ensuring uninterrupted data collection for diagnostic tools.
- “-20~+60℃ Operation: The 10.8V 3000mAh Explosion-proof Battery powers pH meters in -15℃ arctic research and infrared thermometers in +55℃ steel mills, maintaining 10.8V output for accurate measurements.”
- “3000mAh Capacity: Handheld industrial testers rely on this 3000mAh Battery for Handheld Instruments to run calibration and inspection apps for hours, reducing downtime in hazardous zones.
- “Industrial Meters: The Handheld Instrument Battery drives vibration analyzers in chemical plants, with explosion – proof design ensuring safety near corrosive substances.”
- “Field Diagnostic Tools: Researchers use the 10.8V 3000mAh Explosion-proof Battery to power handheld DNA sequencers in -20℃ field labs, with reliable -20℃ discharge enabling remote testing.
- “Gas Analyzer Power: A 3000mAh Battery for Handheld Instruments powers portable gas detectors in -20℃ refineries, with 10.8V/3000mAh supporting all – shift leak detection.”
- “Pressure Meter Operation: The Handheld Instrument Battery runs hydraulic pressure testers in +60℃ factories, ensuring accurate readings with stable power.
- “Arctic Environmental Sensors: Researchers use the 10.8V 3000mAh Explosion-proof Battery to power soil moisture meters in -15℃ tundra, with explosion – proof design eliminating risks near methane pockets.”
- “Desert Geological Tools: This 3000mAh Battery for Handheld Instruments drives handheld seismometers in +55℃ deserts, with 3000mAh enabling multi – day data collection.
