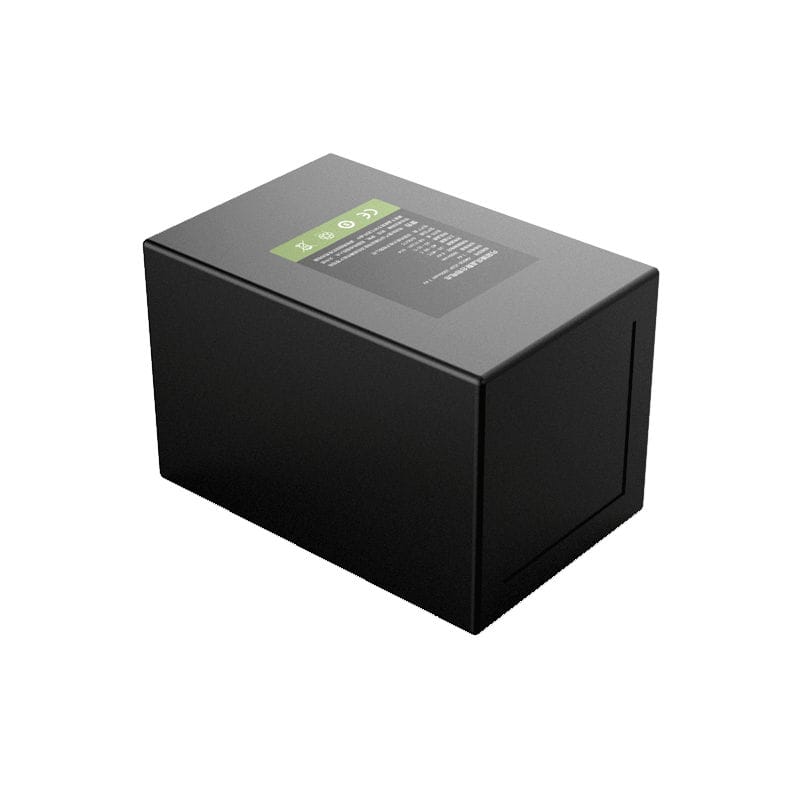

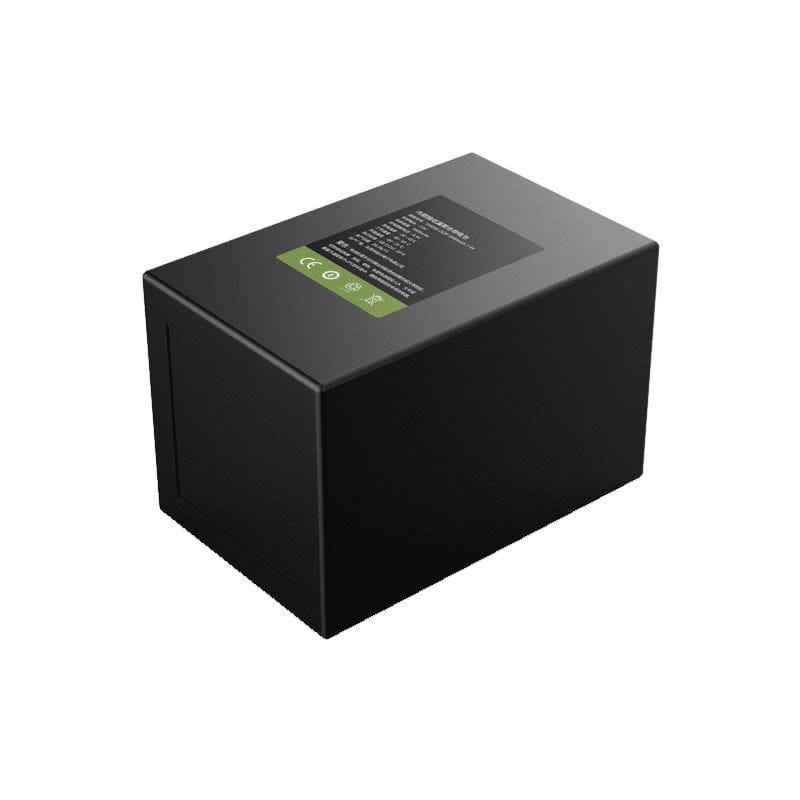

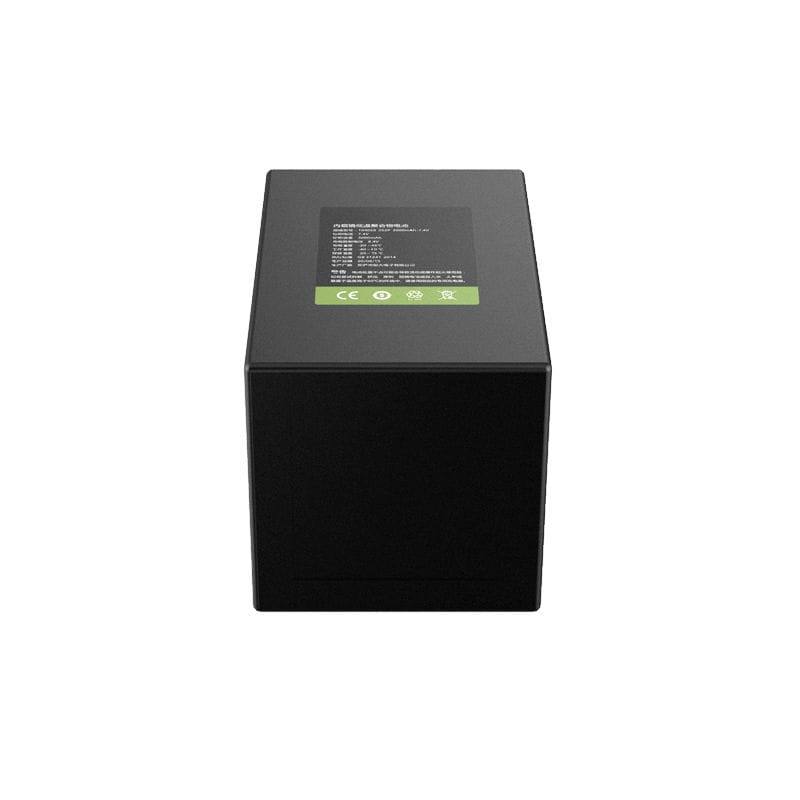

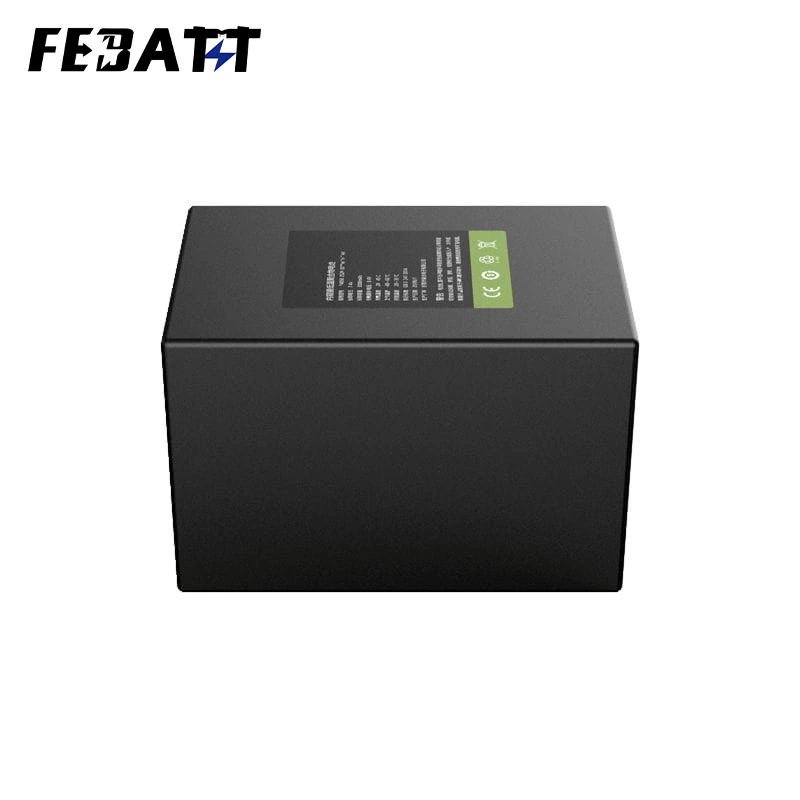

Engineered for medical endoscopy in extreme thermal conditions, the 7.4 V LiPo Battery (model 104058 – 2S2P) delivers 3000mAh capacity at 7.4V, with industry – leading performance in -40~60℃ discharge and -20~45℃ charging. As a specialized 7.4V Lithium Polymer Battery, it maintains ≥60% capacity at -40℃, features multi – layer protection, and integrates a JST connector for reliable conductivity—making it the go – to LiPo Battery for Endoscope in low – temperature medical, industrial inspection, and cold – region diagnostic applications.
Product Details
Cell Model: 104058-1500mAh-3.7V
Battery Specification: 104058-2S2P-3000mAh-7.4V
Nominal Voltage: 7.4V
Nominal Capacity: 3000mAh
Charging Voltage: 8.4V
Charging Current: ≤2A
Discharging Current: 0.6A
Instantaneous Discharge Current: 3A
Discharge Cutoff Voltage: 6.0V
Internal Resistance: ≤220mΩ
Battery Weight: 200g
Product Dimensions: 63*42.5*41mm (Max)
Charging Temperature: -20～45℃
Discharging Temperature: -40～60℃
Storage Temperature: -20～35℃
Battery Enclosure: Blue PVC heat shrink wrap
Lithium Battery Protection: Short-circuit protection, overcharge protection, over-discharge protection, over-current protection, ESD protection, etc.
Application: Special equipment for low temperature charge/discharge
- “-40℃ Discharge & ≥60% Capacity: This 7.4 V LiPo Battery powers endoscopic procedures in cryogenic labs, maintaining reliable imaging for tissue analysis—no performance drop in sub – zero conditions.”
- “-20℃ Charging: In arctic field hospitals, the 7.4V Lithium Polymer Battery can be charged in cold tents, ensuring endoscopes are always ready for emergency diagnostics.”
- “Multi – Layer Protection: Short – circuit, ESD, and overcharge safeguards make this LiPo Battery for Endoscope compliant with medical device safety standards, minimizing risks during procedures.”
- “JST Connector Reliability: The integrated JST plug ensures stable conductivity for 7.4 V LiPo Battery-powered endoscopes, preventing signal loss during critical diagnostics.”
- “Cryogenic Medical Research: The 7.4V Lithium Polymer Battery powers endoscopic tools in -40℃ labs, enabling research on cold – adapted tissues and organisms.”
- “Arctic Field Medicine: Mobile clinics use this LiPo Battery for Endoscope to perform digestive tract exams in remote, sub – zero regions—reliable even in harsh climates.”
- “Endoscopic Procedures: A 7.4 V LiPo Battery – powered endoscope delivers clear imaging during gastrointestinal exams in -20℃ rural clinics, with 3000mAh supporting extended procedures.”
- “Cryogenic Tissue Analysis: Researchers use the 7.4V Lithium Polymer Battery to power endoscopes in -40℃ labs, studying tissue behavior under extreme cold.”
- “Pipeline Endoscopy: In -30℃ oil fields, the LiPo Battery for Endoscope enables inspection of frozen pipelines, with ≥60% capacity retention ensuring full scans.”
- “Cold – Storage Equipment Diagnostics: Maintenance teams use this 7.4 V LiPo Battery to power endoscopes for inspecting machinery in -20℃ warehouses, detecting faults without downtime.”
