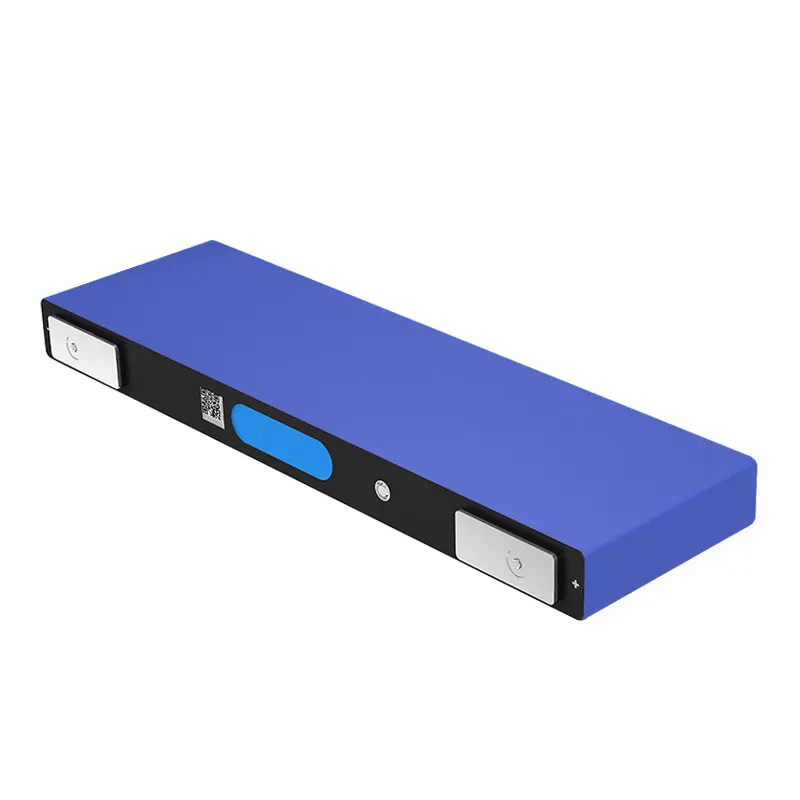

Square Ternary Lithium Battery: 3.73V 114.2Ah Power for Heavy – Duty Applications
The Square Ternary Lithium Battery (model M11) is a high – performance power solution engineered for heavy – duty applications. With a nominal voltage of 3.73V and capacity of 114.2Ah, this battery combines ternary lithium technology’s high energy density (243 Wh/kg) and robust cycle life (1500 cycles) with a square form factor for seamless integration. Whether powering excavators, forklifts, commercial buses, heavy trucks, or passenger vehicles, the Square Ternary Battery ensures reliable performance in extreme temperatures and demanding operating conditions.
Technical Specifications
| Parameter | Square Ternary Lithium Battery (M11) |
|---|---|
| Model Name | M11 |
| Nominal Voltage | 3.73V |
| Nominal Capacity | 114.2Ah |
| Internal Resistance | ≤0.5mΩ (Initial) |
| Maximum Charging Voltage | 4.25V |
| Standard Charge/Discharge Current | 1/3C (≈38A) |
| Cycle Life (25°C) | 1500 Cycles |
| Weight | 1755±30g |
| Energy Density | 243 Wh/kg |
| Dimensions (L×W×H) | 94.9×301.8×26.6 mm |
| Charging Temperature Range | 0~50°C |
| Discharging Temperature Range | -30~55°C |
Product Features
- High Energy Density (243 Wh/kg): The Square Ternary Lithium Battery stores ample energy in a compact, lightweight package—critical for reducing vehicle weight and extending range in electric transportation (e.g., buses, passenger cars).
- 1500 – Cycle Longevity: Supports 1500 cycles at 25°C, ensuring durable performance for long – term applications like industrial equipment (excavators, forklifts) that require repeated charging.
- Low Internal Resistance (≤0.5mΩ): Minimizes energy loss during charge/discharge, enhancing efficiency for power – intensive tasks (e.g., heavy truck acceleration, excavator operation).
- Wide Temperature Tolerance: Operates in charging temperatures from 0~50°C and discharging from -30~55°C, making it reliable in harsh environments (freezing winters or scorching summers).
- Square Form Factor for Integration: The rigid square design enables easy assembly into battery packs, suiting large – scale systems for commercial vehicles or industrial machinery.
Application Scenarios
- Industrial Machinery: Powers excavators, forklifts, and heavy – duty equipment. The Square Ternary Lithium Battery’s 114.2Ah capacity and low internal resistance support sustained, high – power operation.
- Commercial & Passenger Vehicles: Drives buses, heavy trucks, and passenger cars. High energy density (243 Wh/kg) and 1500 – cycle life enable extended range and reduced total cost of ownership.
- Specialized Transportation: Supplies energy for sightseeing vehicles or utility carts, leveraging wide temperature tolerance and reliable cycling for all – weather usability.
