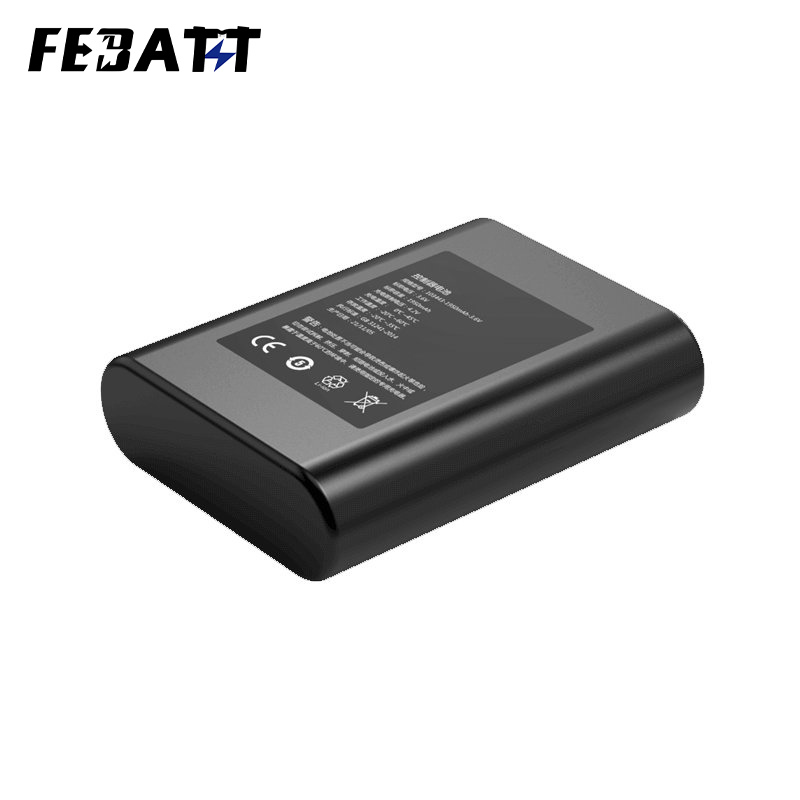

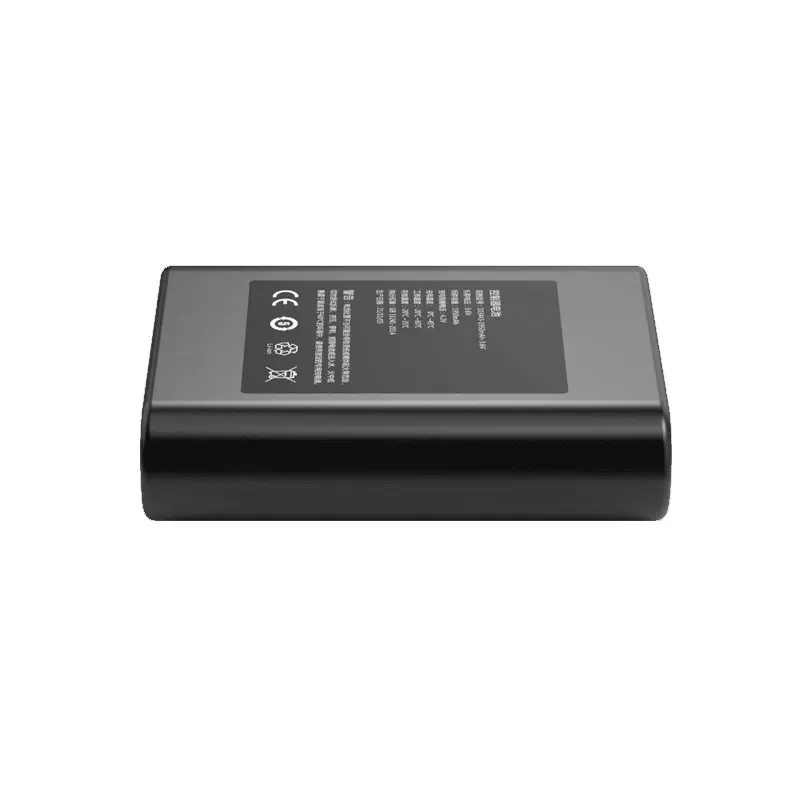

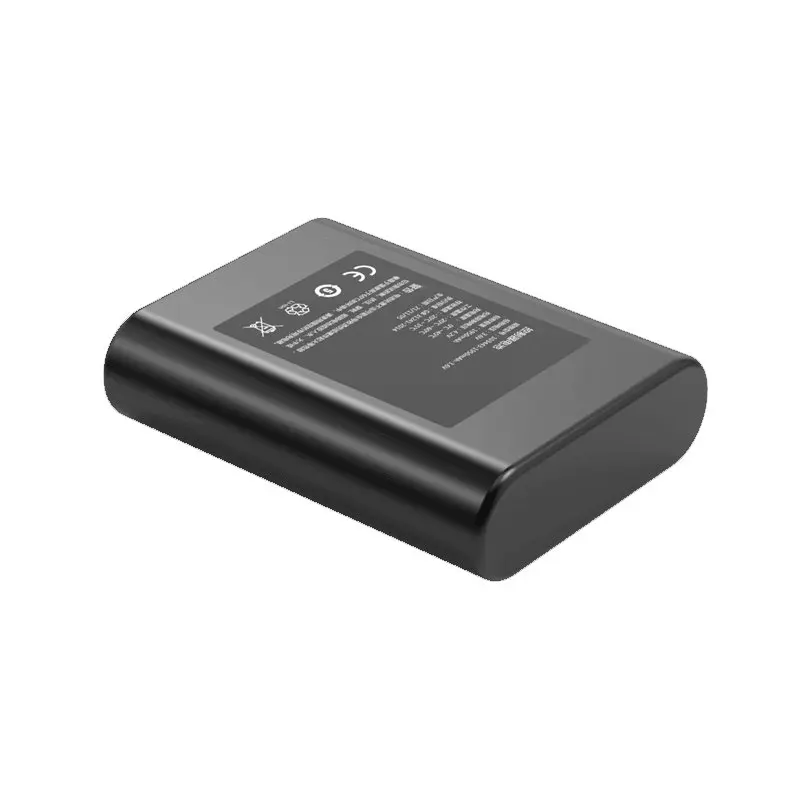

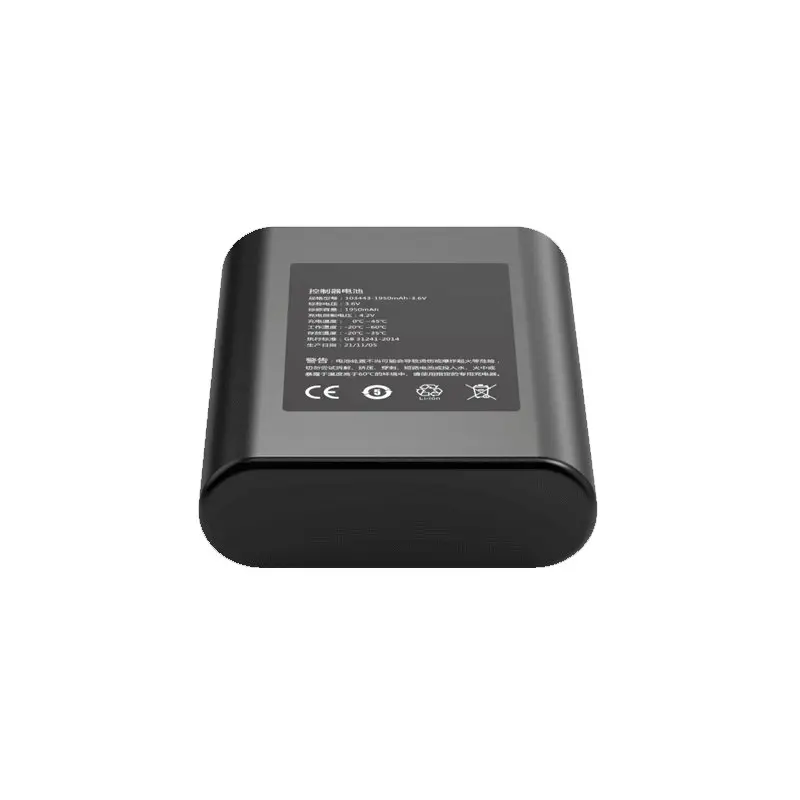

1950mAh 3.6V Explosion-proof Controller Battery: Reliable Power for Portable Hazardous-Area Devices
Product Introduction
The 3.6V Explosion-proof Controller Battery is a specialized energy solution engineered for portable controller devices in explosive atmospheres (e.g., oil/gas facilities, mining sites, industrial hazard zones). With a 1950mAh capacity and 3.6V nominal voltage, this battery combines explosion-proof design, precision safety electronics, and rugged packaging to power portable equipment reliably in high-risk environments. Whether enabling handheld controllers for industrial machinery, portable sensors in gas stations, or field devices in mining operations, the 3.6V Explosion-proof Controller Battery ensures stable, safe energy delivery for critical portable applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Battery Chemistry | Lithium (Explosion-proof Rated) |
| Cell Model | 103443-1S1P-1950mAh-3.6V |
| Nominal Voltage | 3.6V |
| Nominal Capacity | 1950mAh |
| Internal Resistance | ≤180mΩ |
| Charging Voltage | 4.2V |
| Charging Current | ≤2A |
| Discharging Current | ≤3A |
| Discharge Cut-off Voltage | 2.8V |
| Weight | 40g |
| Dimensions (Max) | 48×35×11mm |
| Operating Temperature | Charging: 0~45°C; Discharging: -20~60°C |
| Storage Temperature | -20~35°C |
| Packaging | Blue PVC Heat Shrink Film |
| Safety Standards | Explosion-proof Certified (Hazardous Area Use) |
Core Features
1. Explosion-proof Design for Portable Hazardous Use
The 3.6V Explosion-proof Controller Battery is purpose-built for portable operation in explosive environments (e.g., oil refineries, coal mines). Its engineering eliminates ignition risks, making it safe for handheld devices that interact with flammable gases or dust.
2. Precision BMS with Imported Protection Chips
Equipped with imported precision protection chips, this battery offers multi-layer safety: short-circuit protection, overcharge protection, over-discharge protection, overcurrent protection, and ESD protection. This ensures stable performance and reduces safety risks during transport or field deployment.
3. MOLEX Connector for Secure Electrical Contact
The battery utilizes a MOLEX plug output method, boosting electrical reliability during insertion—vital for portable controllers that require frequent connection/disconnection in rugged field conditions.
4. Rugged PVC Heat Shrink Packaging
Encased in blue PVC heat shrink film, the battery gains physical durability against impacts, moisture, and abrasion—perfect for portable devices used in harsh industrial settings.
Application Scenarios
The 3.6V Explosion-proof Controller Battery powers:
- Portable Industrial Controllers: Handheld devices for operating machinery in oil/gas plants, where explosion risks are present.
- Field Monitoring Equipment: Portable sensors or data loggers in mining sites, gas stations, or chemical facilities.
- Emergency Response Tools: Rugged handheld communicators or diagnostic devices used in hazardous-area rescue operations.
